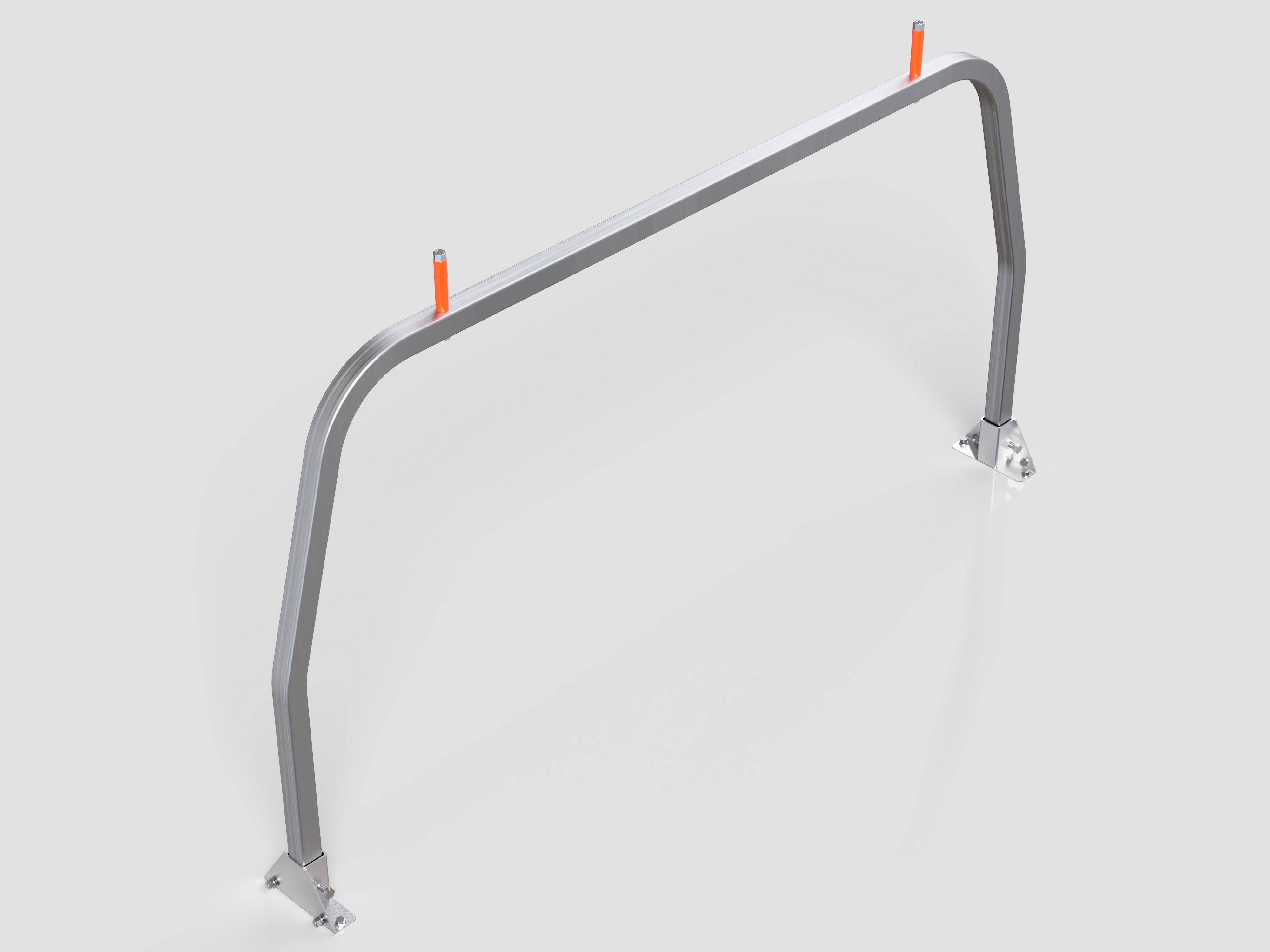

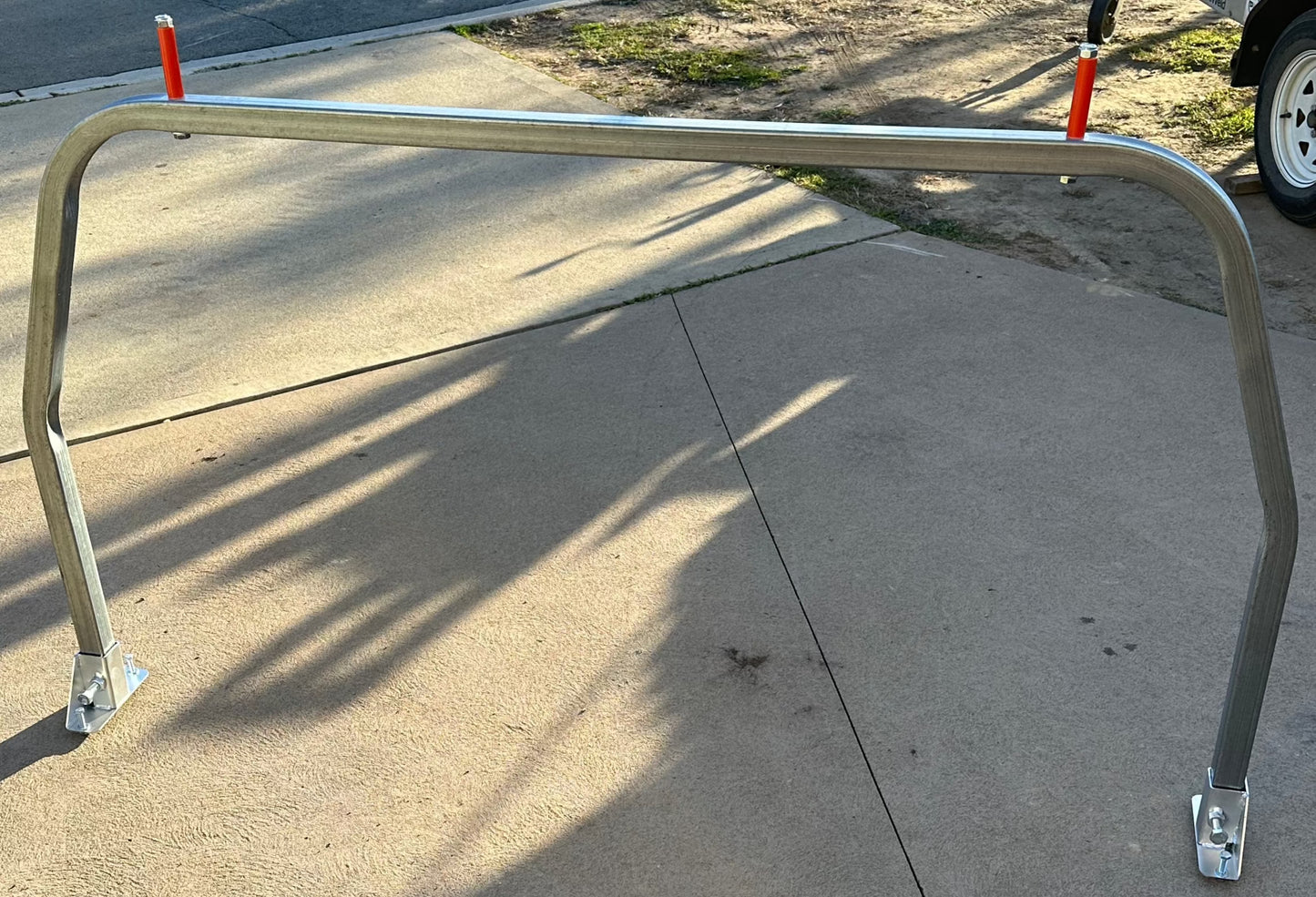

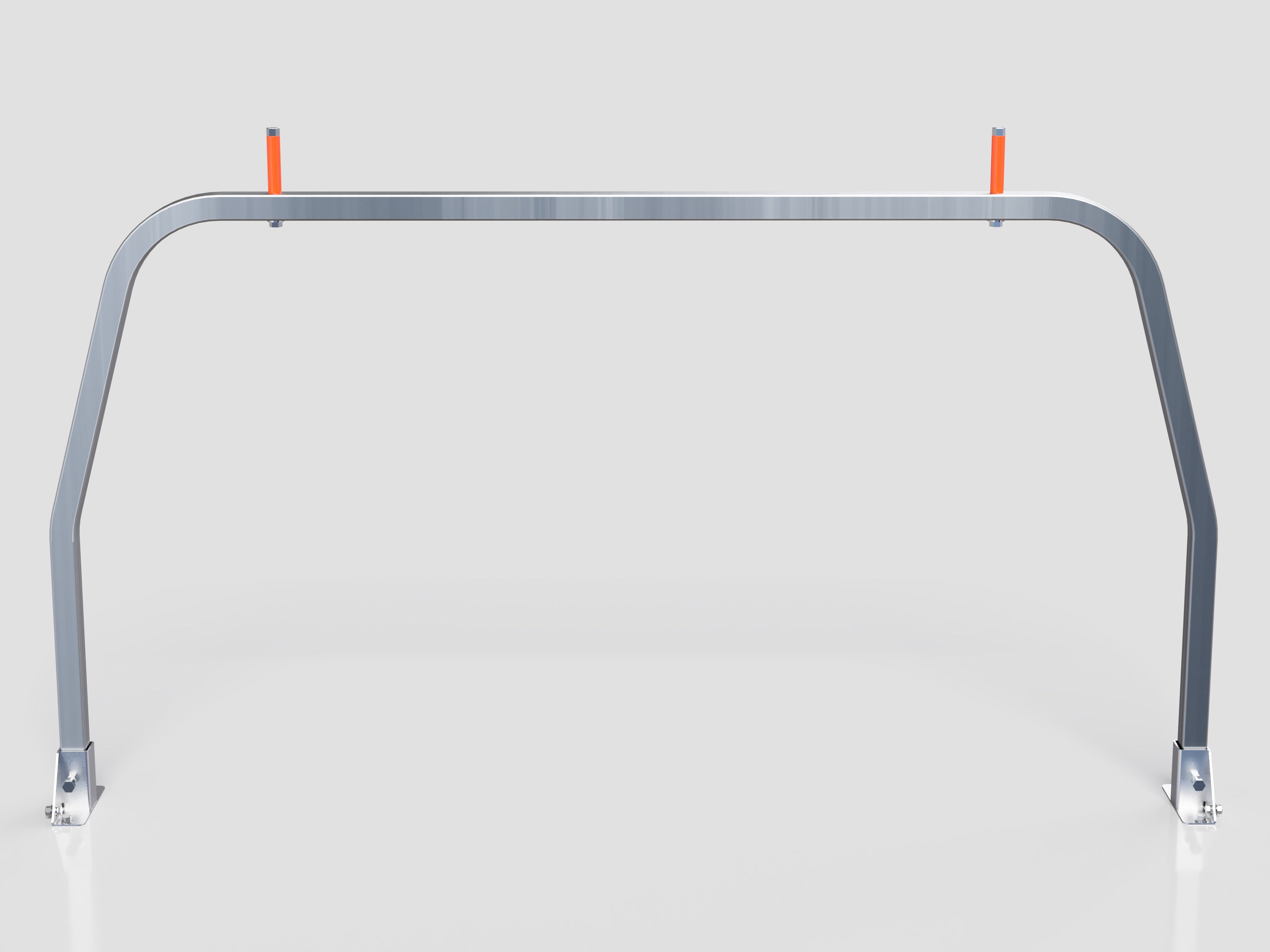

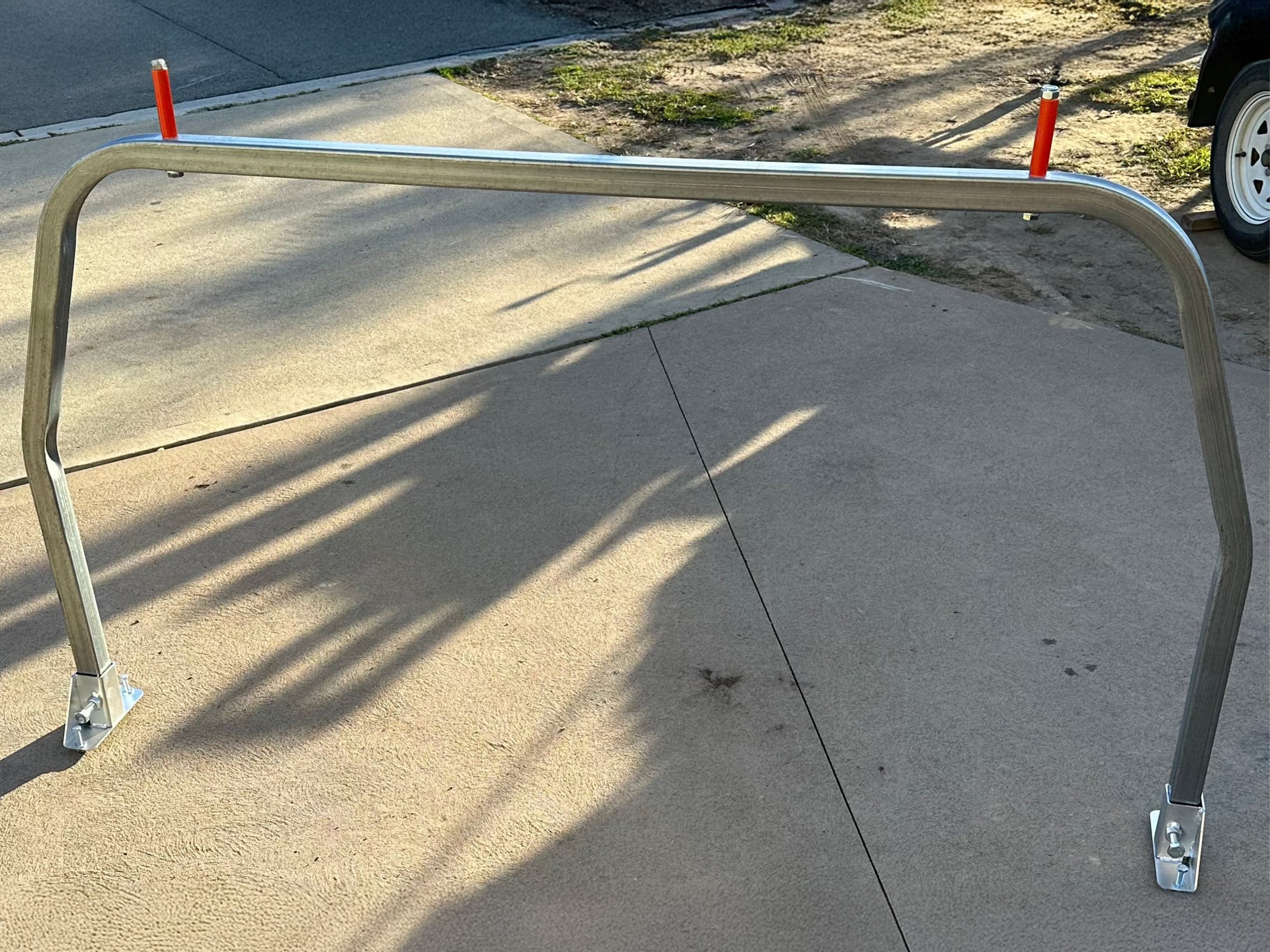

40x40 Square Australian-Made Universal Ladder Rack

Our products are made for real life hard work — not light duty. If it bends, or fails under normal use, we’ll replace it or refund you, your choice. Ship it back to us for inspection, and if it’s a genuine failure, we’ll stand behind it 100%.

Australian owned and operated, designed and made in Australia using Australian steel. We manufacture weld-together kits for off-road and work vehicles — from rock sliders and ladder racks to tub racks, headboards, and more. Supplied cut and notched, ready for home or workshop fabrication.

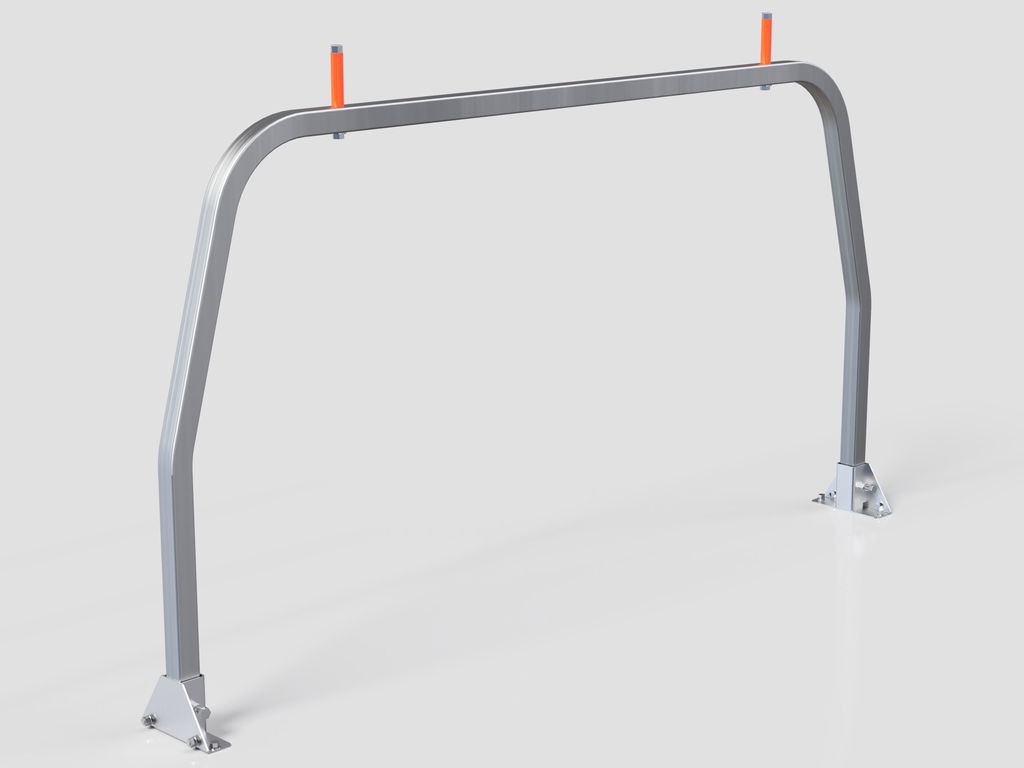

✅ Product Details

Suitable for rooftop tents and heavy-duty loads

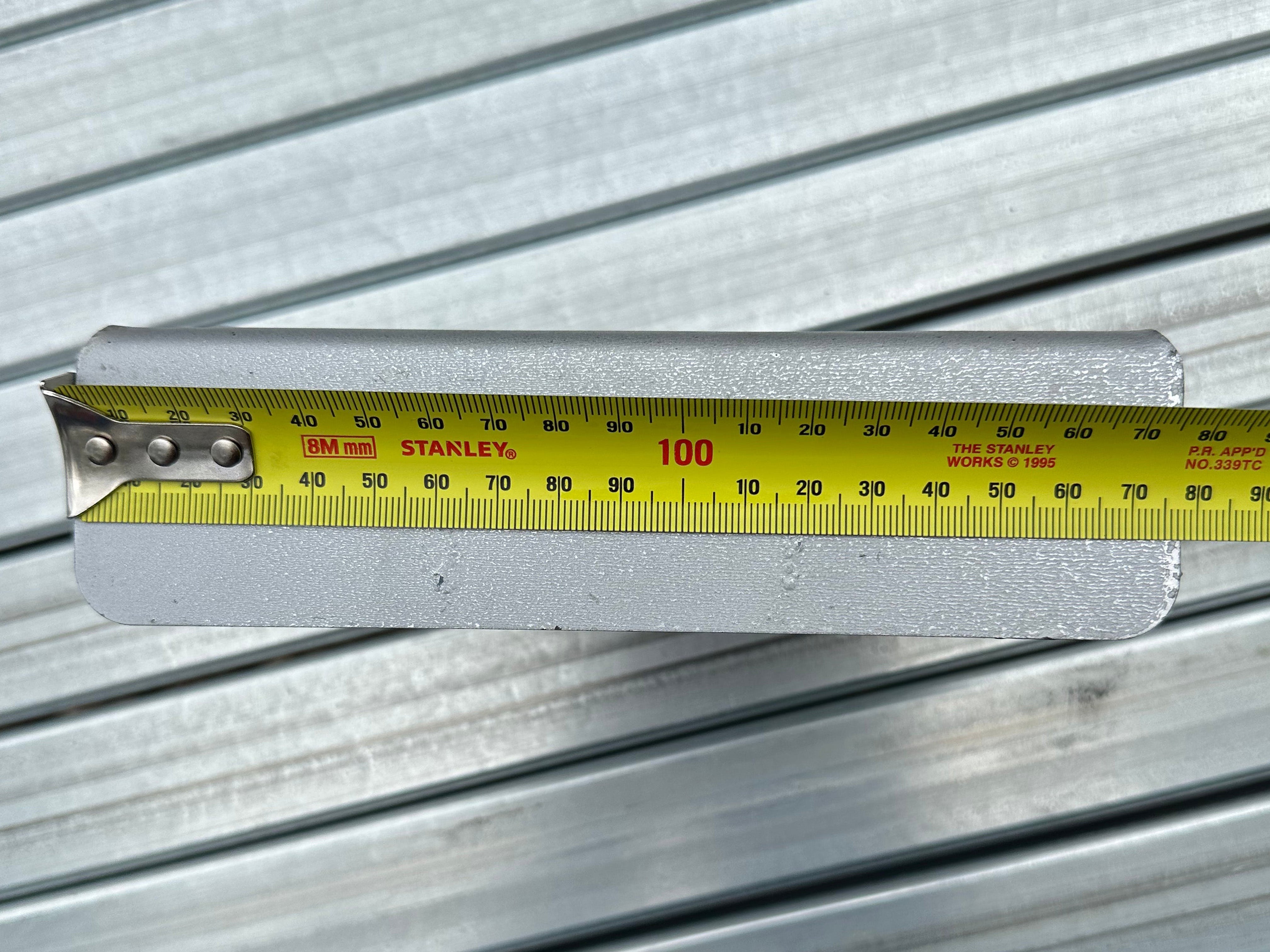

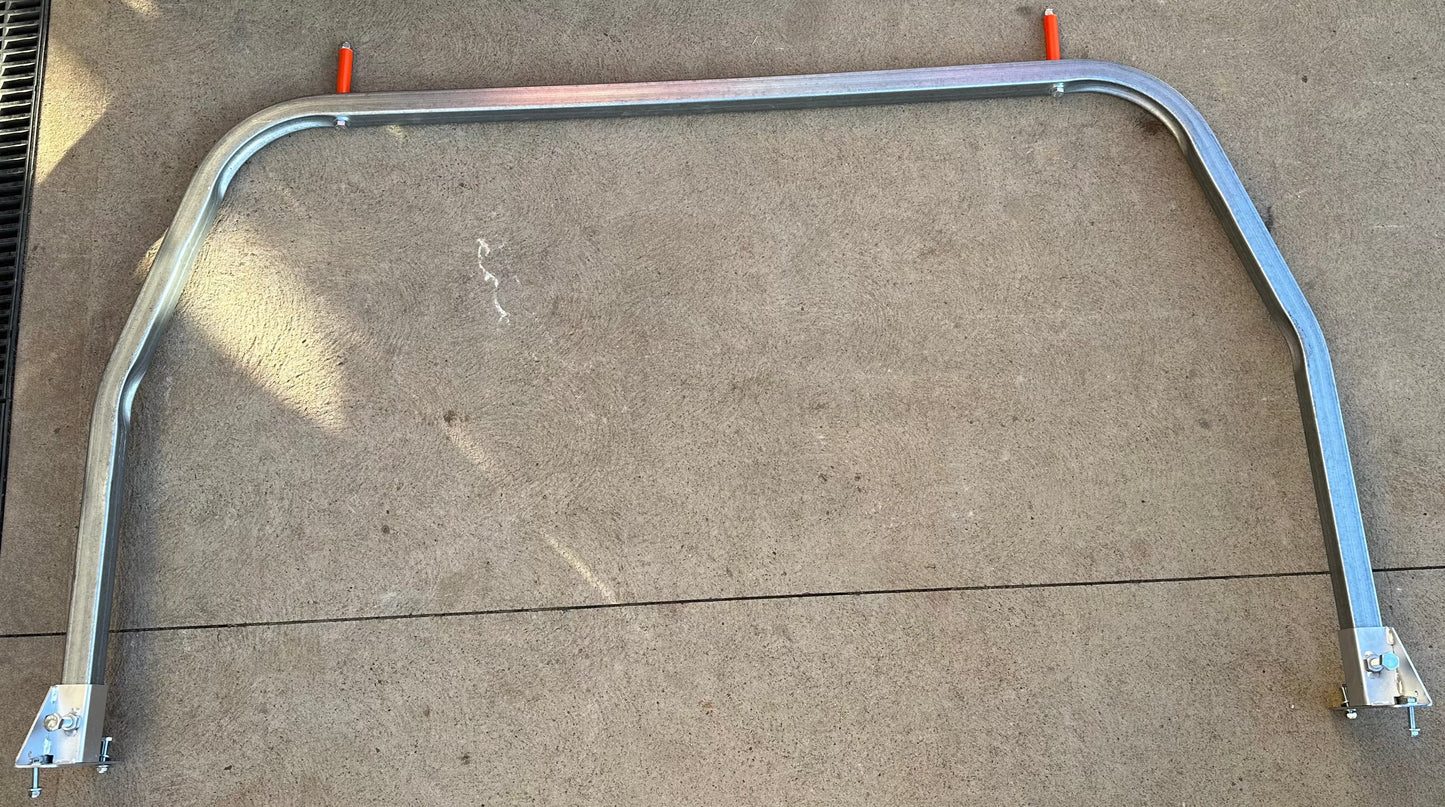

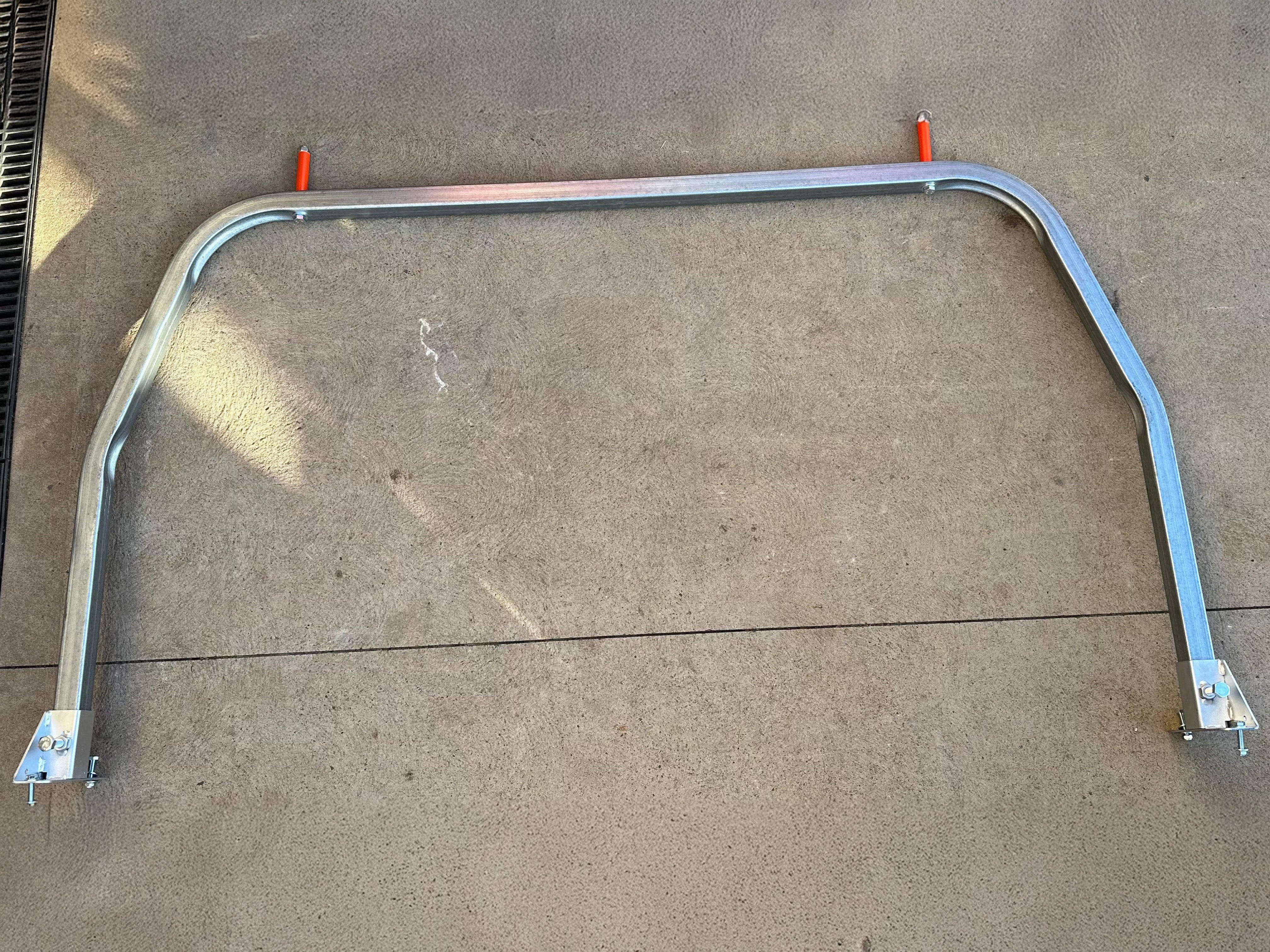

Made from 40 × 40 mm galvanised steel square section
- Available in 2 mm, 3 mm, or 4 mm wall thickness options
Height options: 950 mm or 1100 mm (can be cut down to match your headboard height)
Load ratings (per rack):
- 2 mm — load rated to 400 kg (evenly distributed, correctly installed)
- 3 mm — load rated to 550 kg (evenly distributed, correctly installed)
- 4 mm — load rated to 700 kg (evenly distributed, correctly installed)
All fasteners included

📦 Kit Includes

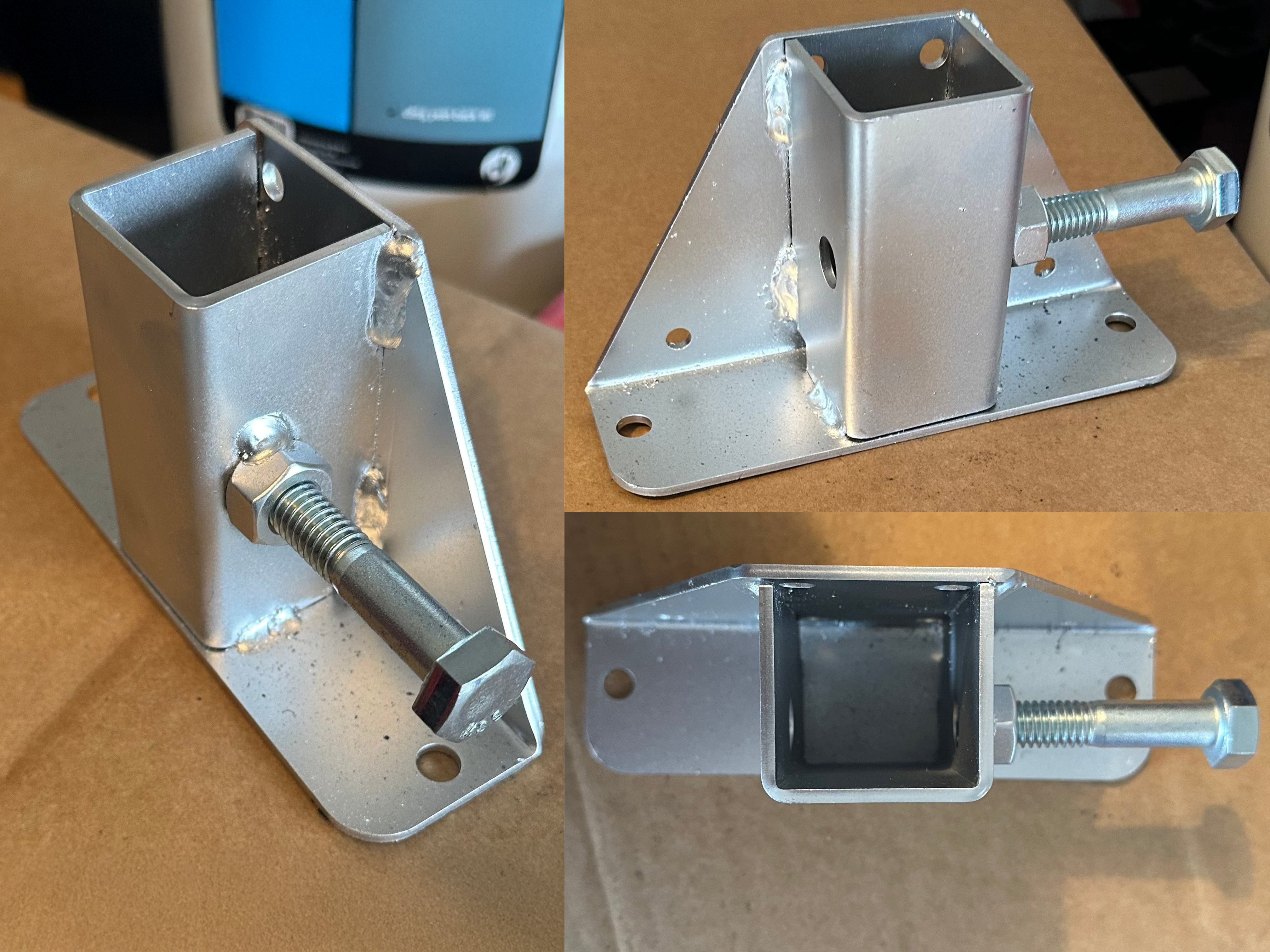

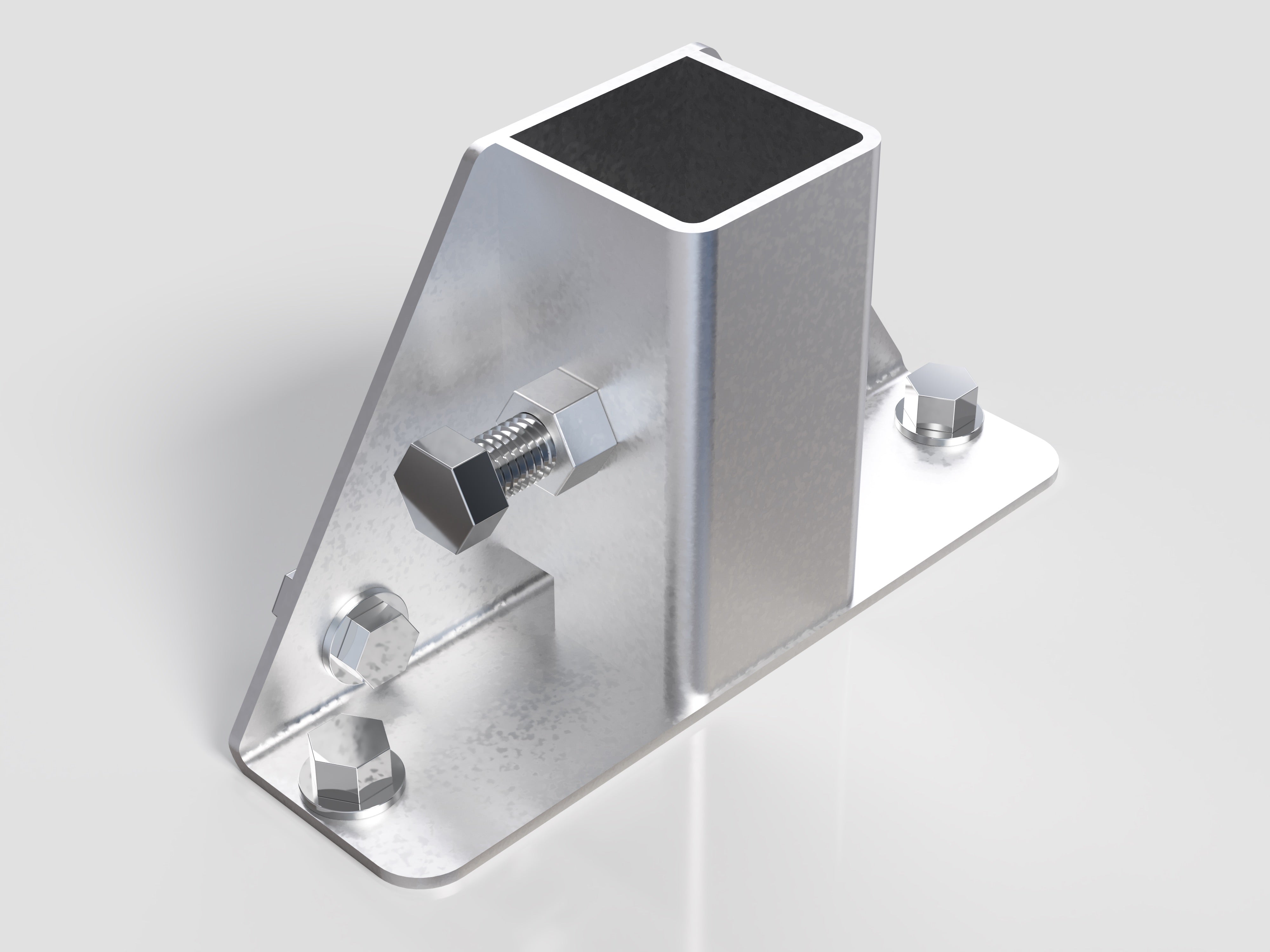

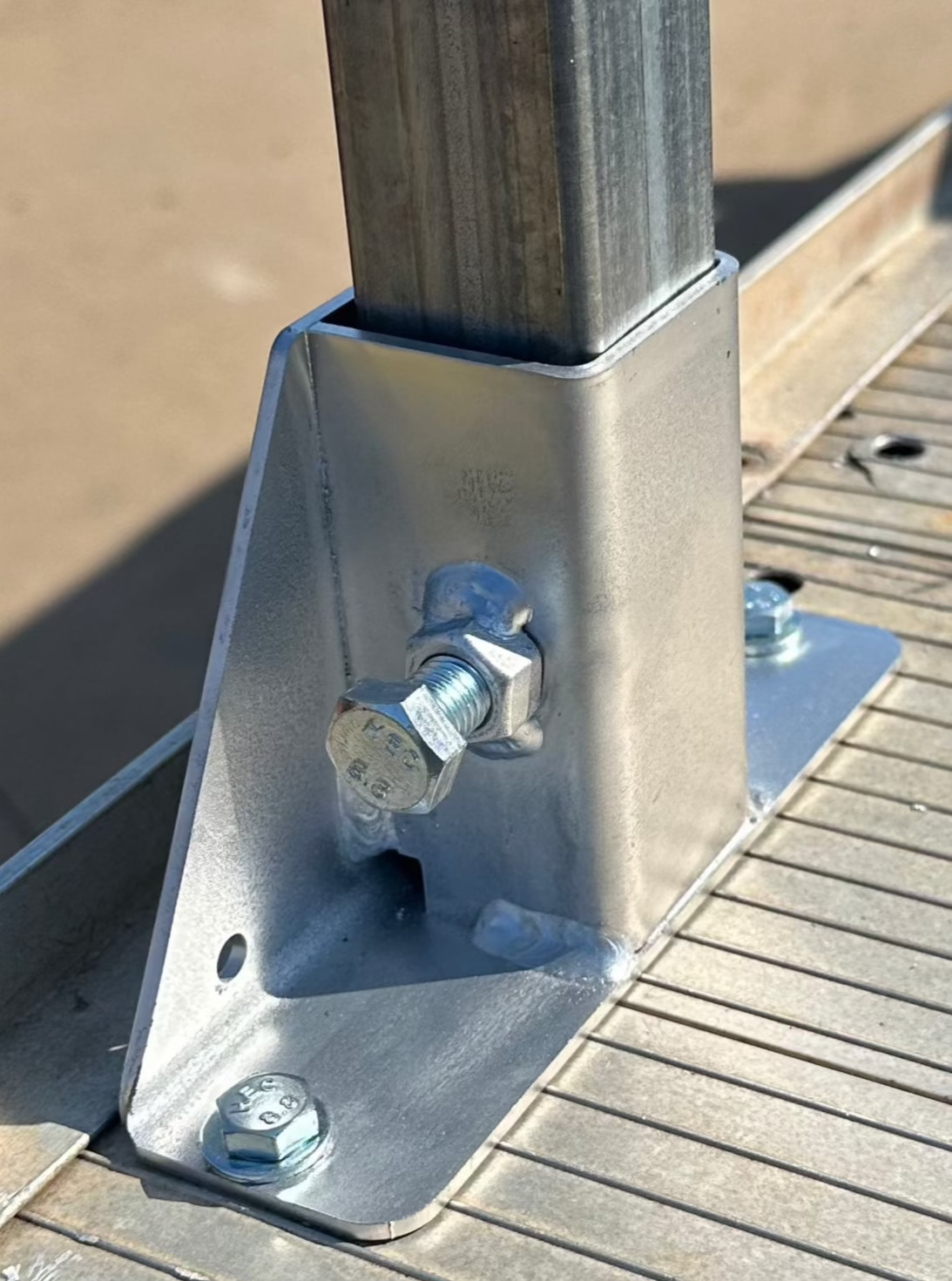

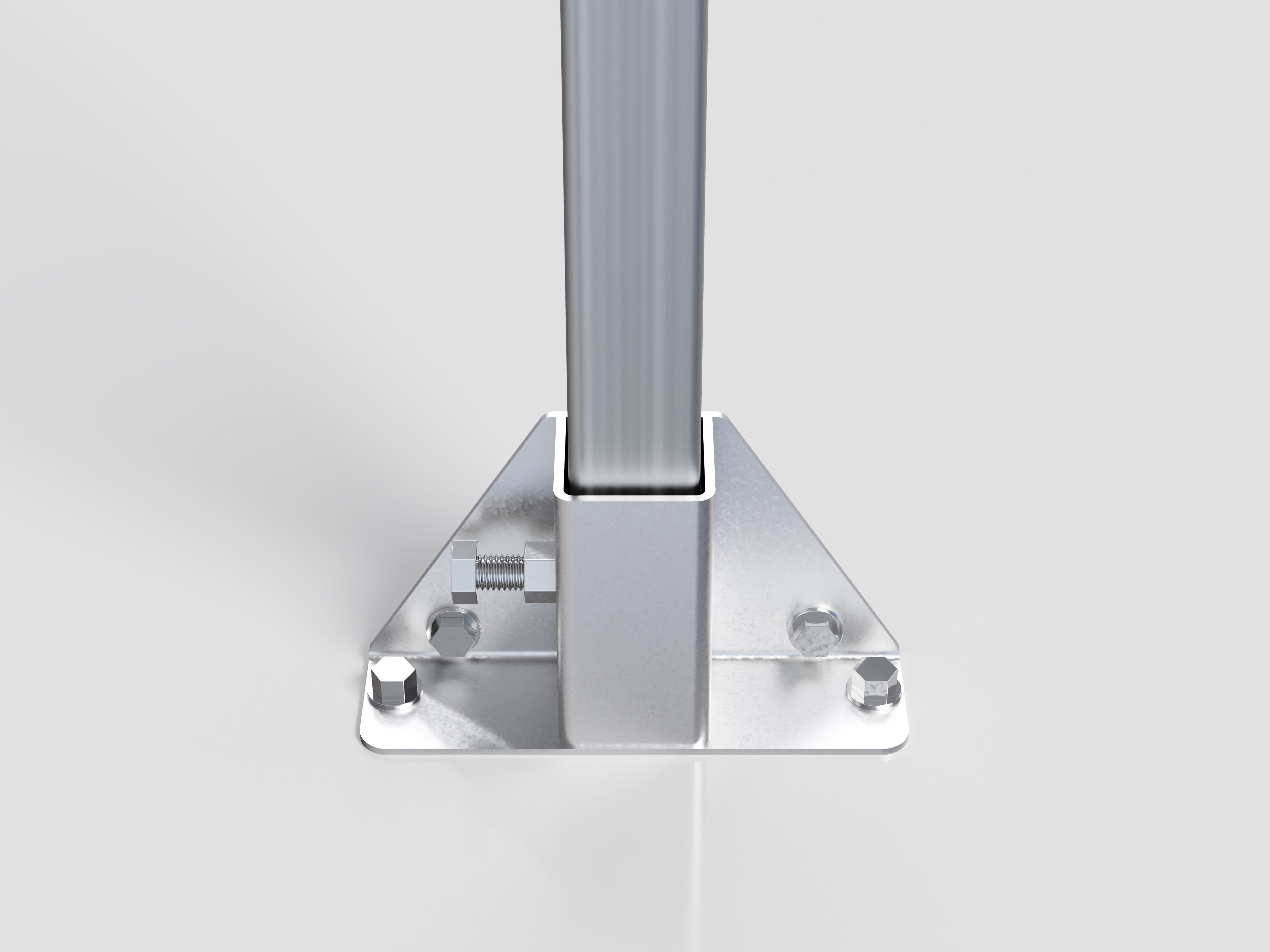

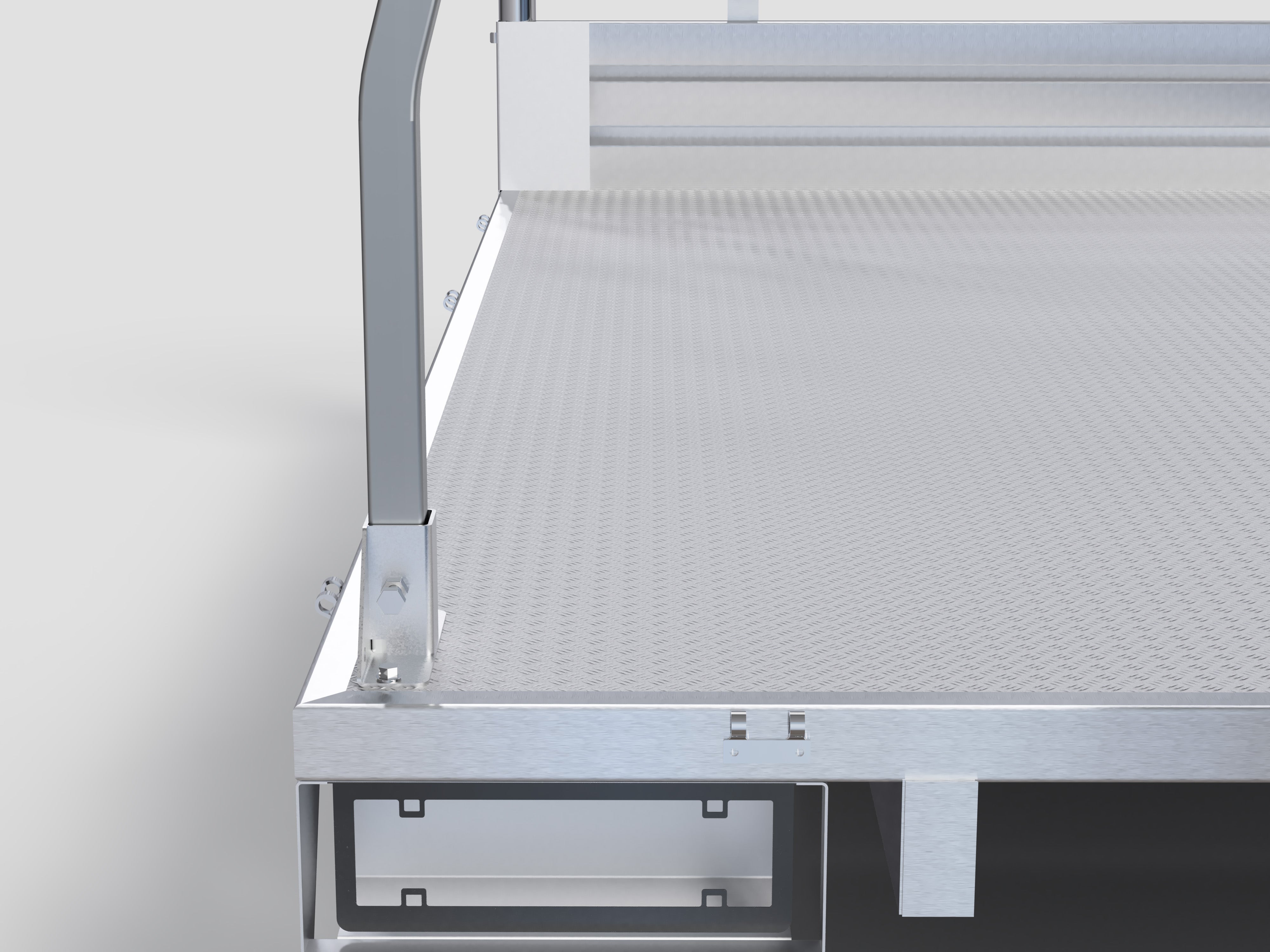

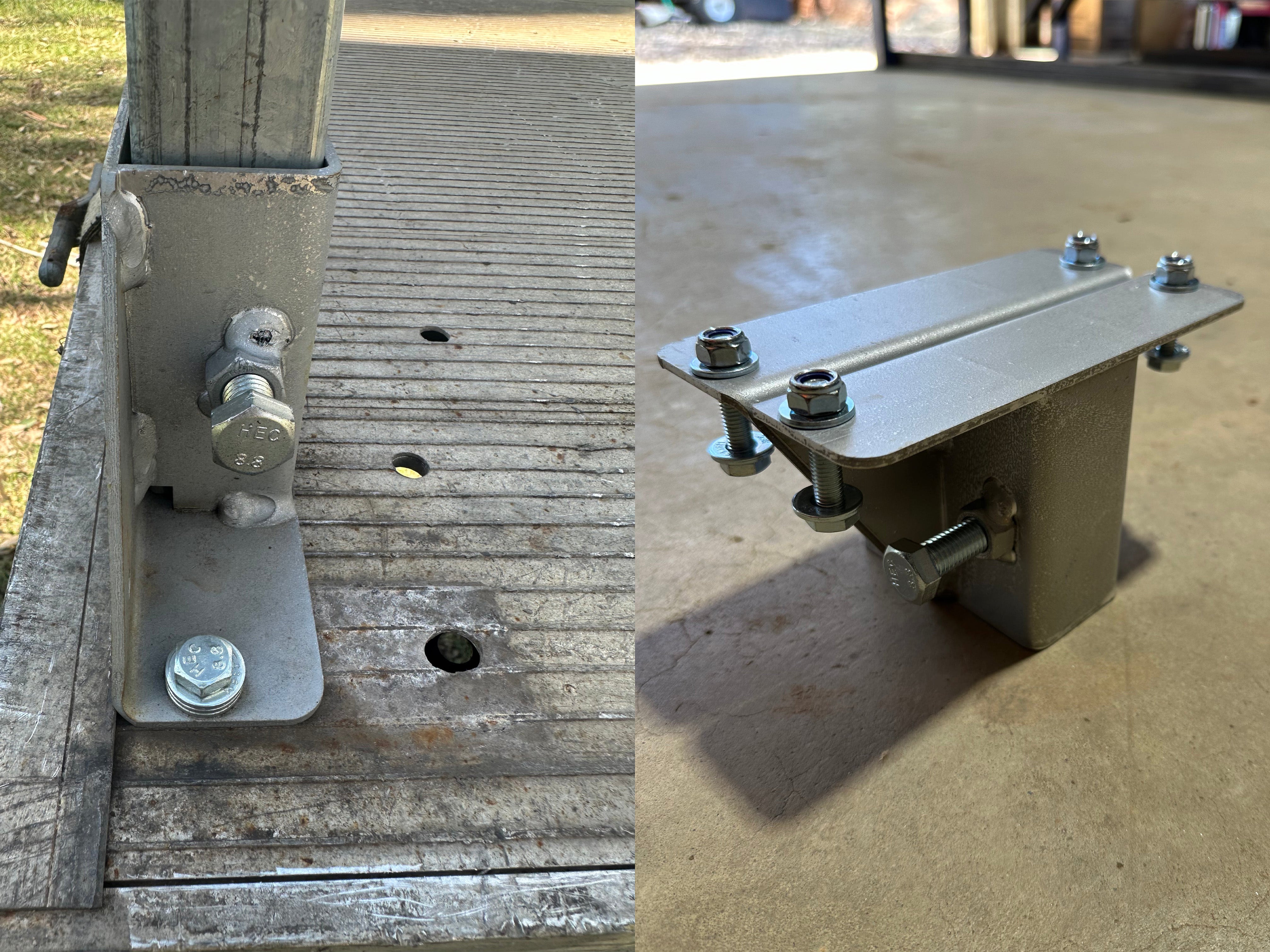

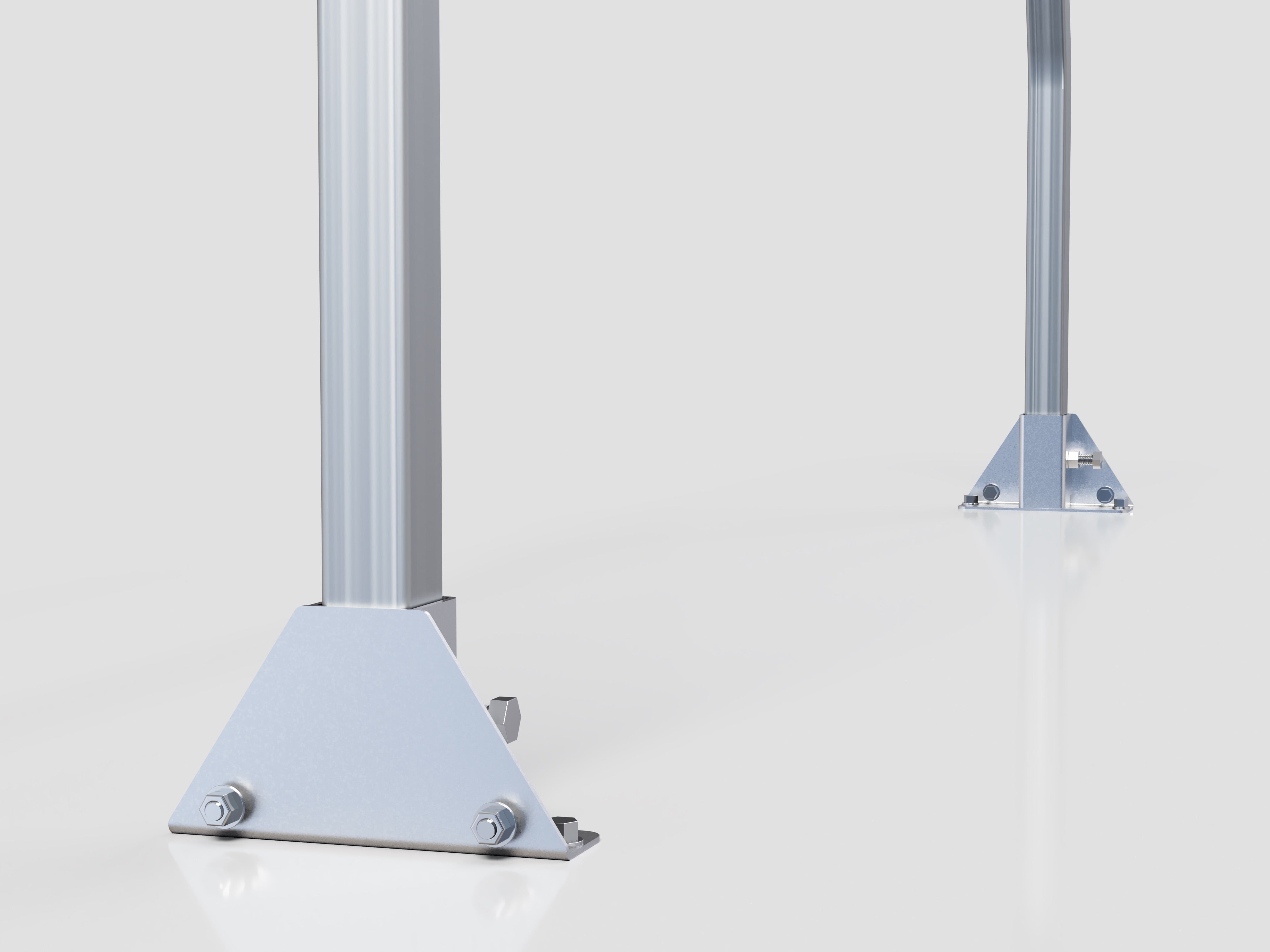

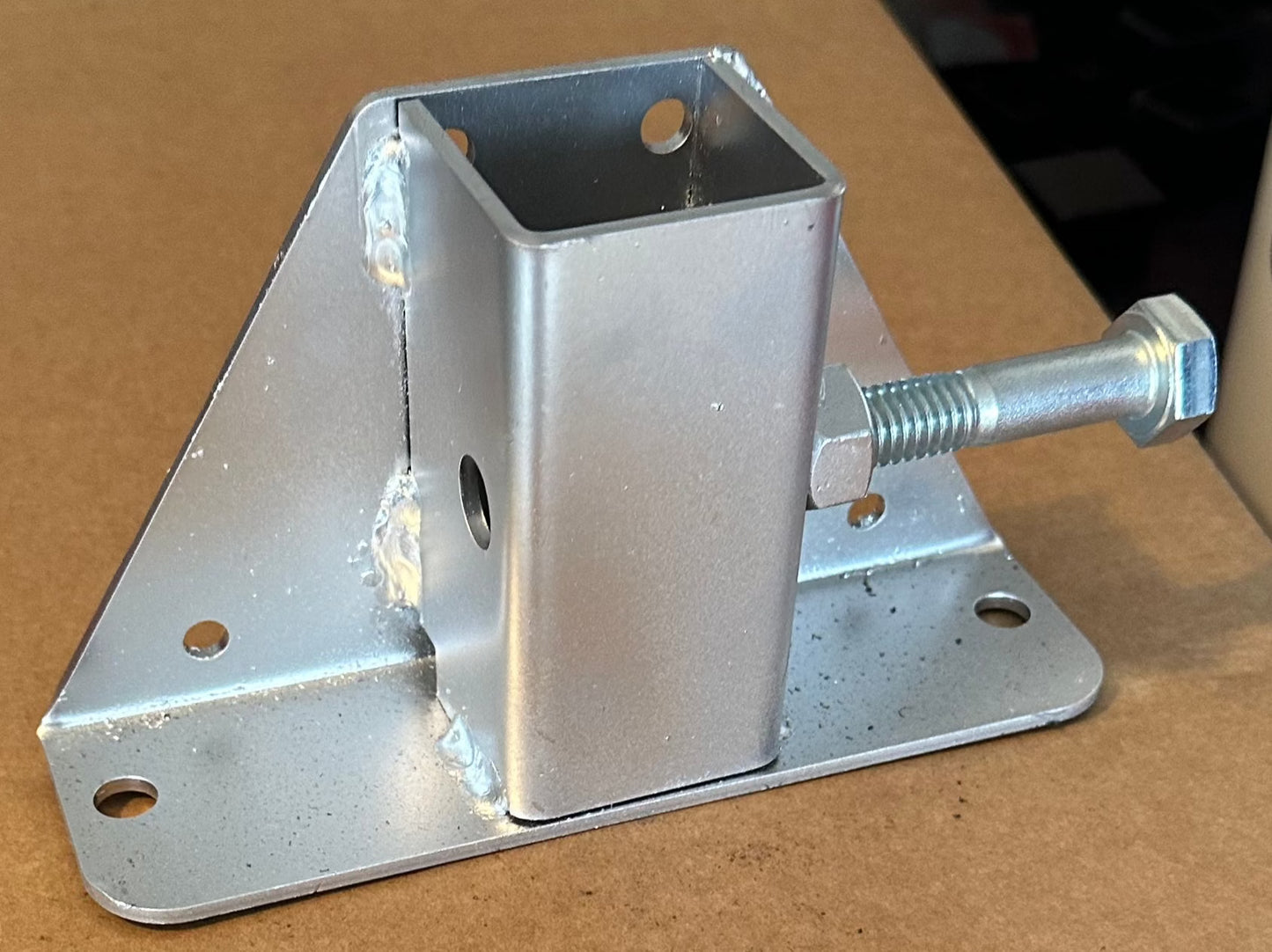

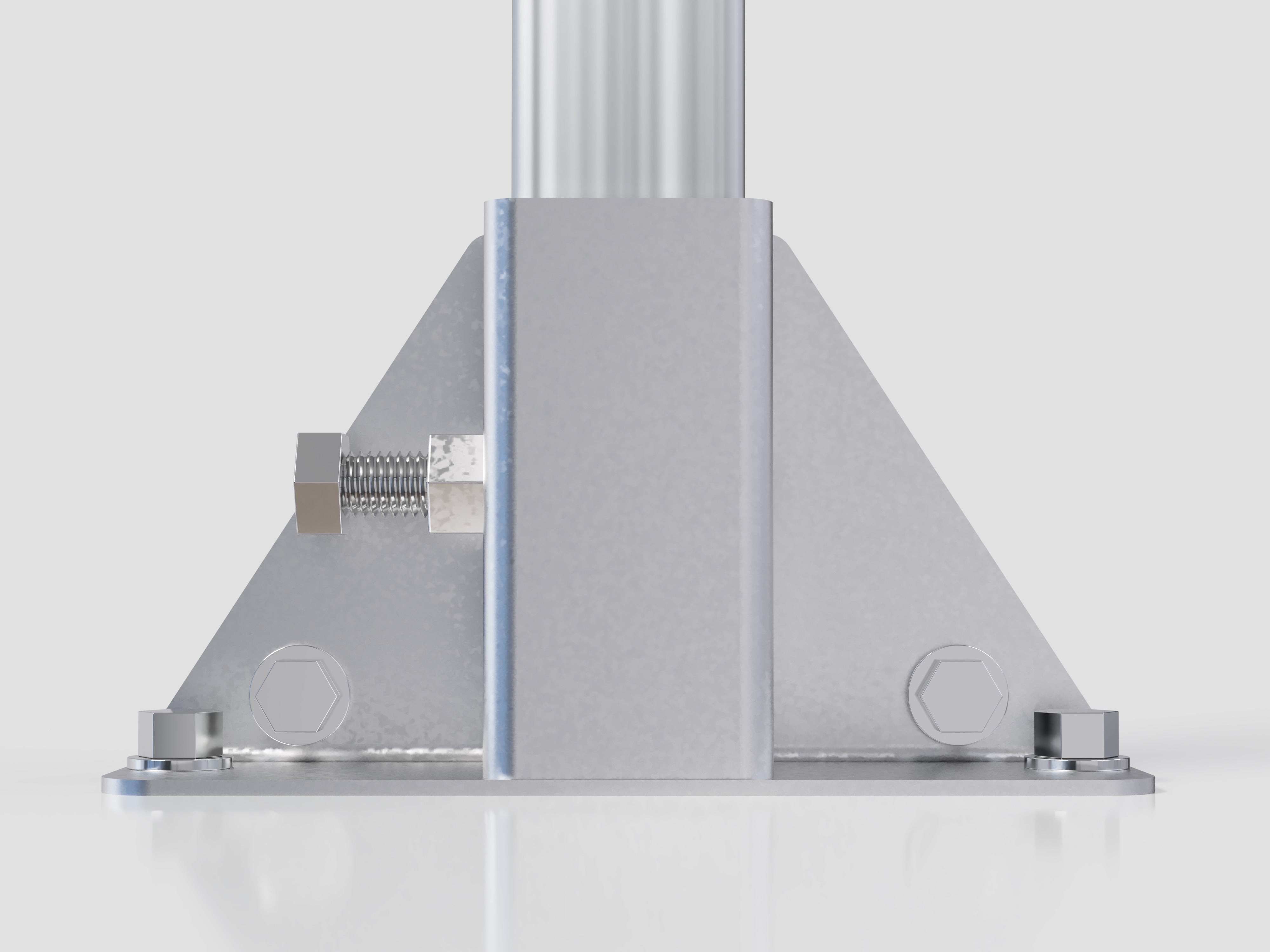

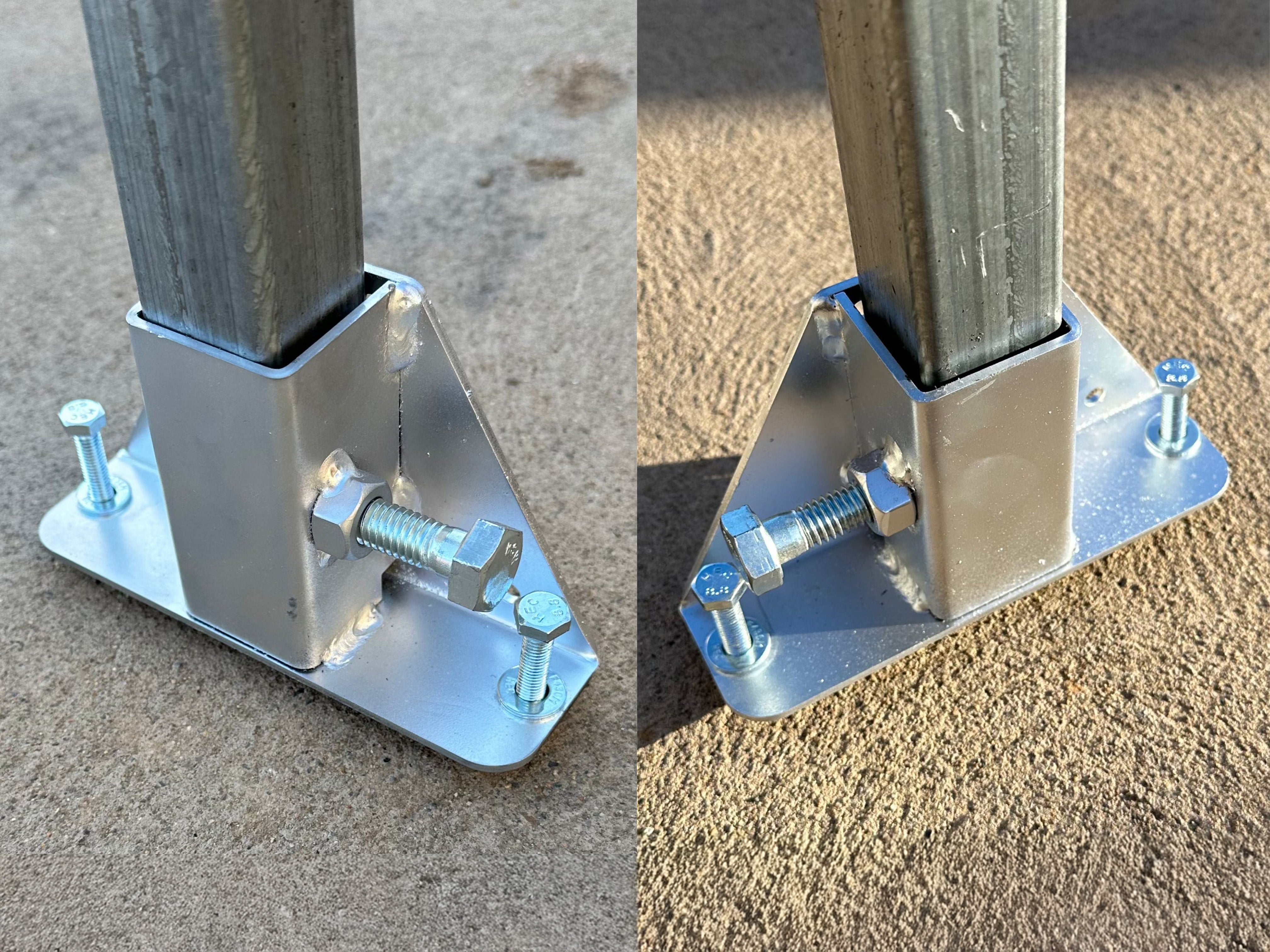

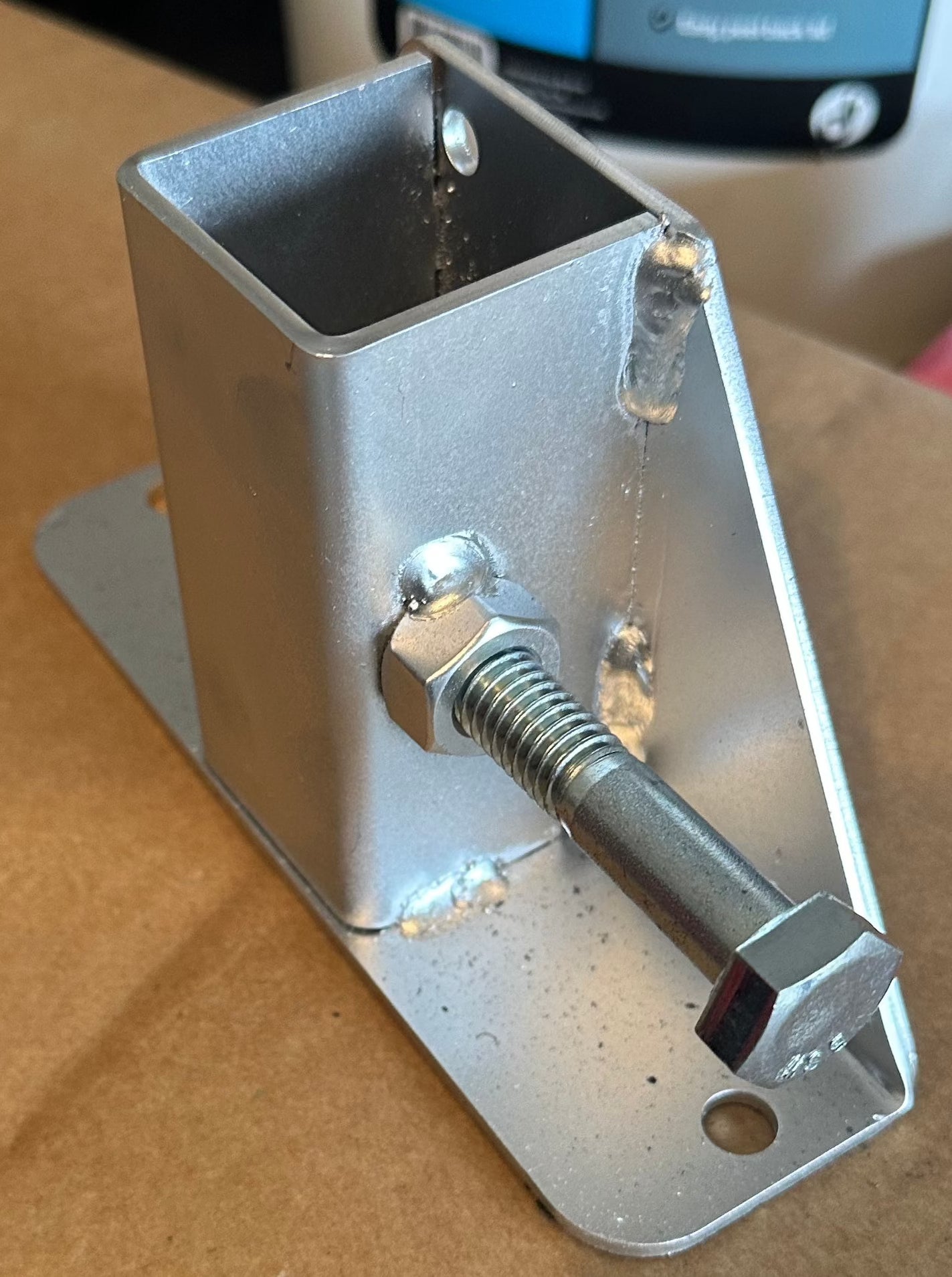

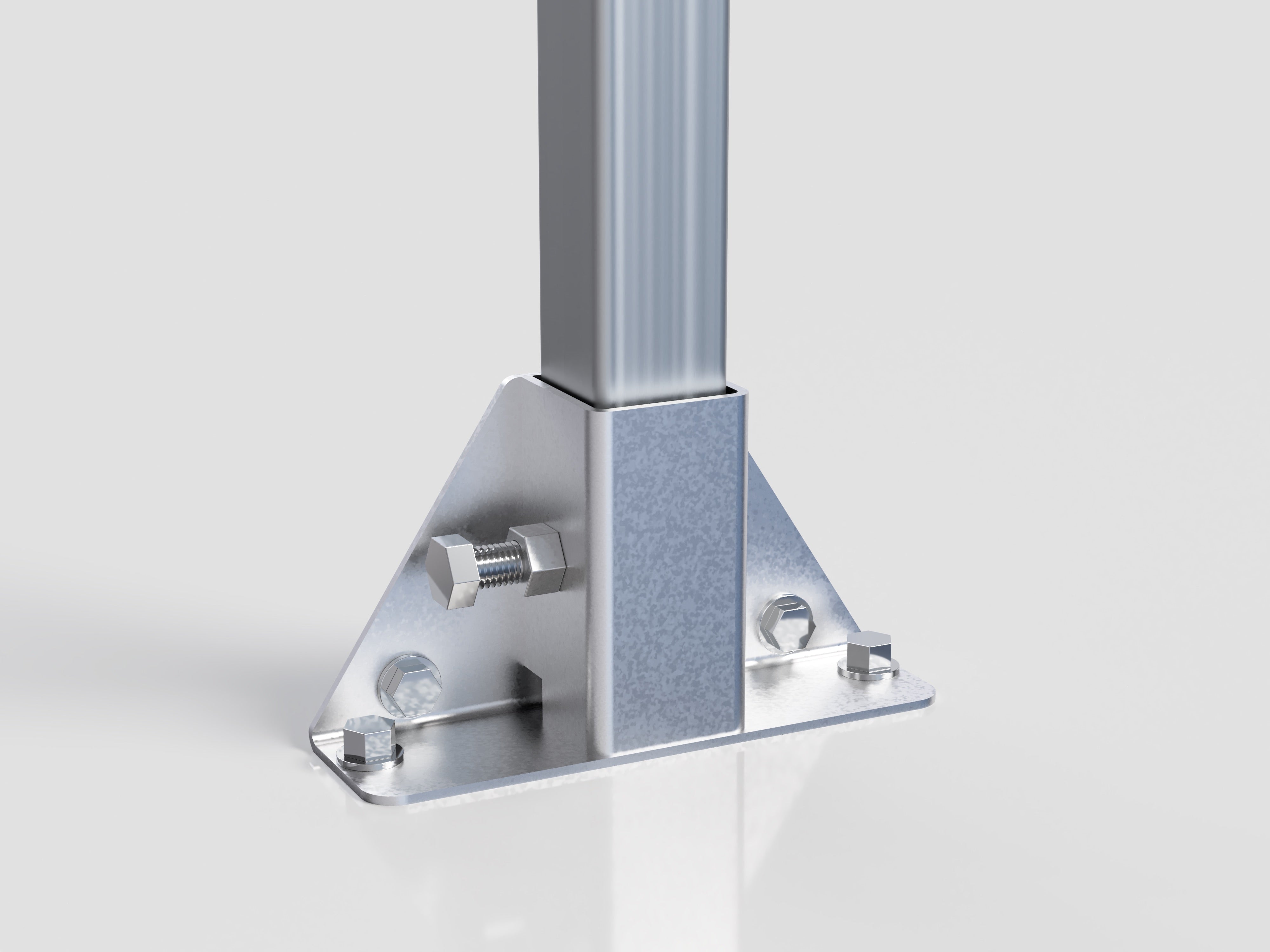

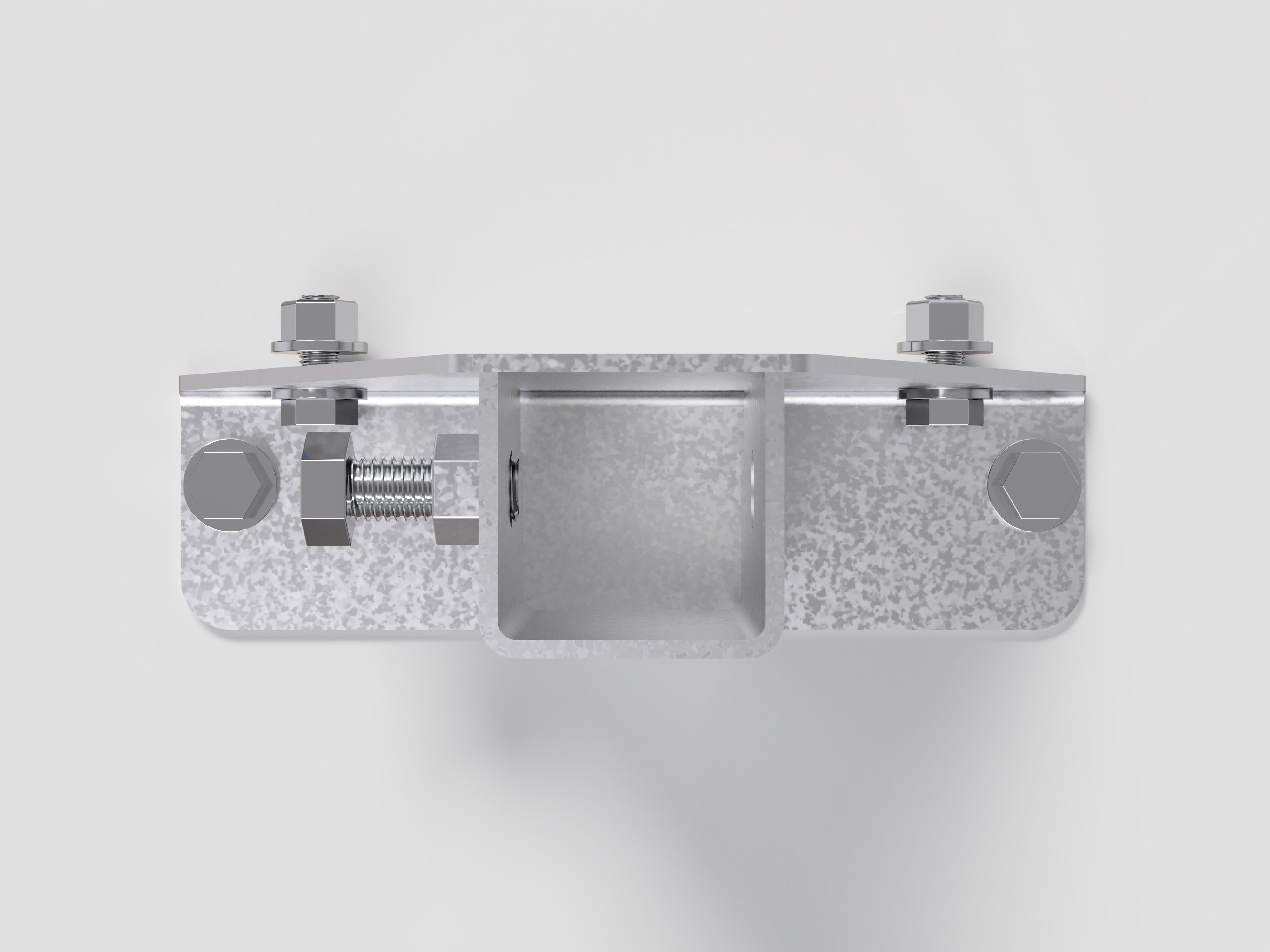

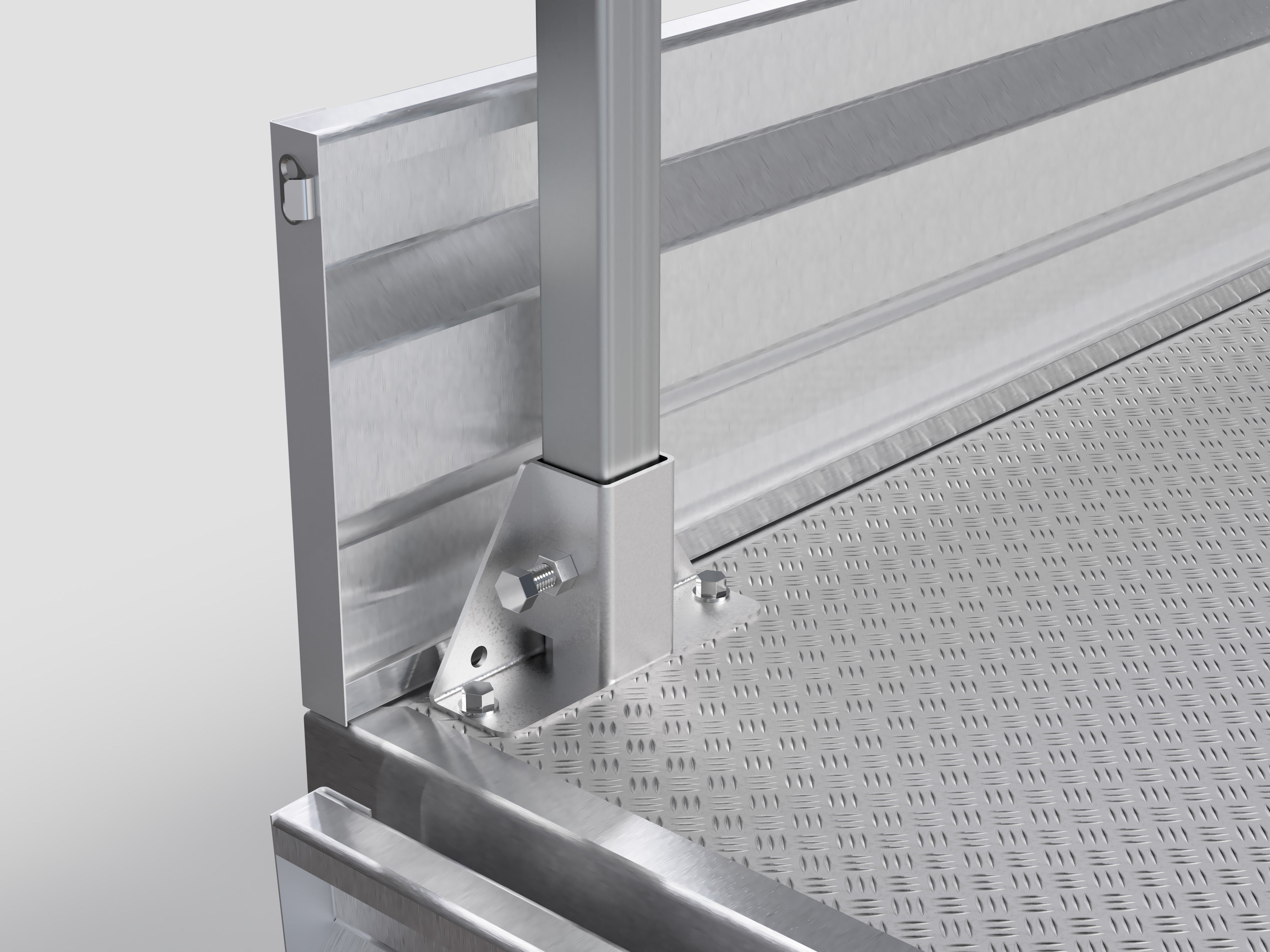

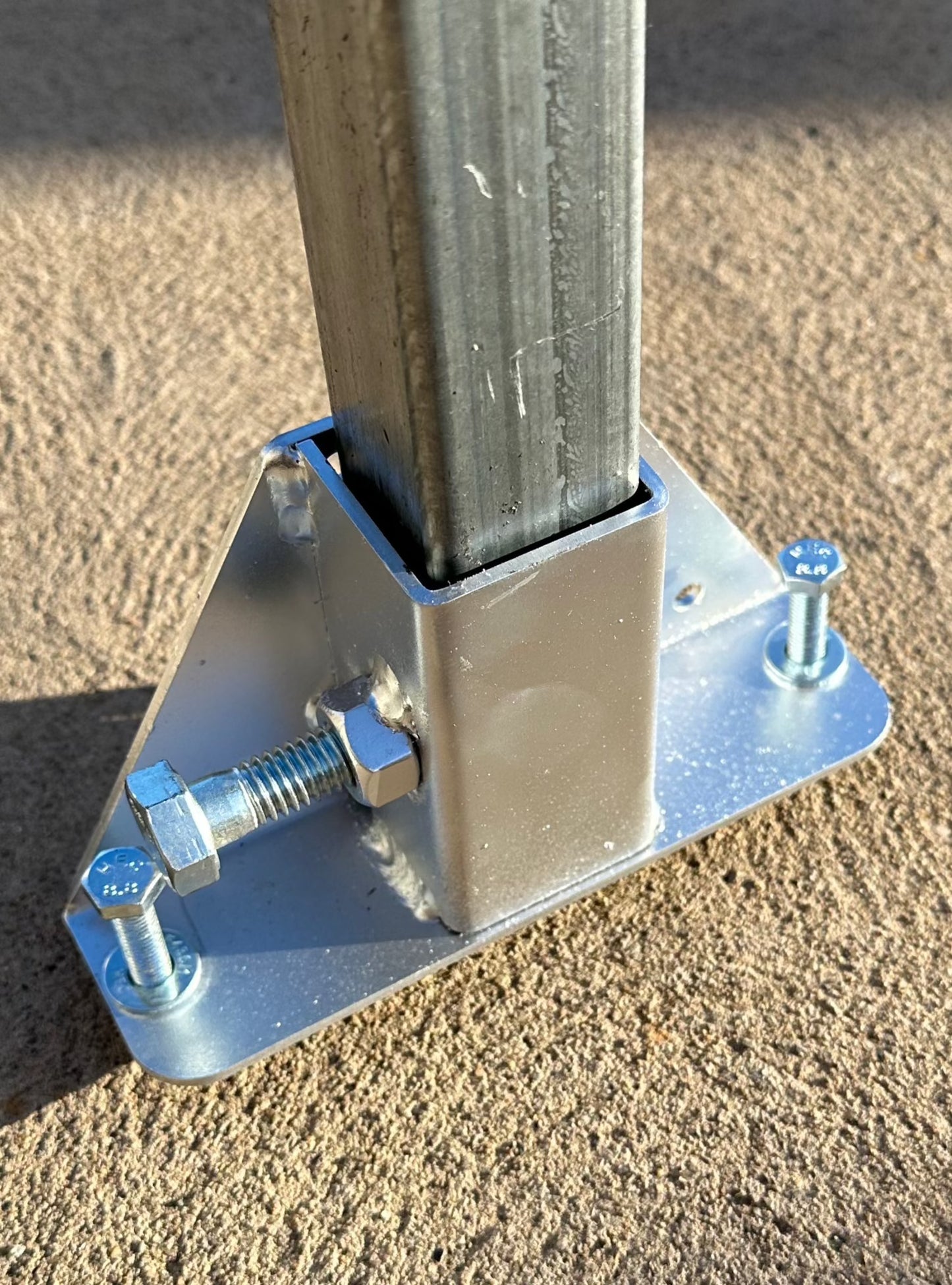

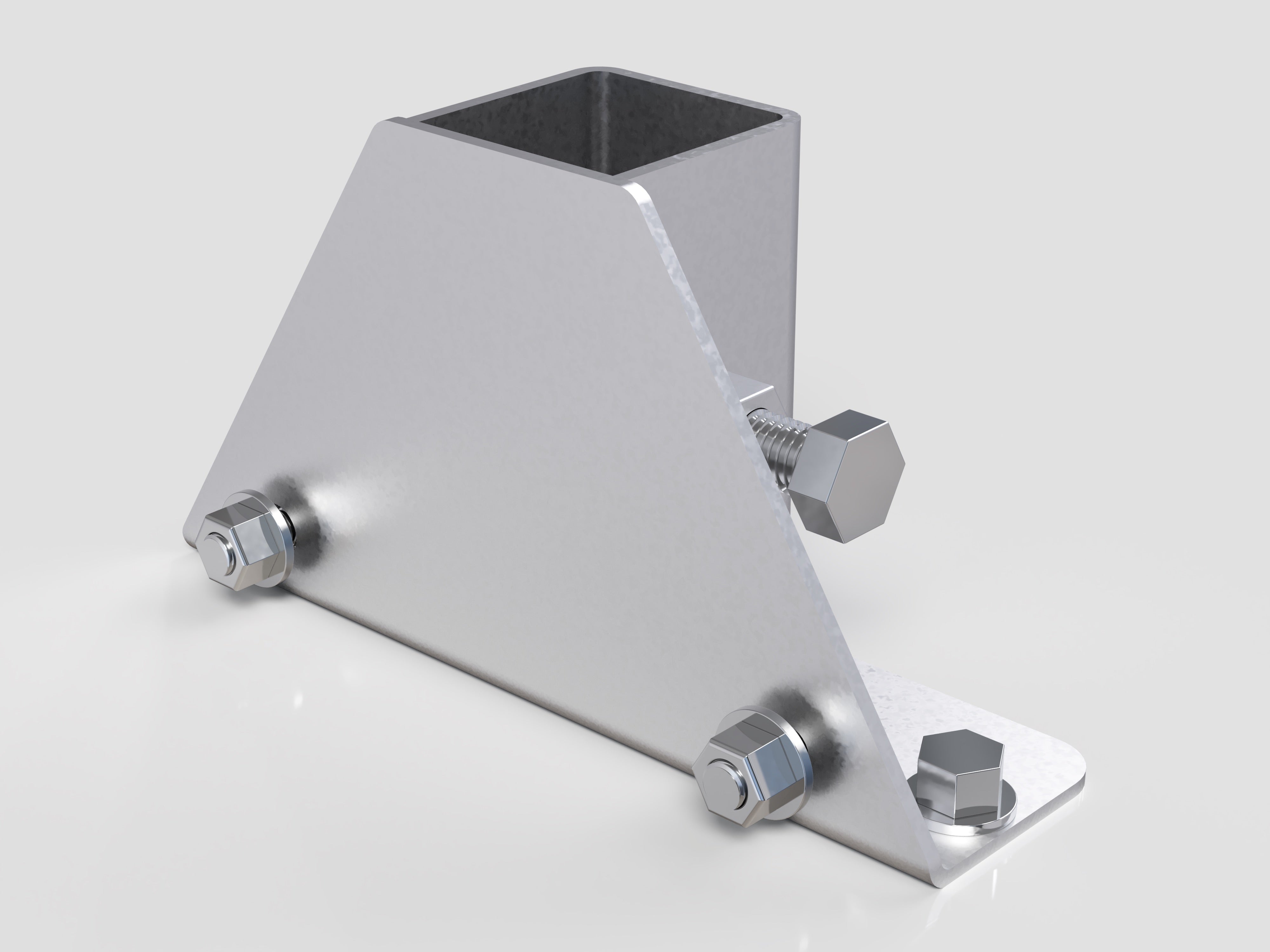

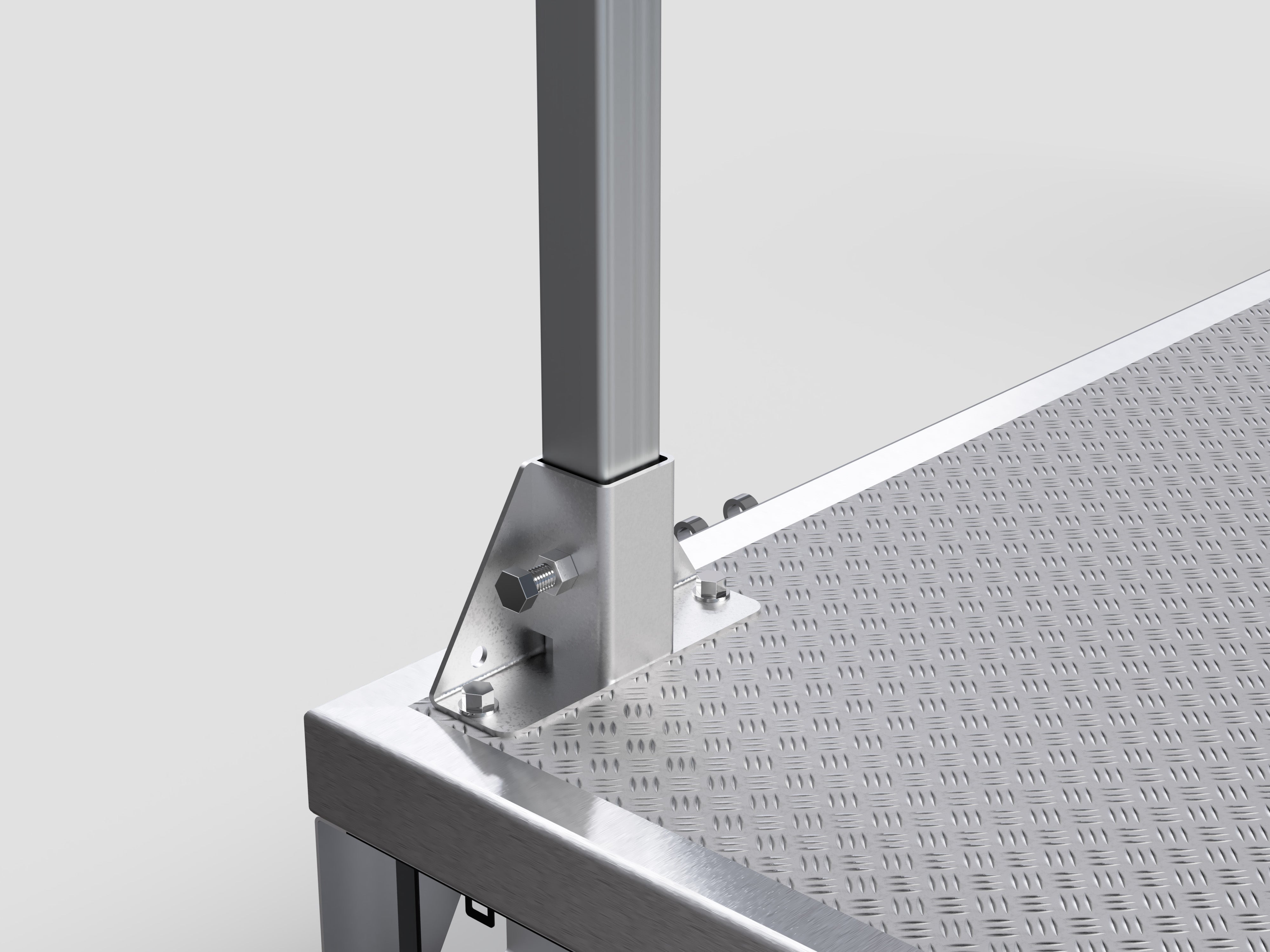

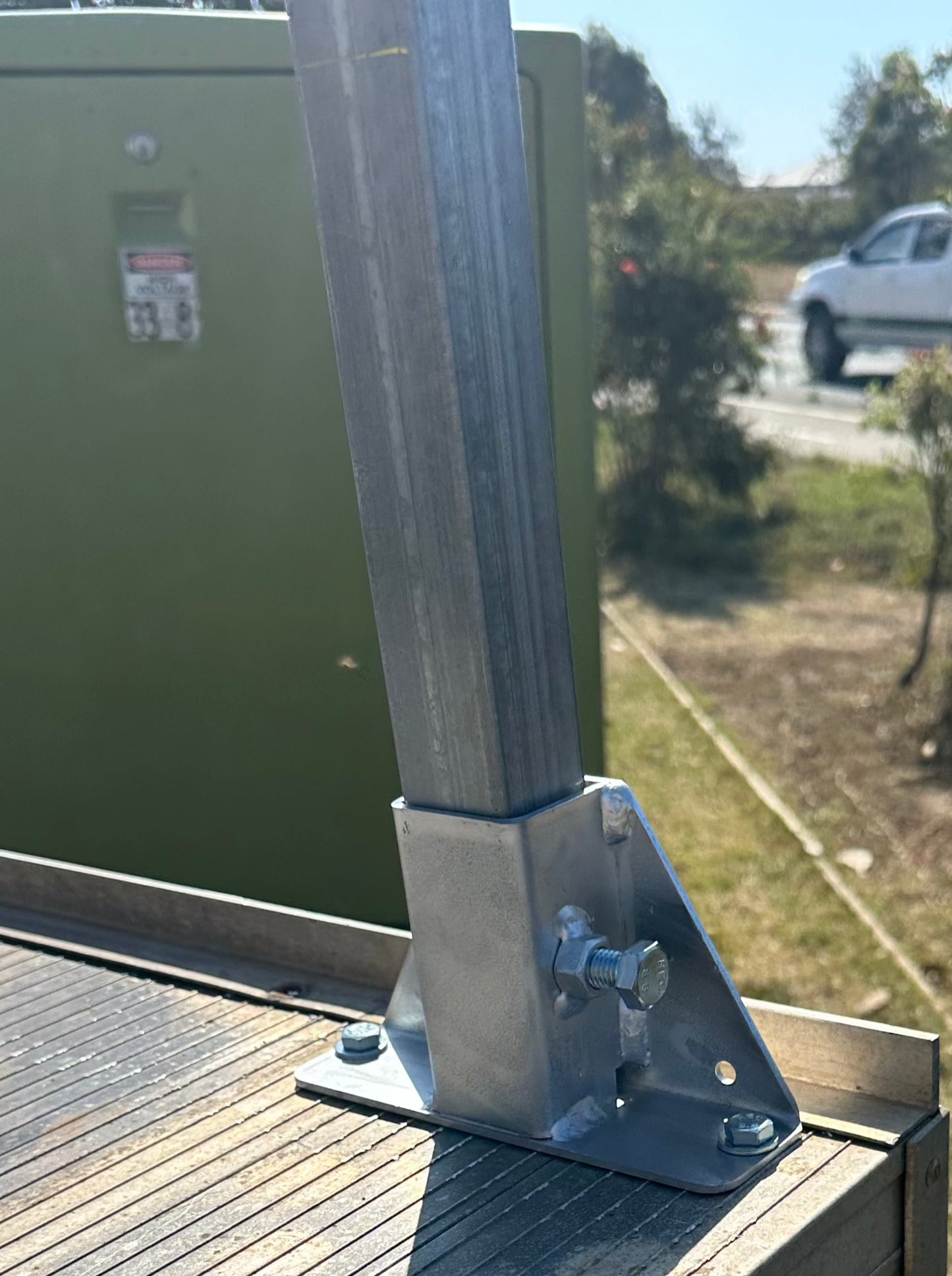

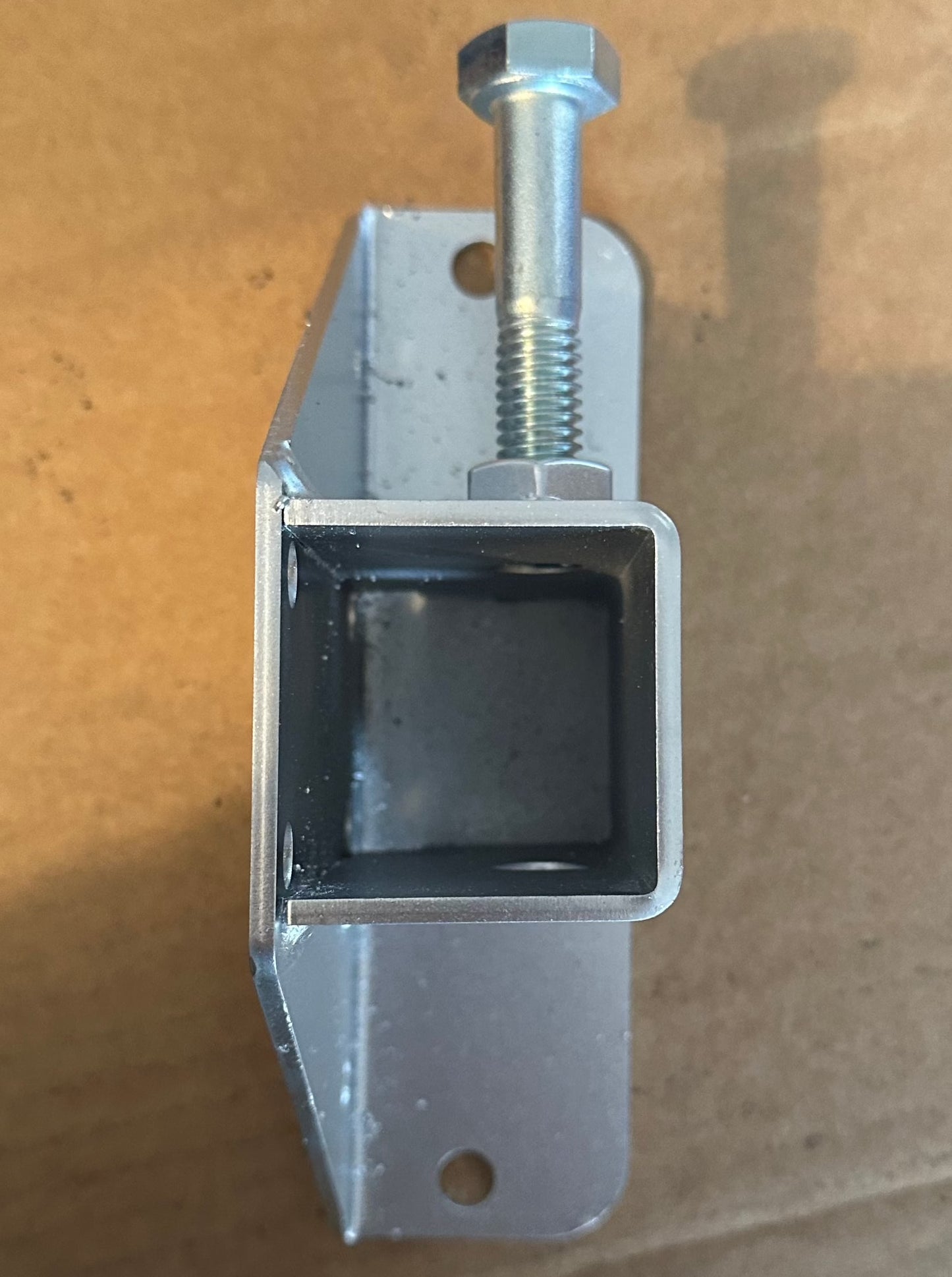

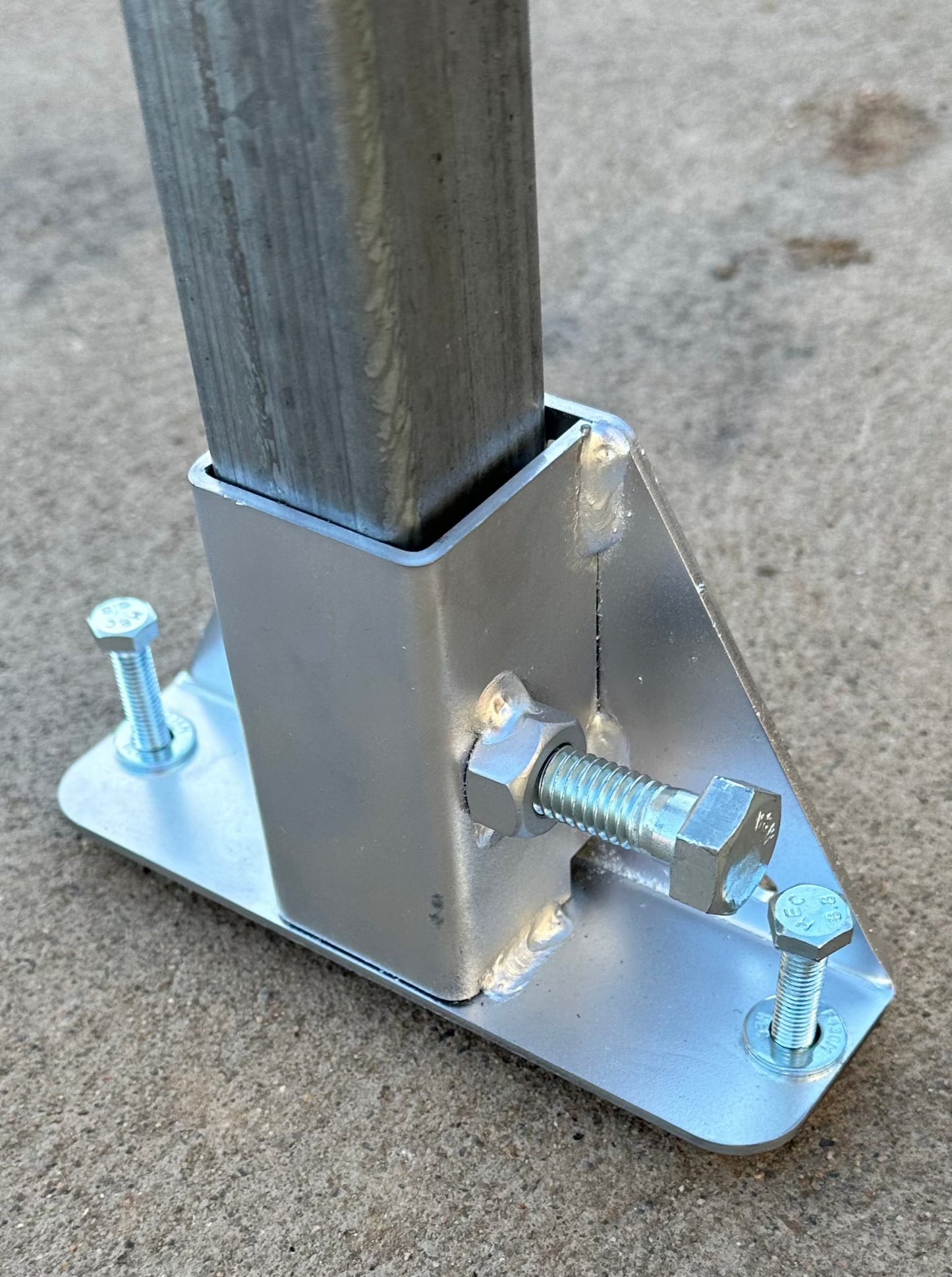

2 × Galvanised steel feet with welded 12 mm nuts
4 × 35 mm × 8 mm bolts, lock nuts & washers (for securing feet to the ute tray)
4 × 20 mm × 6 mm bolts, lock nuts & washers (for additional tray fastening)

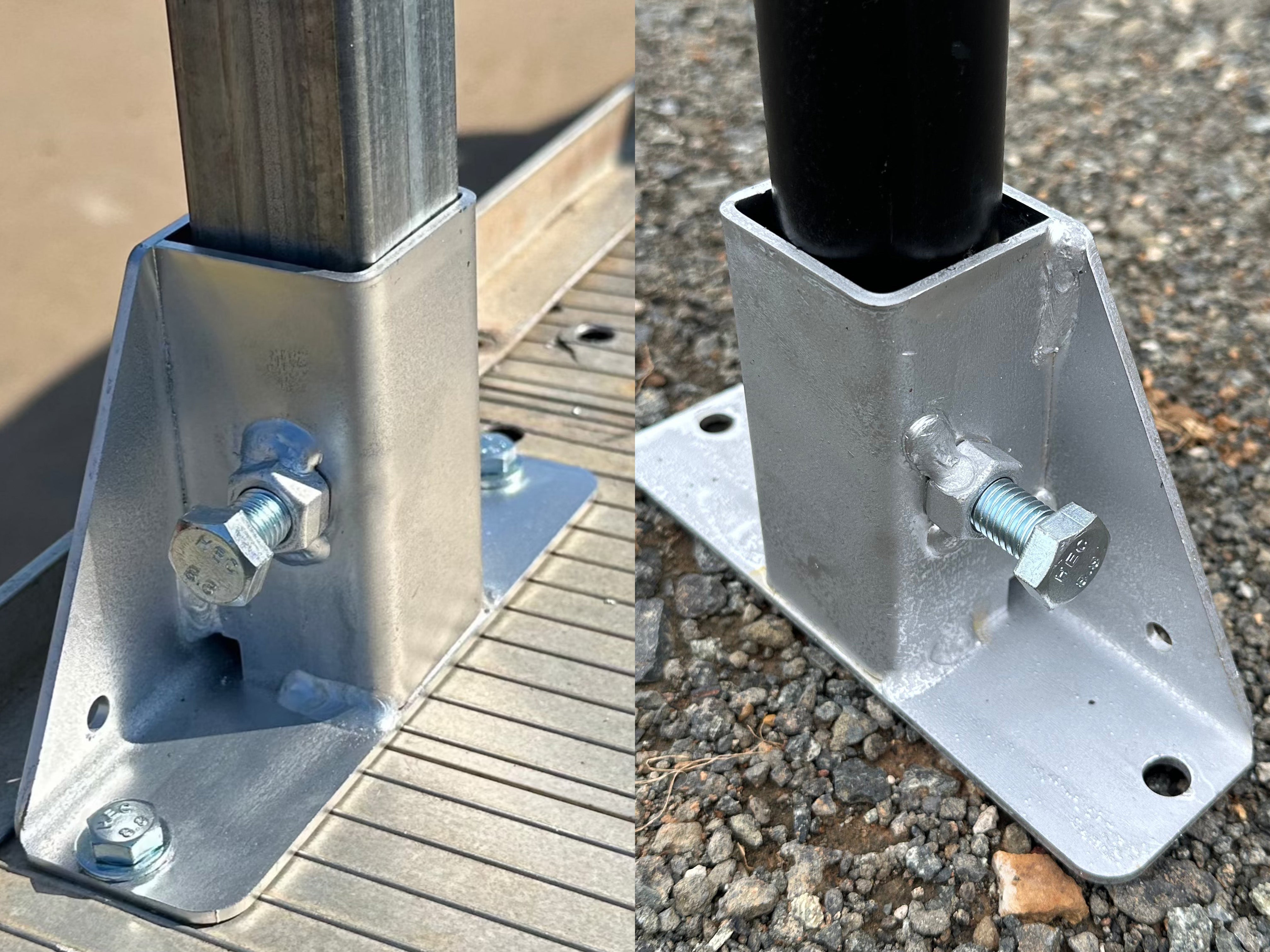

2 × 35 mm × 12 mm bolts (used to clamp the ladder rack into the feet)

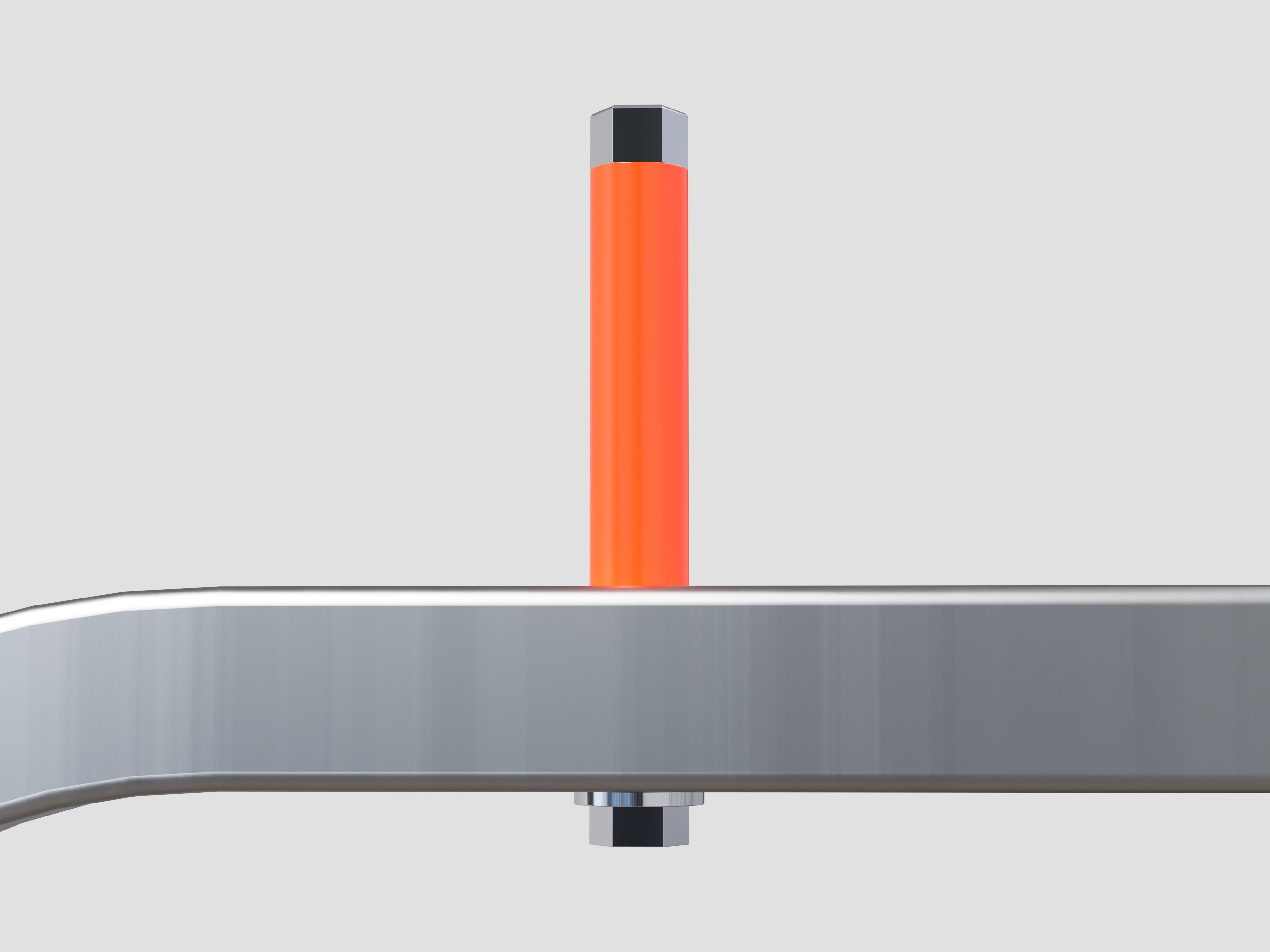

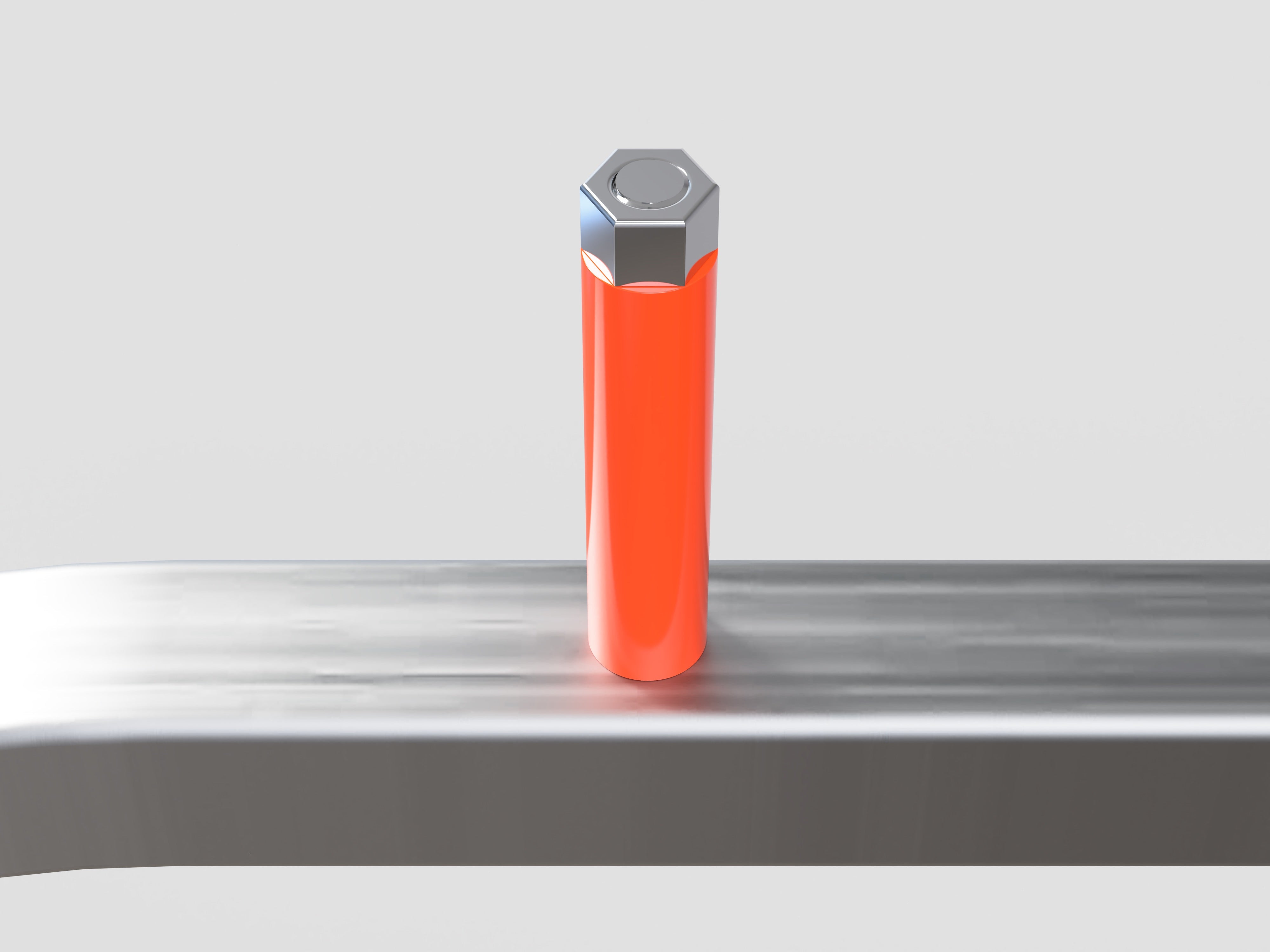

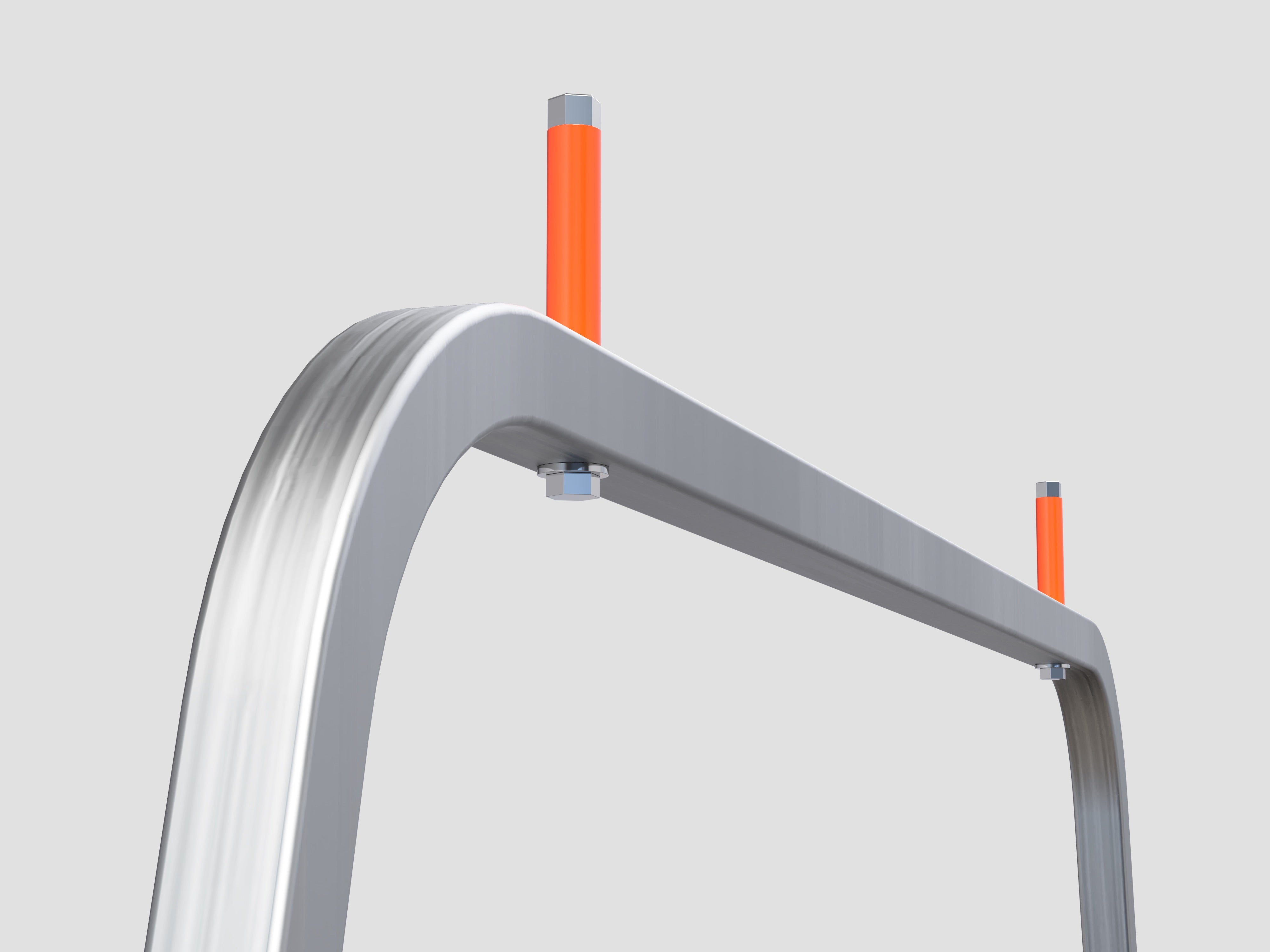

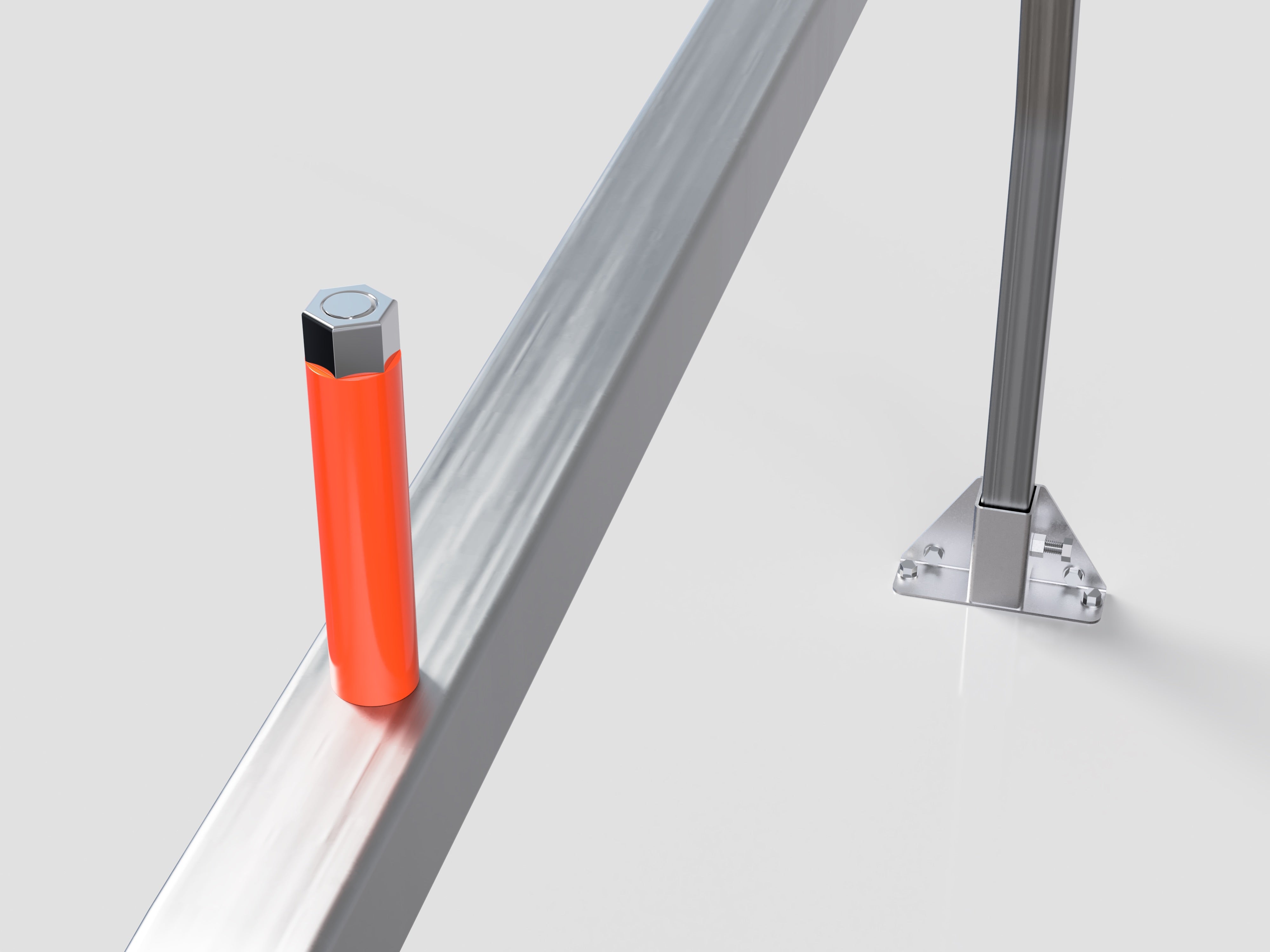

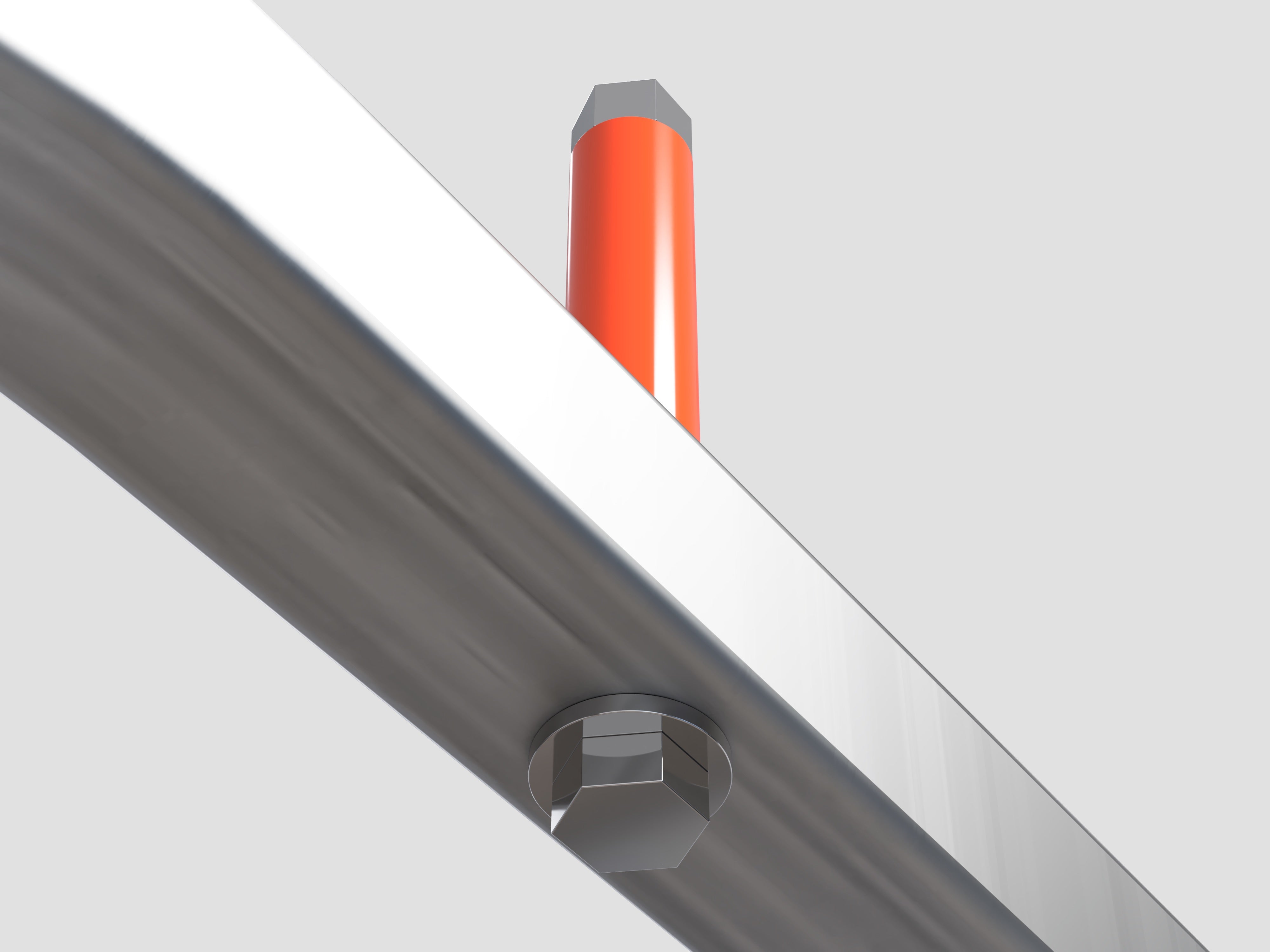

2 × 140 mm × 12 mm bolts (used as removable top pins)
2 × Orange PVC protective tubes (fit over 12 mm bolts to prevent scuffing and scratching)
2 × Washers and lock nuts for 12 mm top pins

Yes. The rack adjusts to fit most trays up to 1,820mm wide and yes it can be reused on other utes if the ladder rack fits.

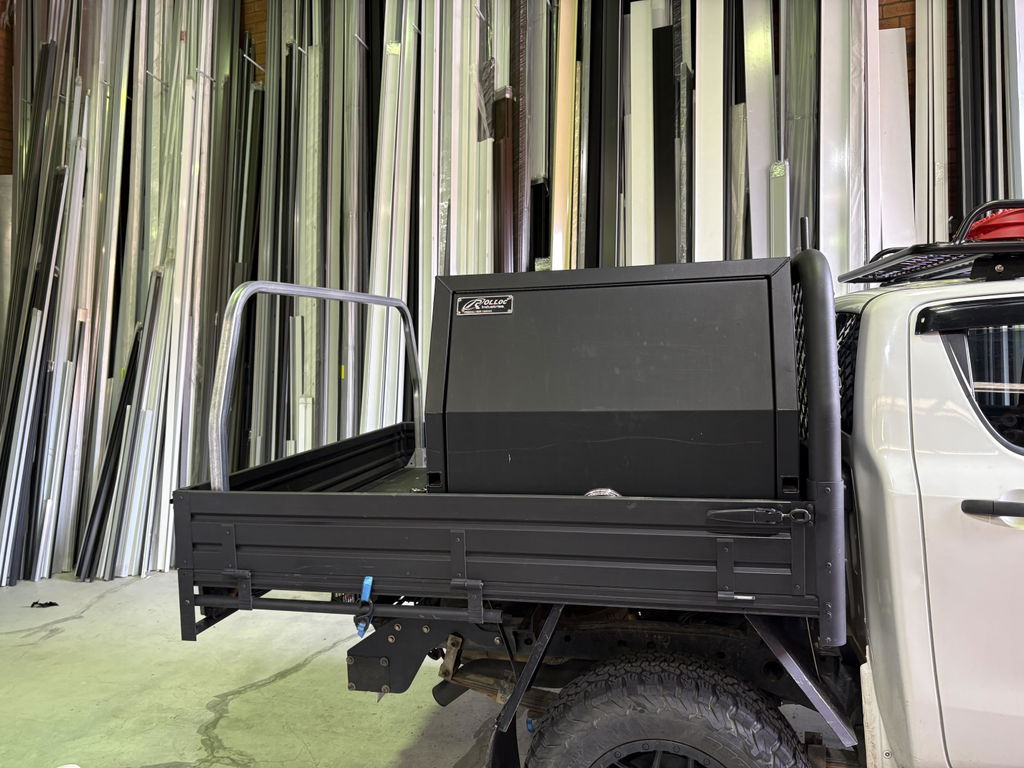

Check space if you have a tonneau cover, canopy, or toolbox to make sure everything clears.

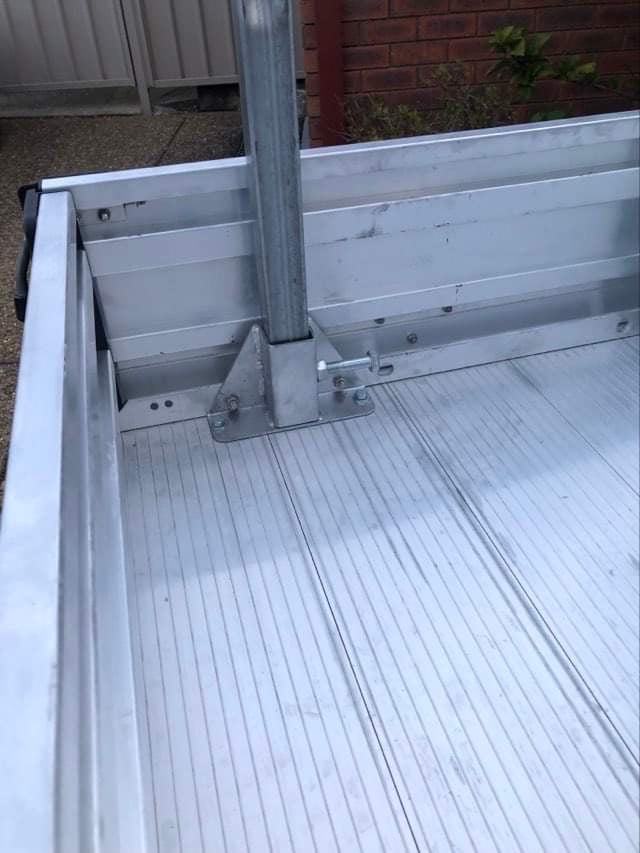

Yes. It needs to be bolted through the tray or tub for a strong, safe fit.

It can be removed at anytime with the tension bolt in each foot to have your tray open fully within a matter of minutes.

Install time: about 30–45 minutes using:

13mm socket & spanner
Ratchet or socket spanner
Tape measure for alignment

Complete Removal of feet takes around 10–15 minutes with the same tools. All nuts, bolts, and washers are included.

When fitted tightly, it stays quiet and solid — no rattles or shaking. Like any rack, it can add a little wind drag, but it’s barely noticeable.

Re-check all bolts after the first week, then every few months or after rough use for best results.

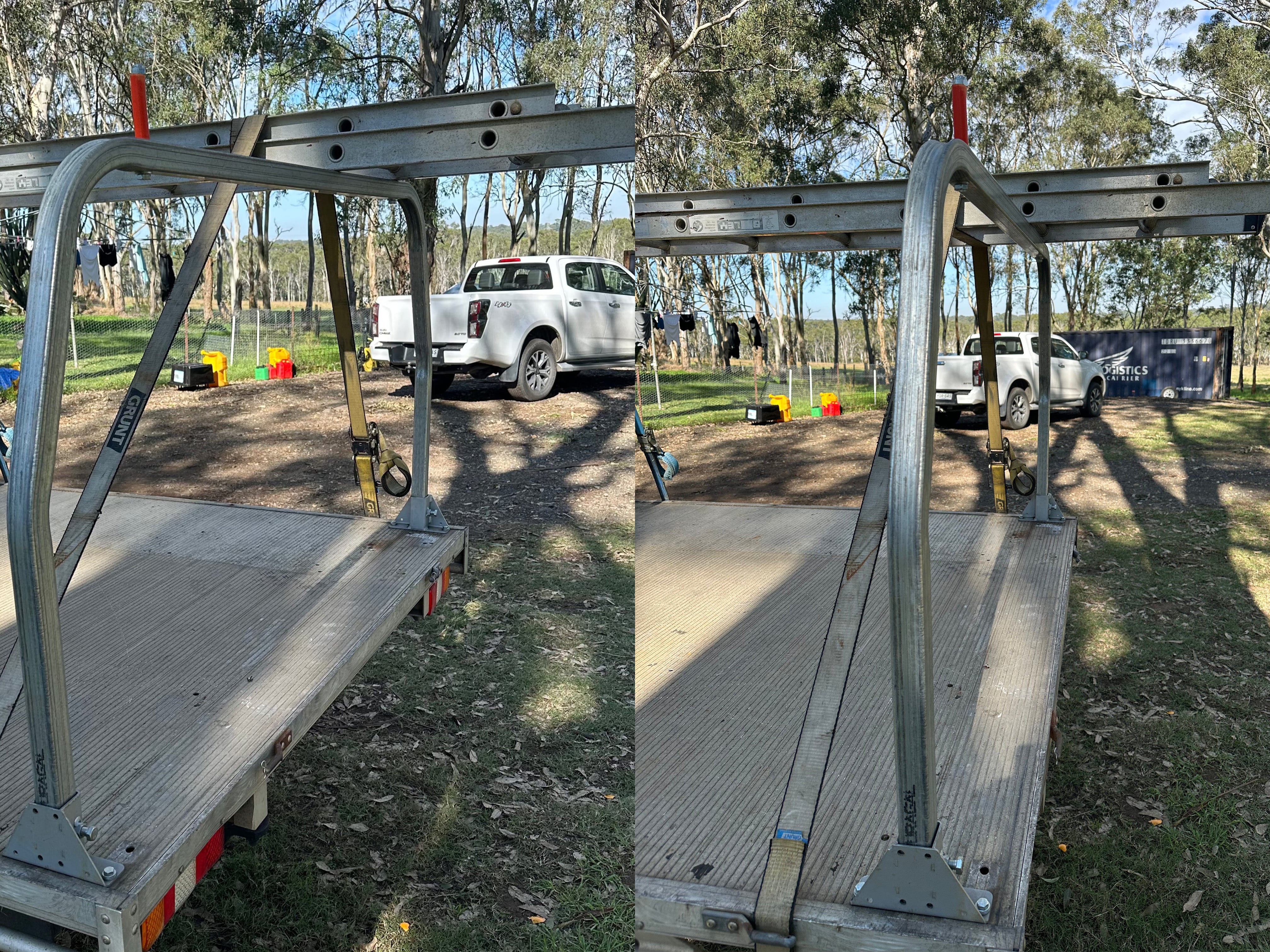

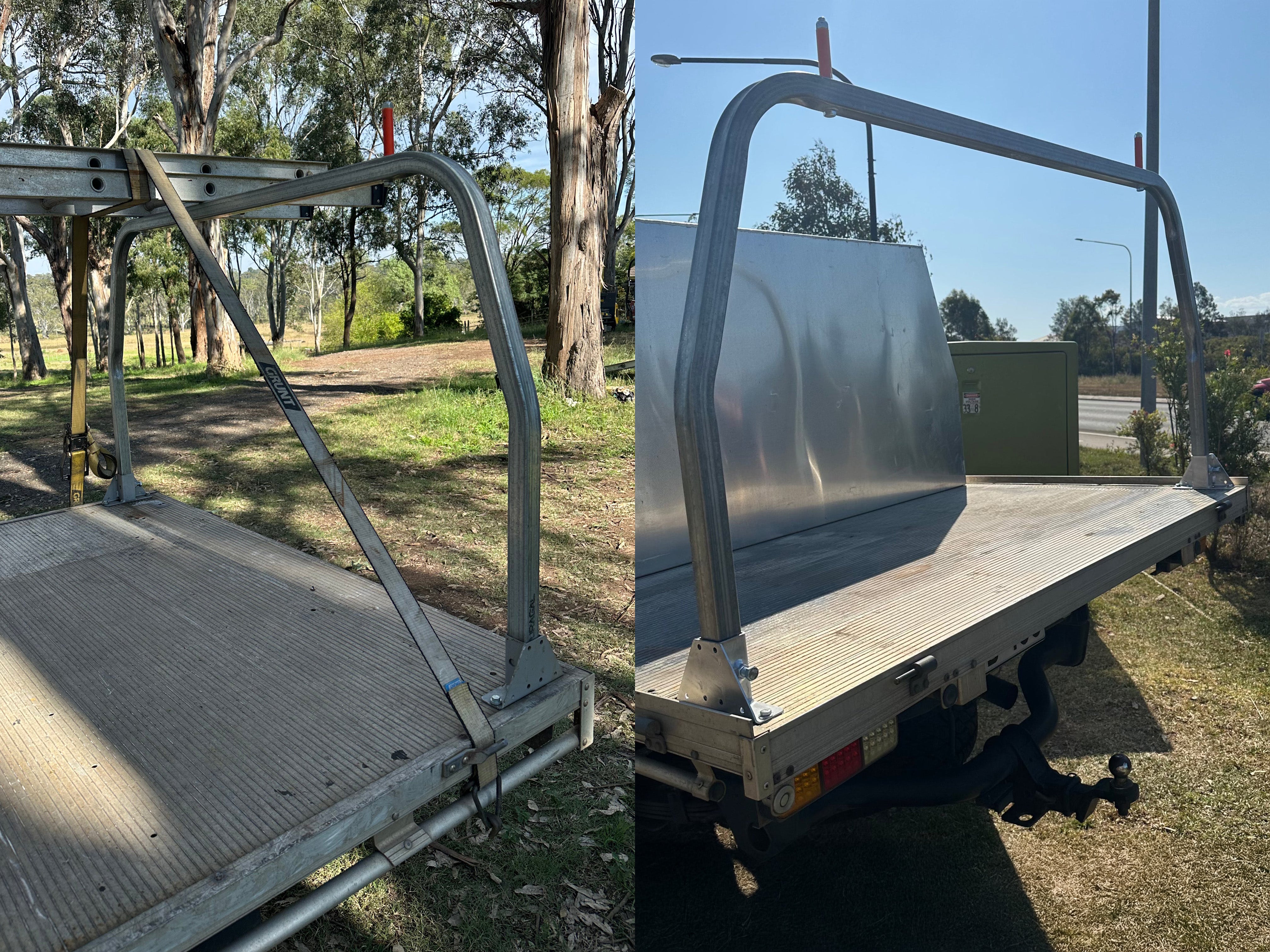

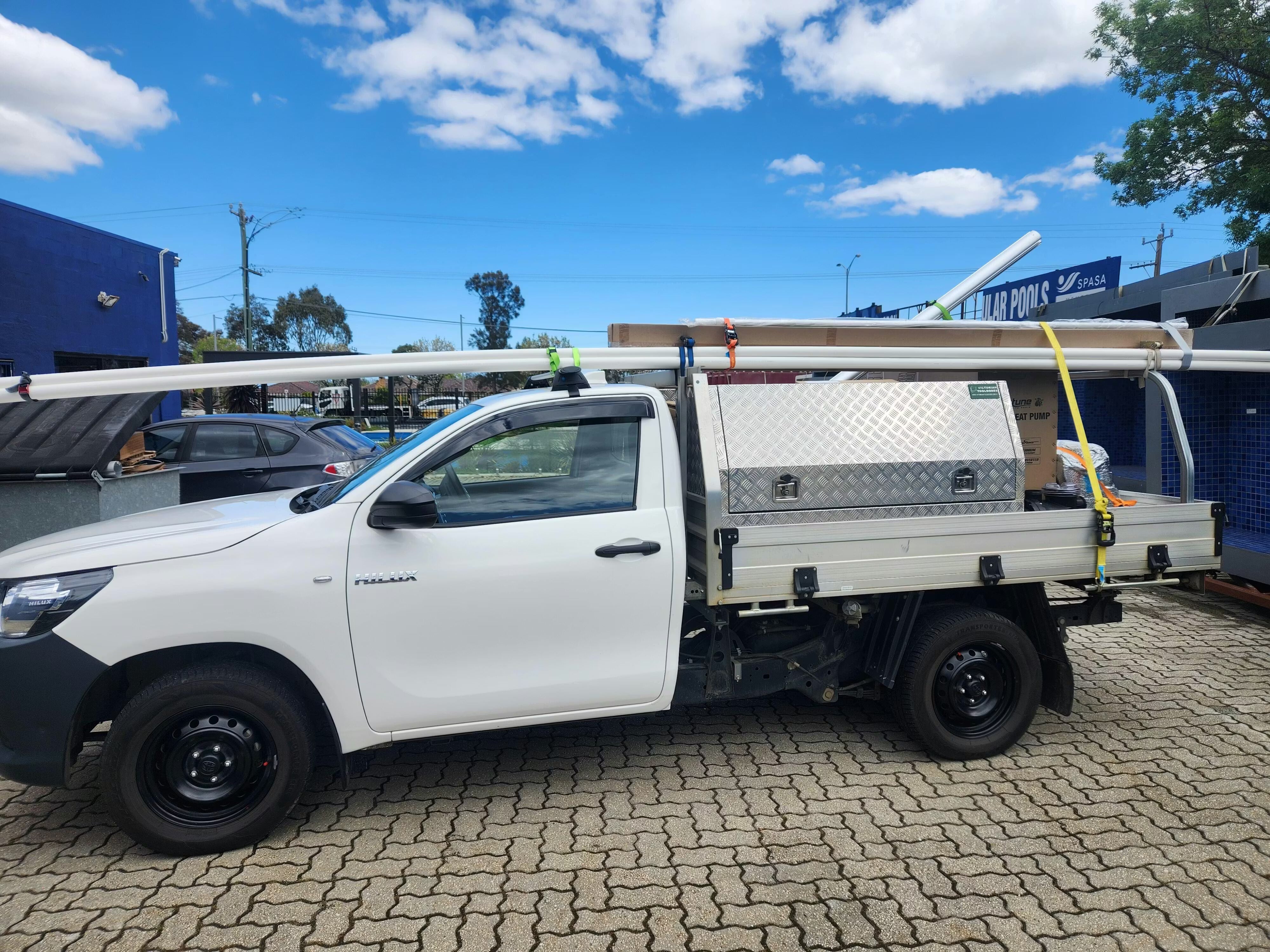

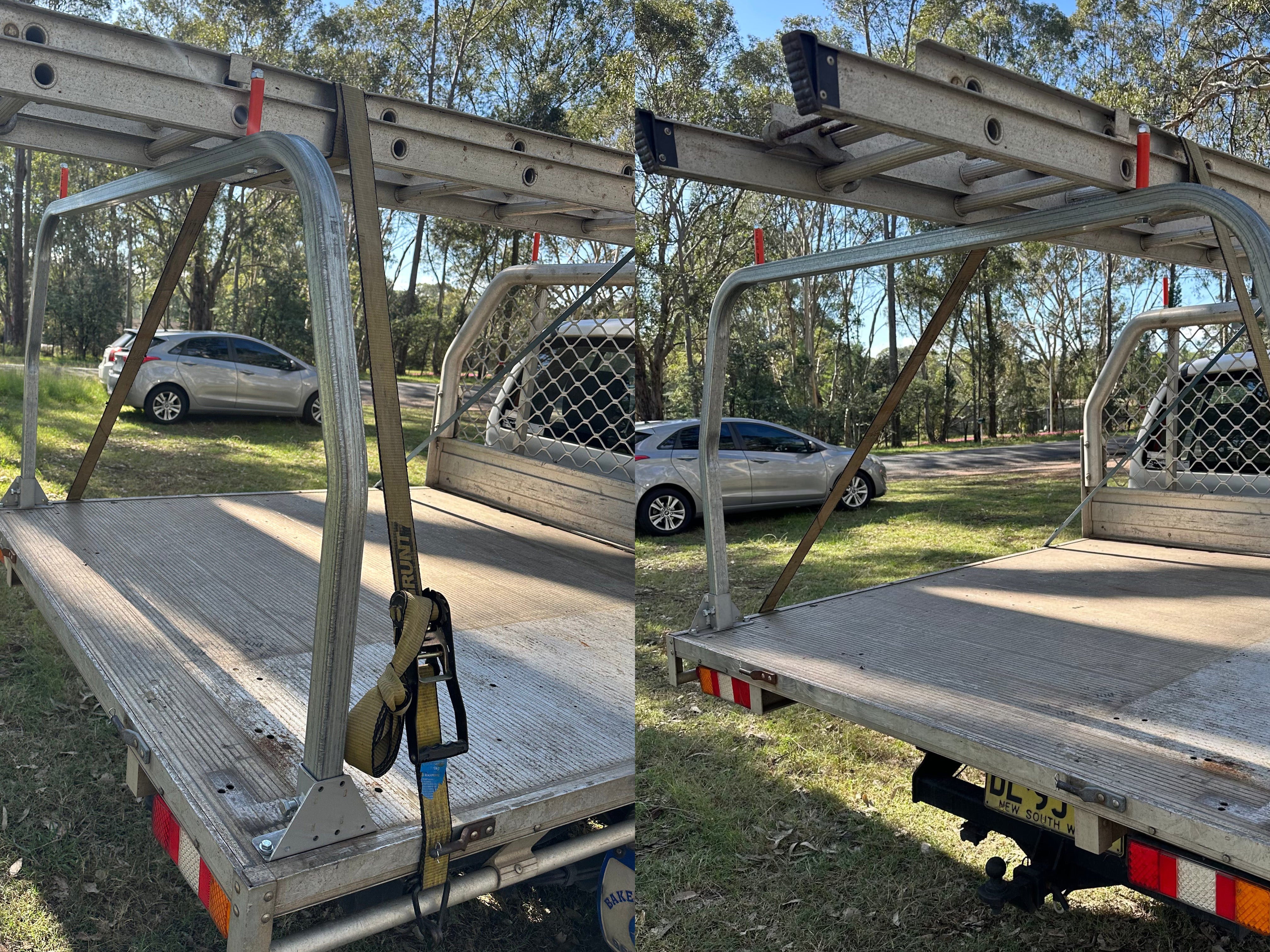

The Ladder Rack is built for work and adventure — strong enough to handle almost anything long or bulky.

Common uses include:

Ladders and scaffolding
Timber, steel, and PVC conduit
Roof-top tents and awnings
Kayaks, canoes, and surfboards
Camping gear and recovery tracks
Pipes, framing, or building materials

If it fits safely and is tied down properly, the rack can carry it. Always secure your load with AS/NZS 4380-approved ratchet straps or rated tie-downs. Check and re-tighten straps on long trips. Never exceed your vehicle’s rated load capacity.

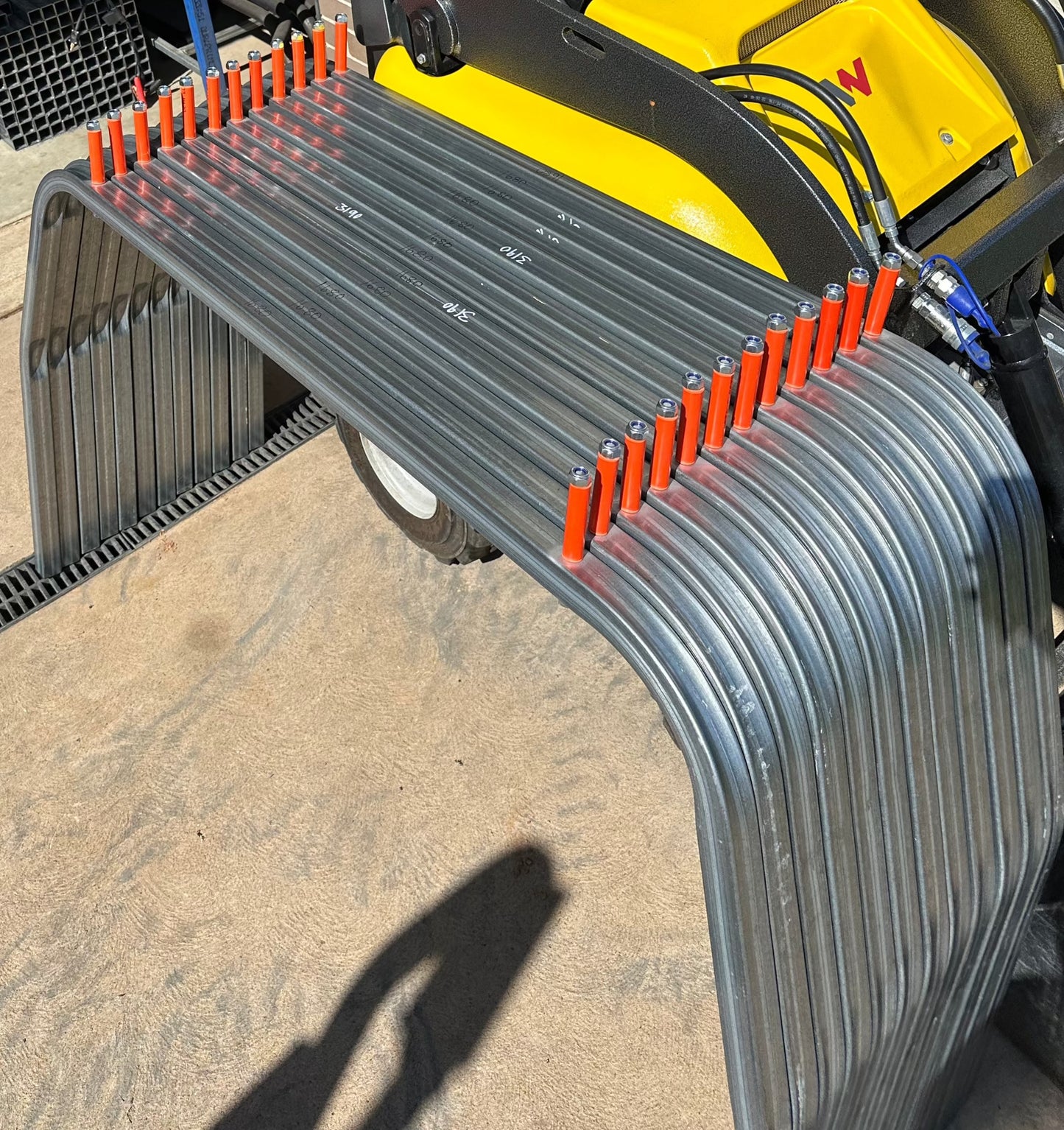

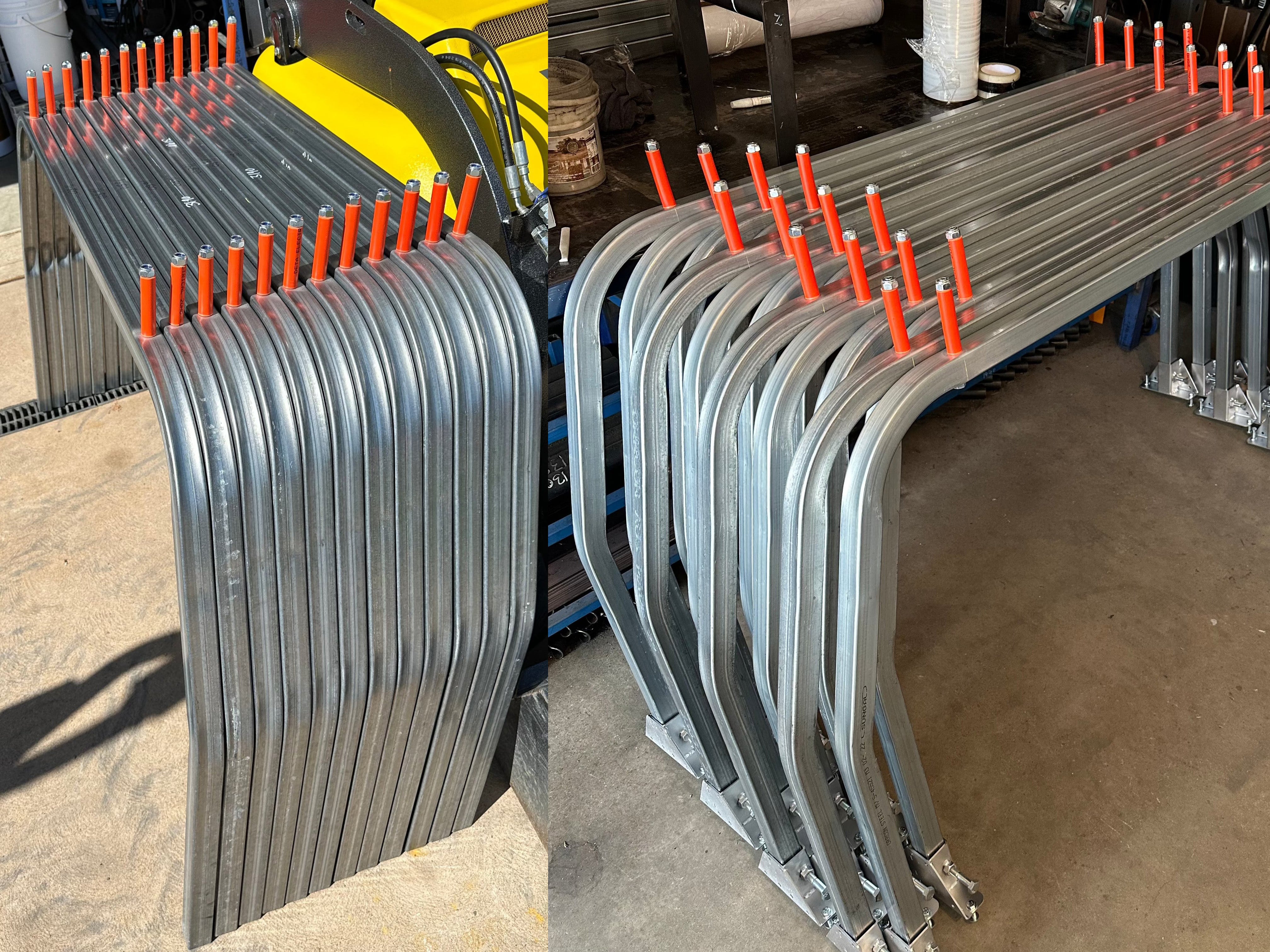

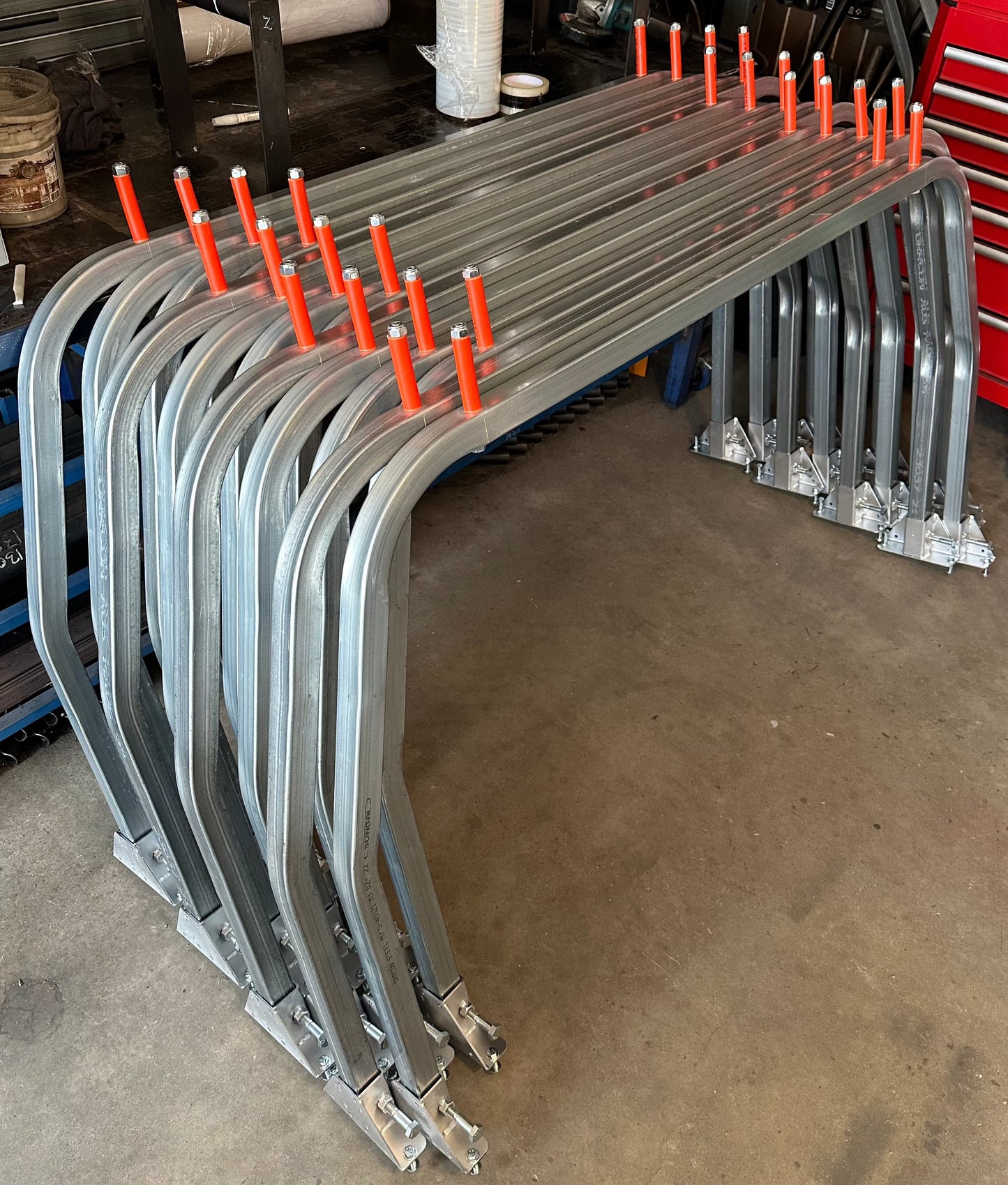

All of our ladder racks are 100% Australian made right here in our Sydney workshop.

Every part is designed, cut, welded, and finished locally, using Australian-supplied steel and hardware from trusted local companies.

By keeping production in-house, we maintain full control over quality, strength, and finish — ensuring every rack meets the highest standard before it leaves our shop.

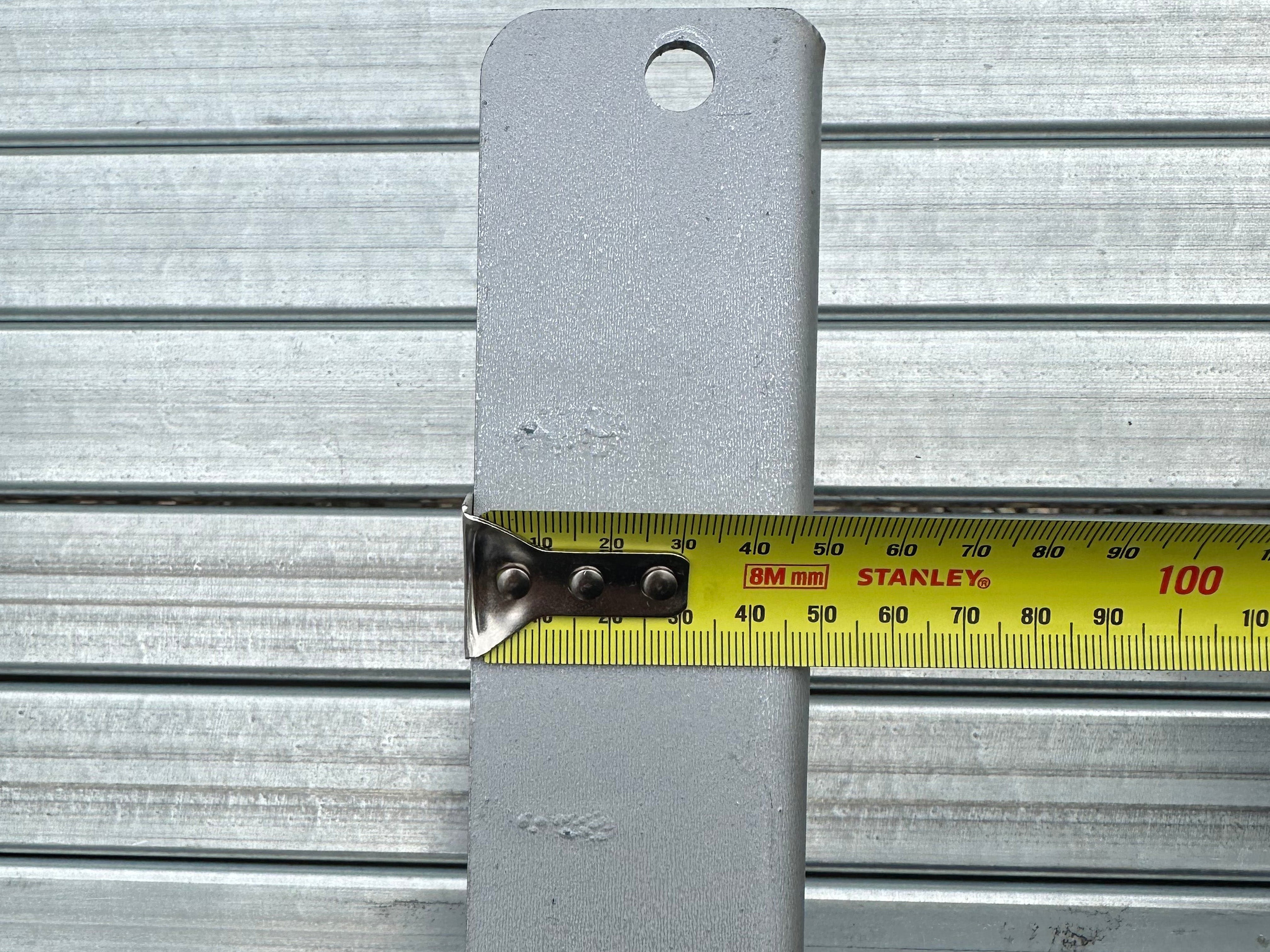

Built from 40×40mm square steel tubing with wall thickness options of 2mm, 3mm, or 4mm:

2mm: holds up to 400 kg evenly spread load. this ladder rack weighs 8.5 kg including feet
3mm: holds up to 550 kg evenly spread load. this ladder rack weighs 12 kg including feet
4mm: holds up to 700 kg evenly spread load. this ladder rack weighs 14.5 kg including feet

We use Direct Freight Express, who offer some of the most competitive freight rates in Australia. Freight costs are calculated based on your location, order size and weight. For a quick freight estimate, please see the freight rate checker on this page.

Yes. We freight all over Australia, including regional and remote areas.

All orders are securely packed and shipped with Direct Freight Express for their reliability, speed, and tracking accuracy.

Shipping costs are calculated at checkout based on your location and item size, and tracking details are sent once your order is dispatched.

Yes, all orders come with tracking and regular updates so you can keep an eye on your delivery.

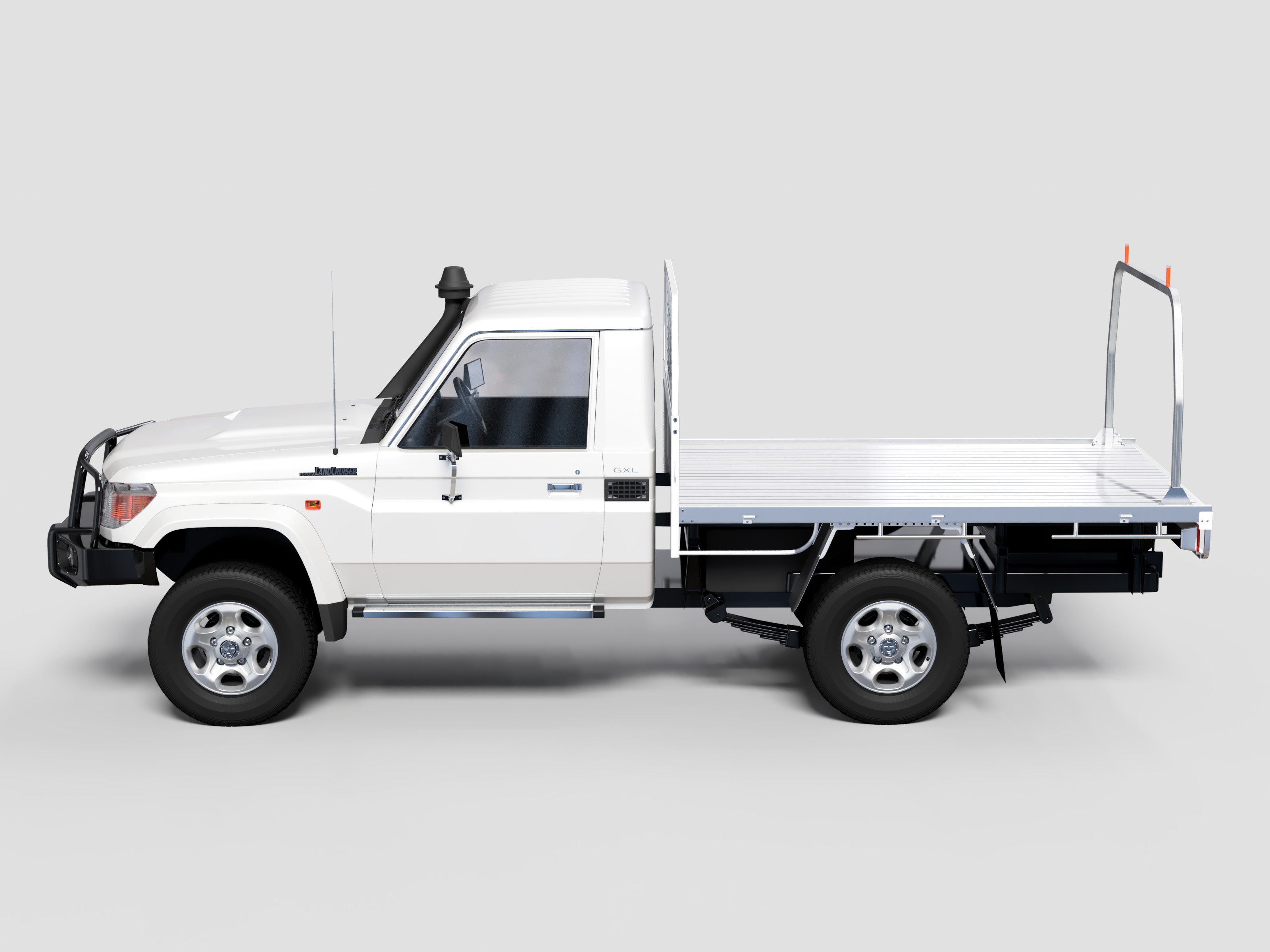

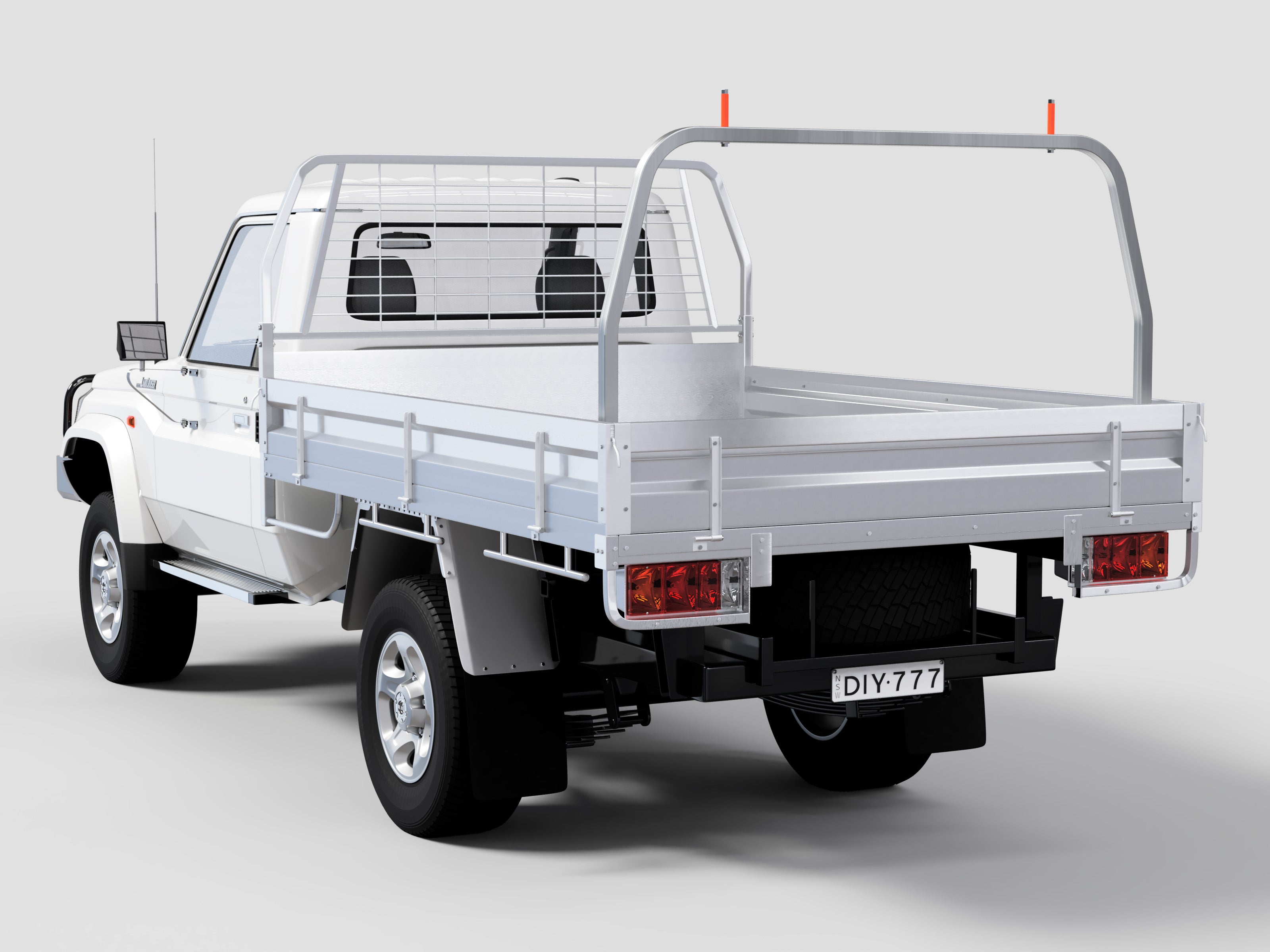

A Strong, Lightweight Ladder Rack You Can Install Quickly and Rely on Daily

Set it up once. Get on with work.

Built for Australia

Click each hotspot to see how every detail is engineered to perform.

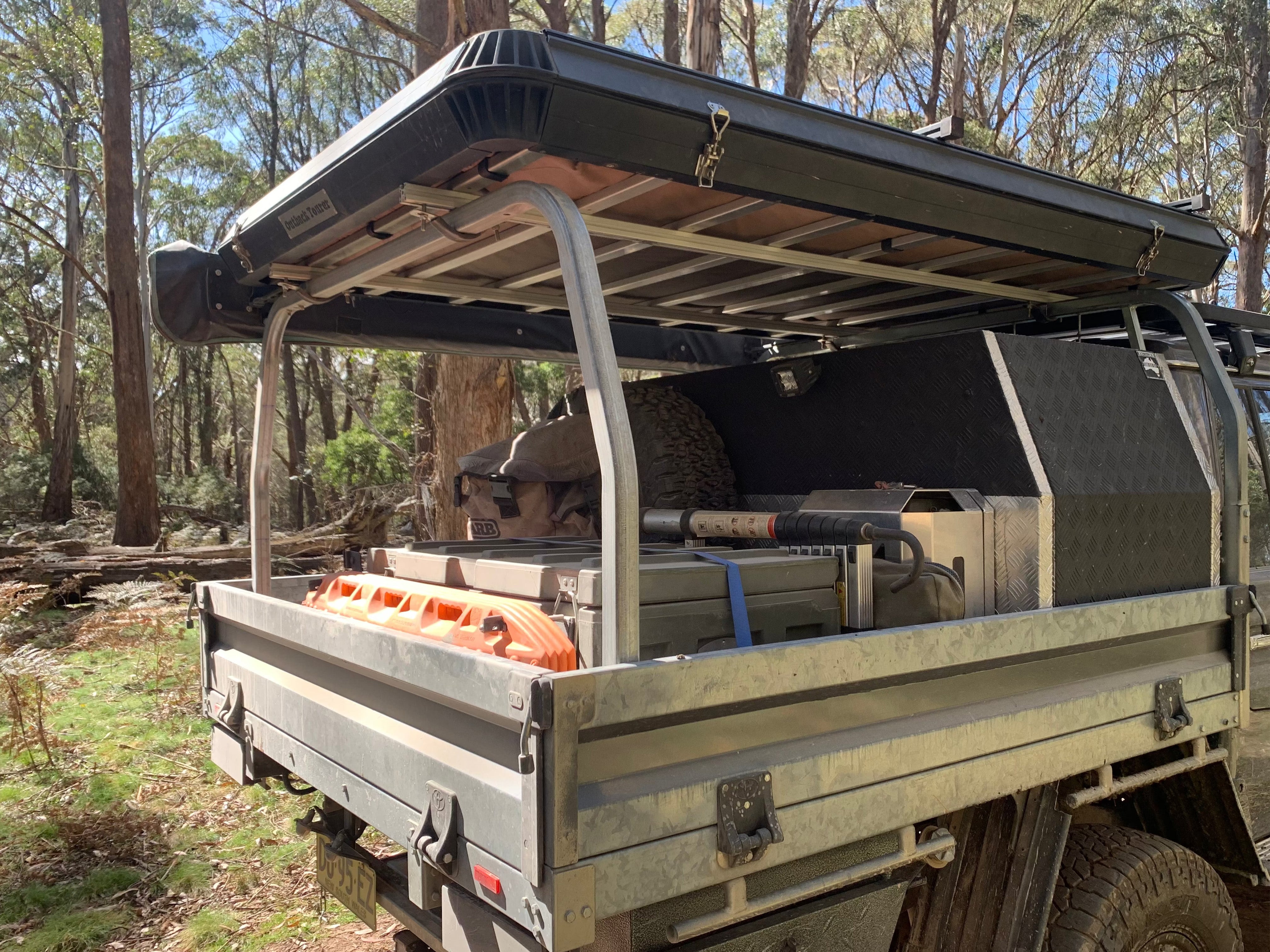

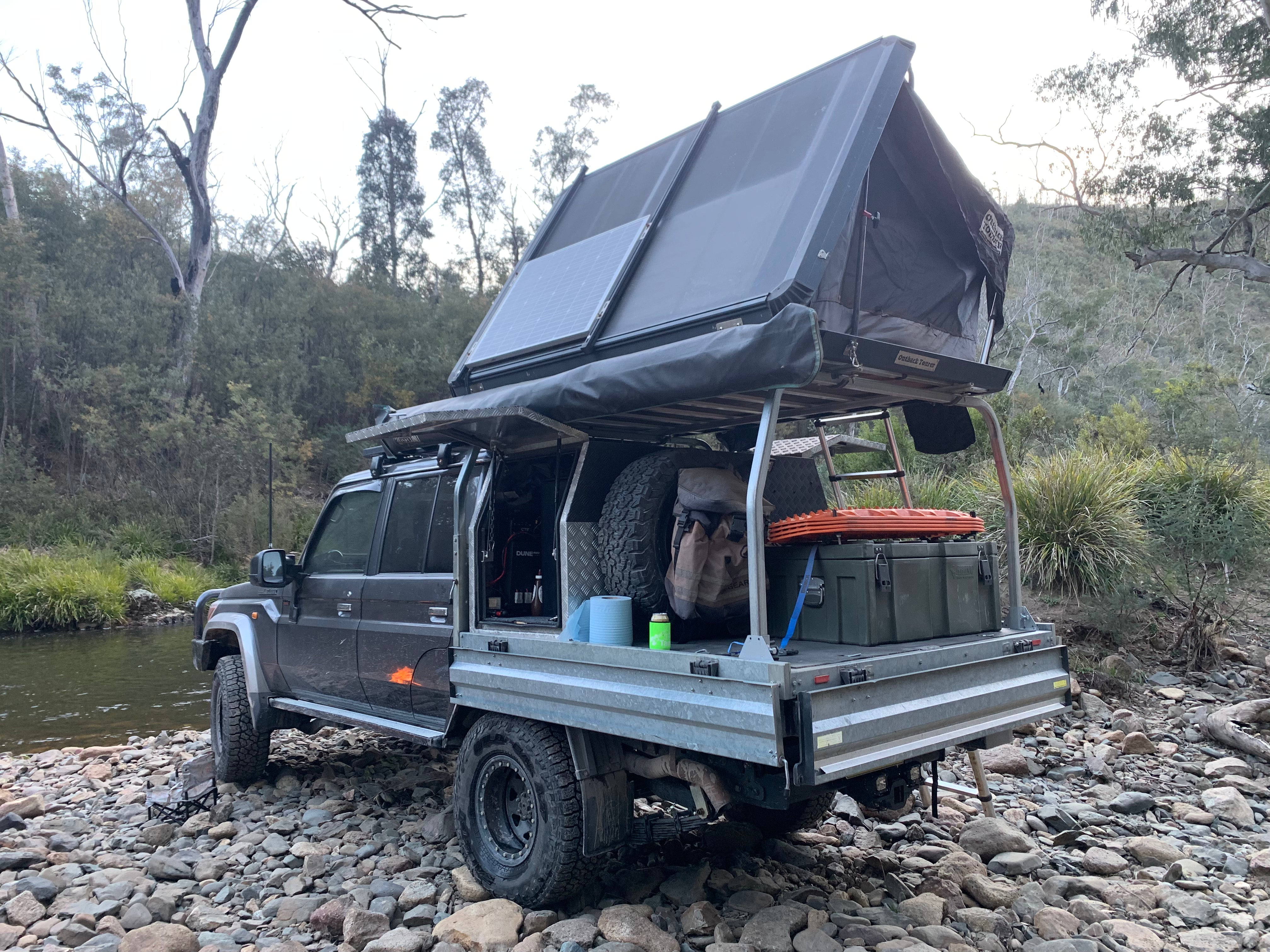

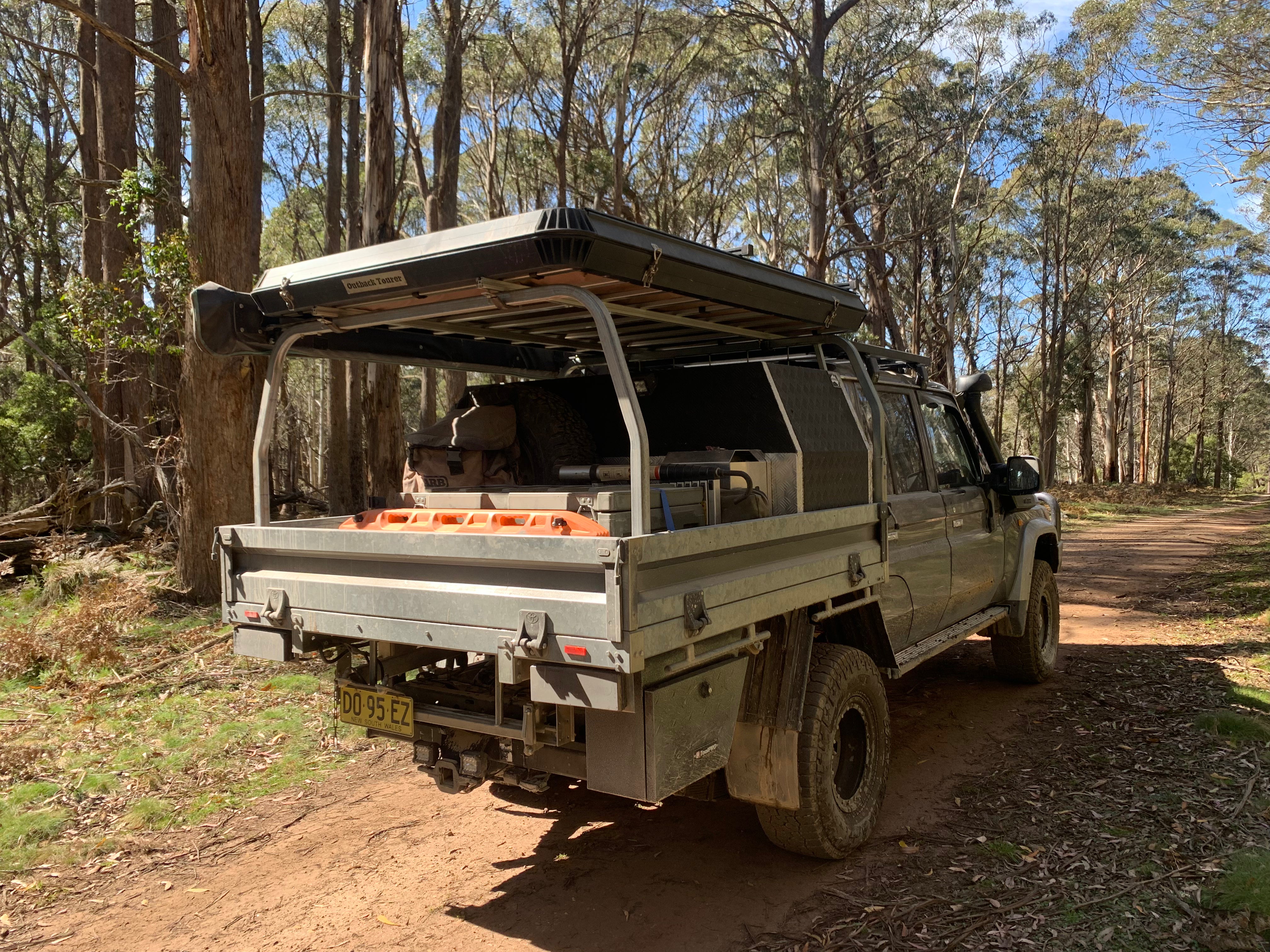

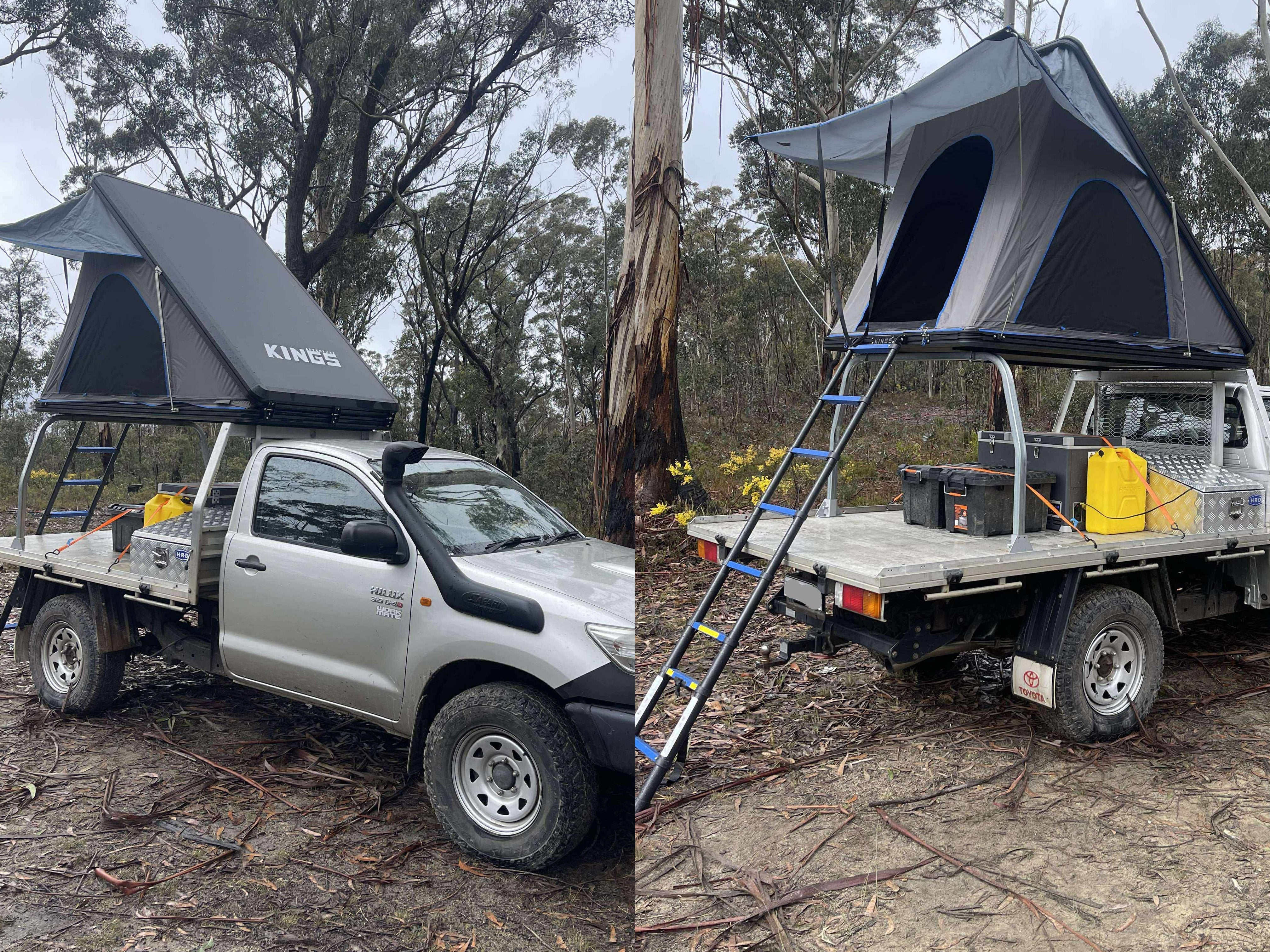

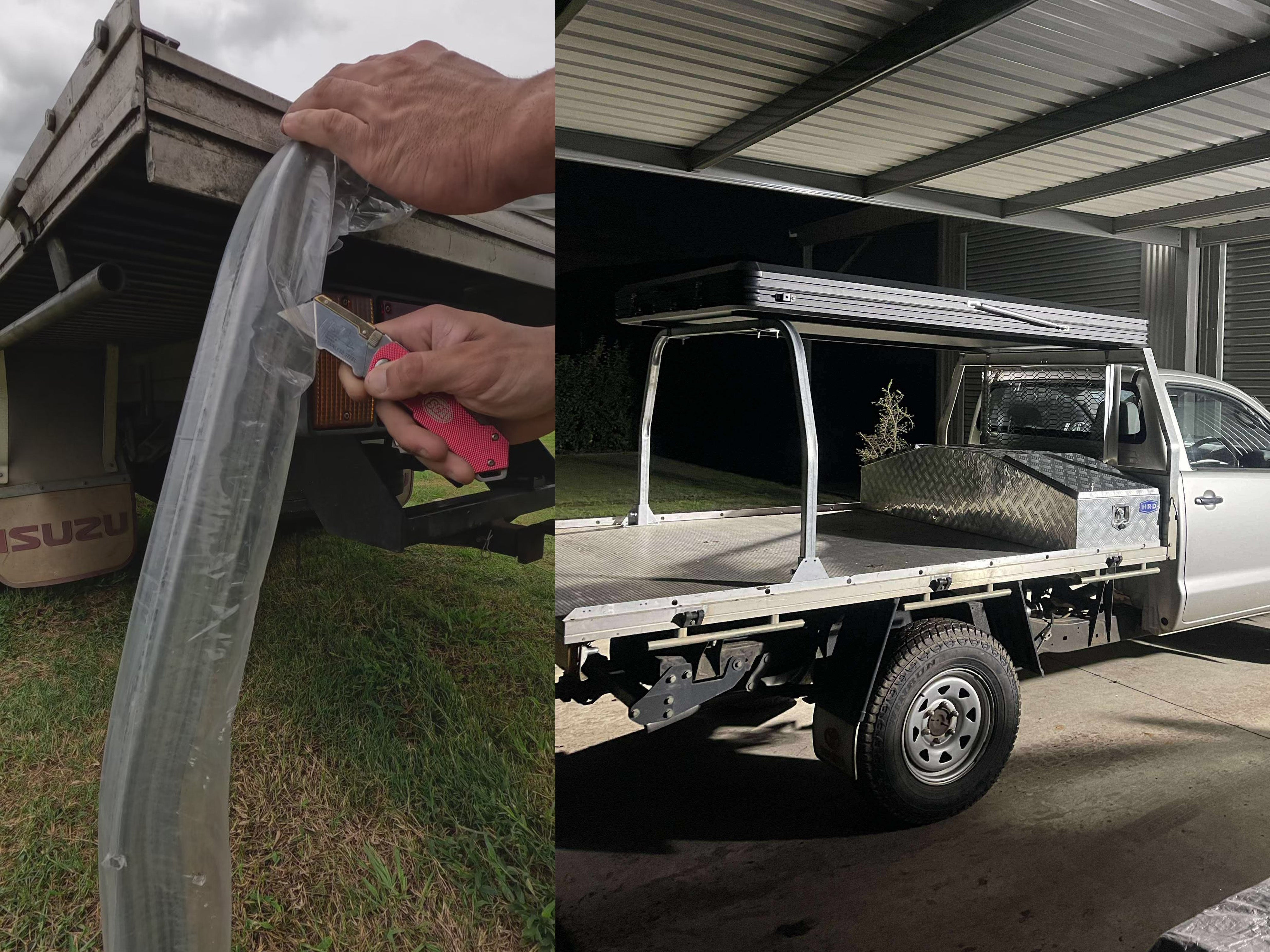

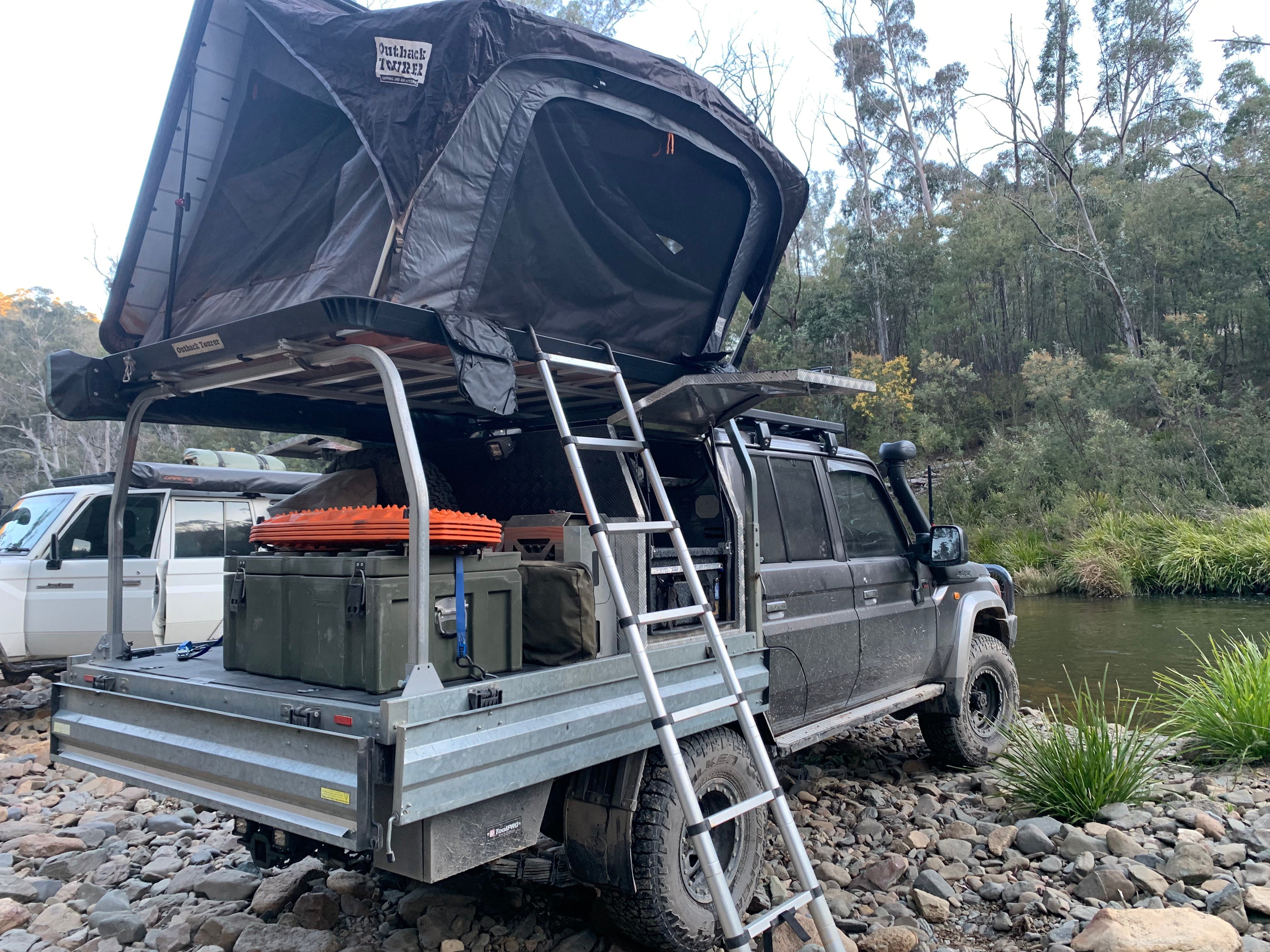

From Job Site to Camp Site

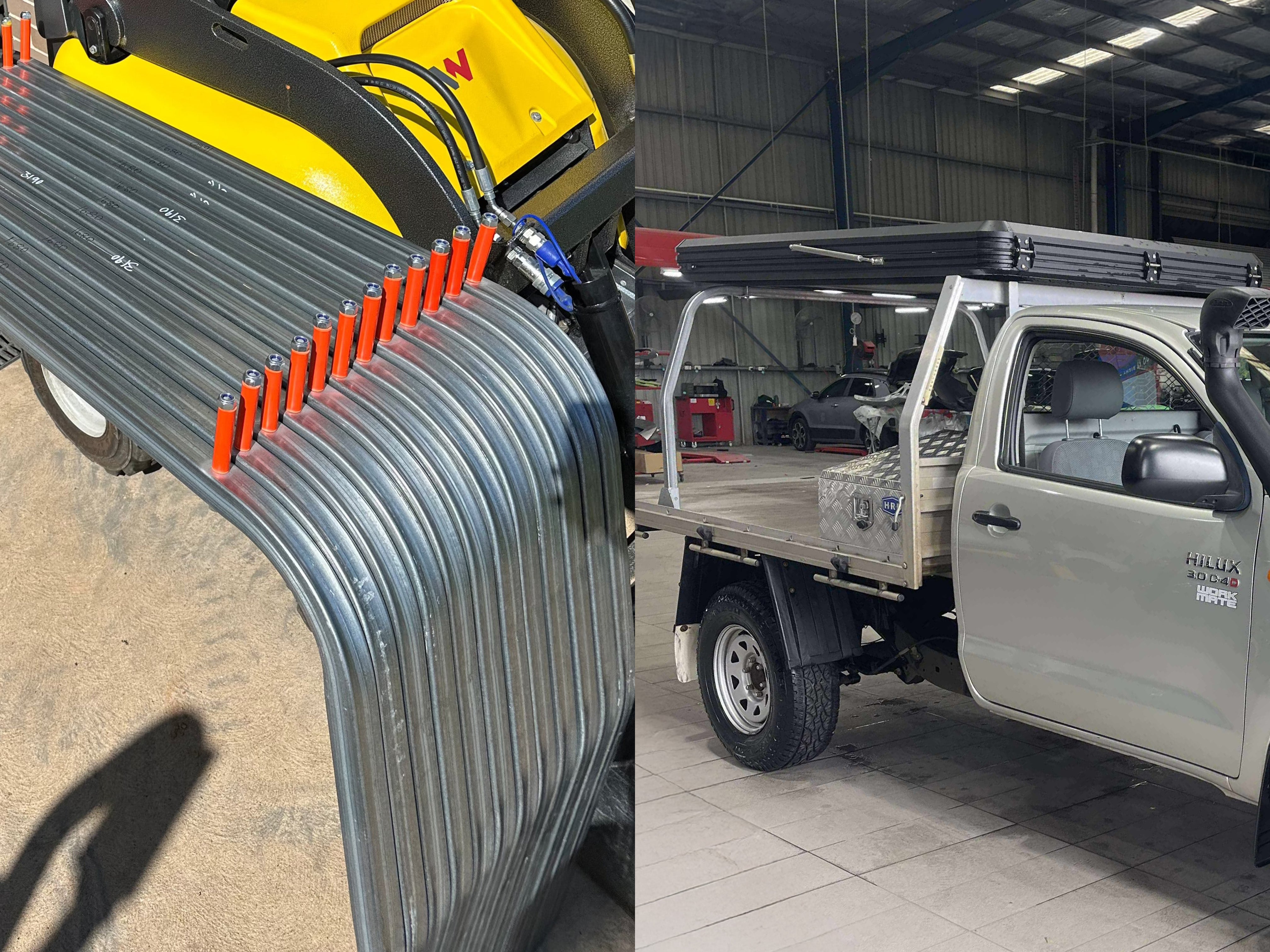

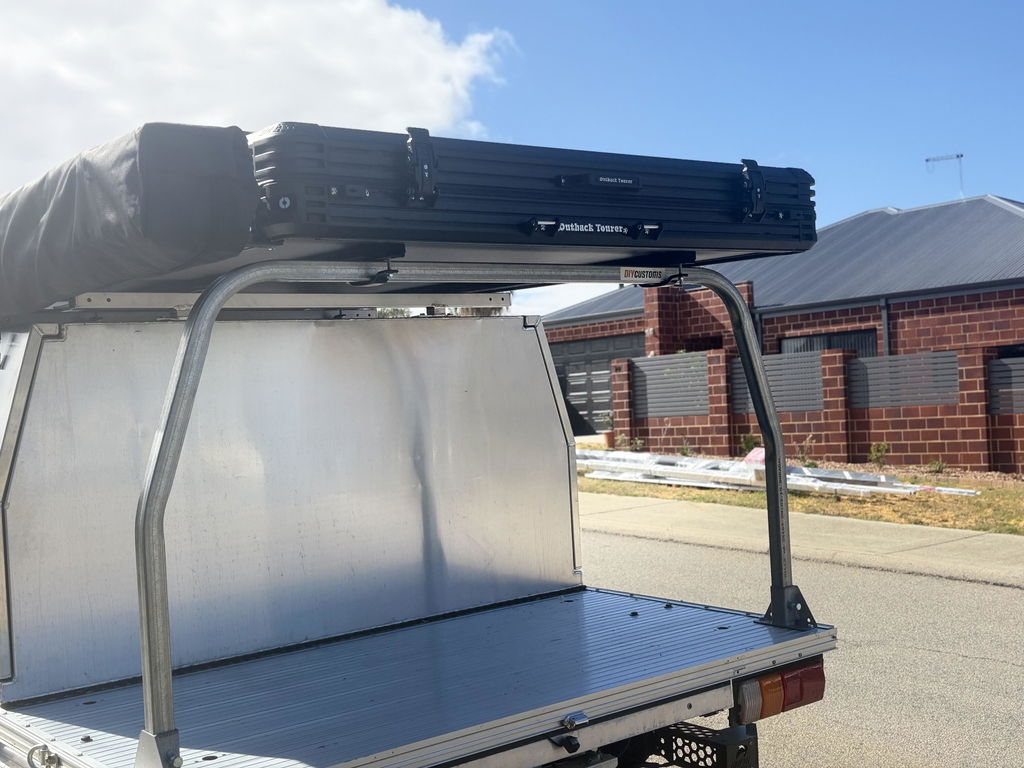

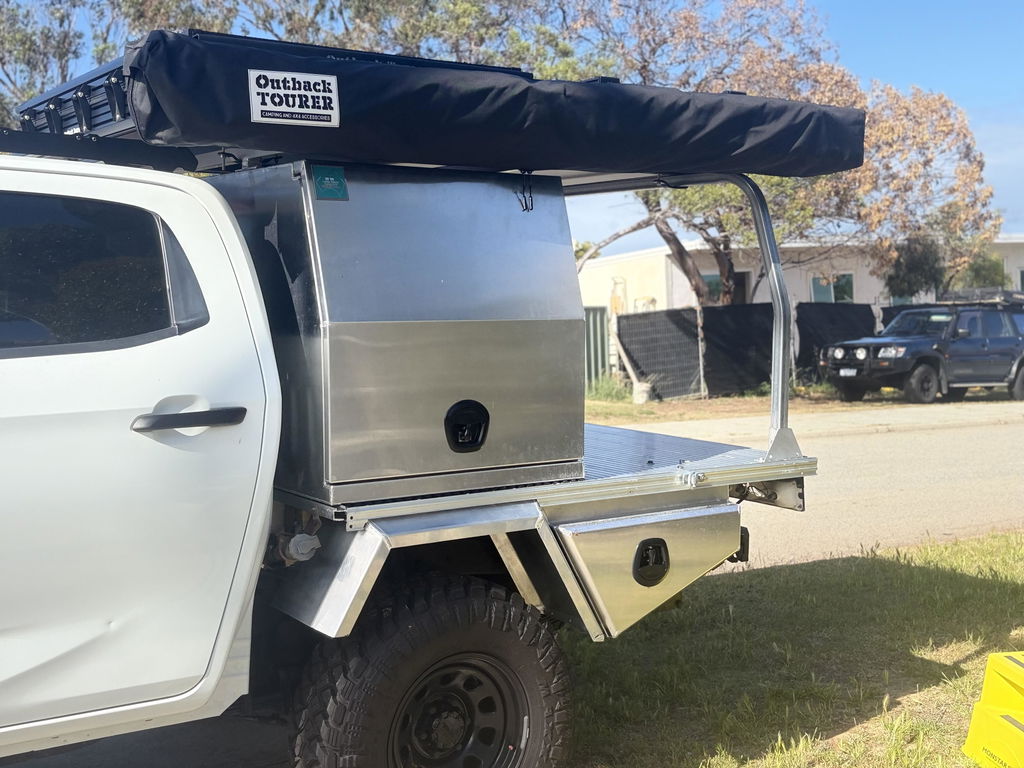

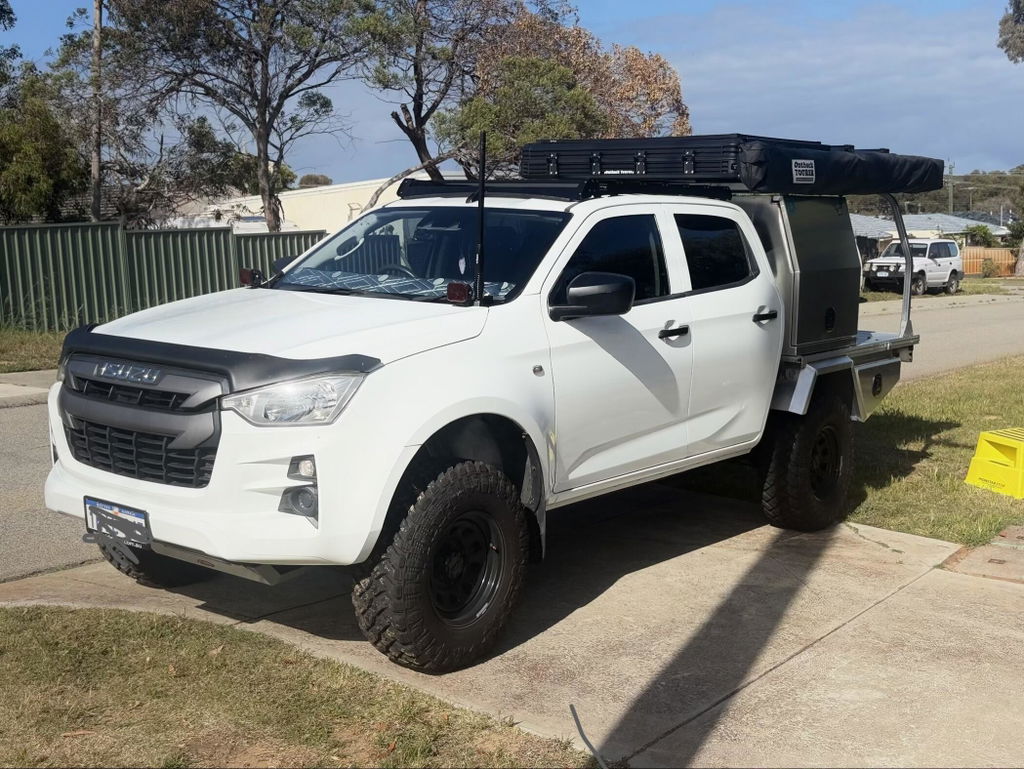

Work all week, then load up and head out bush. This Australian made ladder rack is rooftop tent ready and built to carry real weight—proven time and time again off-road. Yes, even the 2 mm option is engineered to handle it.

Camp Anywhere

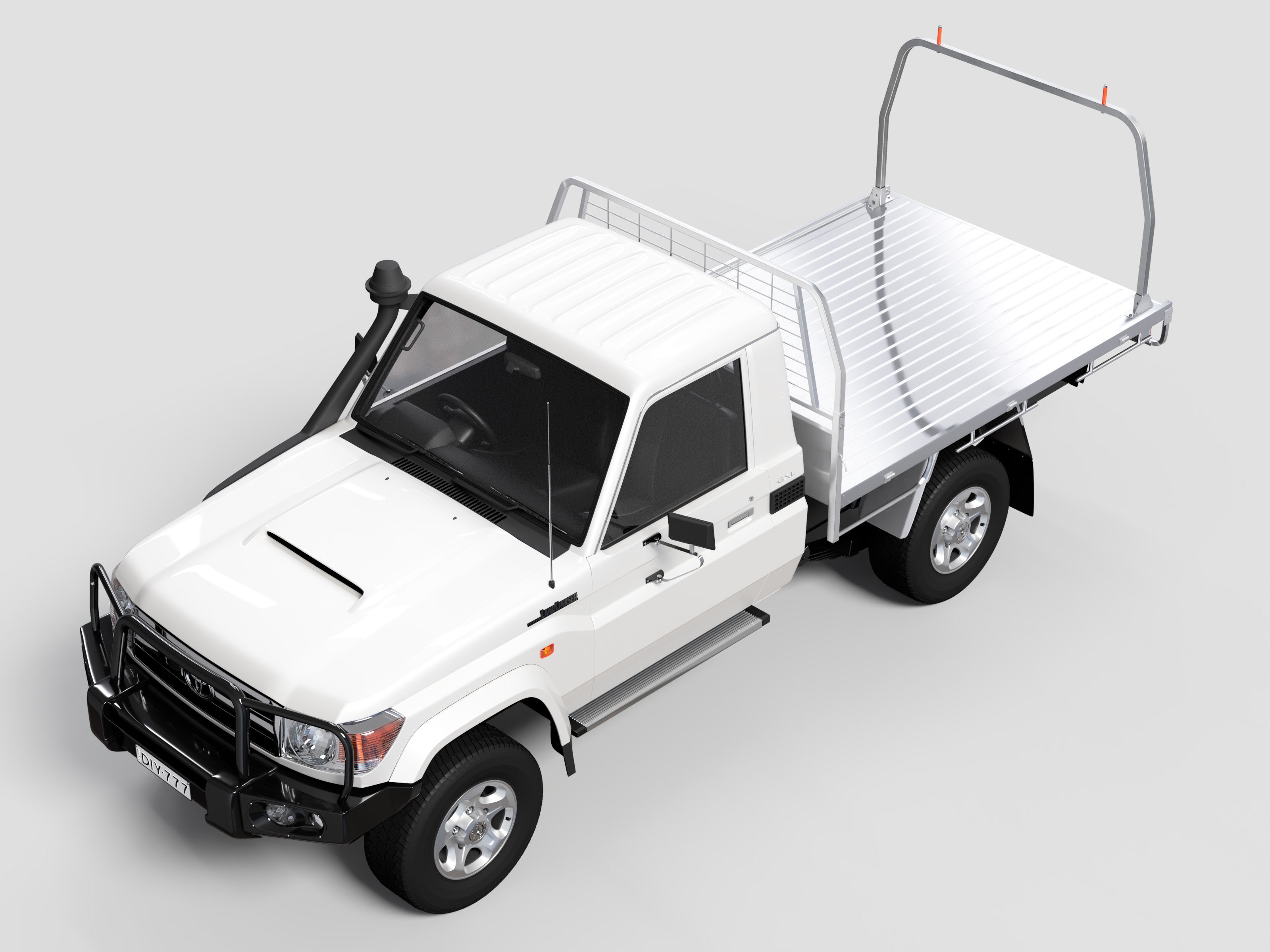

Fast install Australian made ladder racks to suit any tray. Less time setting up, more time enjoying the trip.

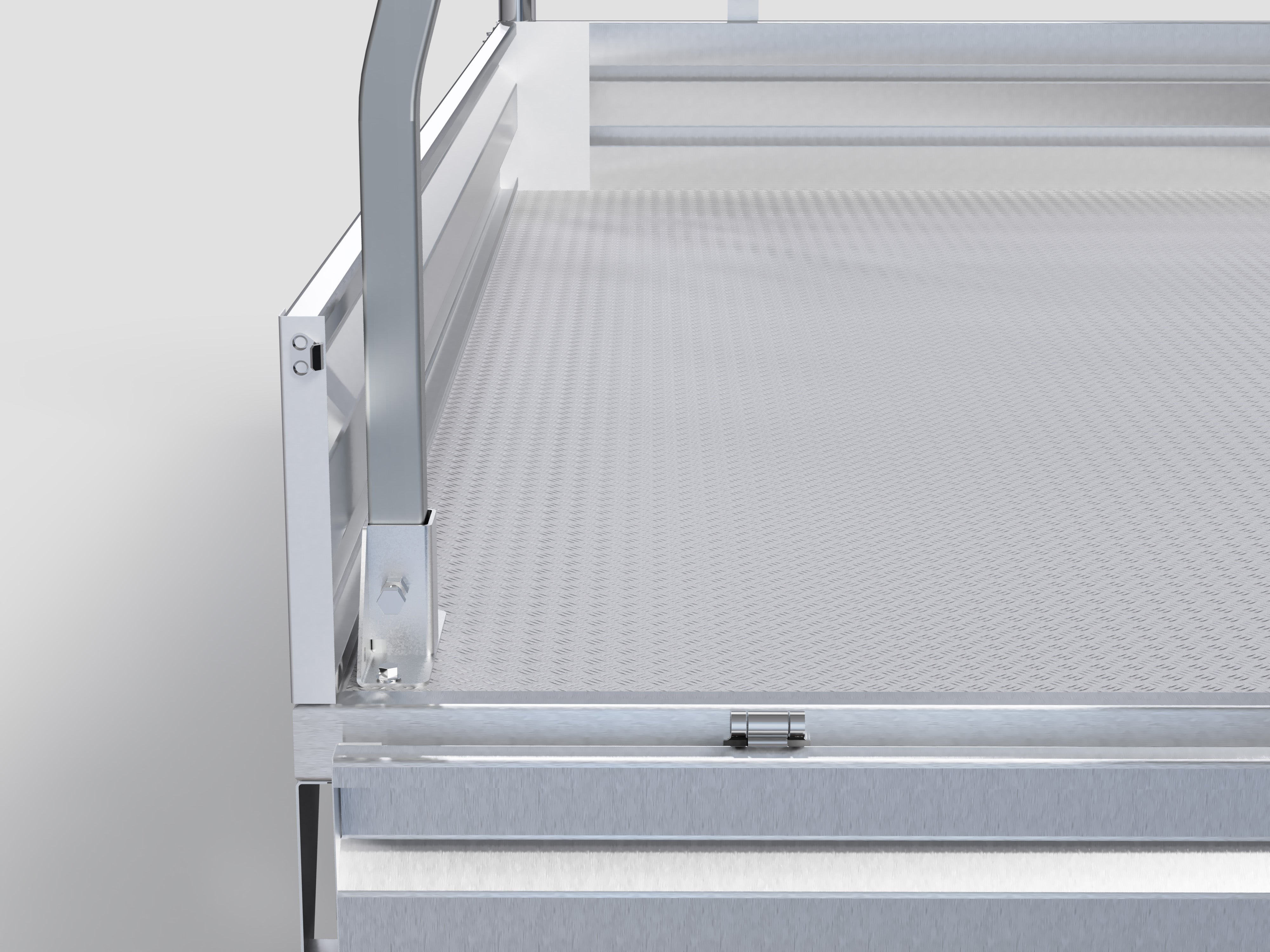

Easy to Fit, Safe to Haul

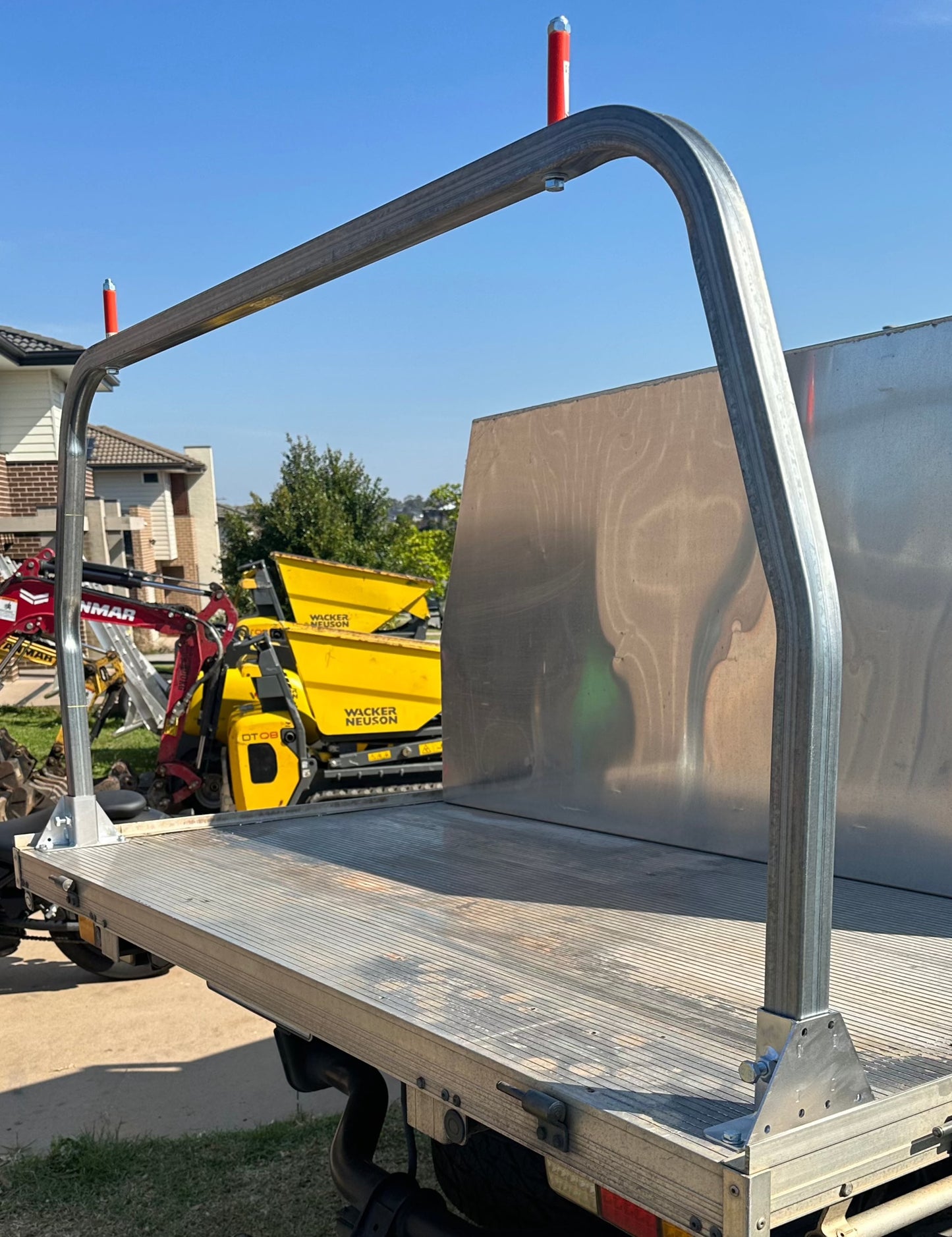

Lightweight and simple to install, our ladder racks keep loads secure with guide pins and evenly distribute weight at headboard height—making every job safer and easier.

Ladder Rack Installation

How to Measure

Follow our simple steps below for the Correct Ladder Rack fitment

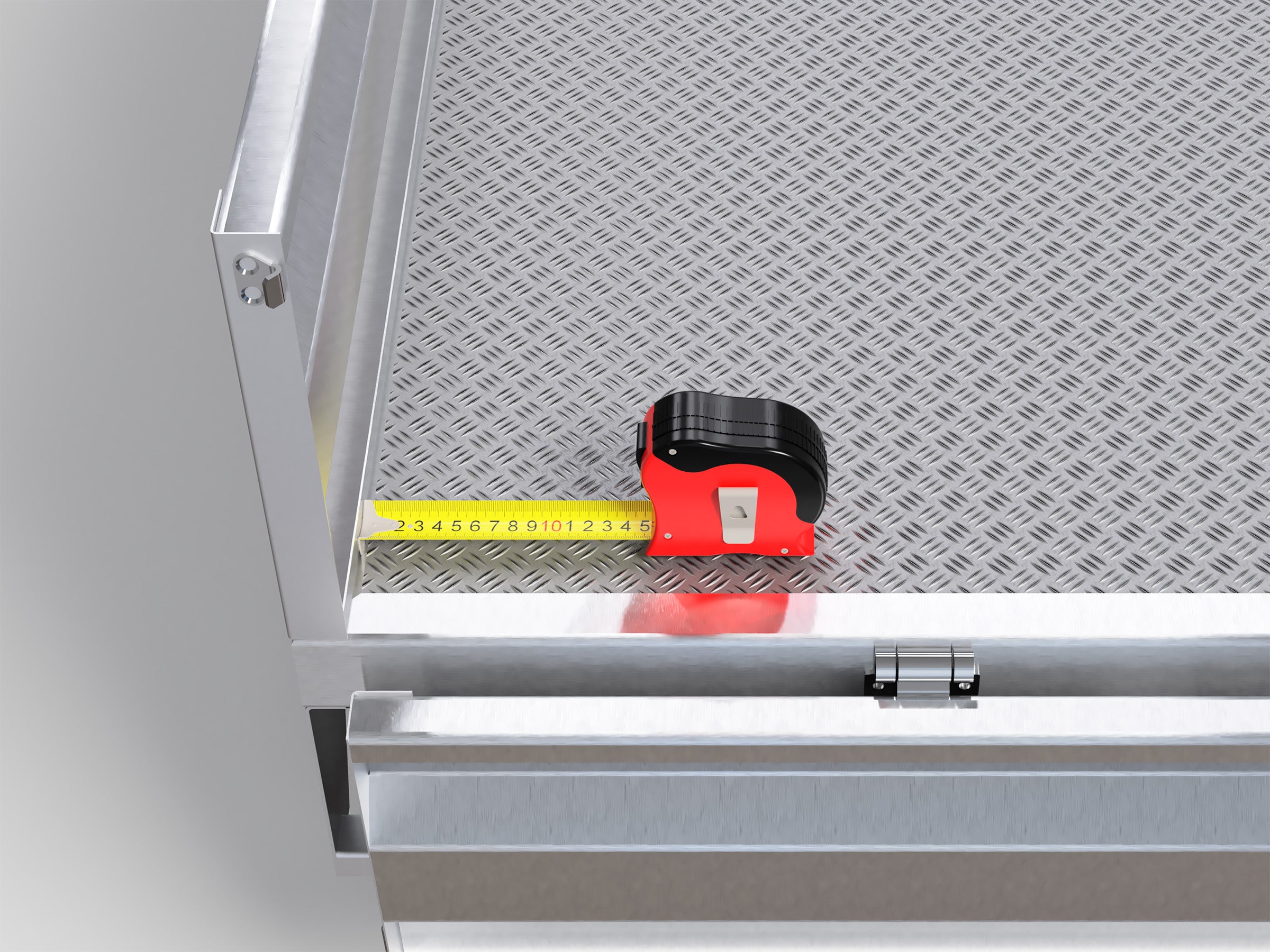

Step 1

Measure Tray Width

Measure inside the tray
If your tray has inner walls or liners, measure inside those walls

Record the smallest measurement you get in millimetres

Step 2

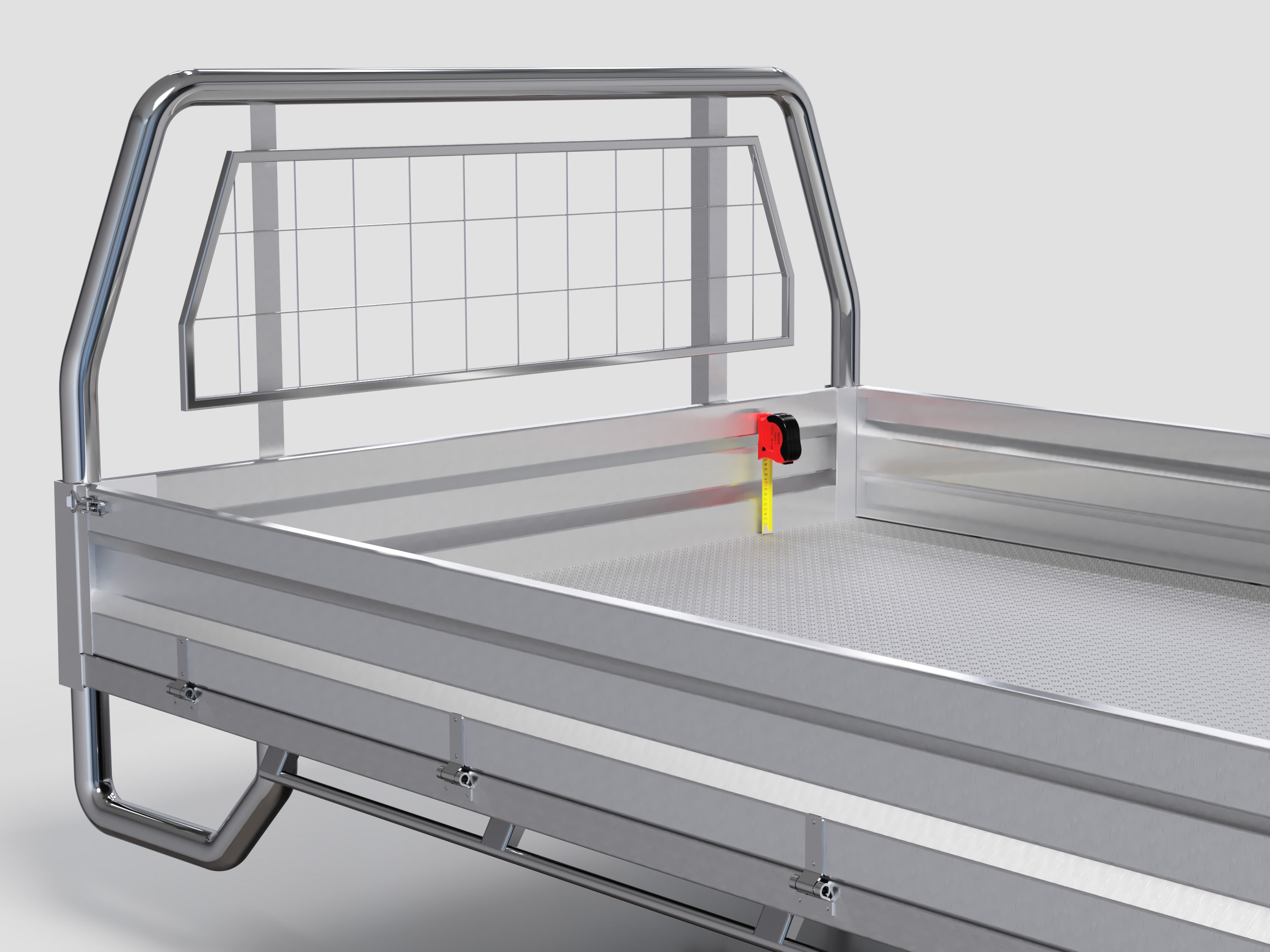

Measure Headboard Height

Measure the height of your headboard from the tray floor.

Record this measurement in millimetres

Step 3

Find Your Fitment

The calculator below will provide our recommended ladder rack size based on your measurements. You can also download the calculation as a PDF to keep a hard copy for reference.
