Universal mounting kit includes 1 X Universal Chassis Bracket - 1 x gusset (DIY WELD TOGETHER KIT)

*THIS IS A WELD TOGETHER KIT*

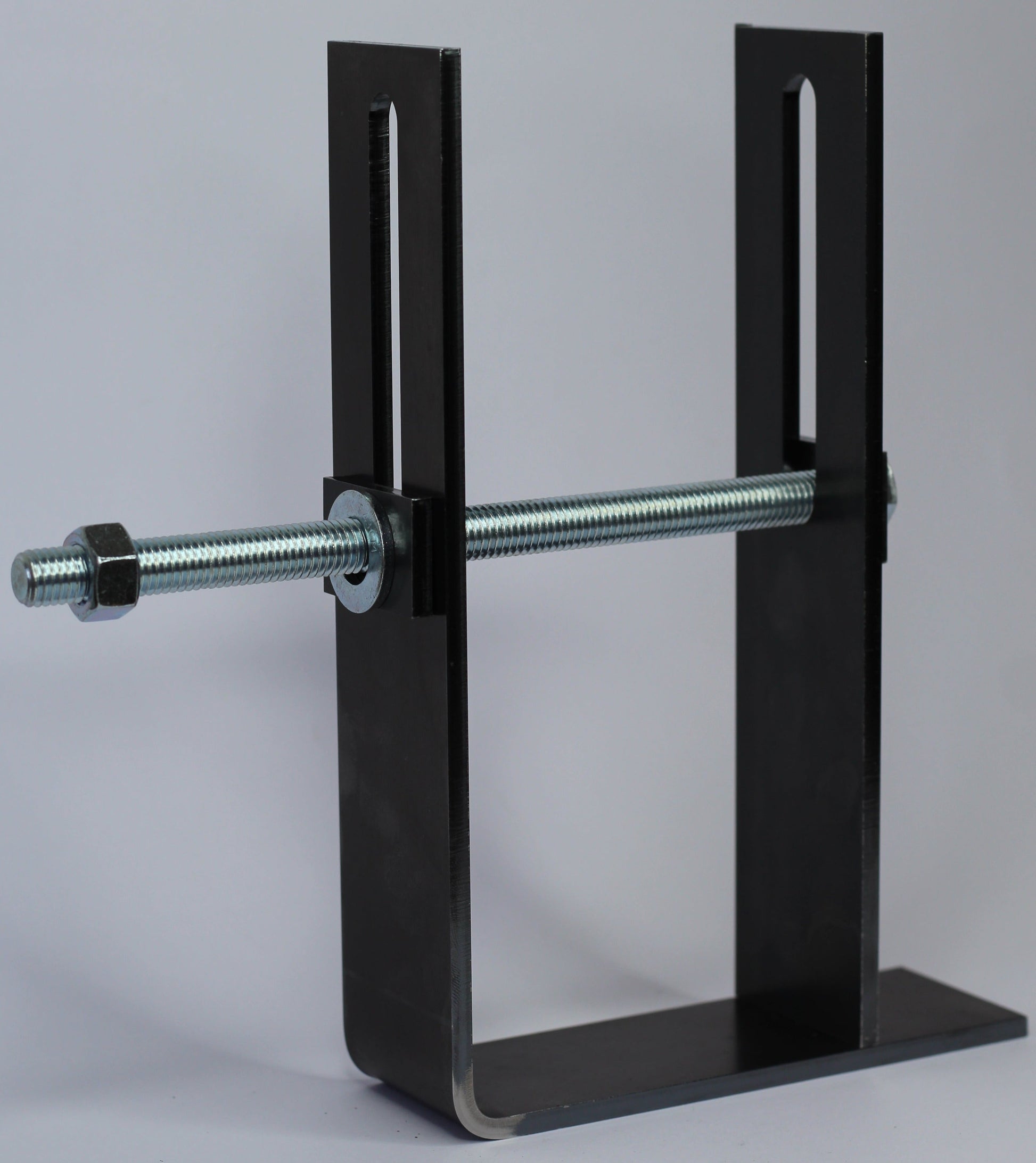

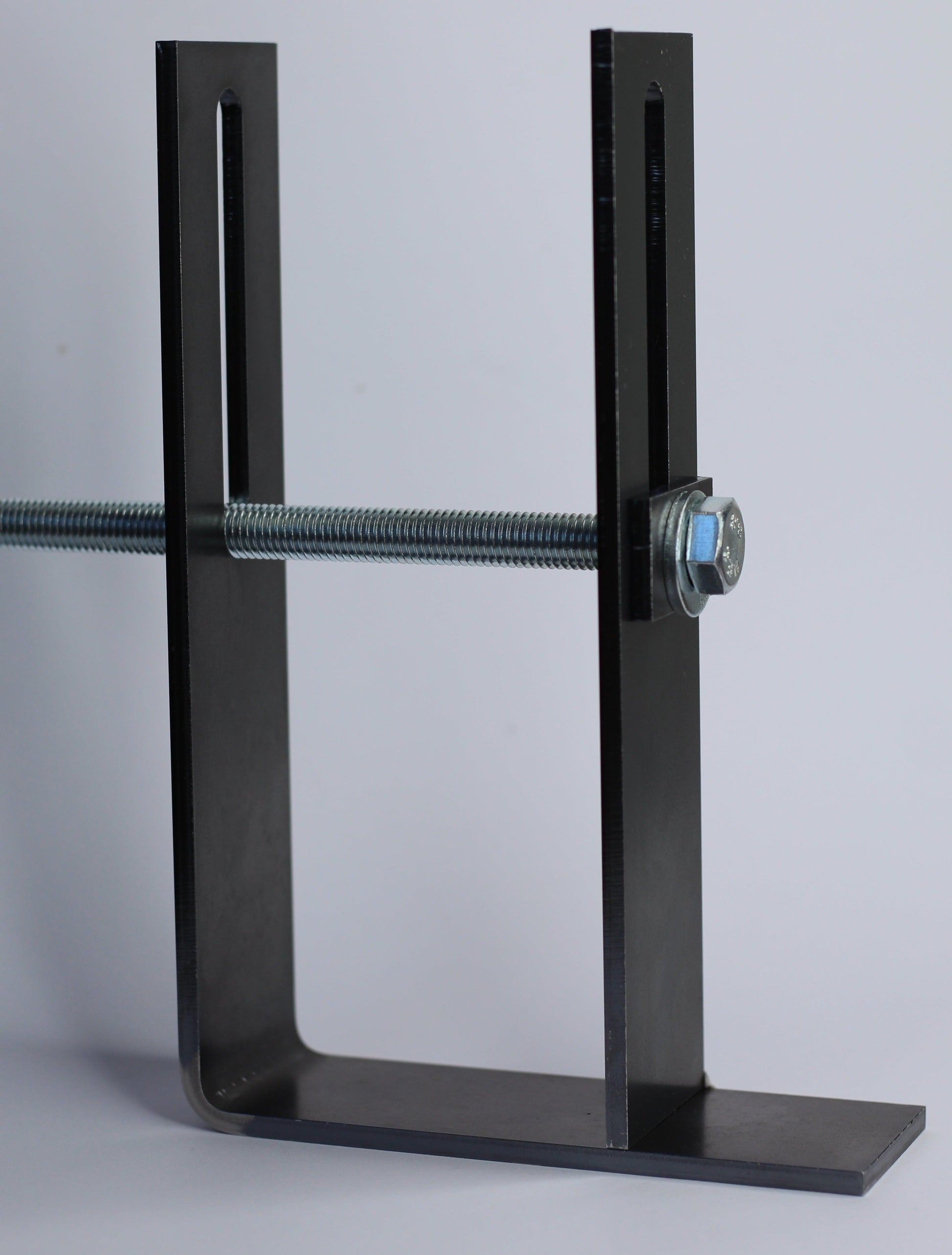

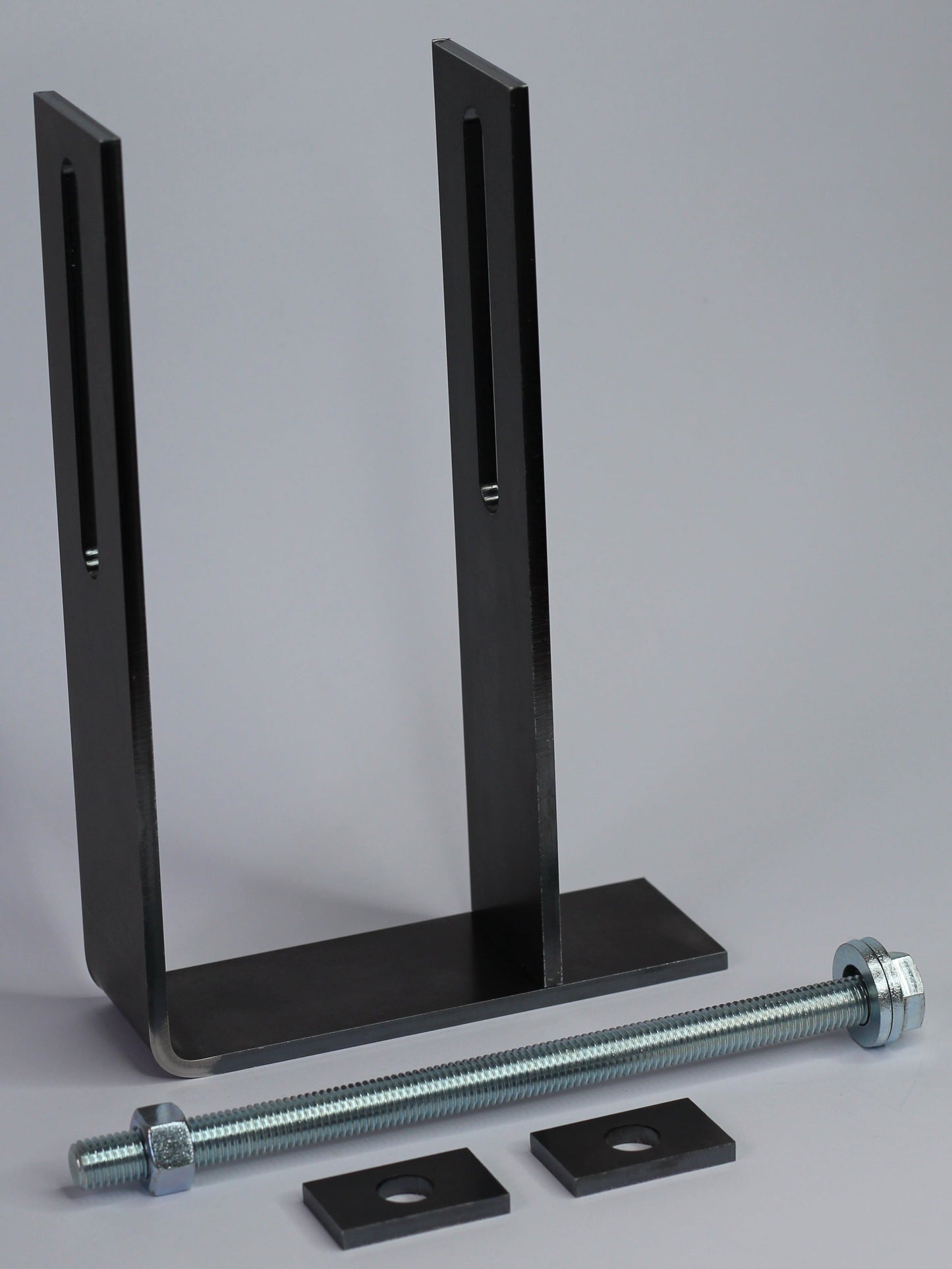

1 X UNIVERSAL CHASSIS BRACKET INCLUDING BOLTS

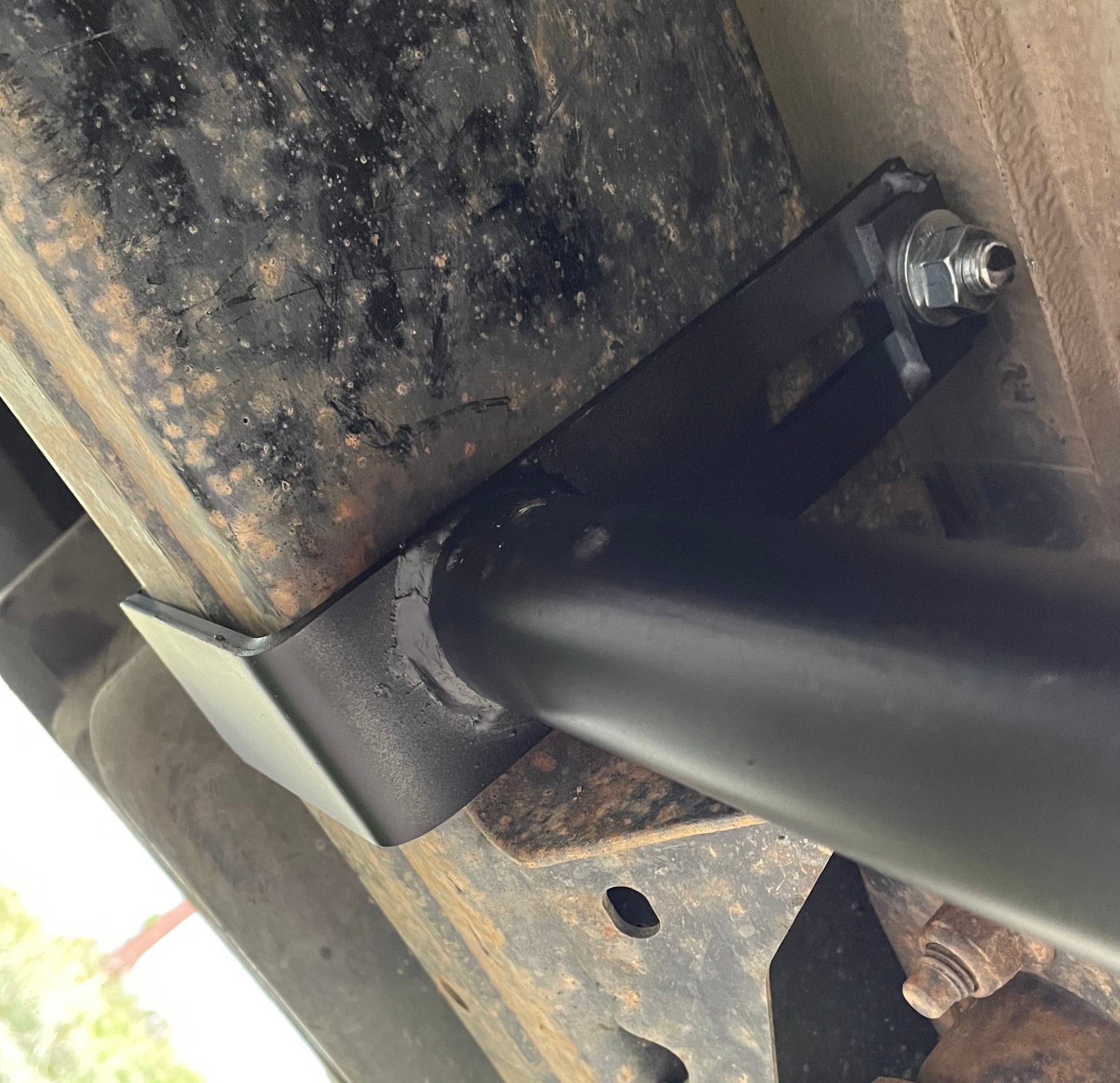

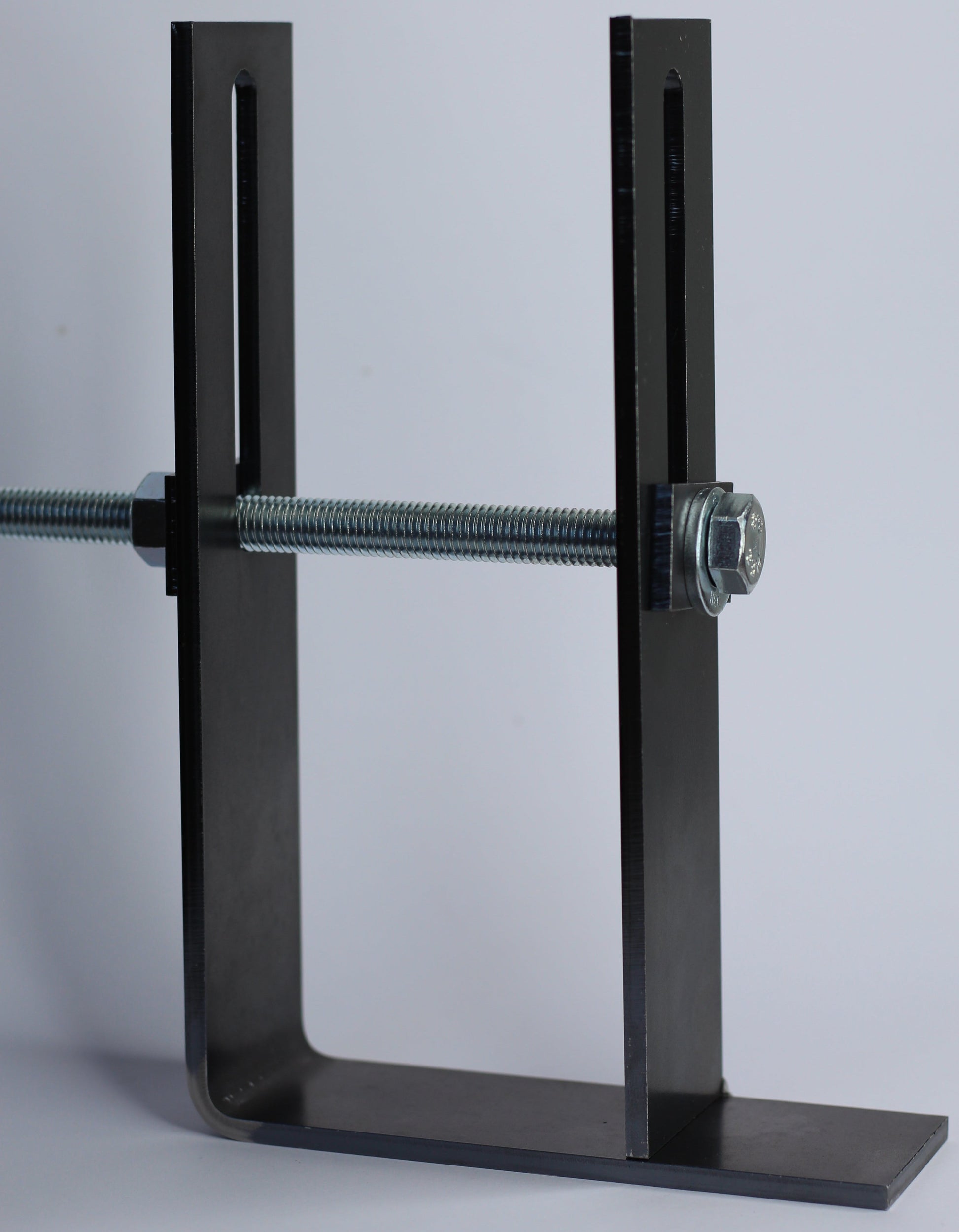

Universal chassis bracket that is made to suit square / rectangle box 4x4 vehicle chassis rails

these Universal Chassis Brackets will suit any box chassis with a range from 100 mm to 200 mm in height and up to 150 mm in width

these brackets are made from 50 mm wide x 5 mm thick mild steel plate, laser cut for precision

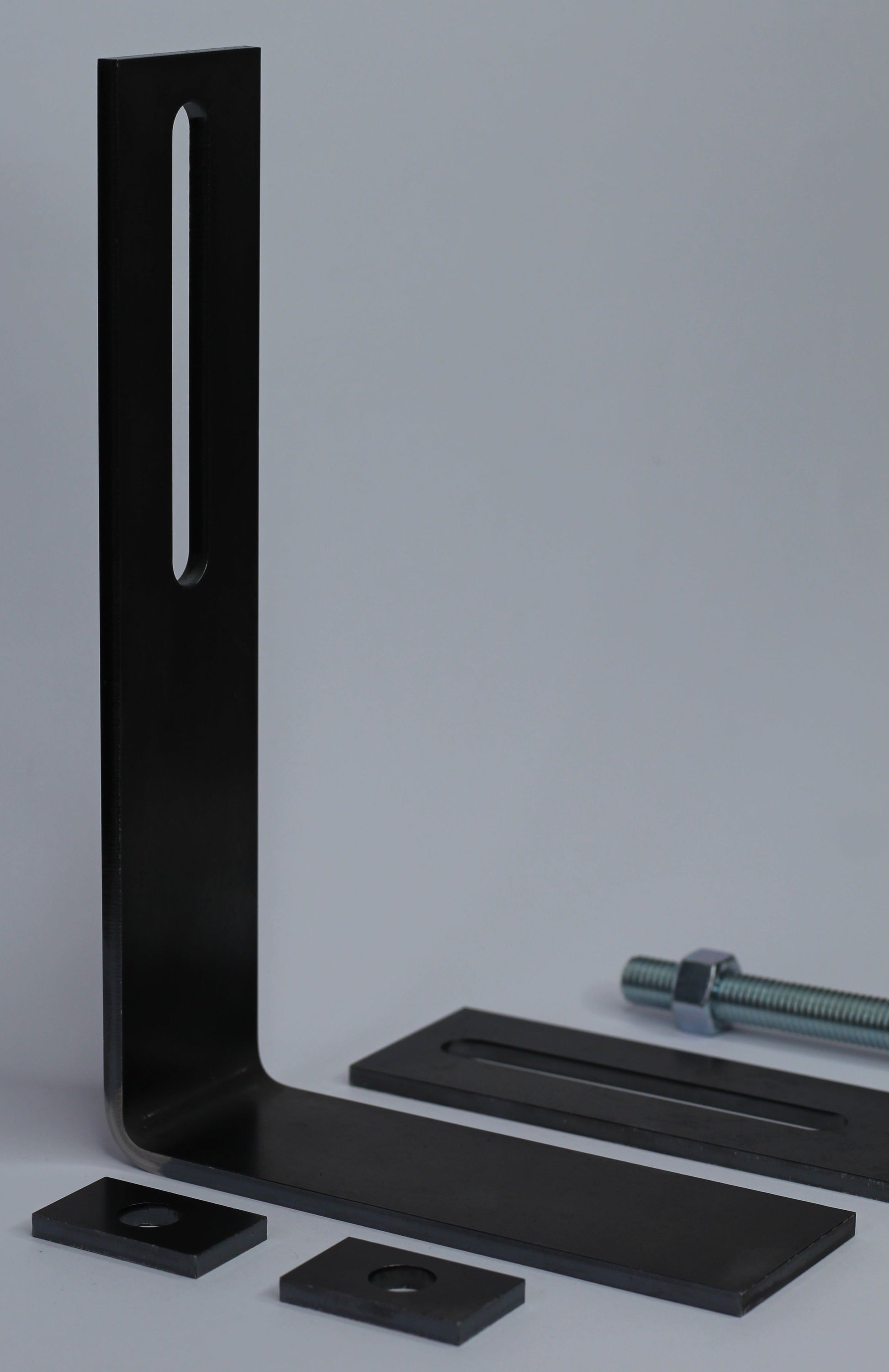

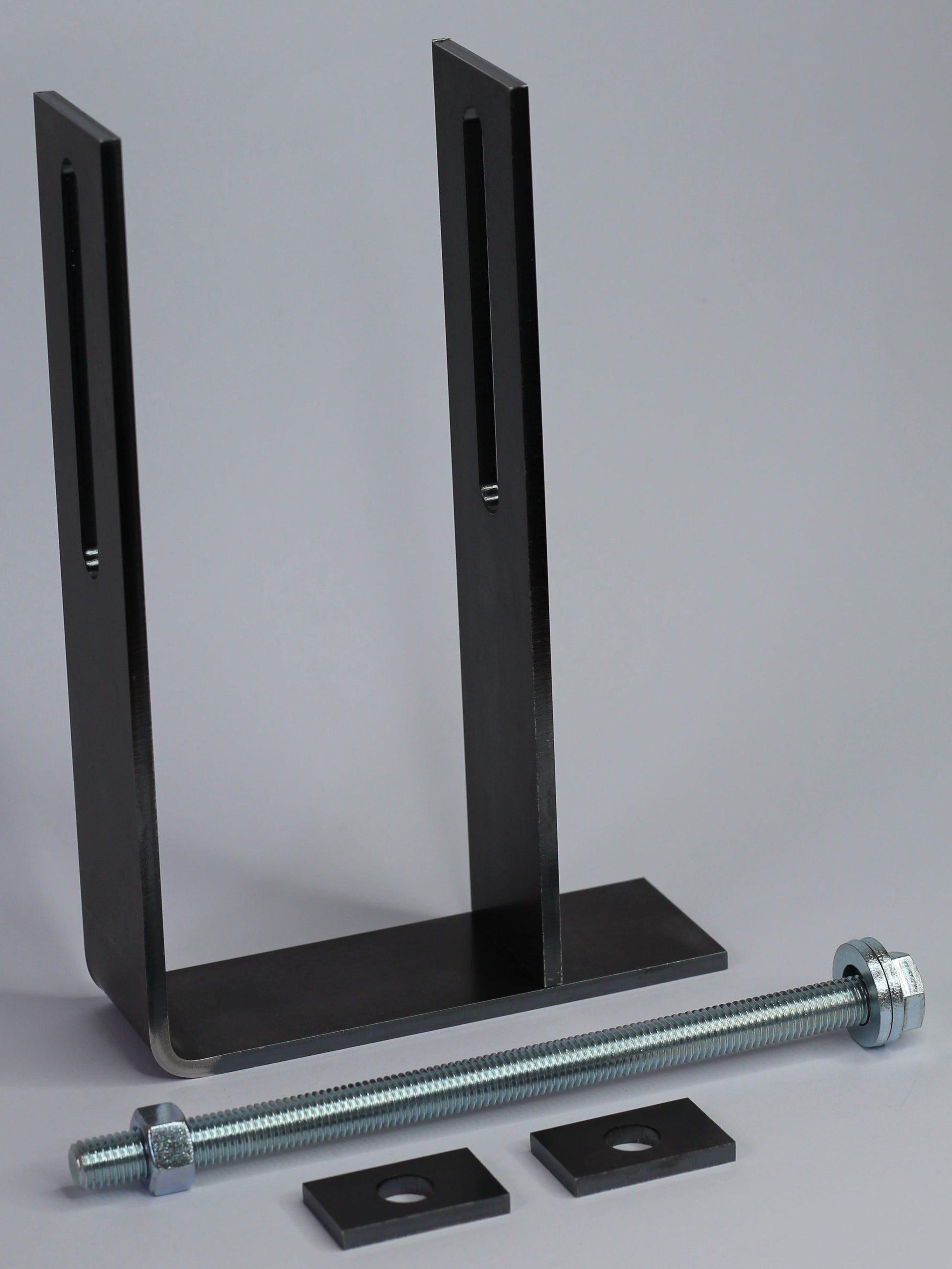

this Universal Chassis Bracket is 1 SET which includes

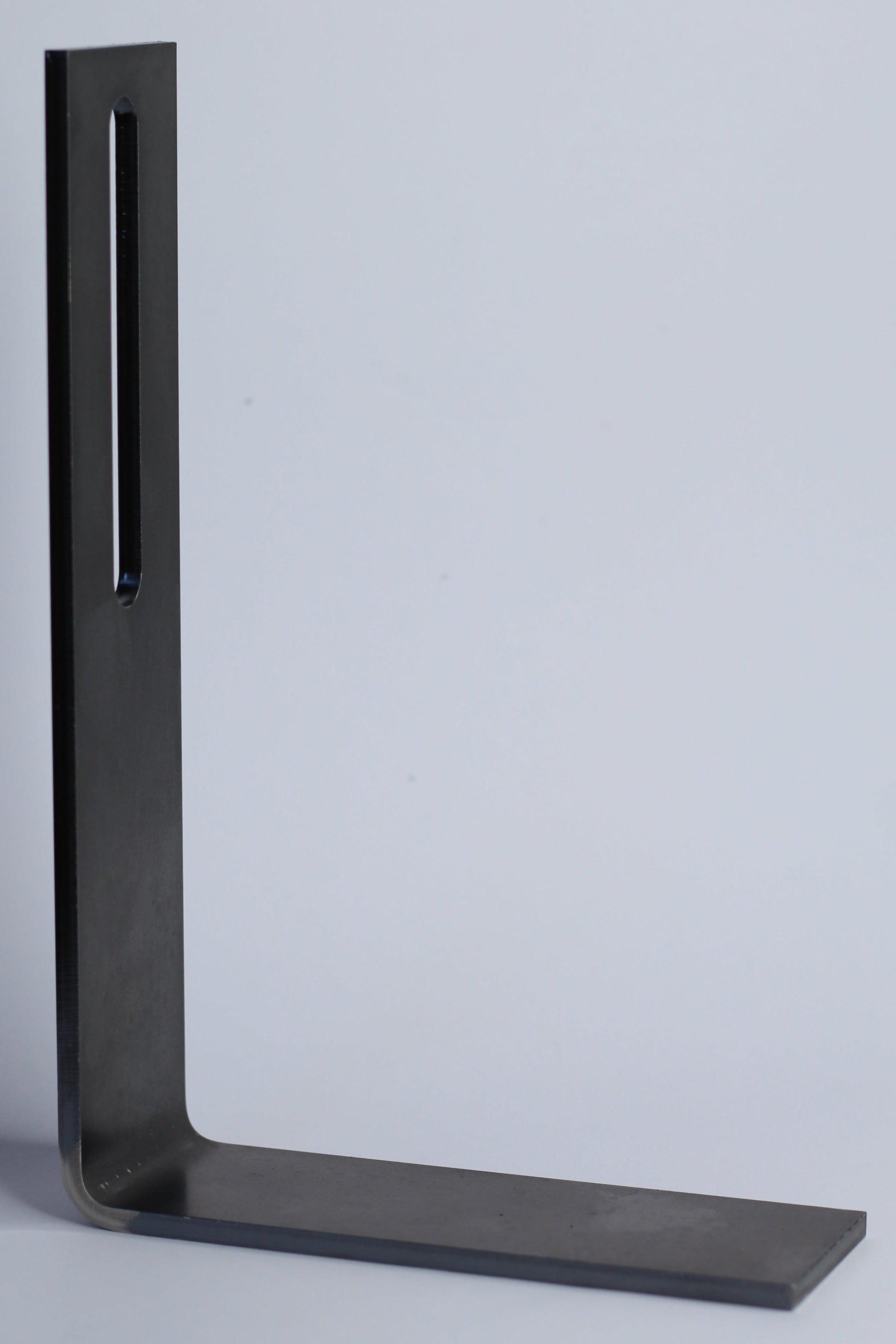

1 x L bracket with a slot cut into it

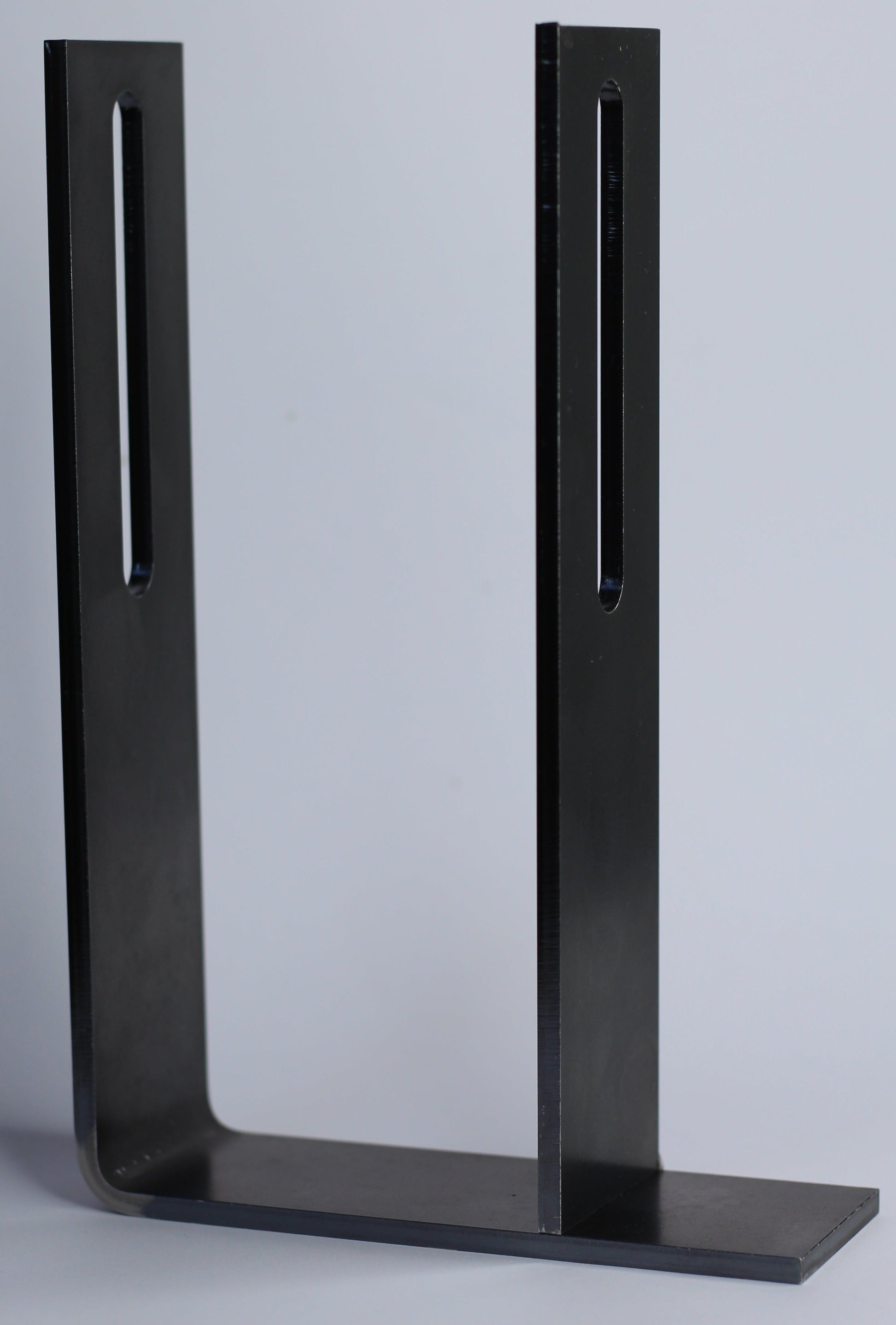

1 x straight bracket ( to be welded to the L bracket ) with a slot cut into it

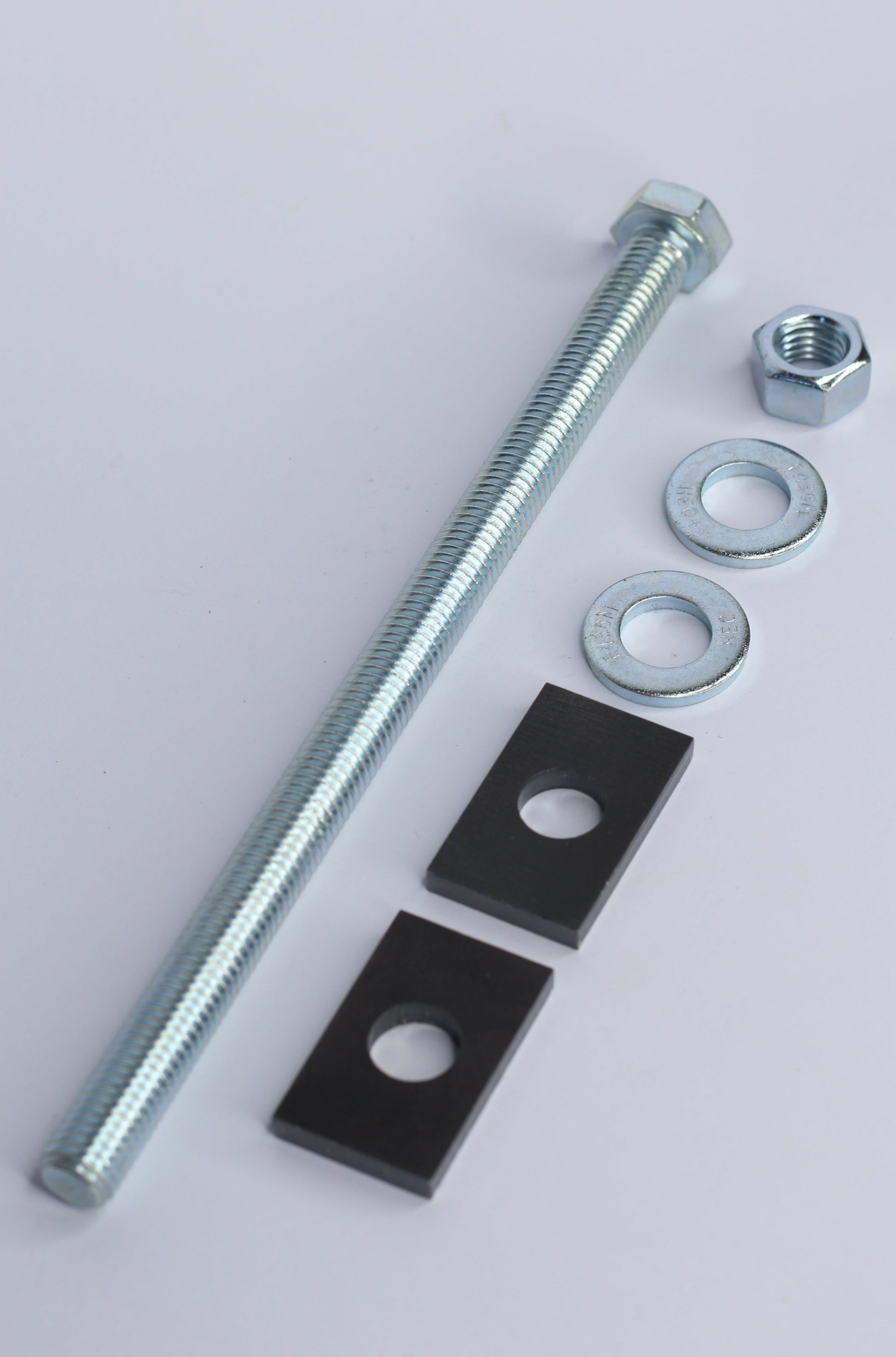

2 x rectangular plates with a hole cut into them ( to be welded to both the L bracket and straight bracket )

1 x 200 mm long x 12 mm high tensile zinc plated bolt ( to be cut down to the length required for your chassis )

2 x 12 mm zinc plated washers

1 x 12 mm lock nuts
