Universal mounting kit includes 6 X Universal Chassis Brackets - 6 x gussets (DIY WELD TOGETHER KIT)

*THIS IS A WELD TOGETHER KIT*

6 X SET OF UNIVERSAL CHASSIS BRACKETS and gussets

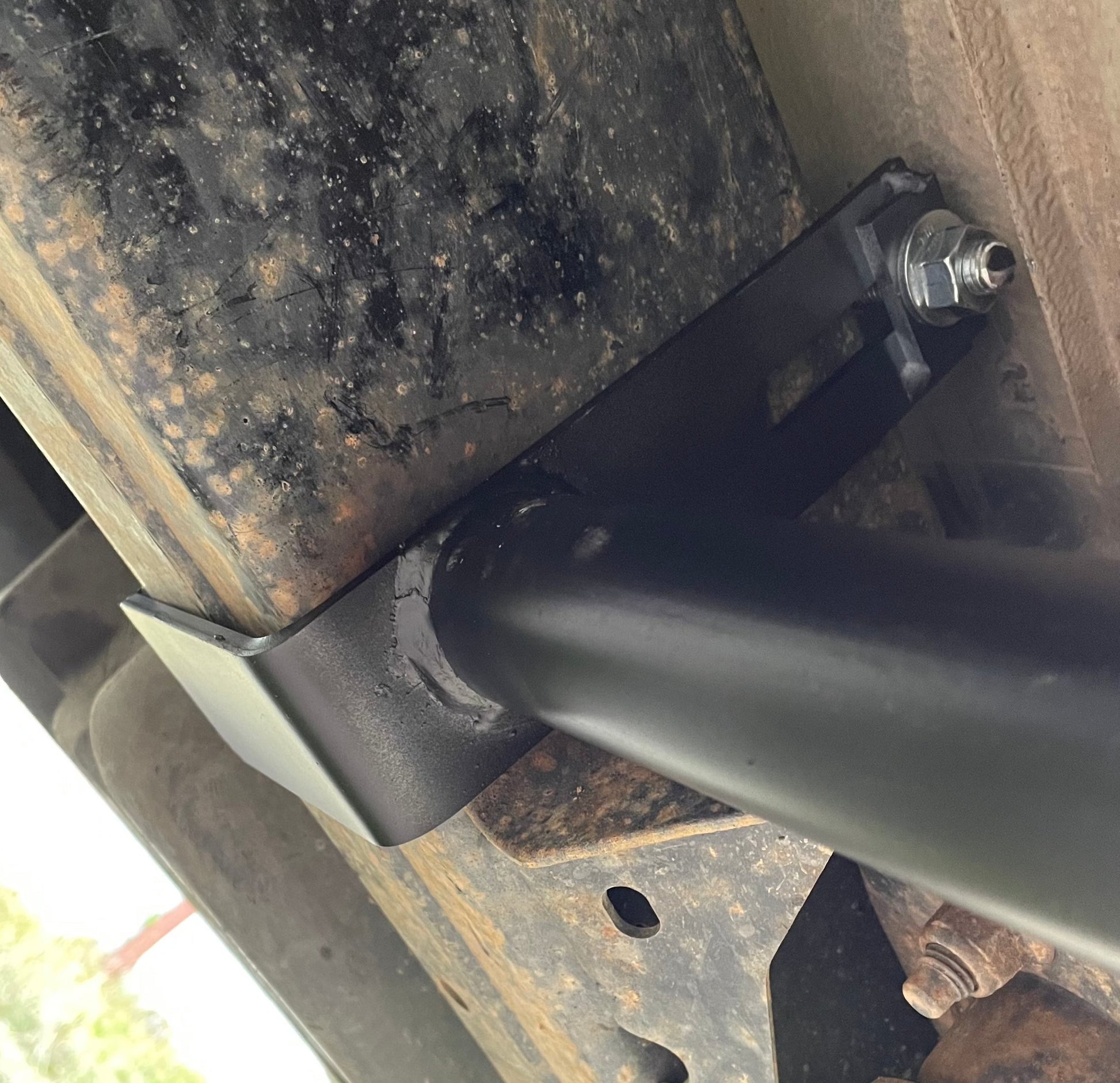

Universal chassis bracket that is made to suit square / rectangle box 4x4 vehicle chassis rails

these Universal Chassis Brackets will suit any box chassis with a range from 100 mm to 200 mm in height and up to 150 mm in width

these brackets are made from 50 mm wide x 5 mm thick mild steel plate, laser cut for precision

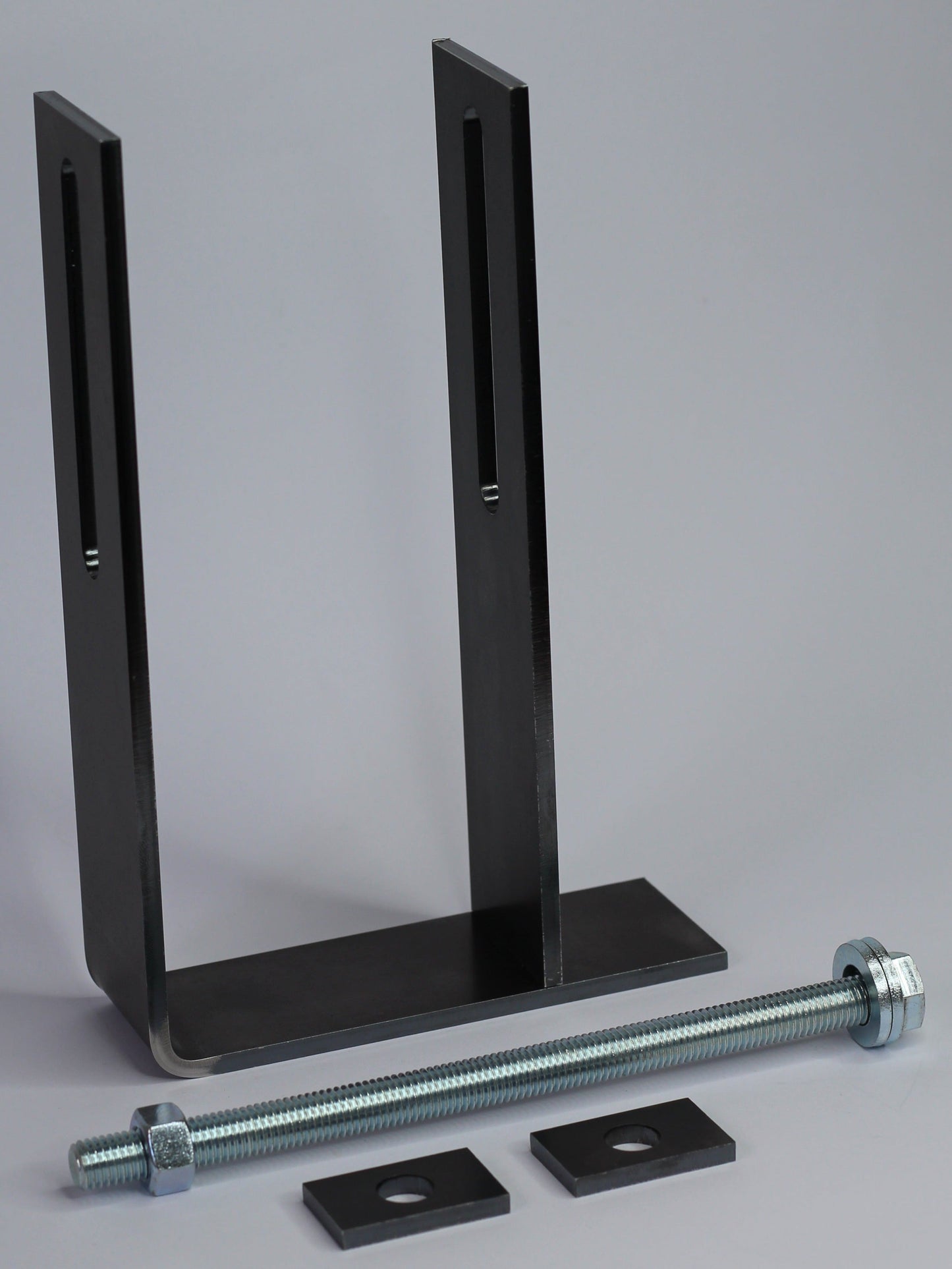

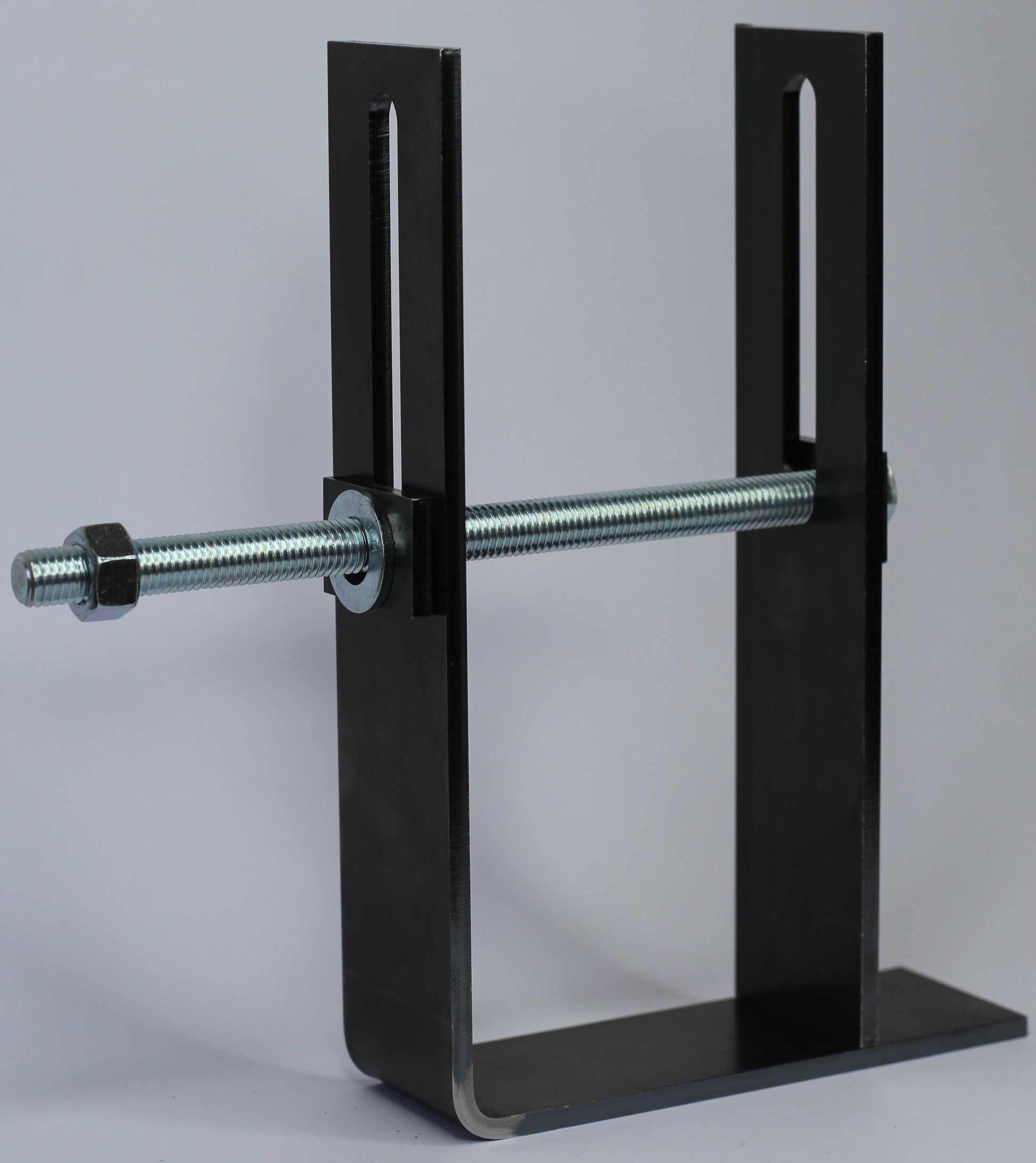

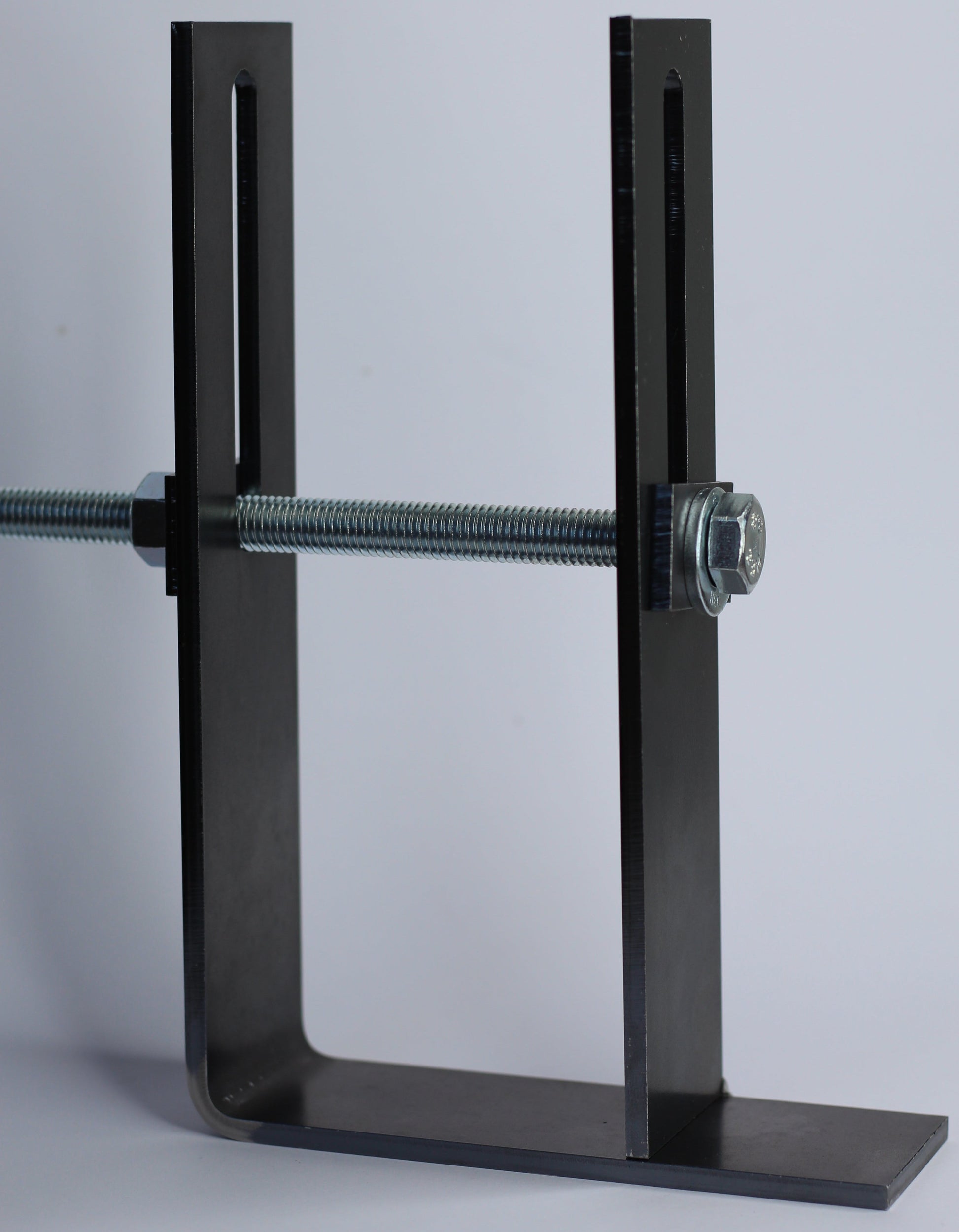

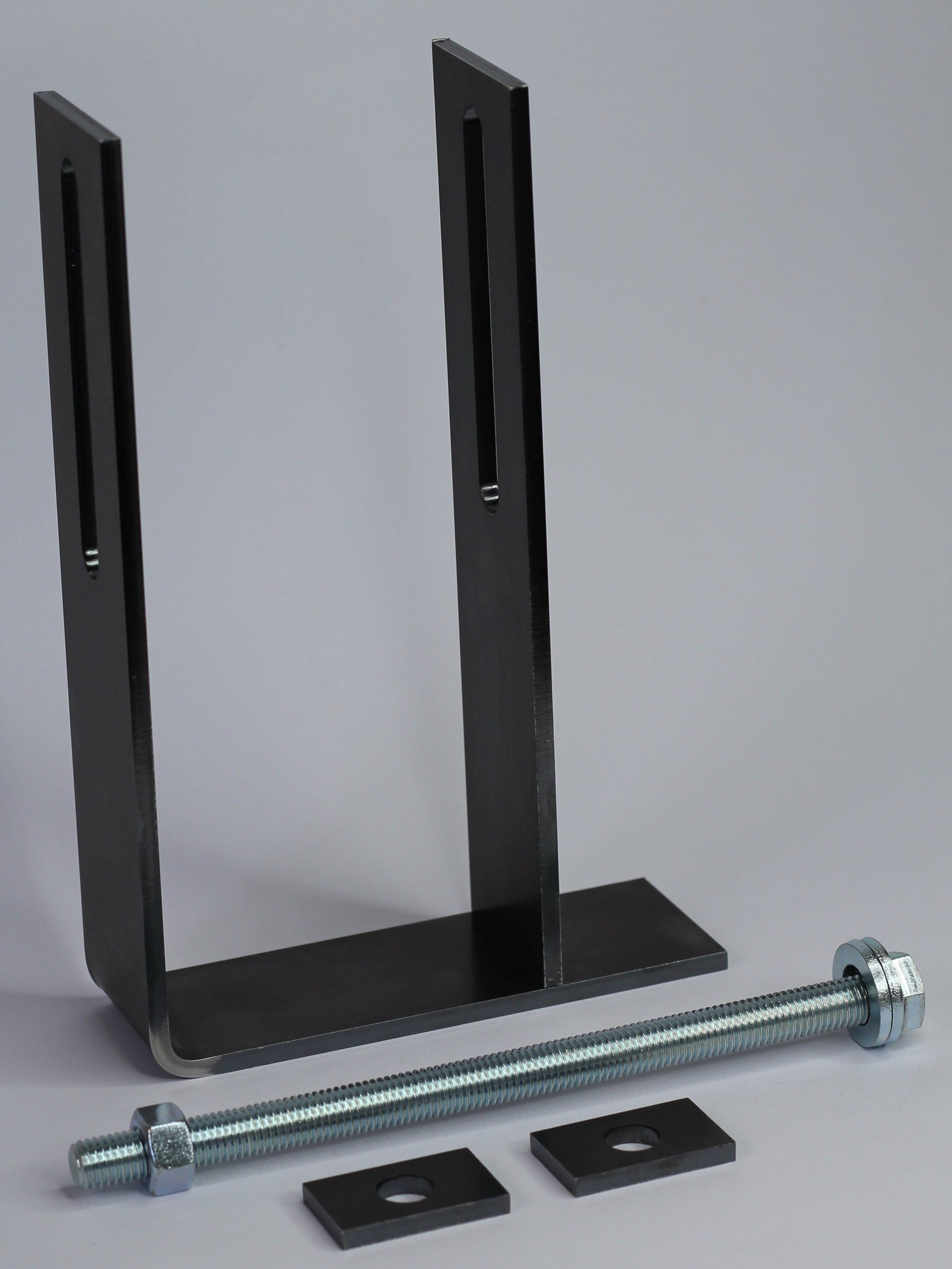

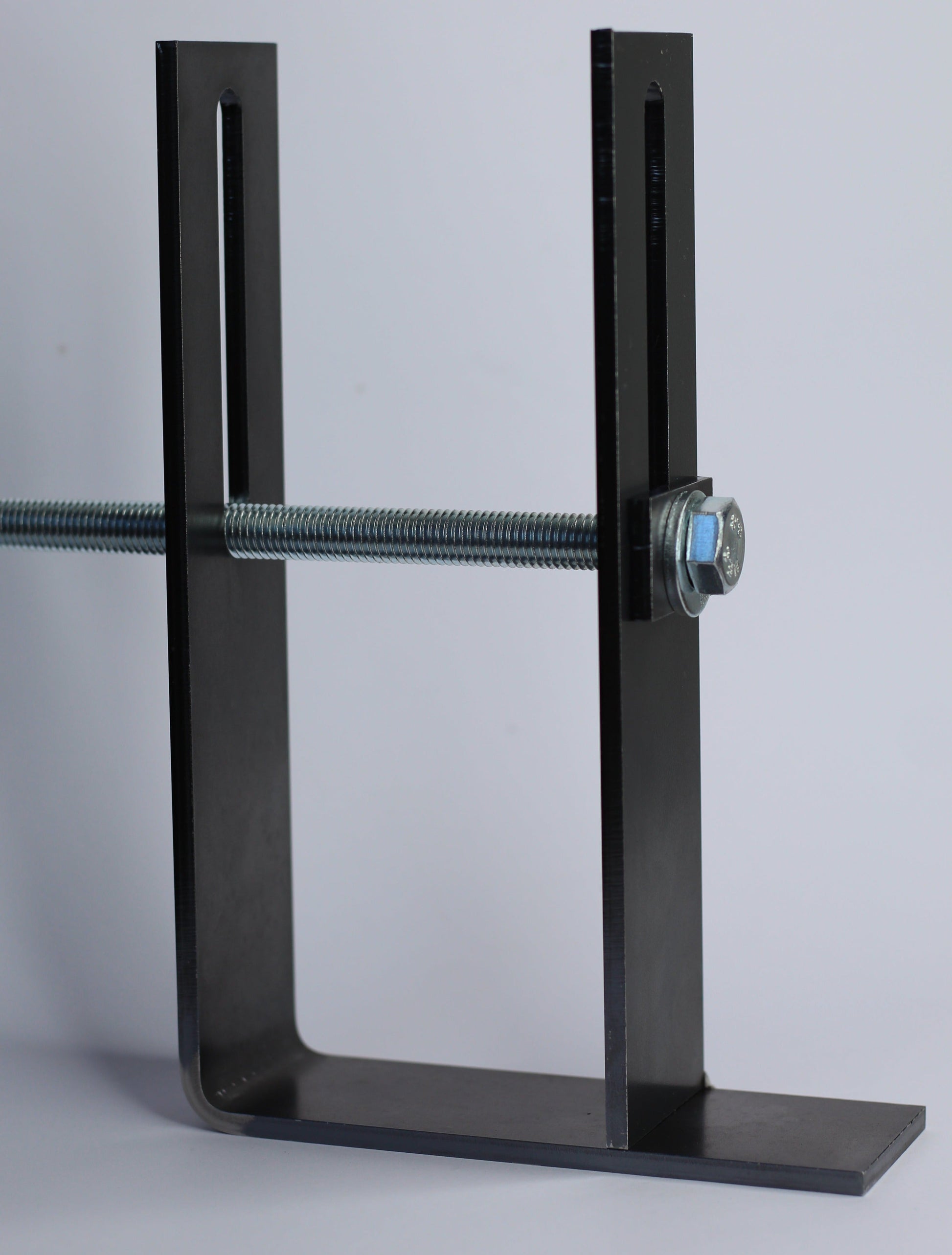

this Universal Chassis Bracket mounting kit is a set of 6 which includes

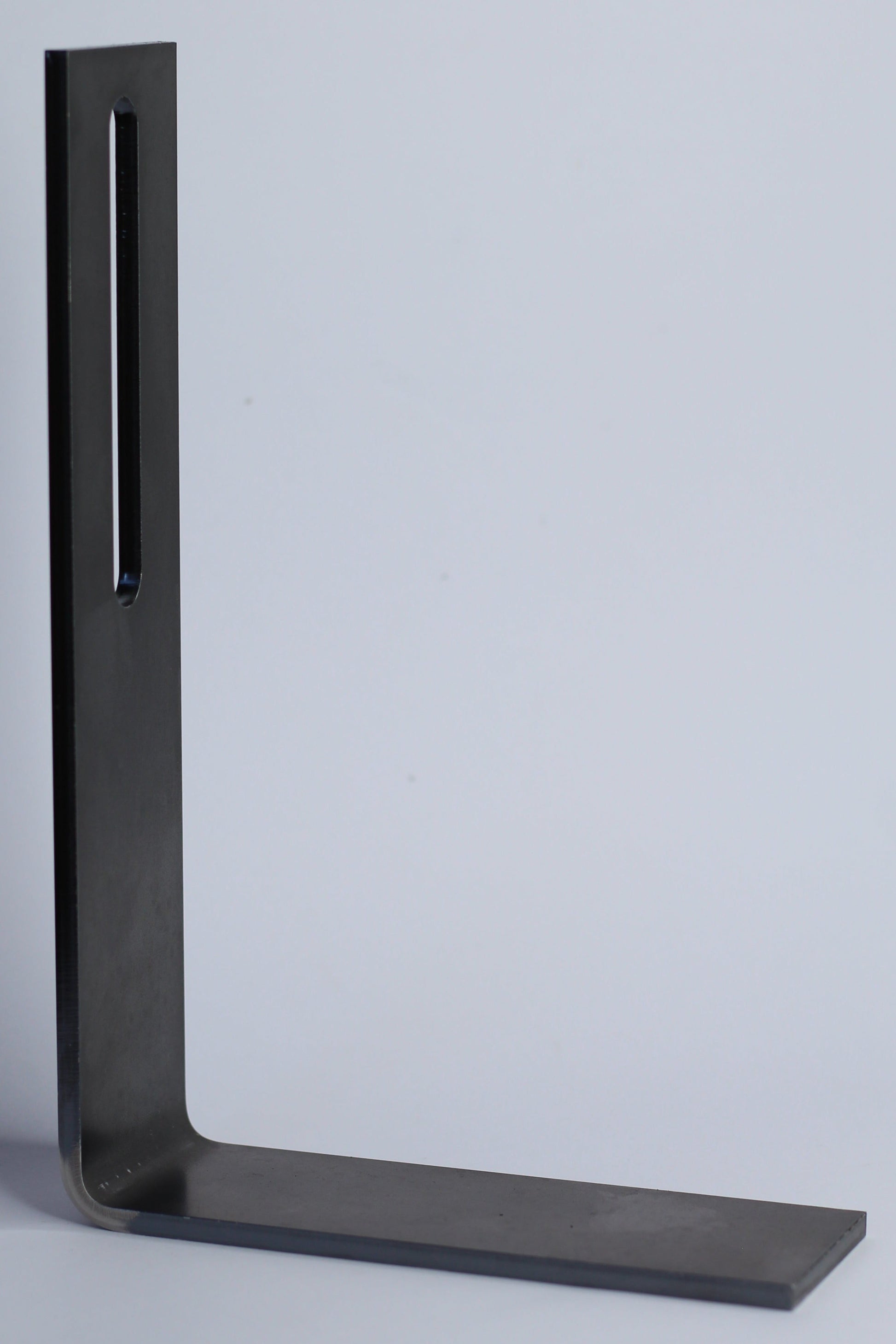

6 x L brackets with slots cut into them

6 x straight brackets ( to be welded to the L bracket ) with a slot cut into them

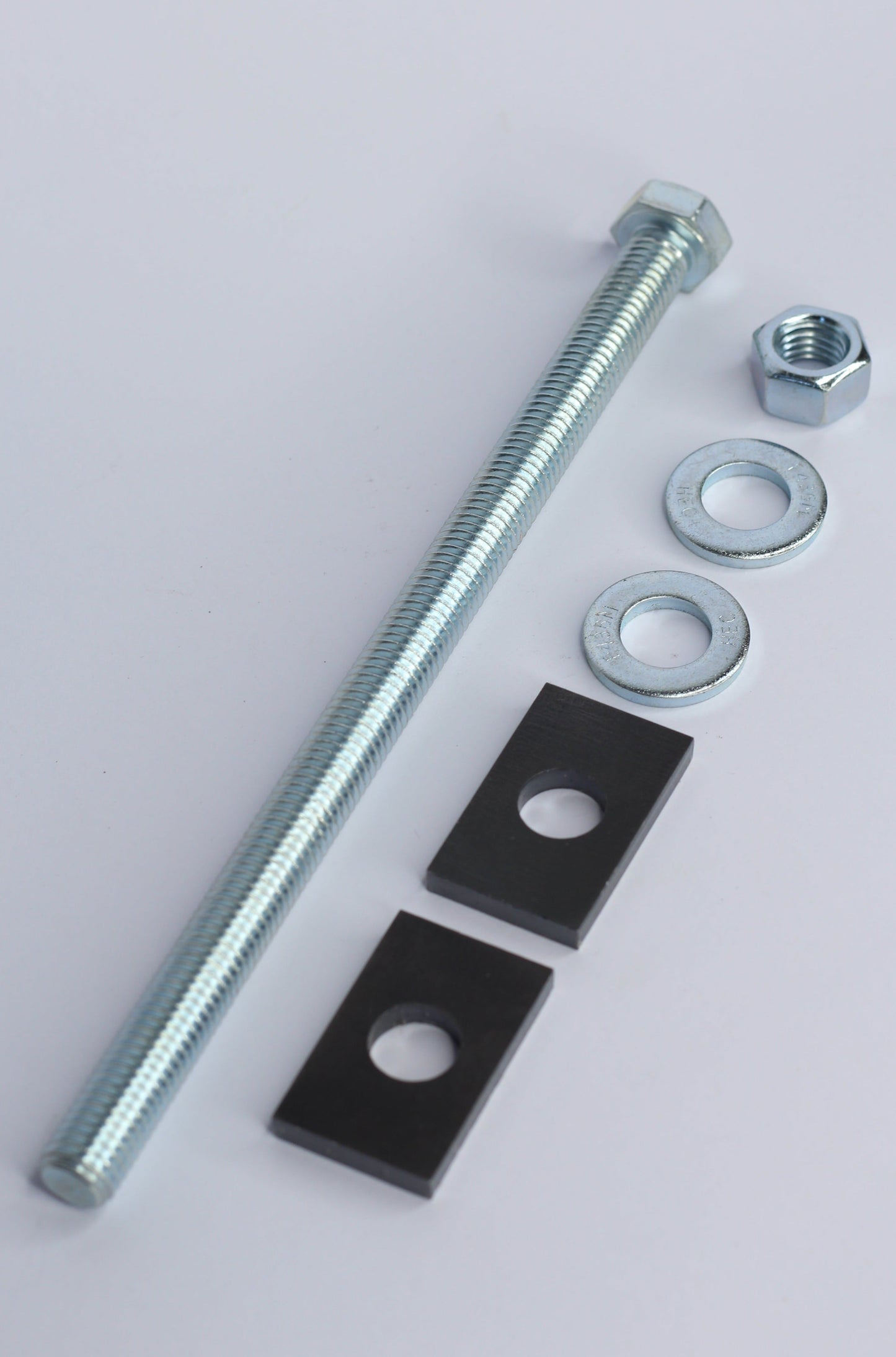

12 x rectangular plates with a hole cut into them ( to be welded to both the L bracket and straight bracket )

6 x 200 mm long x 12 mm high tensile zinc plated bolt ( to be cut down to the length required for your chassis )

12 x 12 mm zinc plated washers

6 x 12 mm lock nuts

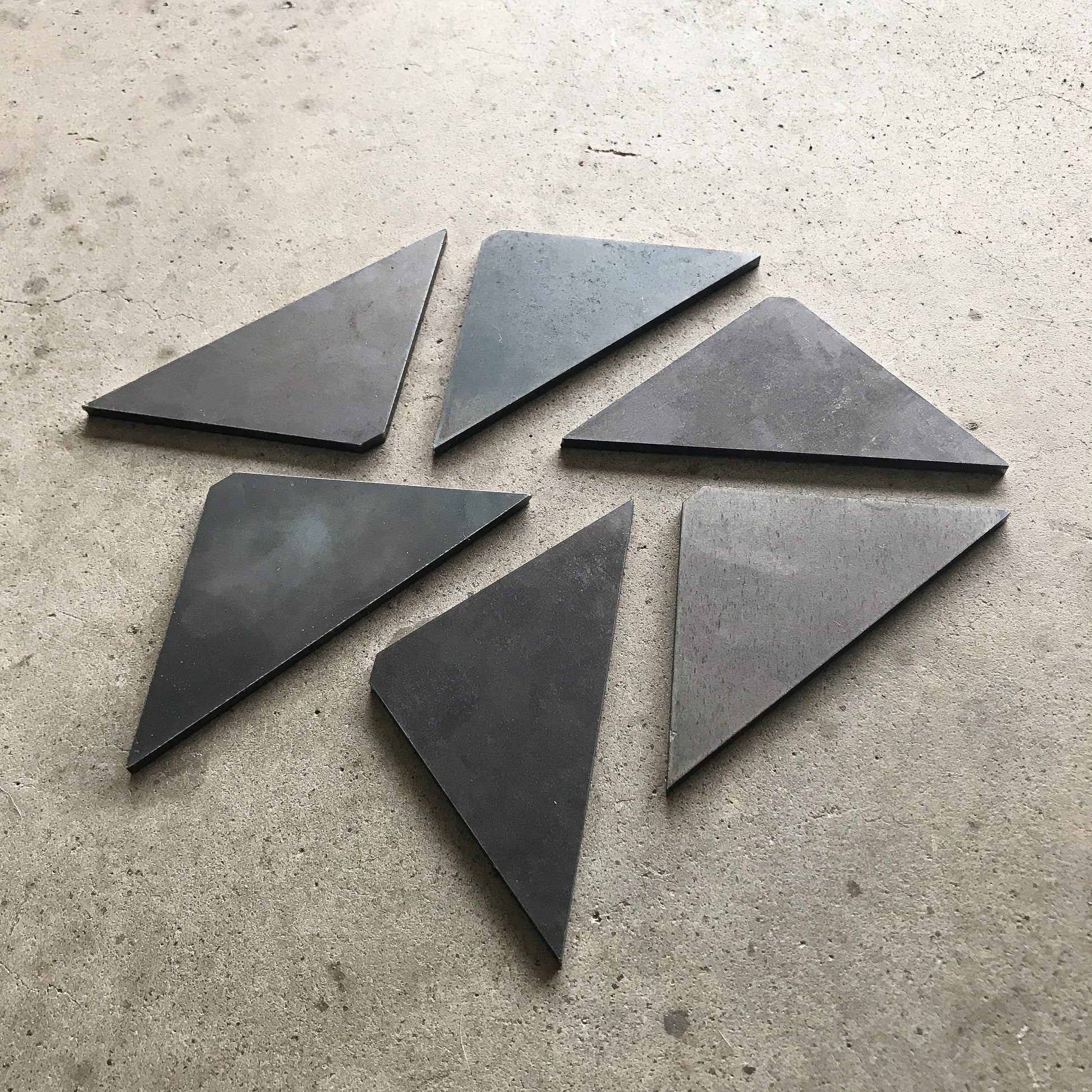

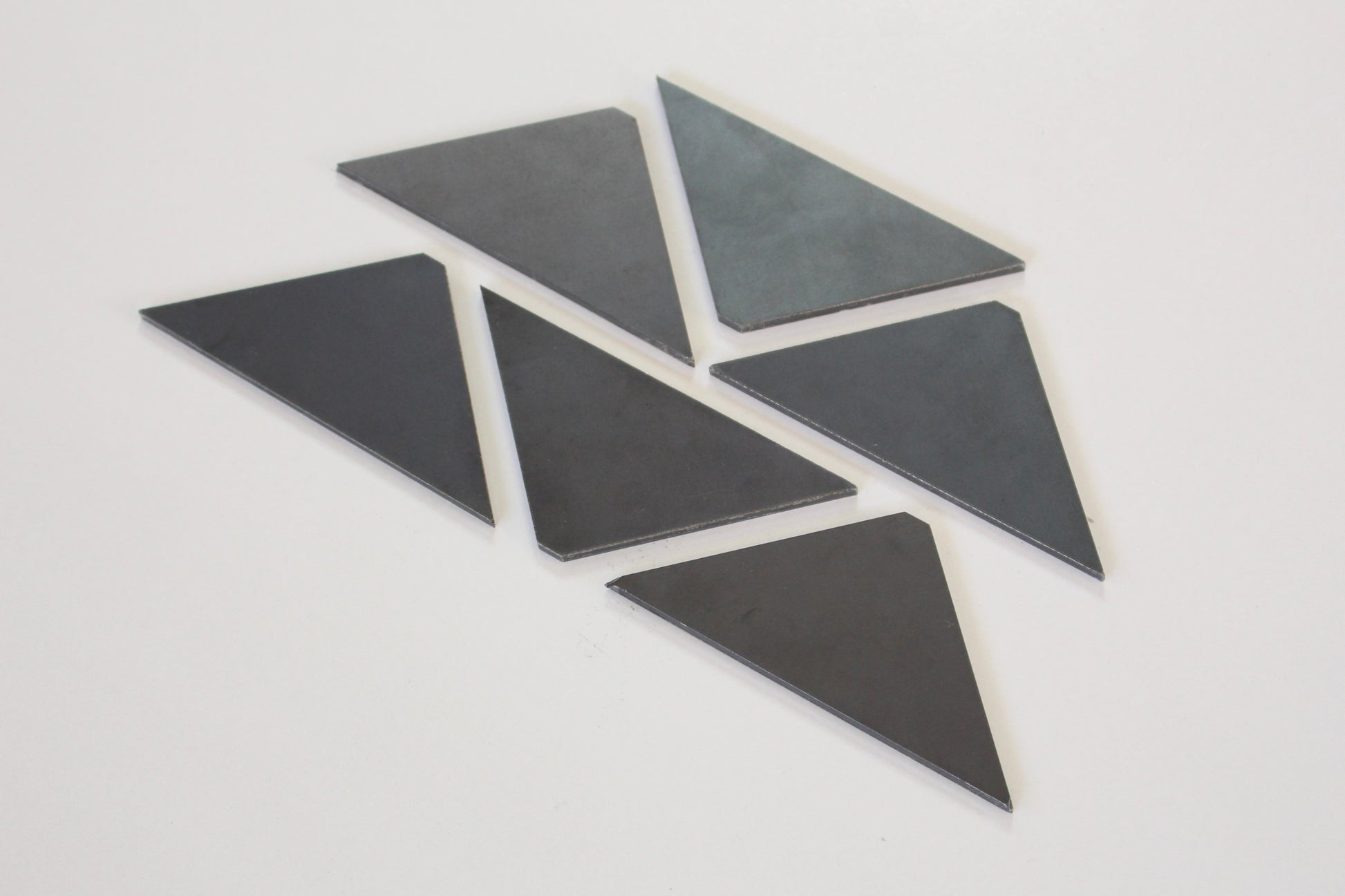

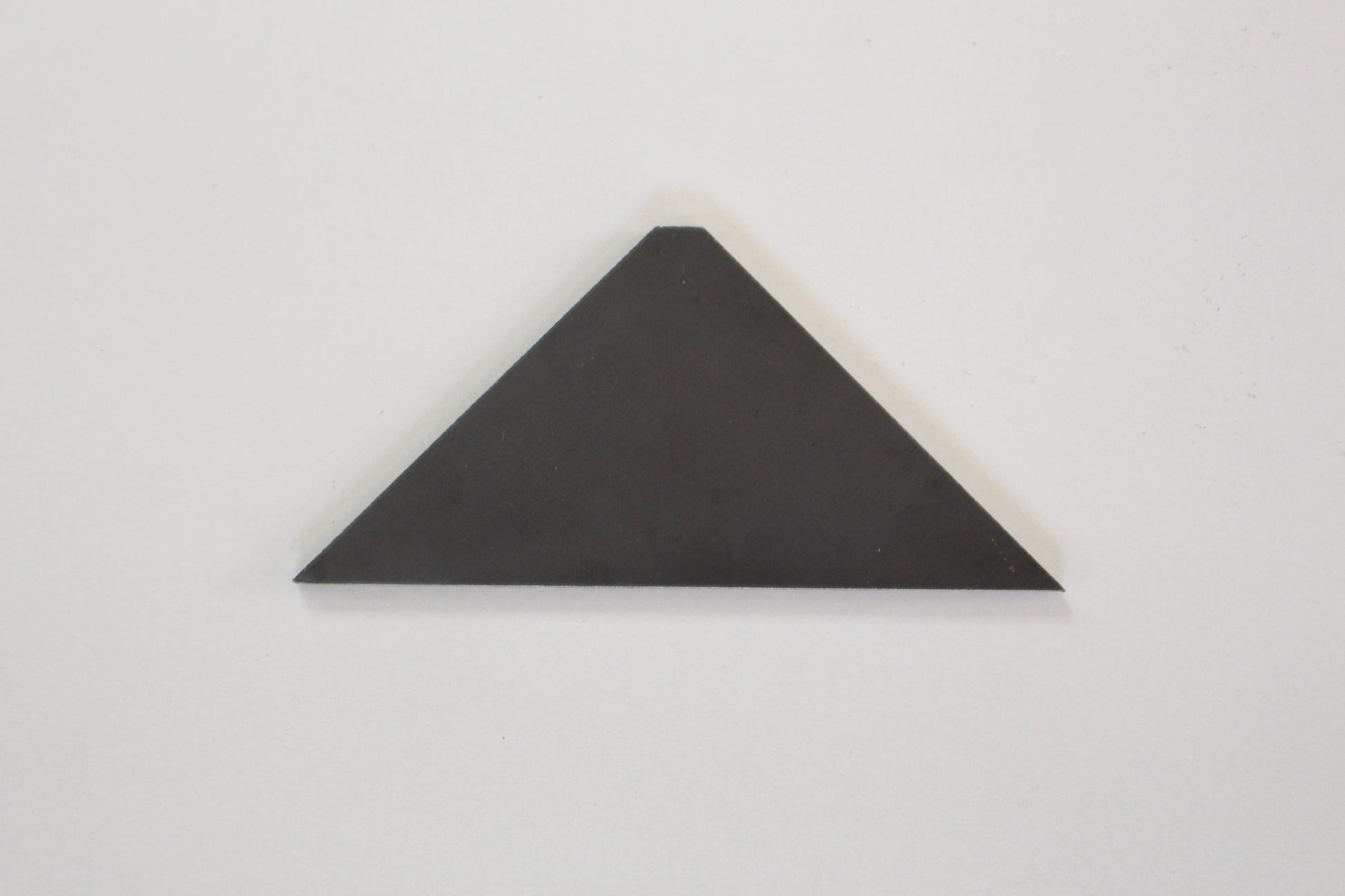

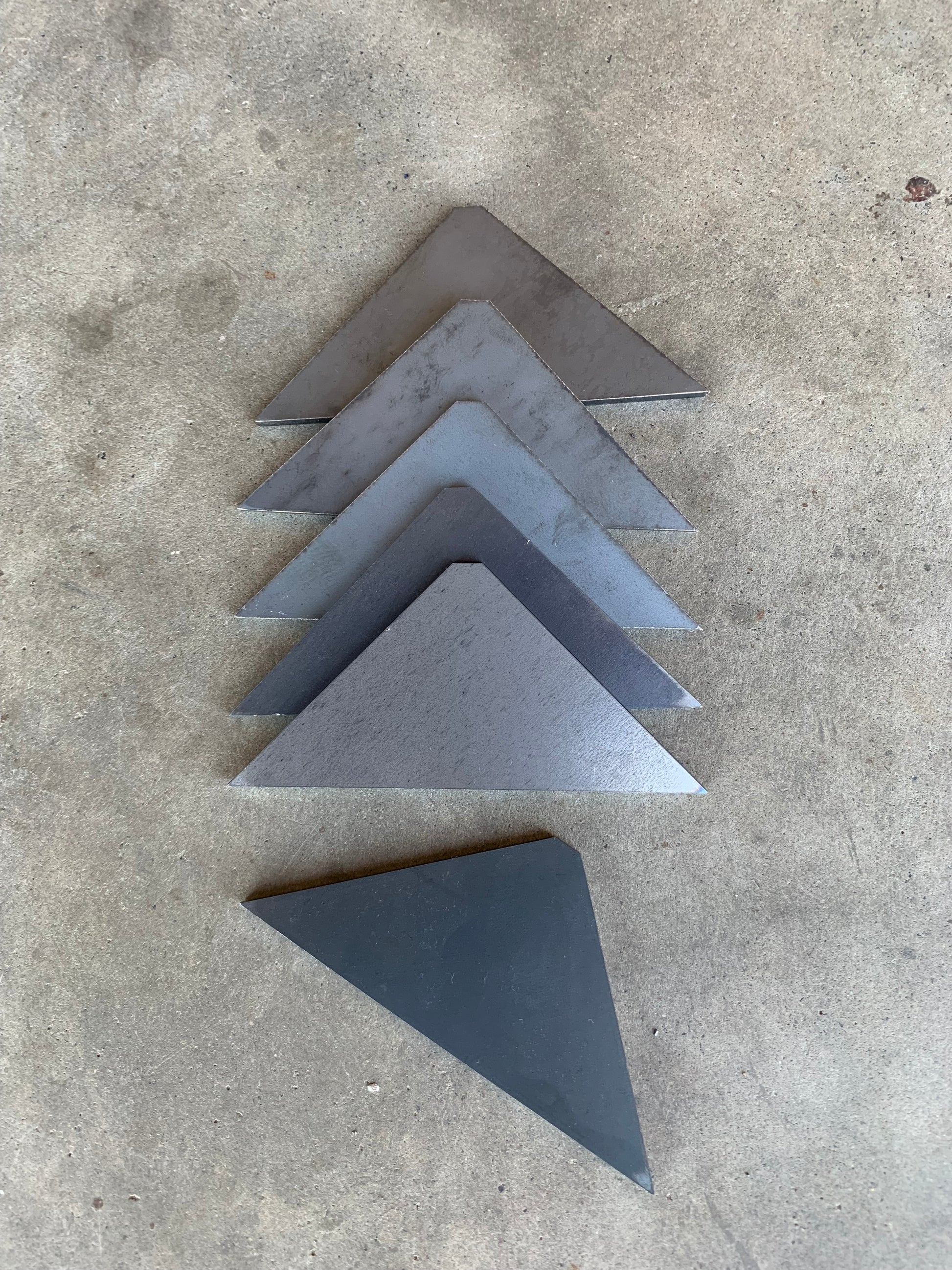

6 x 80 x 80 x 4mm gussets
