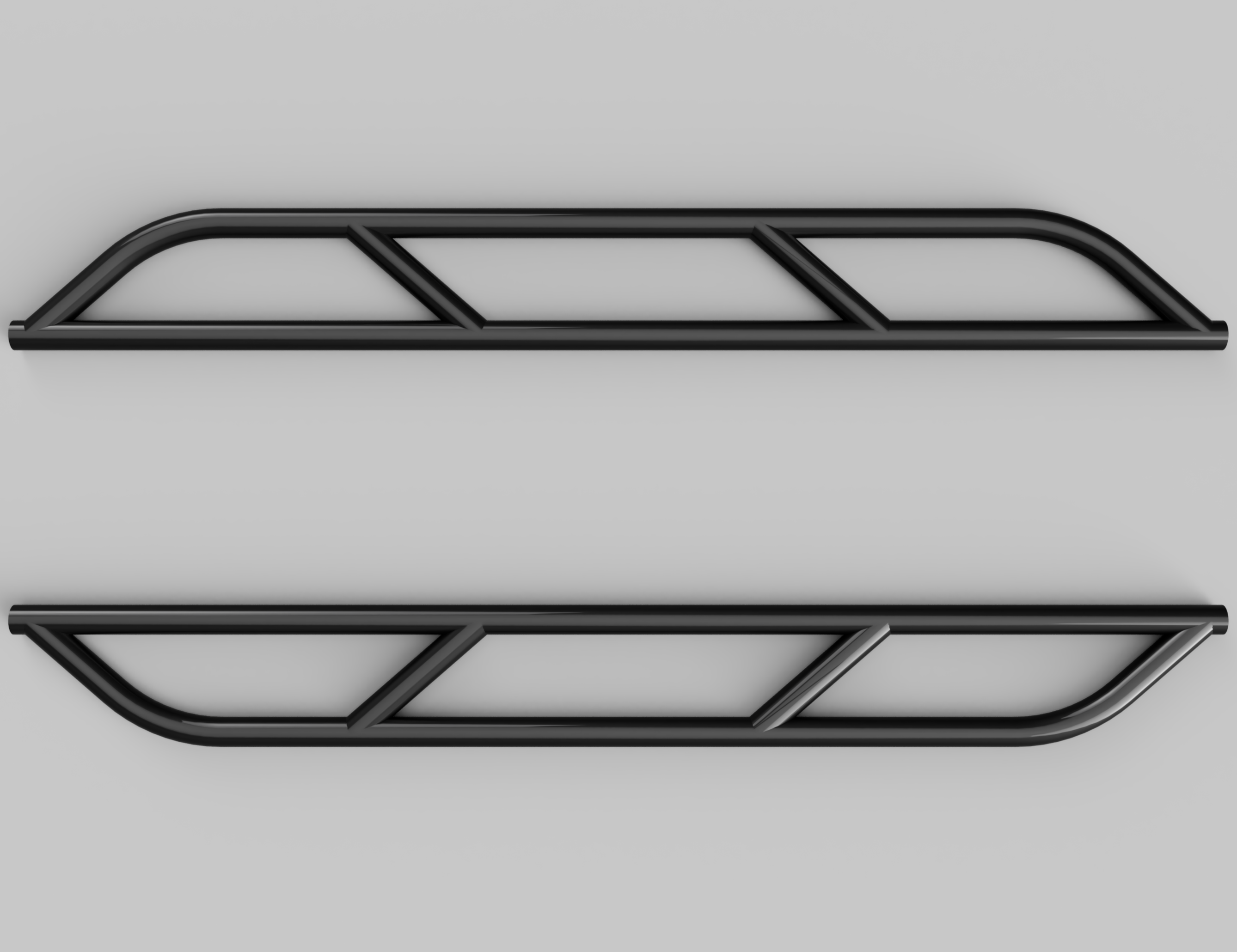

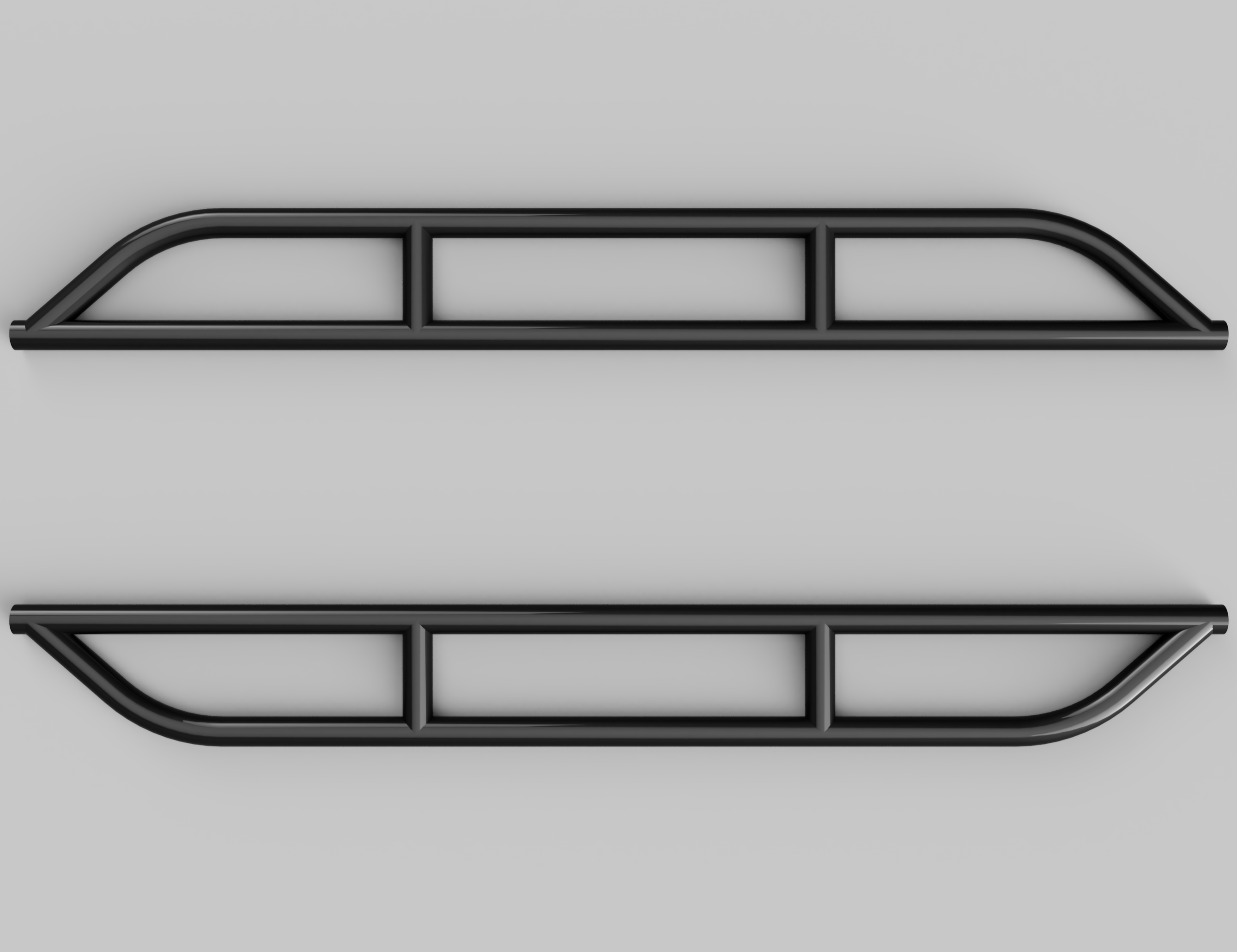

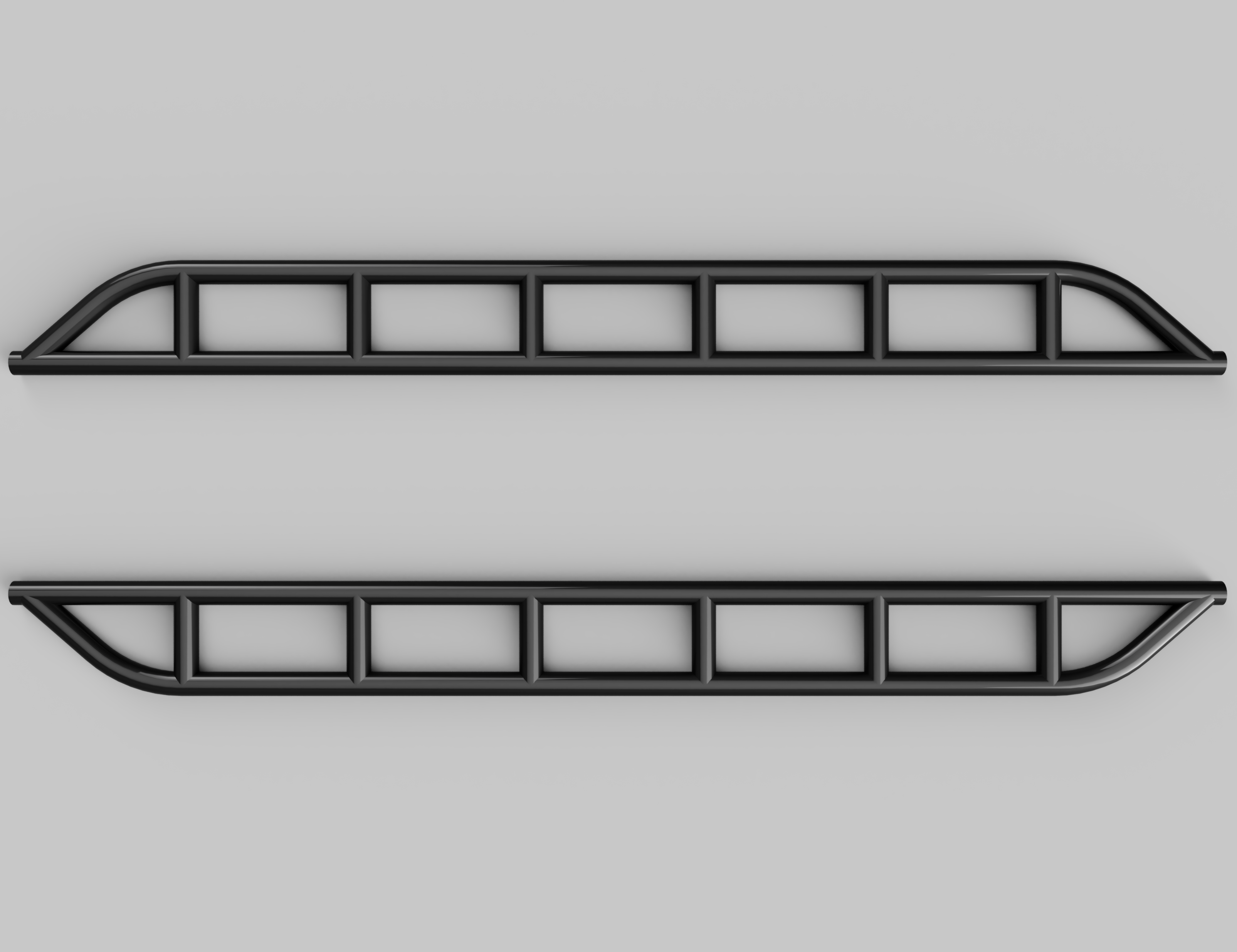

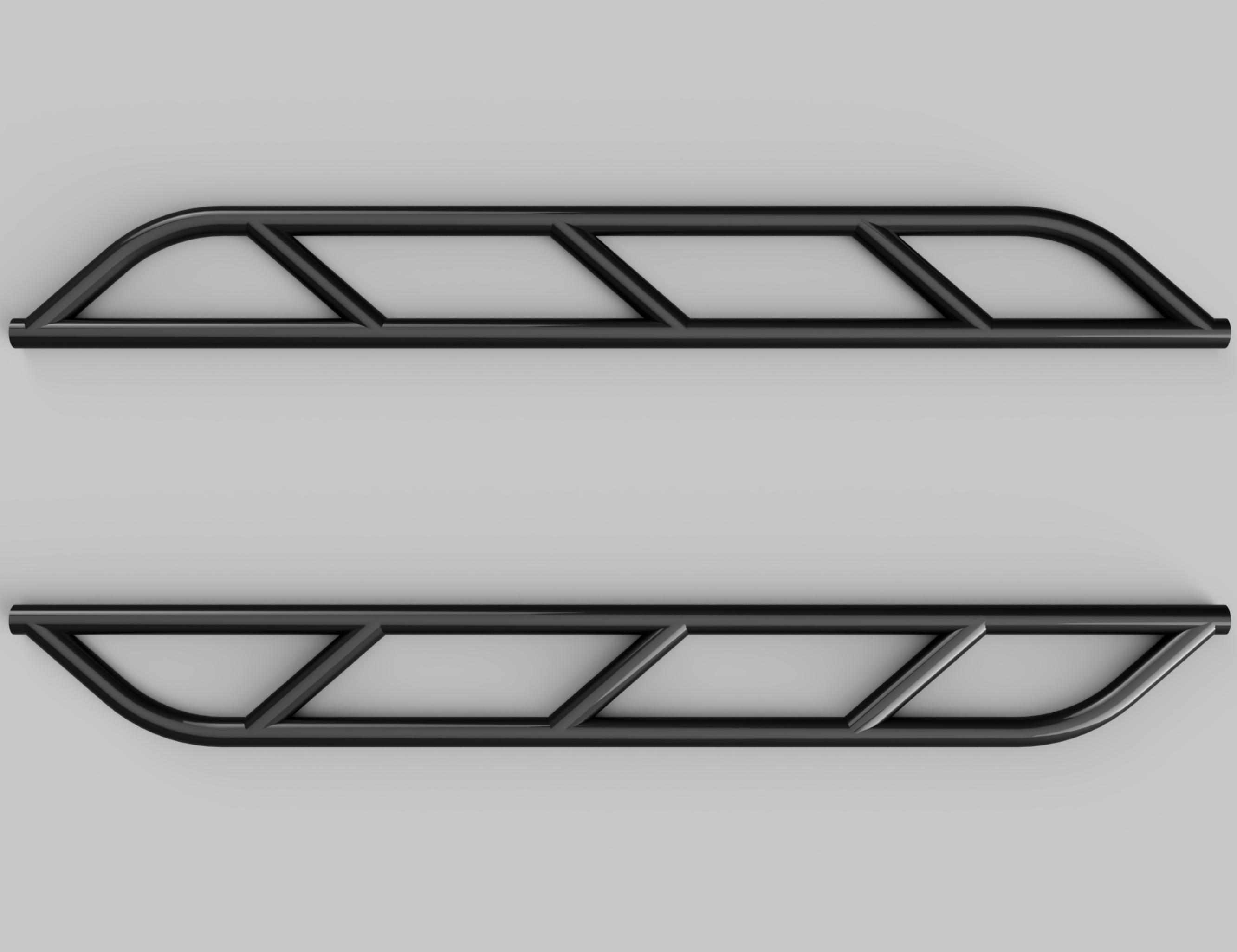

Holden Rodeo RA (2003-2006 - Dual Cab) STANDARD Design (DIY WELD TOGETHER KIT)
Made in Australia
Lifetime Guarantee
Money Back Guarantee
BRACKET INSTRUCTIONS INCLUDED
RUST INHIBITING PRIMER
ALL FASTENERS PROVIDED
THIS IS A WELD TOGETHER KIT
QUICK FAQ's ABOUT OUR ROCK SLIDERS
Australian Made & Owned
Australian Made & OwnedPickup available at 88 commercial road vineyard
Usually ready in 2-4 days

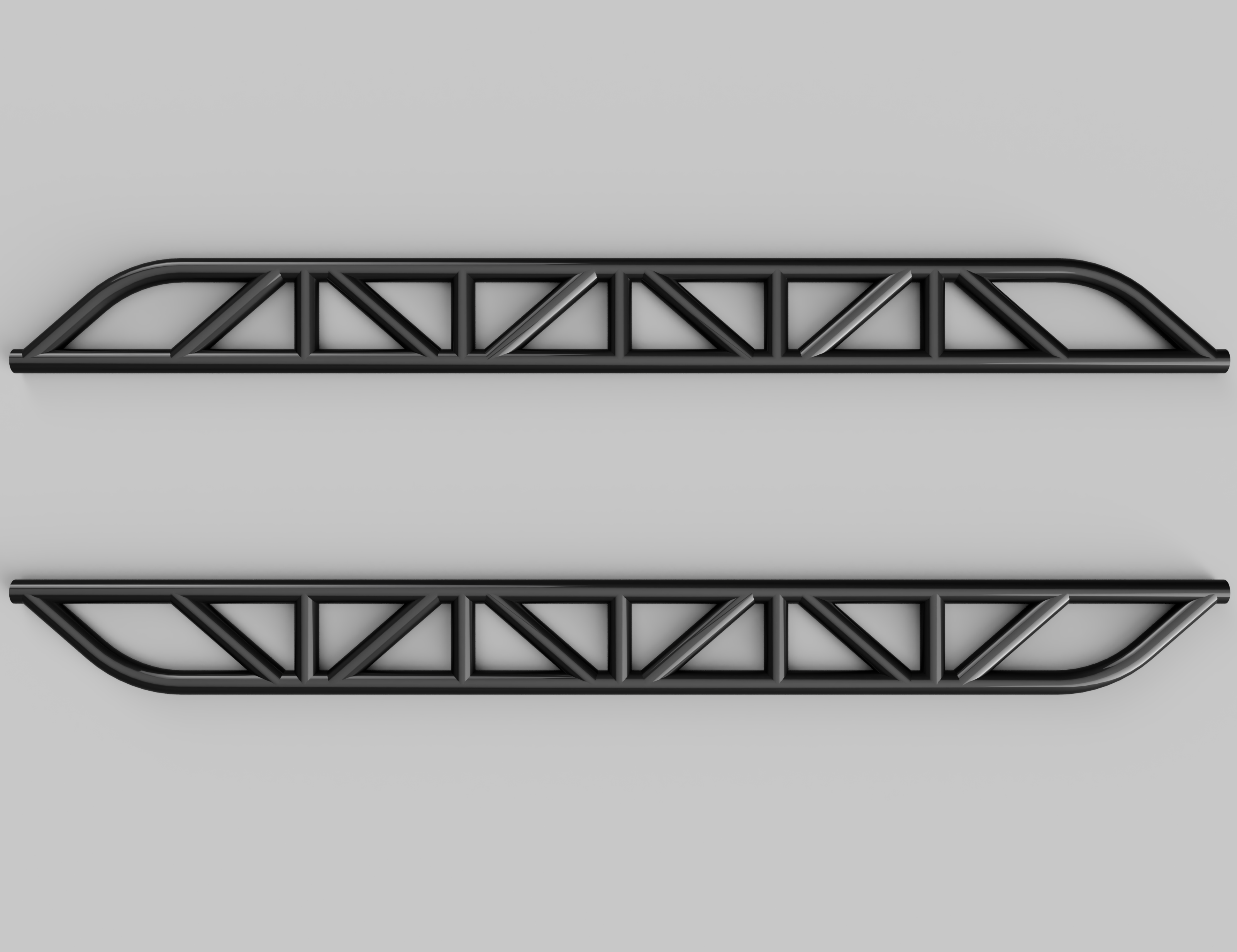

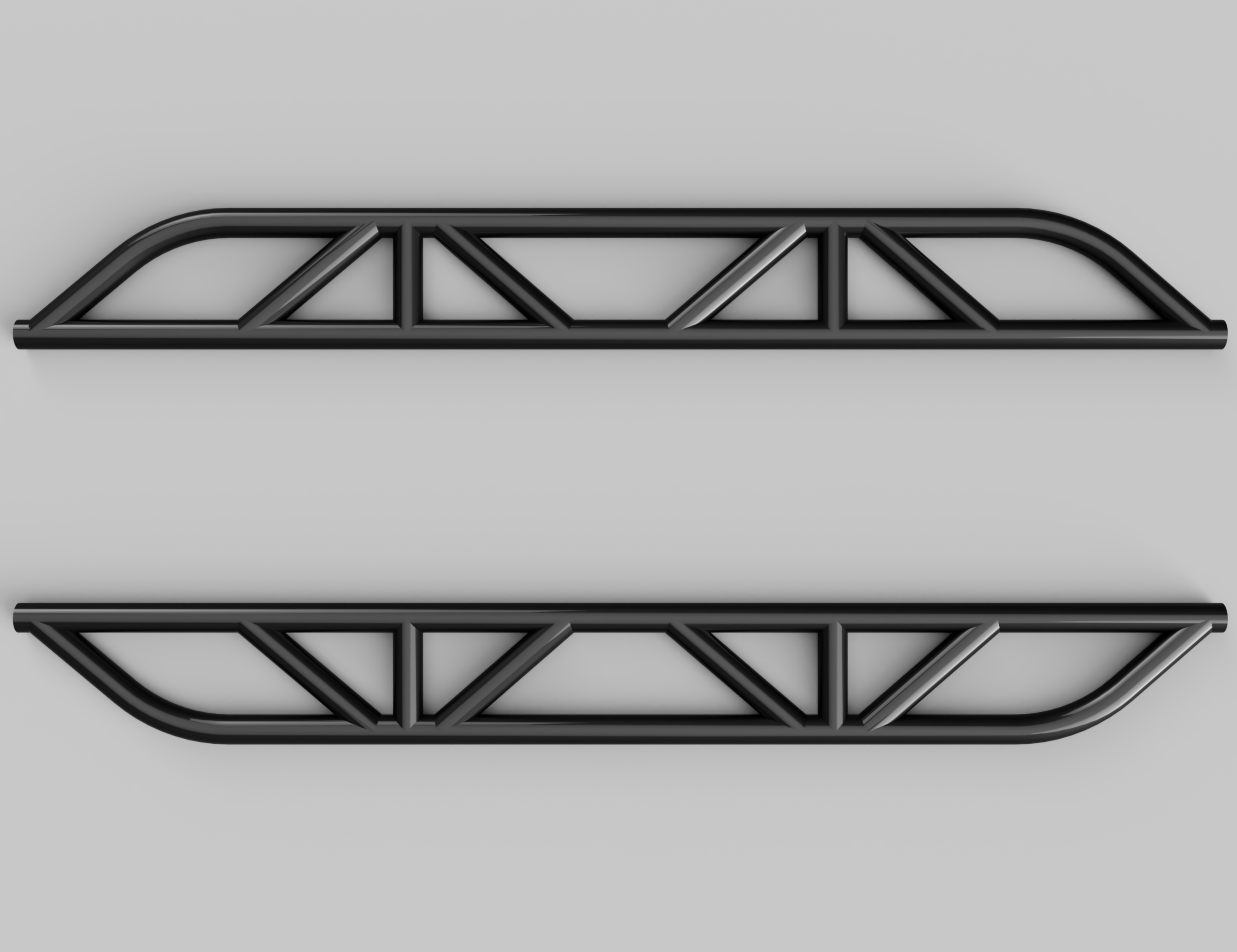

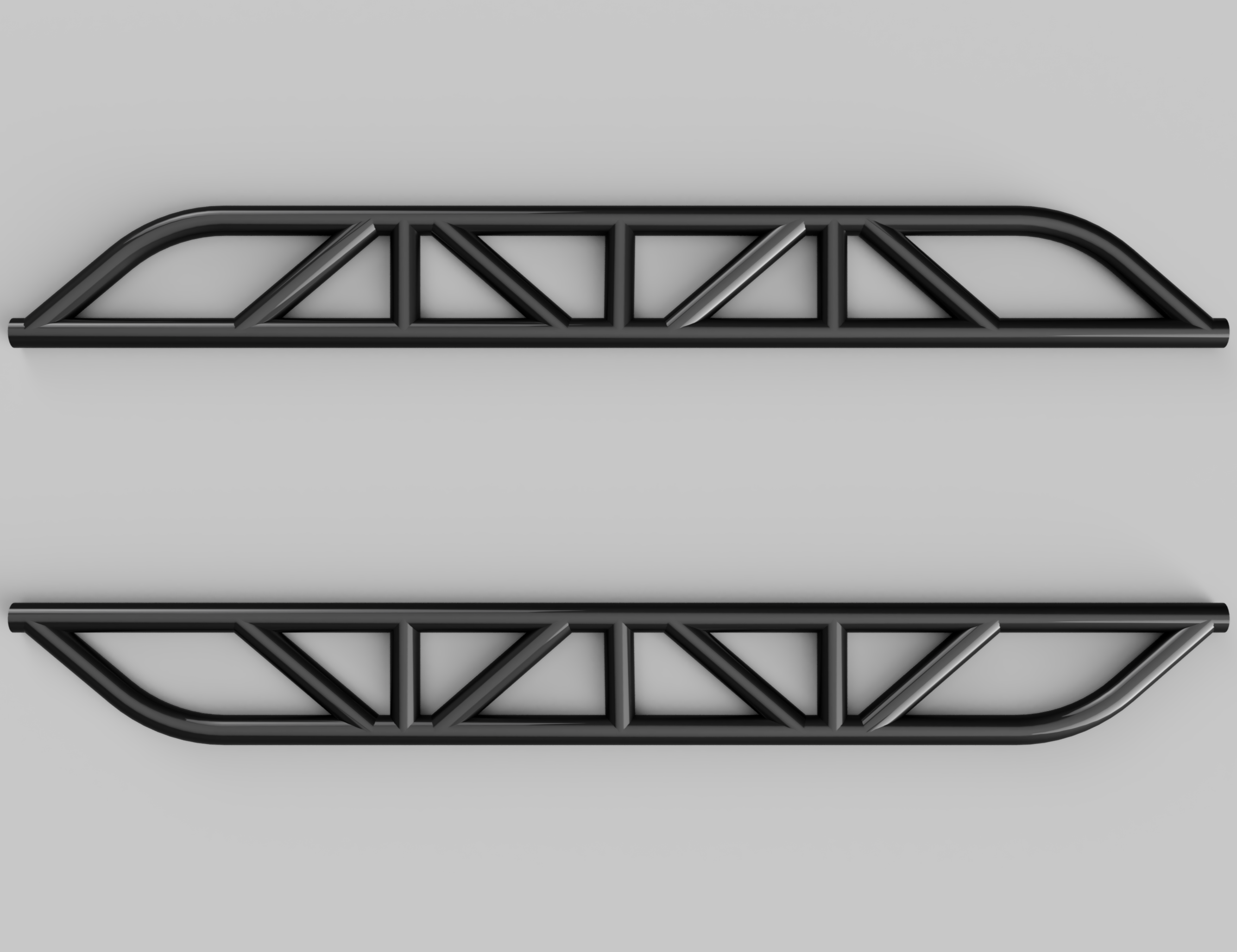

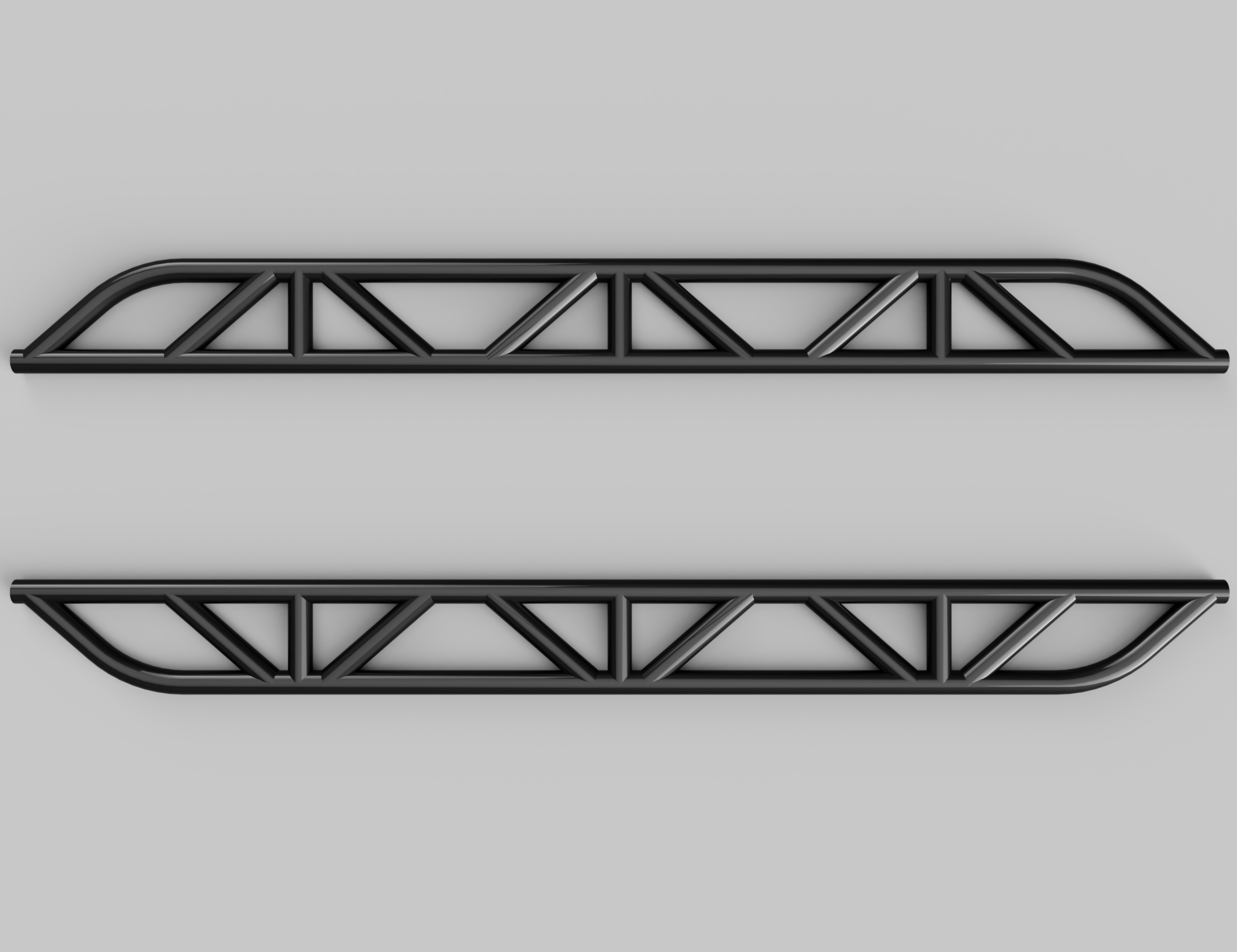

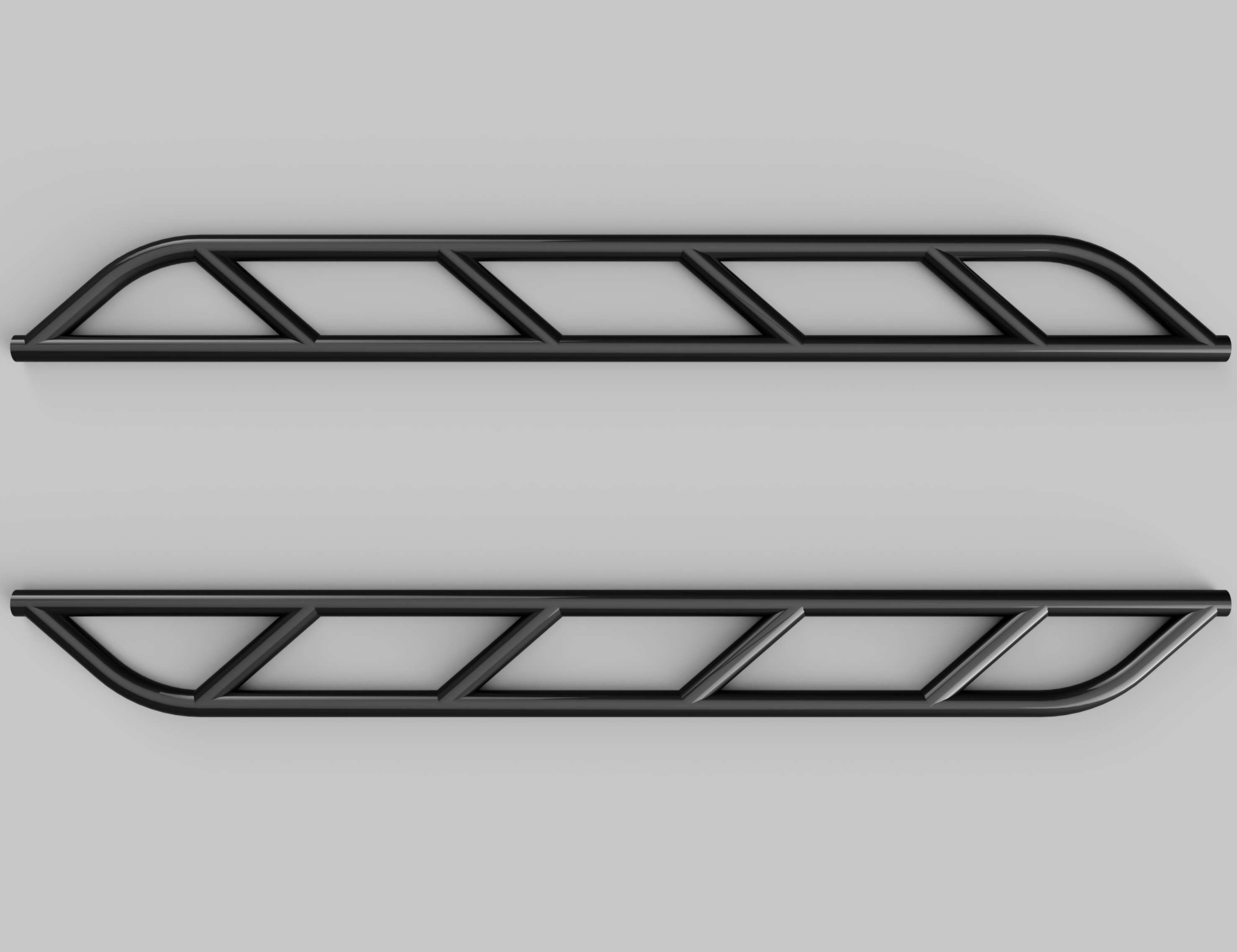

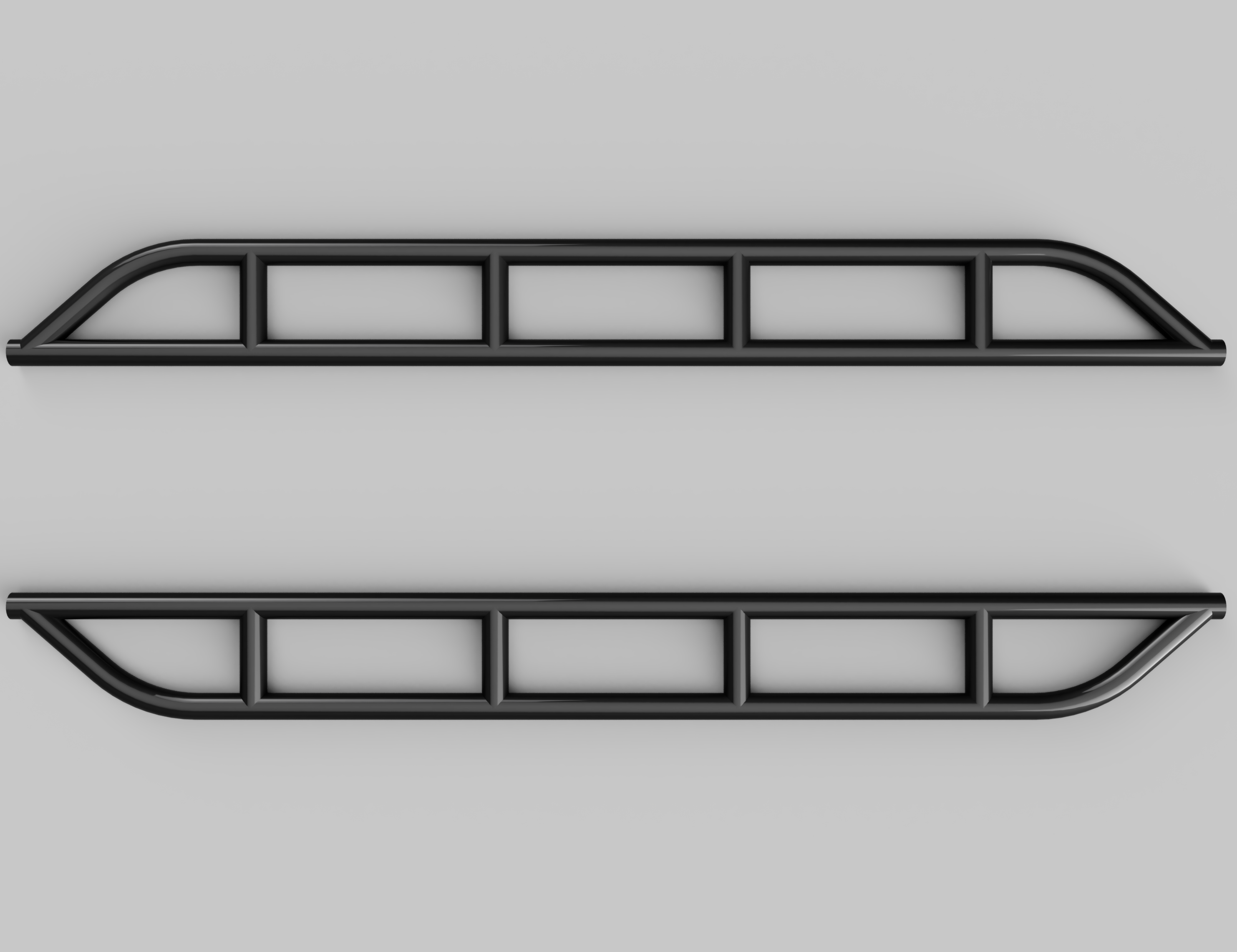

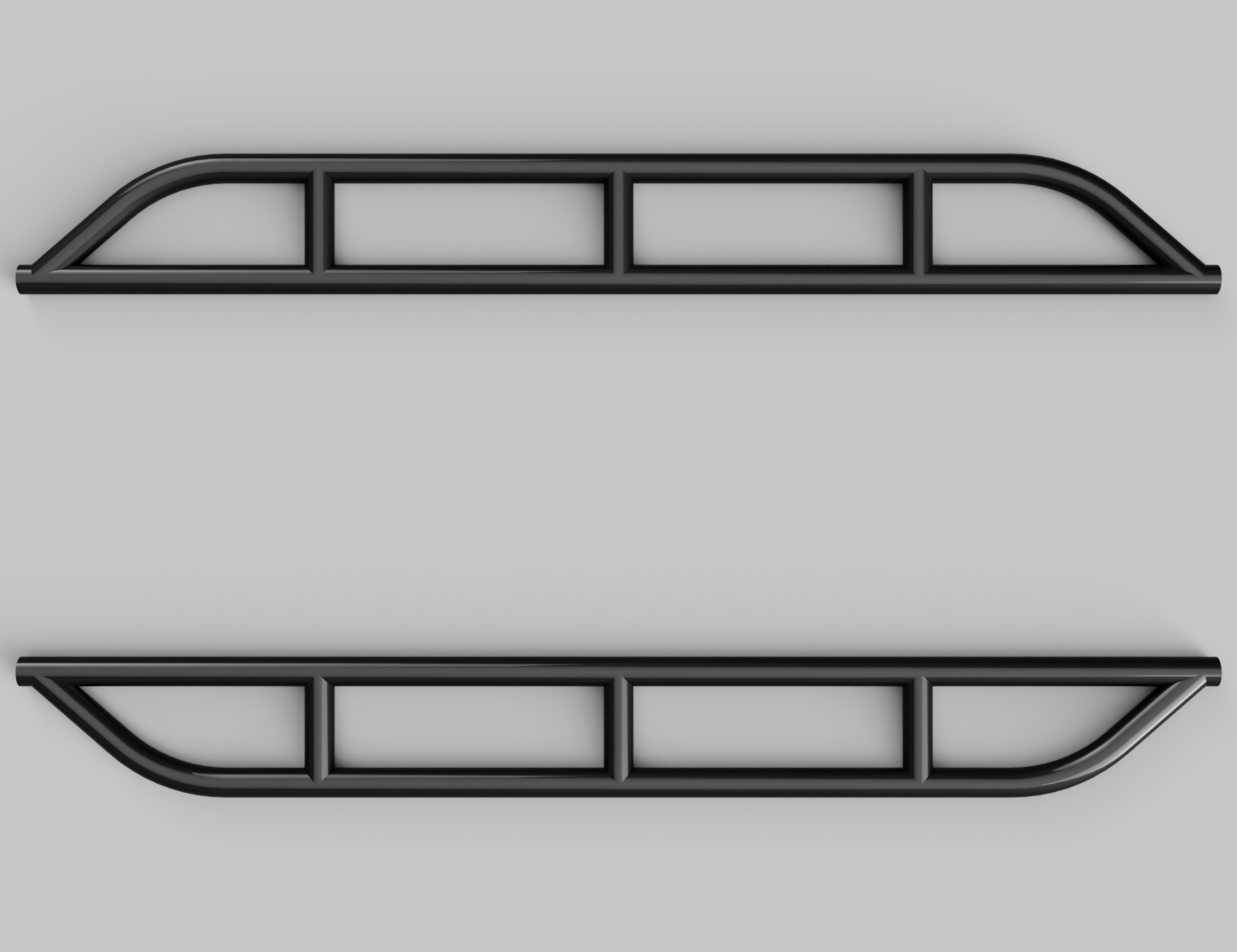

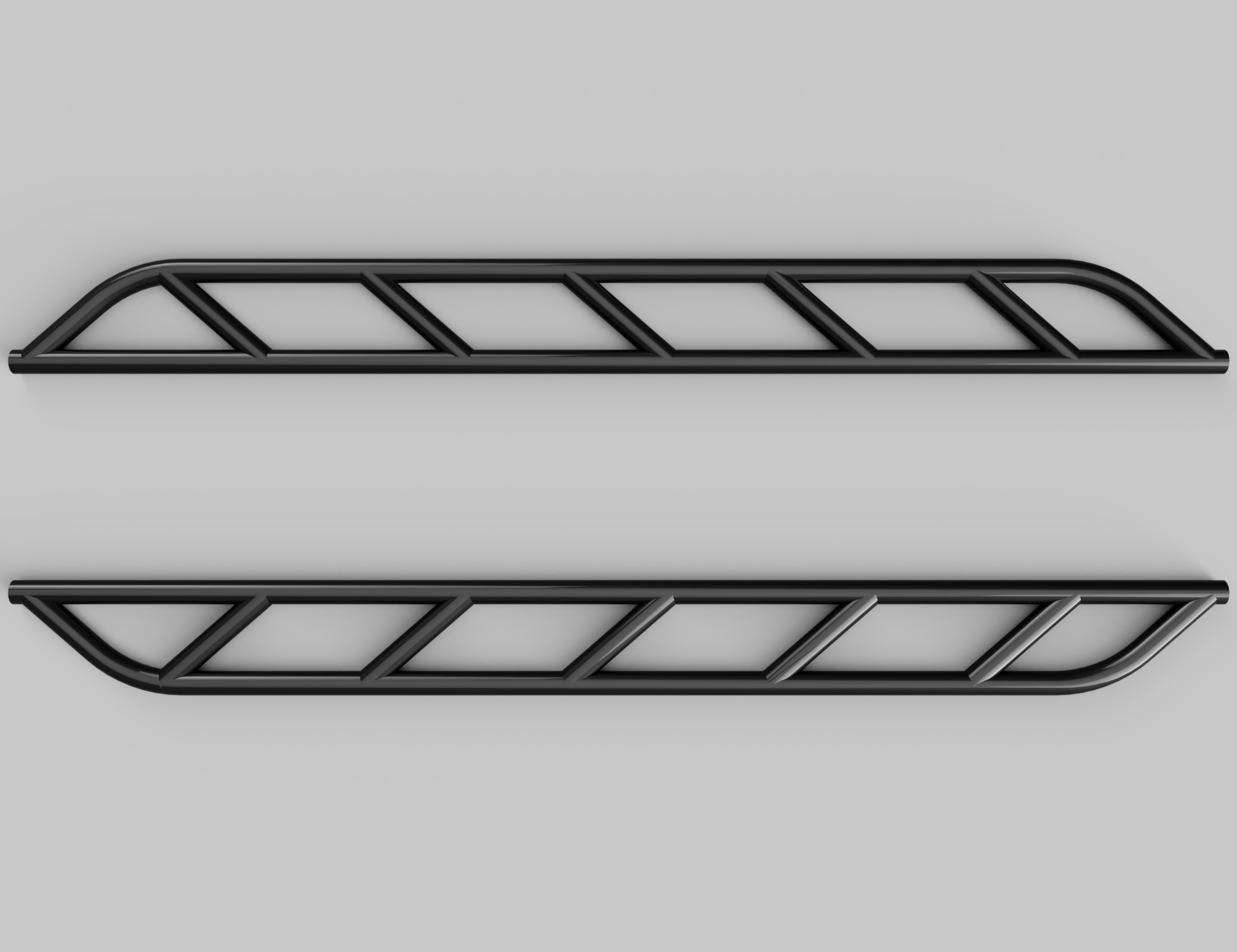

Holden Rodeo RA (2003-2006 - Dual Cab) STANDARD Design (DIY WELD TOGETHER KIT)
Standard Design 8 / 6 x Universal Chassis Brackets & Gussets
88 commercial road vineyard
88 Commercial Road
Vineyard NSW 2765
Australia
*THIS IS A WELD TOGETHER KIT*
Made from 42.2 mm outside diameter mild steel tubing 3 mm thick
*TO SUIT HOLDEN RODEO RA DUAL CAB - 2000 MM LONG*

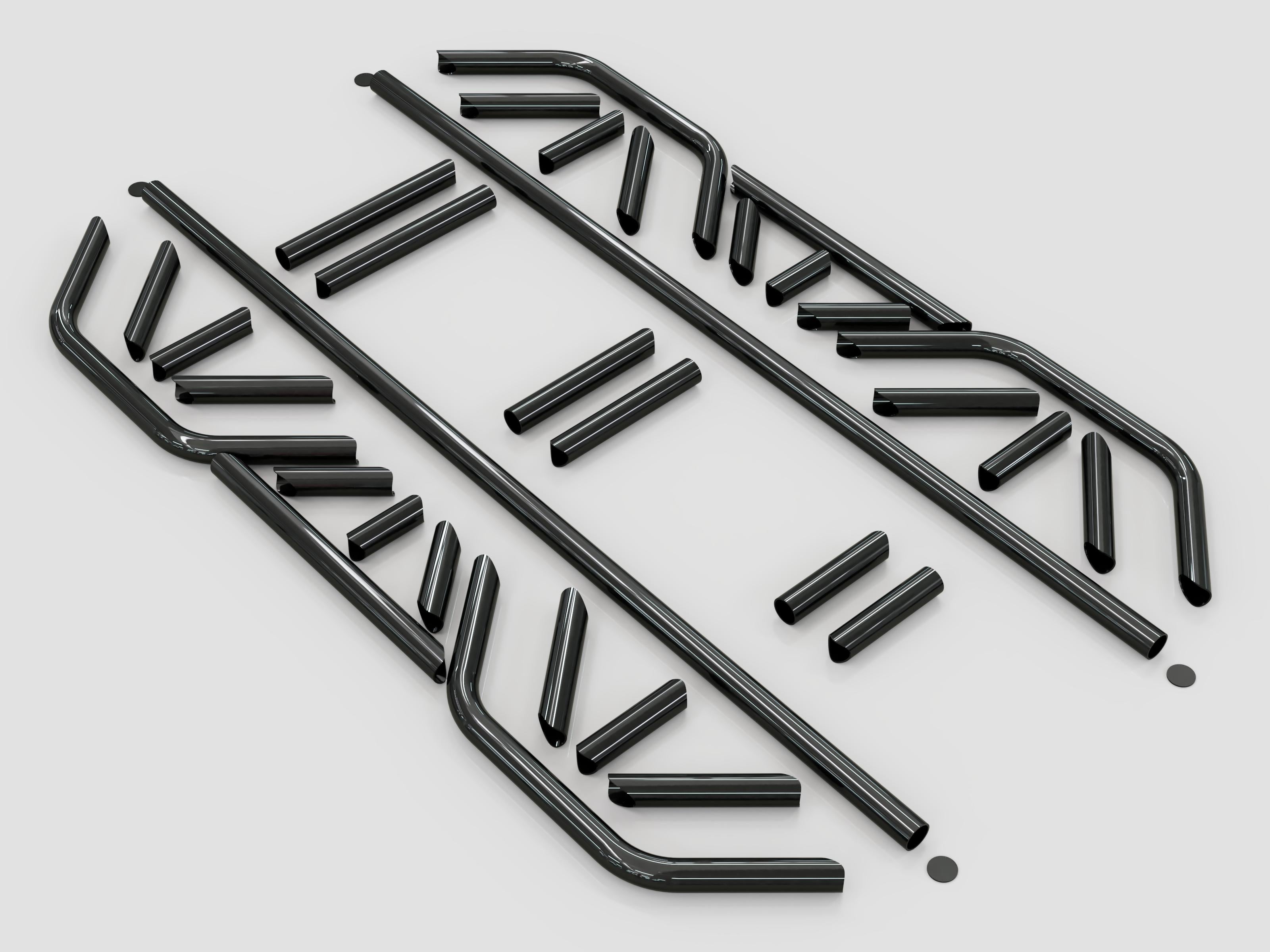

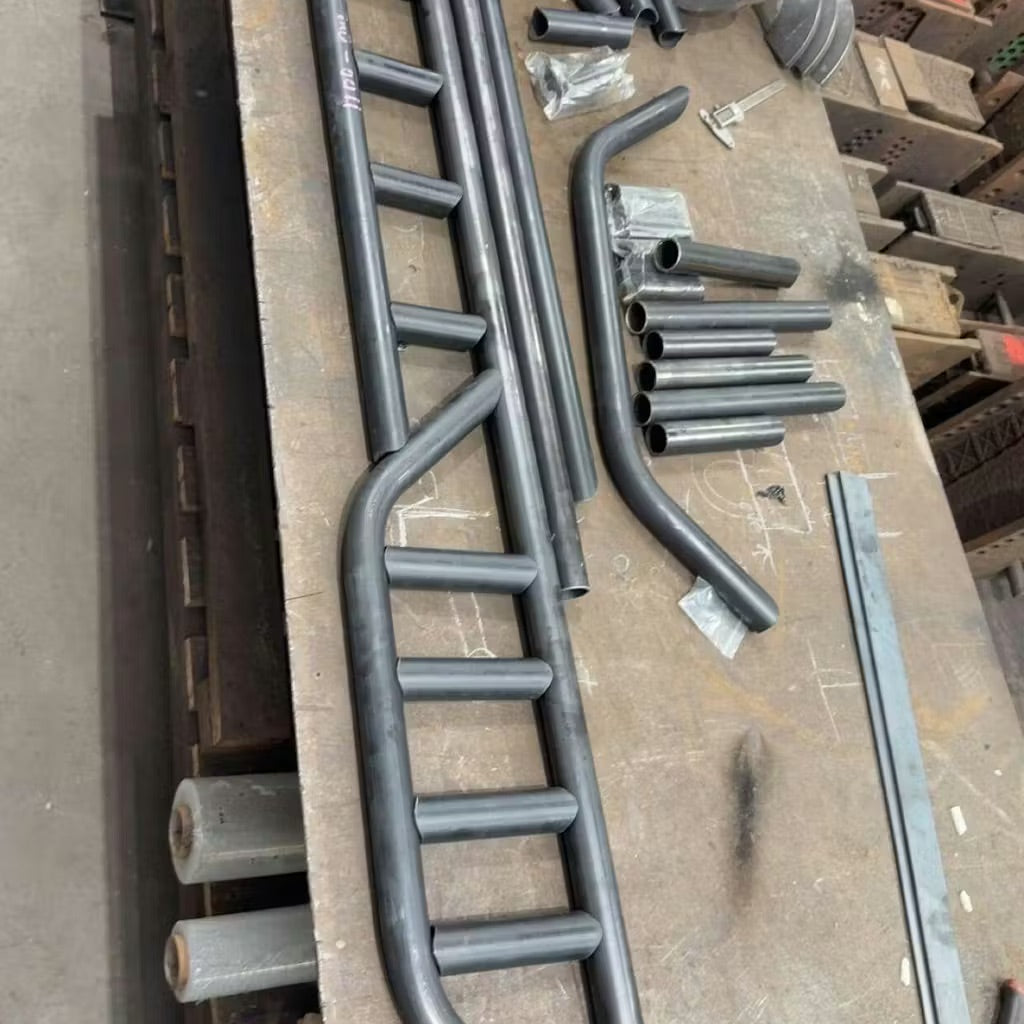

Included in this kit
your desired STANDARD design at 2000 MM LONG
2 x 200 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket
2 x 280 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket
2 x 350 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket
4 x 2 mm thick end caps for the end of the straight tubes ( inner rail )
2 x 50 mm x 5 mm thick flat bar at 1500 mm long ( to make chassis brackets )

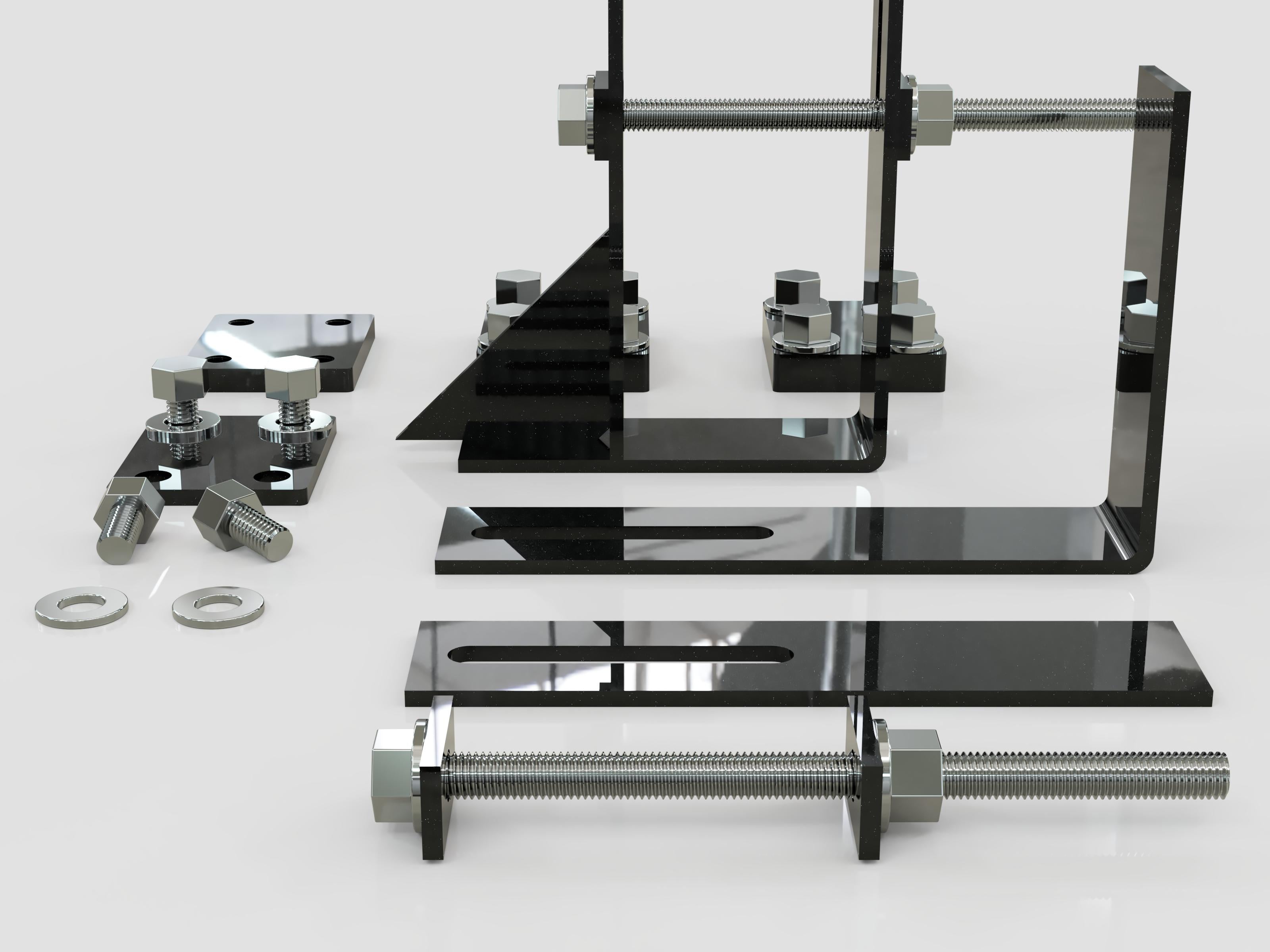

*IF YOU CHOOSE TO PURCHASE THE UNIVERSAL MOUNTING KIT*
Kit will include all of the above EXCEPT for the 2 x 50 mm x 5 mm flat bar lengths

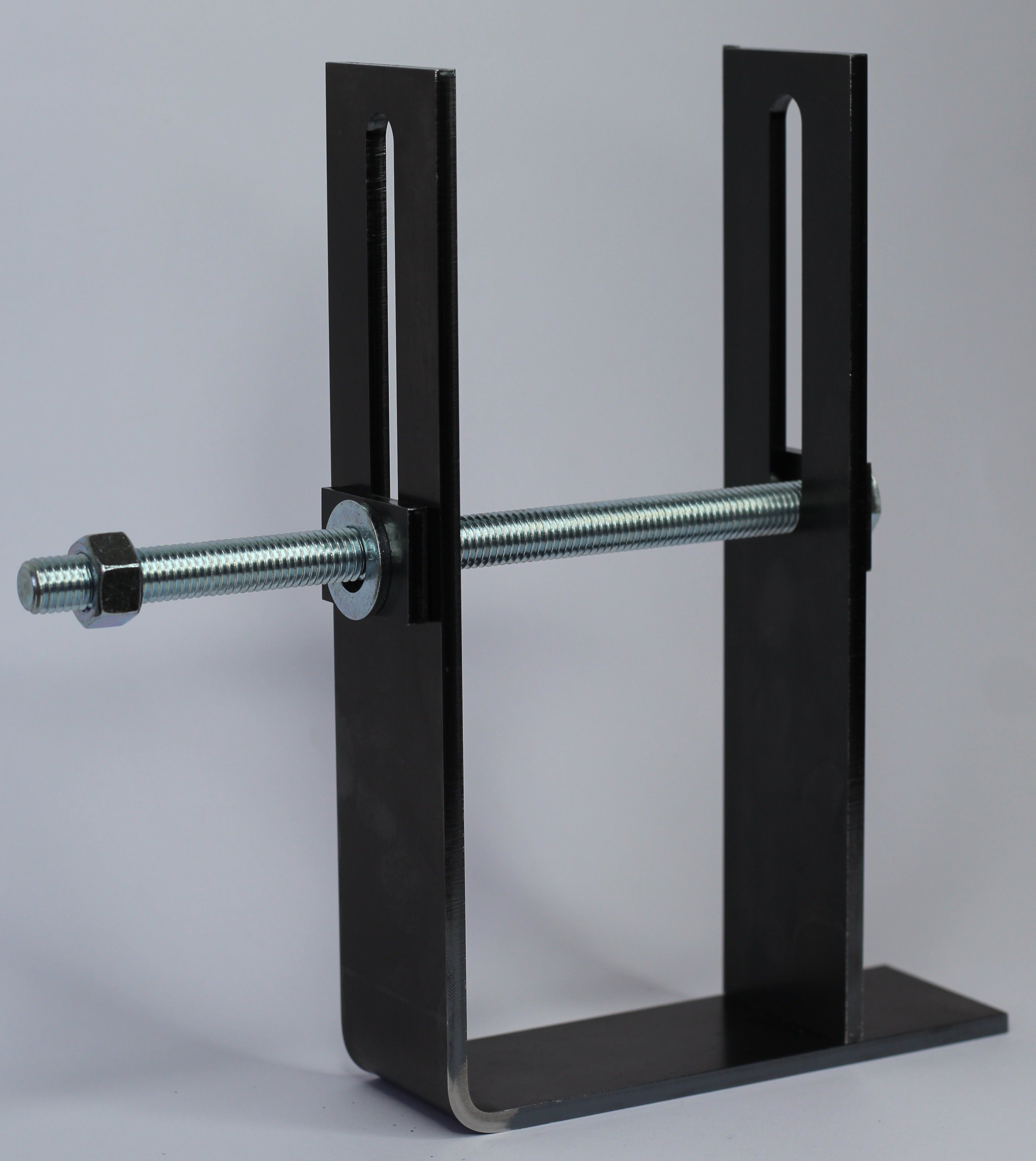

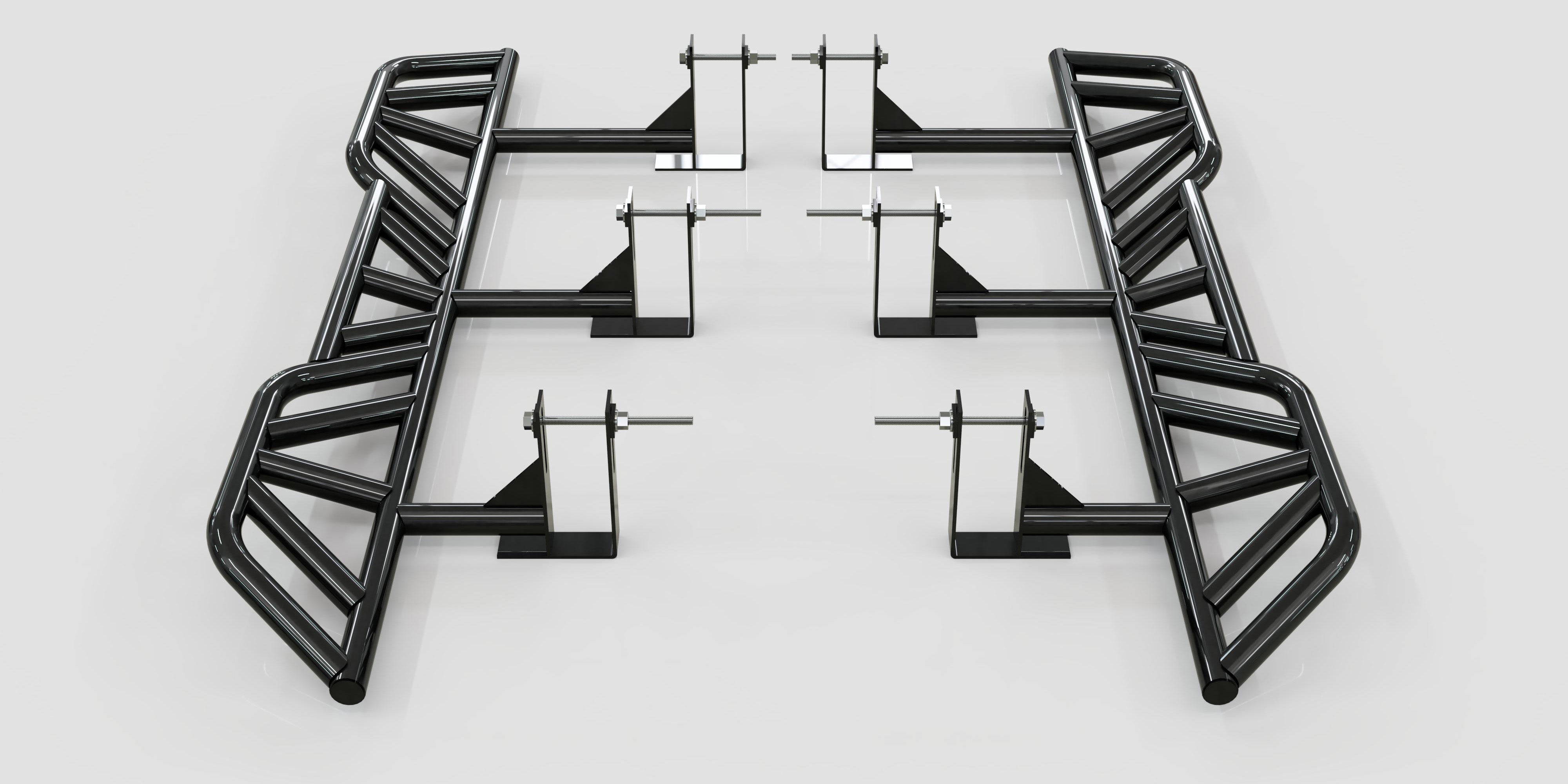

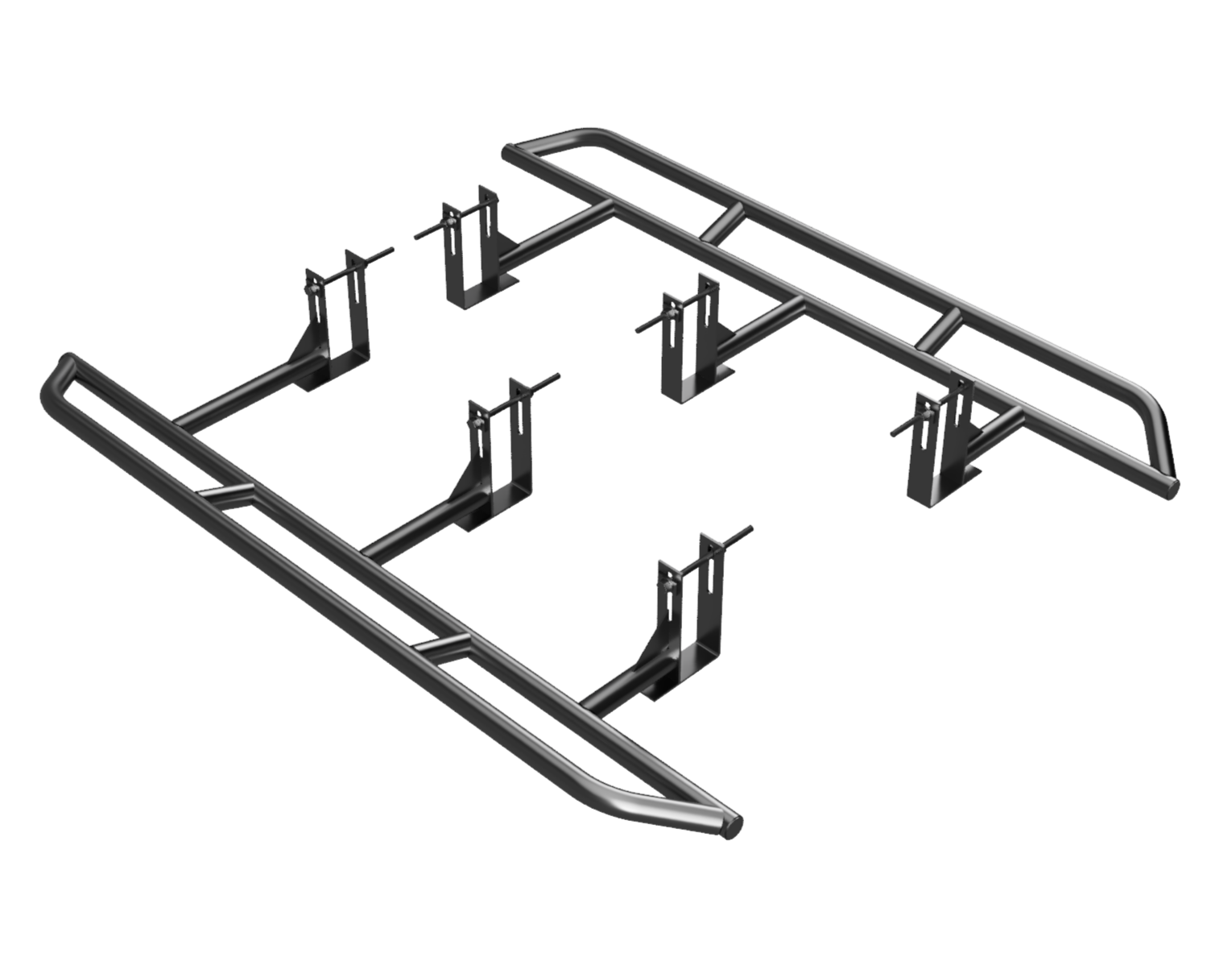

Universal chassis bracket that is made to suit square / rectangle box 4x4 vehicle chassis rails
these Universal Chassis Brackets will suit any box chassis with a range from 100 mm to 200 mm in height and up to 150 mm in width
these brackets are made from 50 mm wide x 5 mm thick mild steel plate, laser cut for precision
this Universal Chassis Bracket mounting kit is a set of 6 which includes
6 x L brackets with slots cut into them
6 x straight brackets ( to be welded to the L bracket ) with a slot cut into them
12 x rectangular plates with a hole cut into them ( to be welded to both the L bracket and straight bracket )
6 x 200 mm long x 12 mm high tensile zinc plated bolt ( to be cut down to the length required for your chassis )
12 x 12 mm zinc plated washers
6 x 12 mm lock nuts
6 x steel gusset stiffener plates with 90 degree bends at 80 mm x 80 mm x 4mm thick. Has a 5 mm x 5 mm corner cut out for easy fitment and Laser cut for precision
Choose options
Quick FAQ's
Please find below a list of commonly asked questions
Assembly & Fitment
Freight
Why Customers Love What We Do
Easy to Assemble
"Unreal bit of gear! Easy to put together if you have some welding skills! Everything slots together nicely and comes up a treat!!"
★★★★★
Zakary Preece
Custom Mounting Options
"Perfect rock slider kit for 4x4’s with modified suspension. Having the ability to custom mount to chassis was the selling point for myself."
★★★★★
Daniel Sargent
Made in Australia
"The quality of all the tubing, bends, notches and brackets is awesome and the kit comes at a pretty decent price too... if your not sure on this product I can vouch for DIY Customs."
★★★★★
Tom Dixon

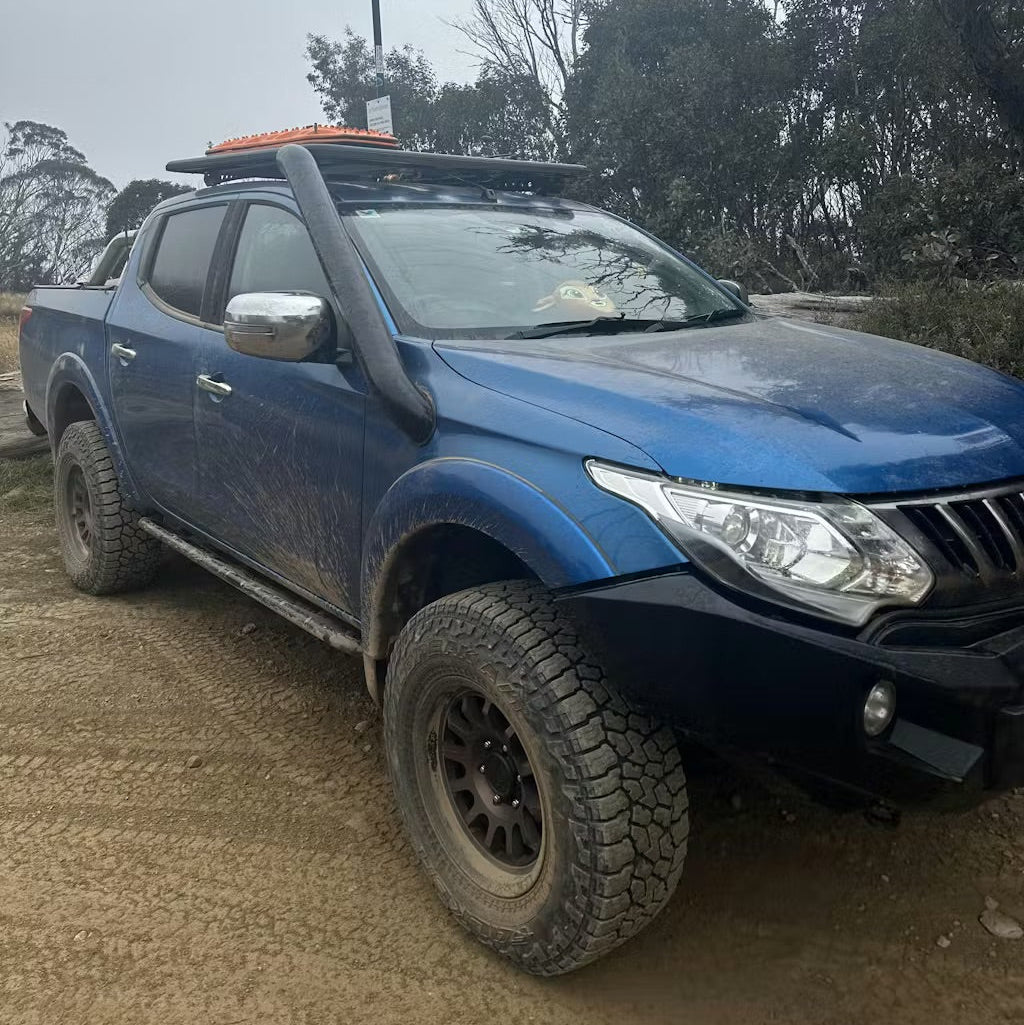

Made to Last
"All cuts/notches were clean. Everything fit well. Very easy kit to weld up. I’ve been using these for months and they hold up. Highly recommend."
★★★★★
David Van Gelder

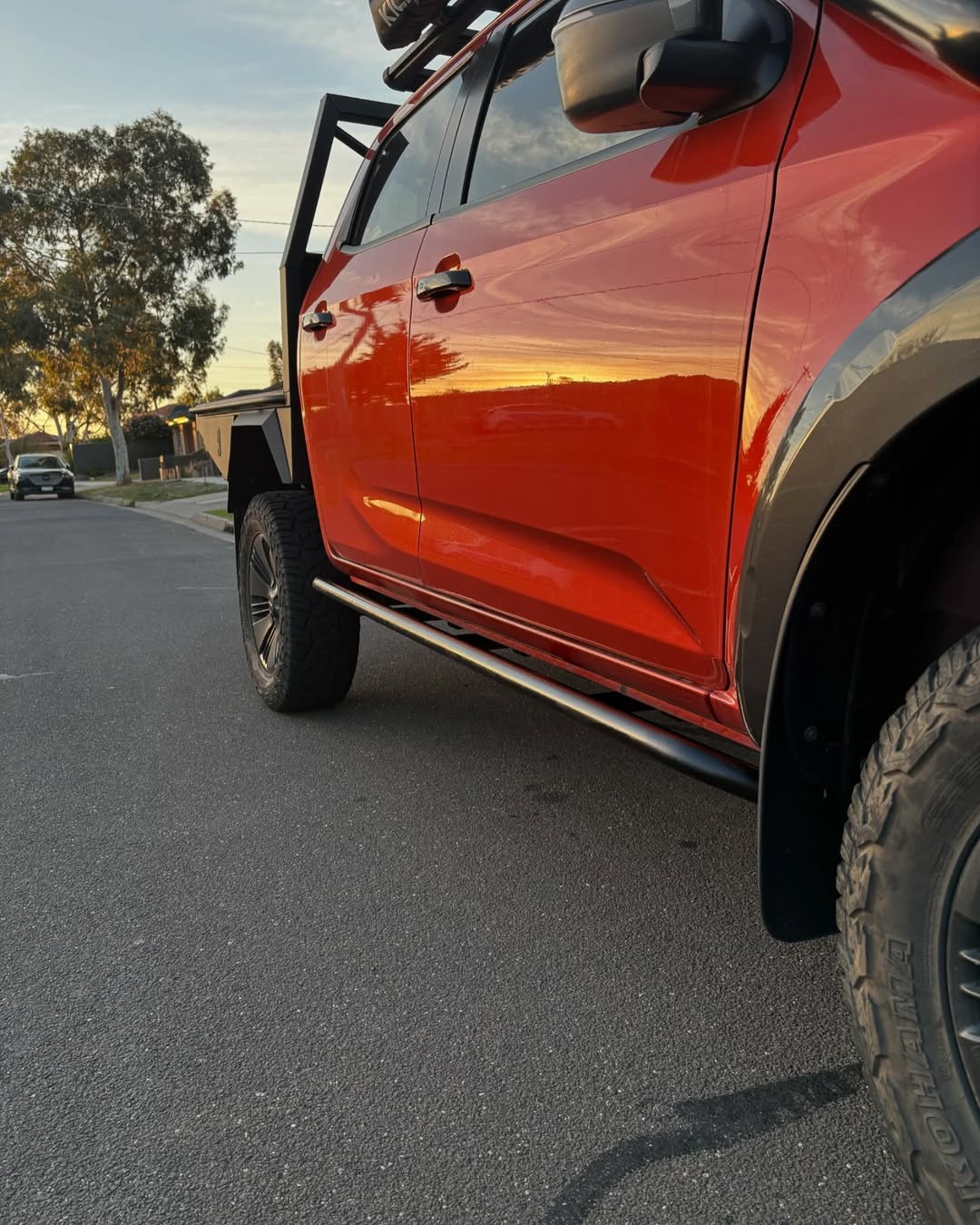

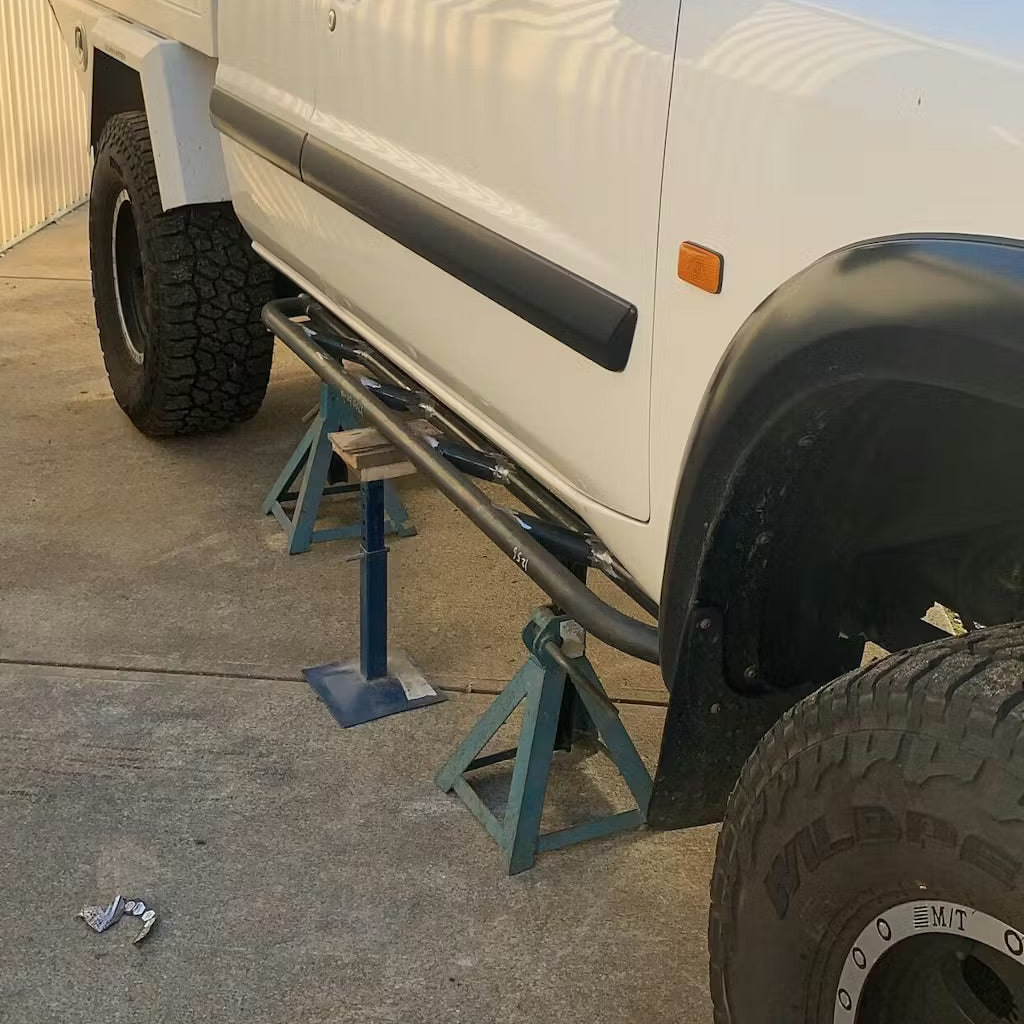

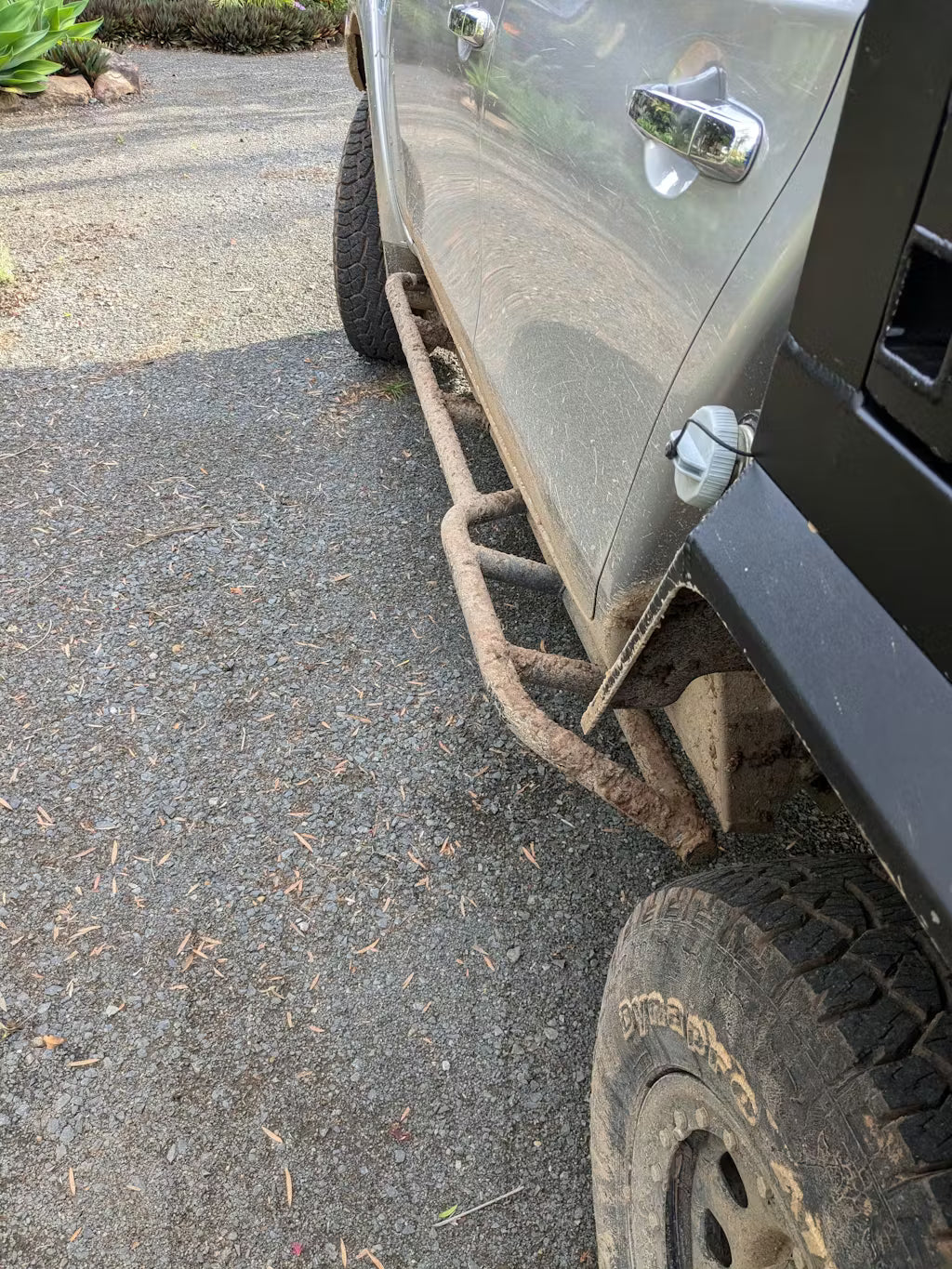

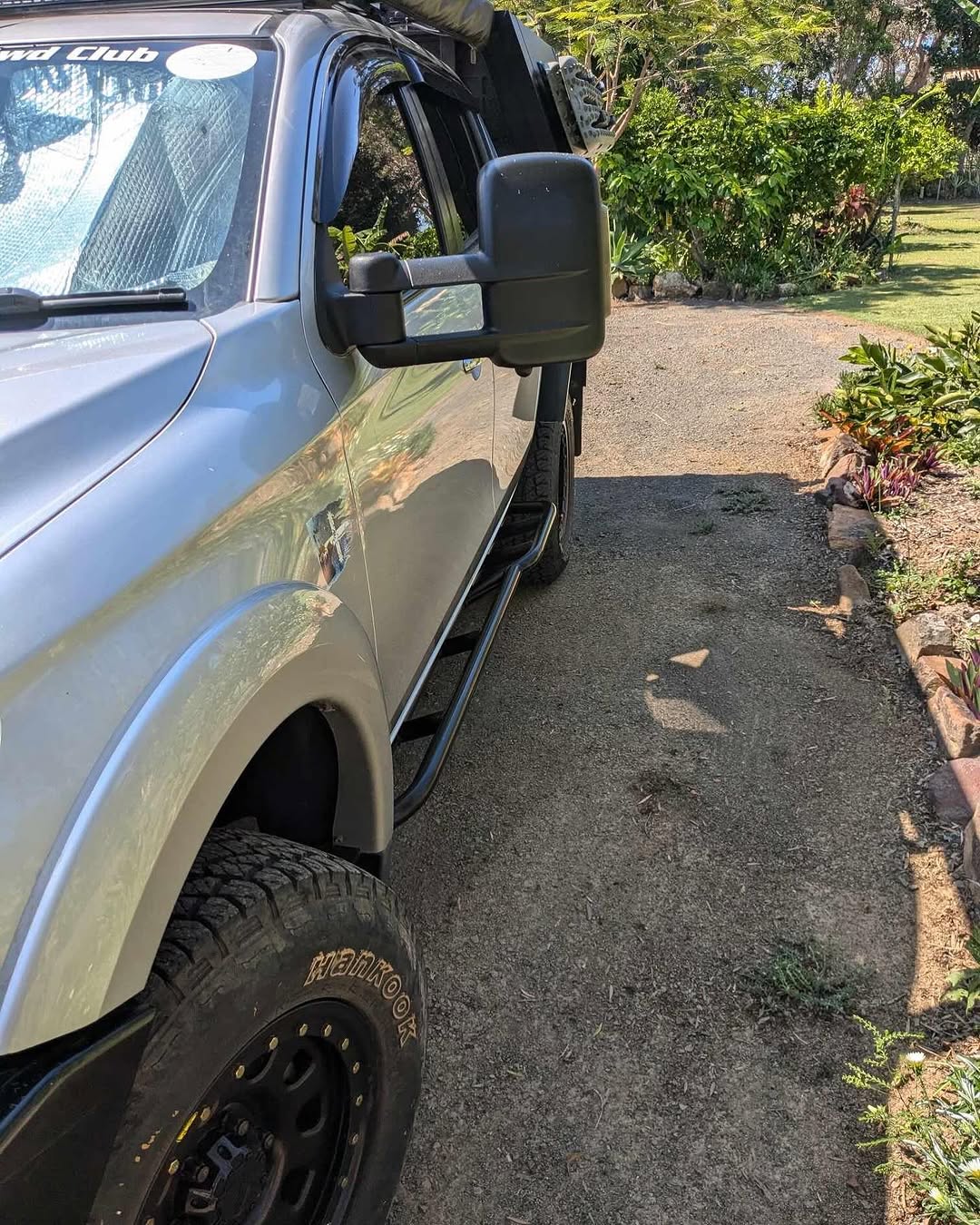

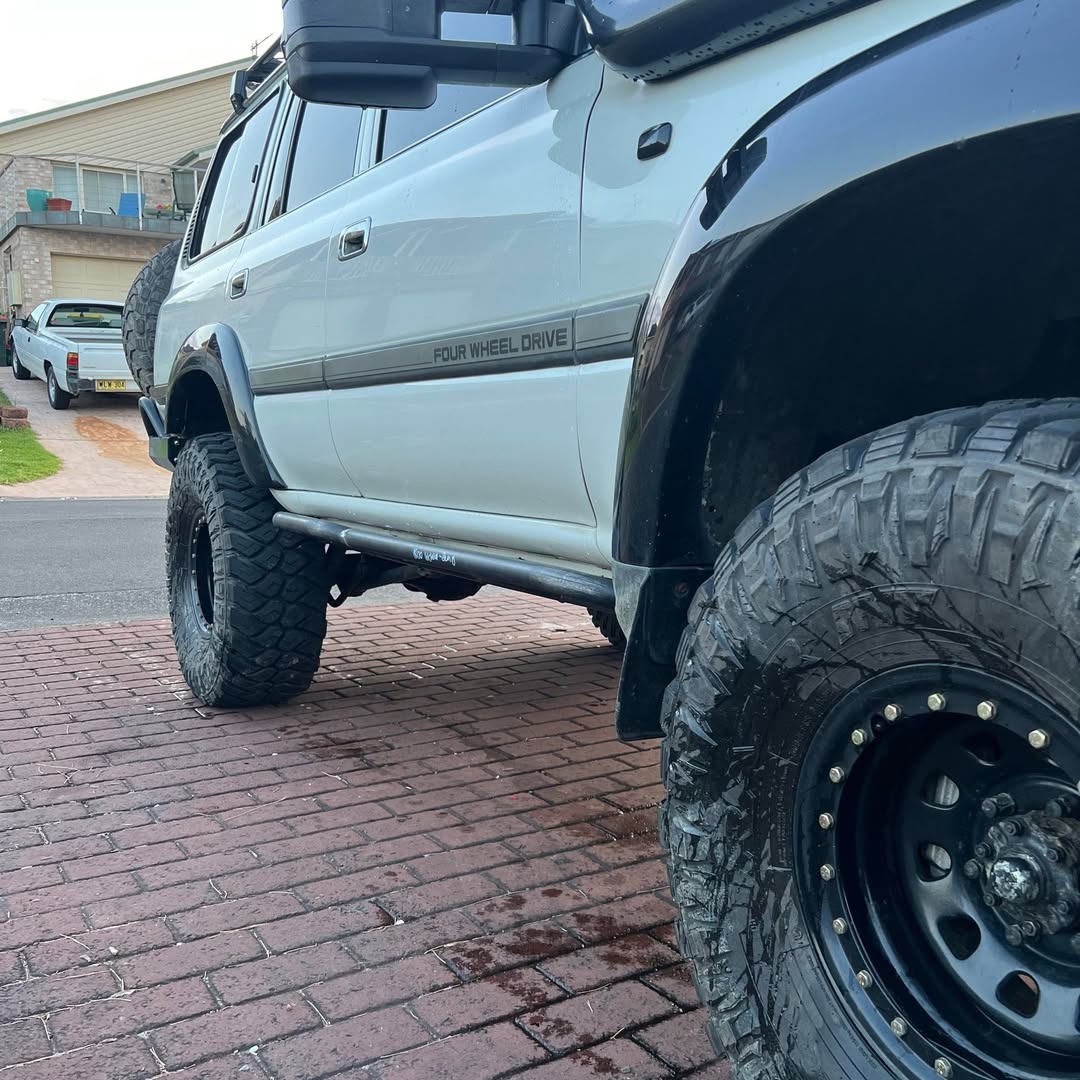

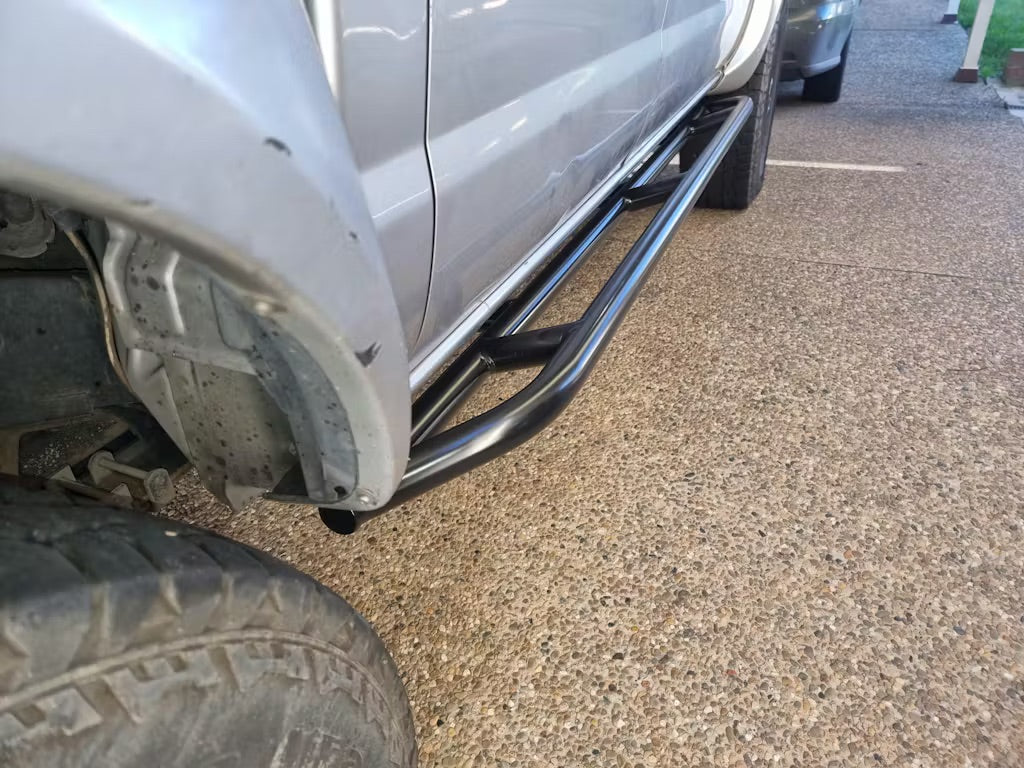

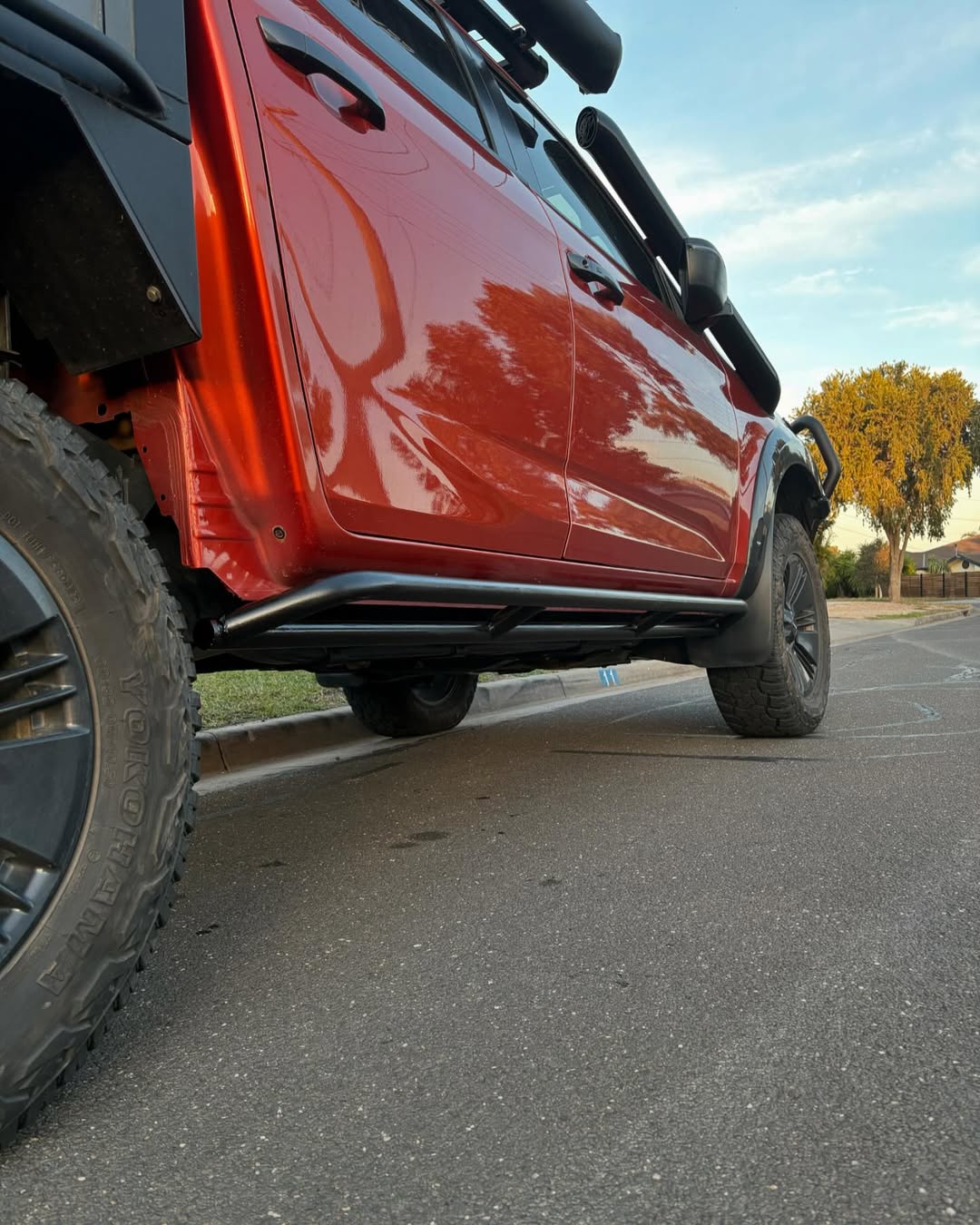

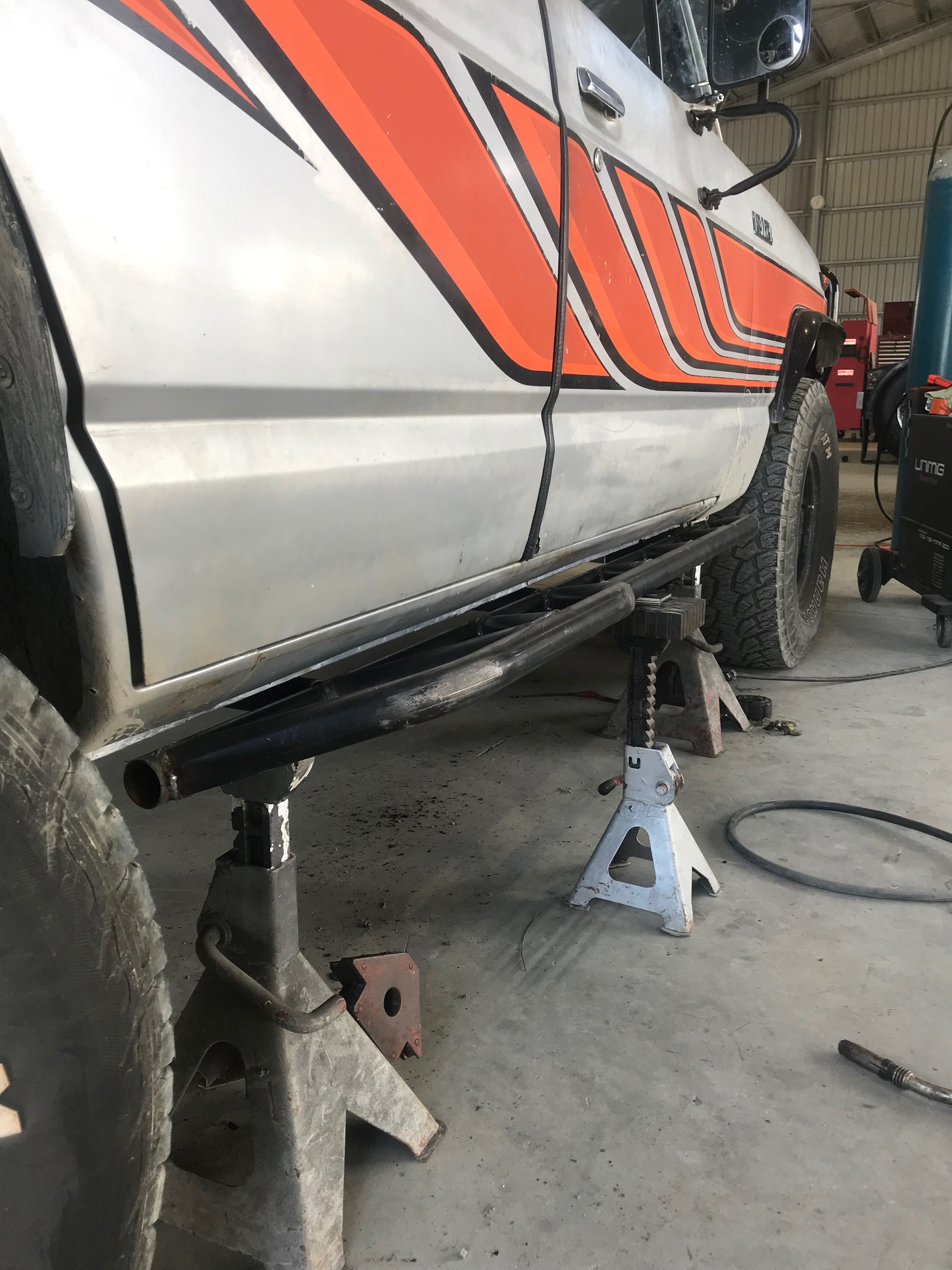

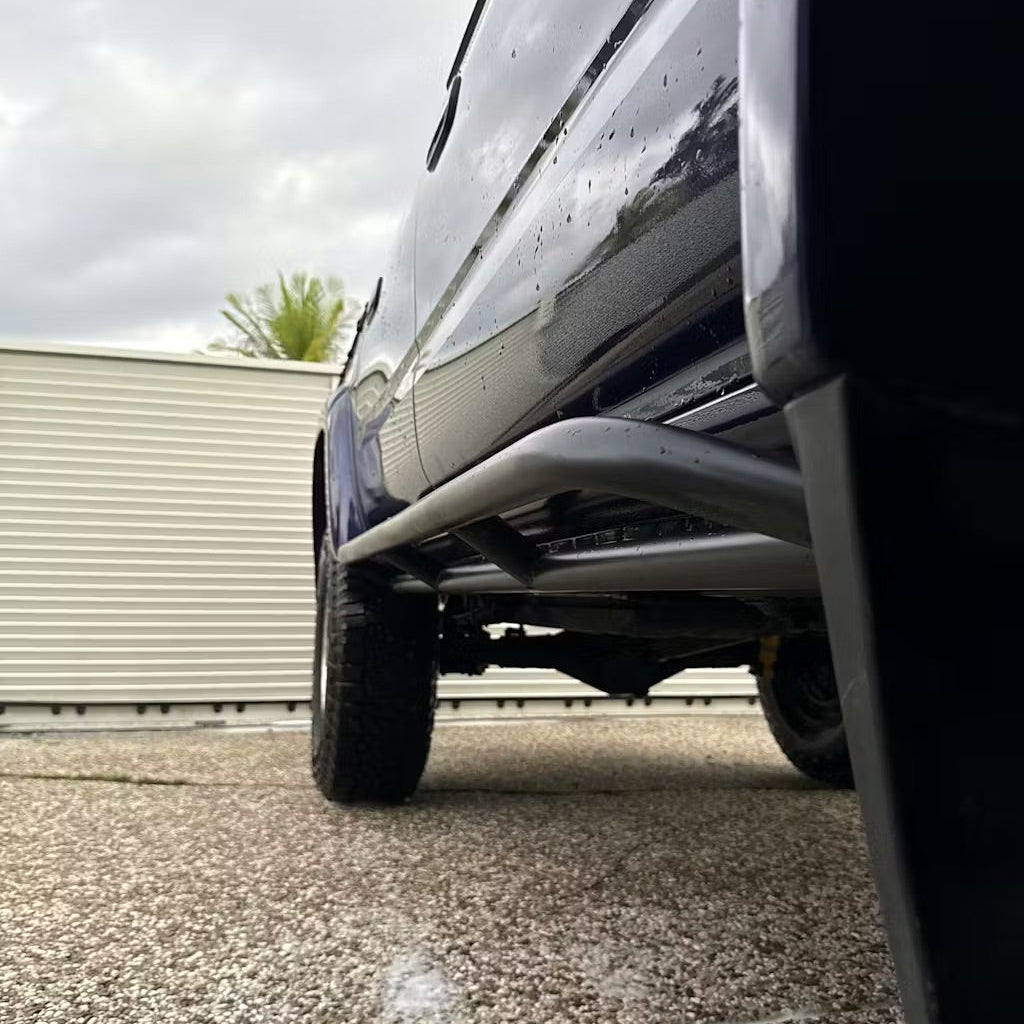

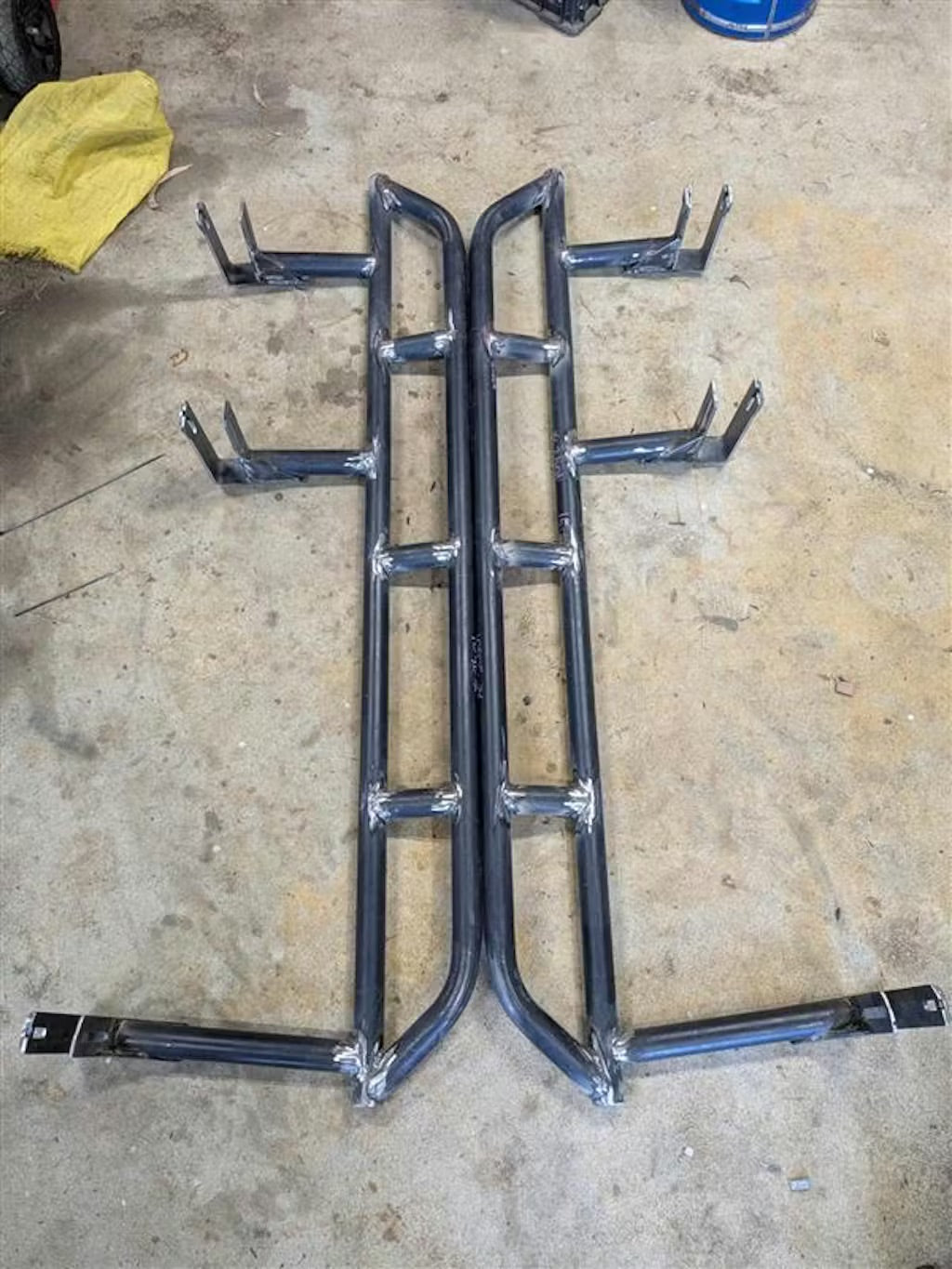

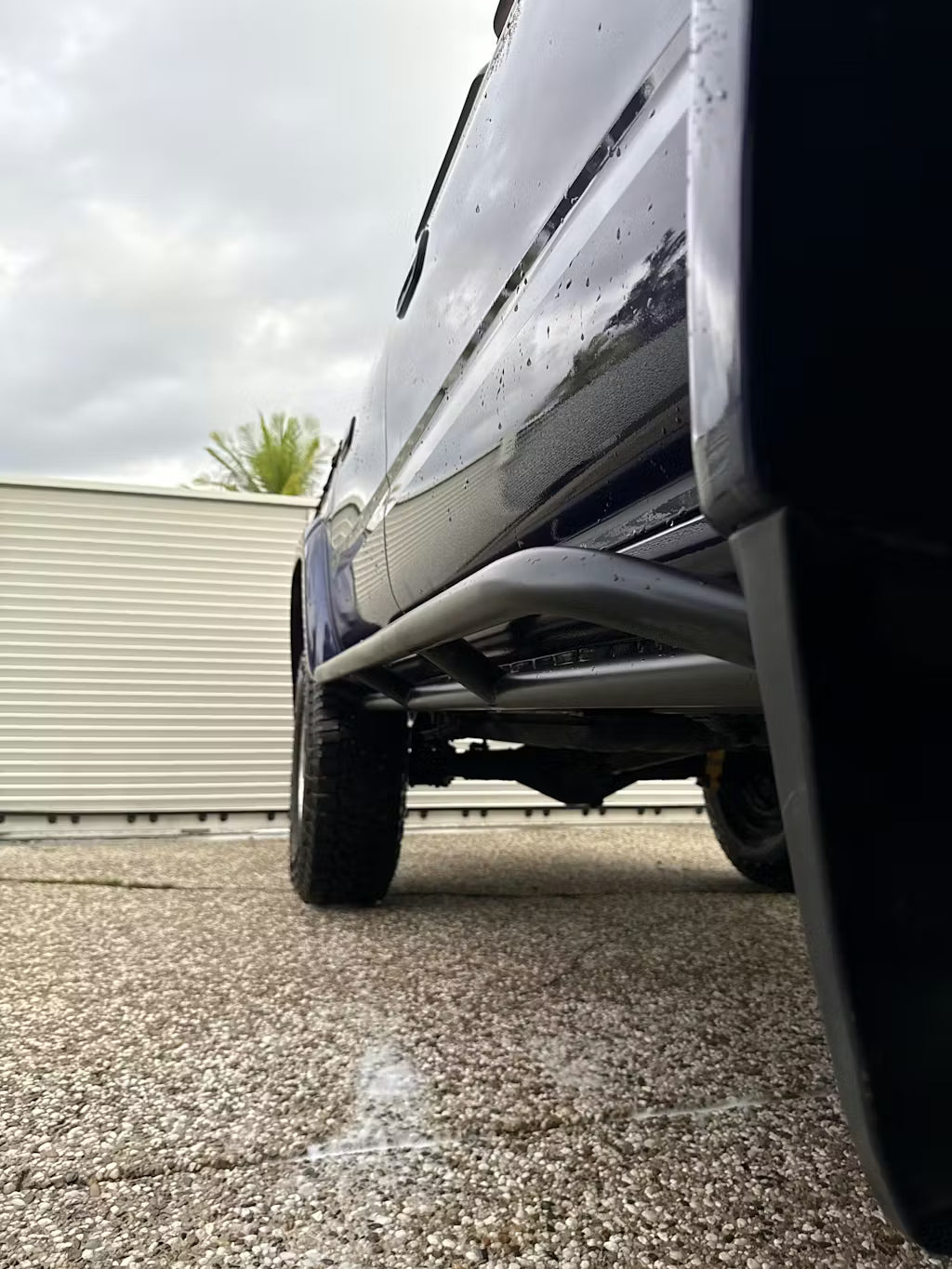

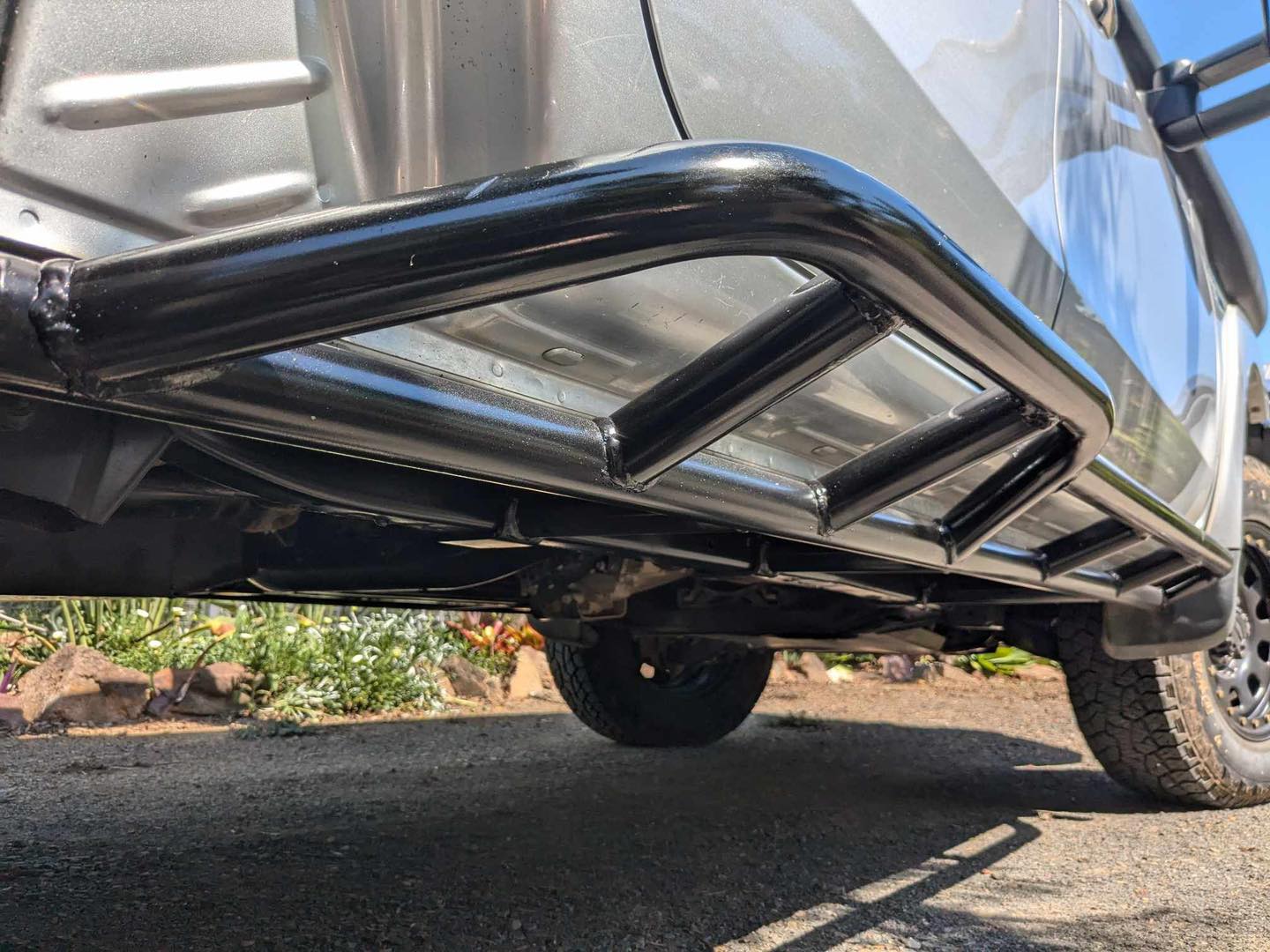

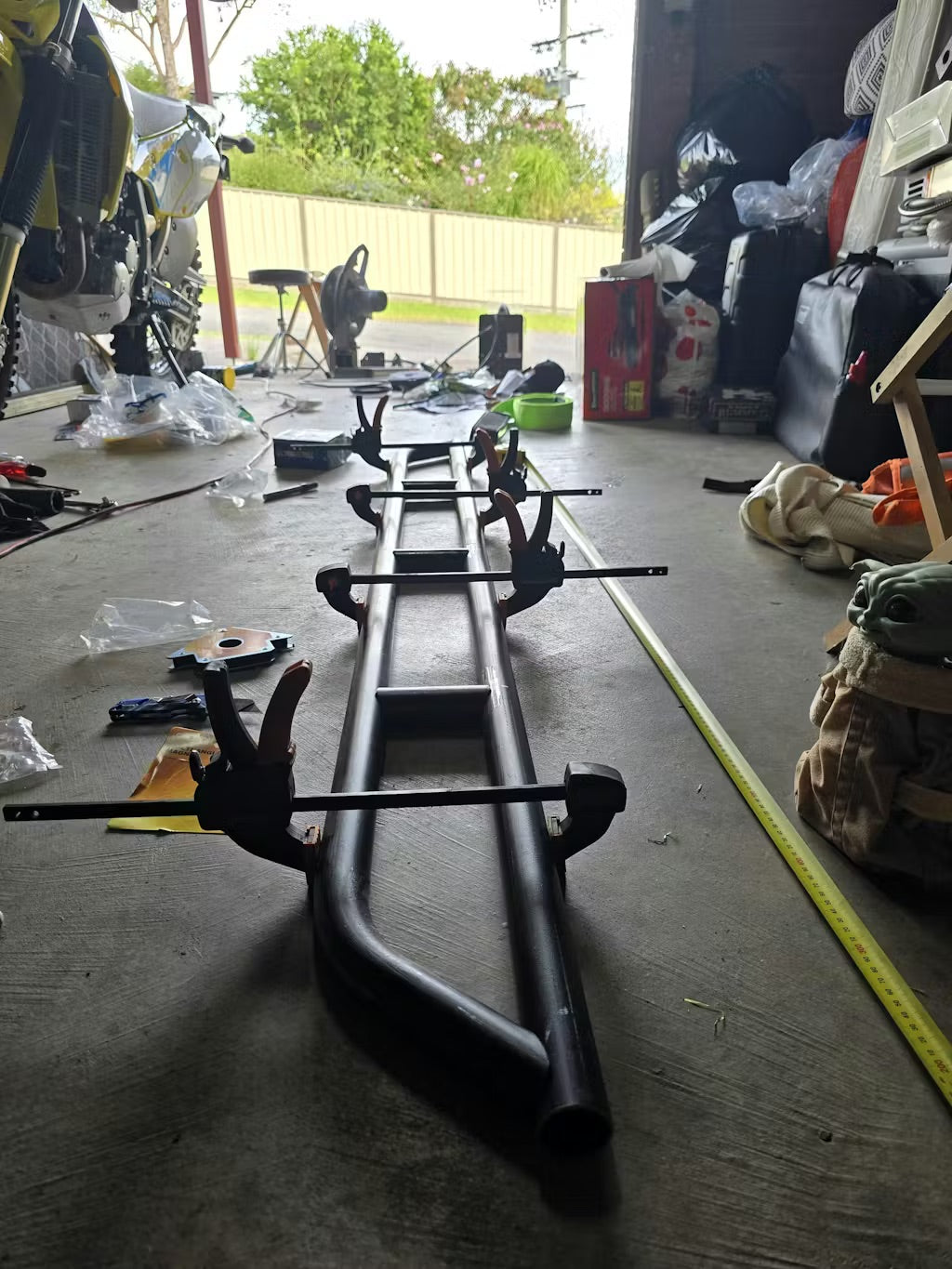

Real Builds Gallery
See how DIY Customs Rock Sliders are put to the test.
Frequently Asked Questions
Assembly & Fitment
Quality Guarantee
Shipping
Industry-Leading Tools. Superior Results.
Precision-Cut In-House with Australian Steel
Universal and Weld-on Chassis Brackets are CNC laser-cut for unmatched precision using high-quality Australian-made steel. Every piece is fabricated in-house under strict quality control standards to ensure accuracy, durability, and consistency across all builds.
Every Cut Counts. And We Control Them All.
Consistent Cuts You Can Count On
We use a high-performance CNC tube cutter made in the USA, specifically calibrated for round tubing. It delivers precise, repeatable cuts every time ensuring consistent fitment and tight tolerances across every part.
Digitally Controlled. Mechanically Precise.

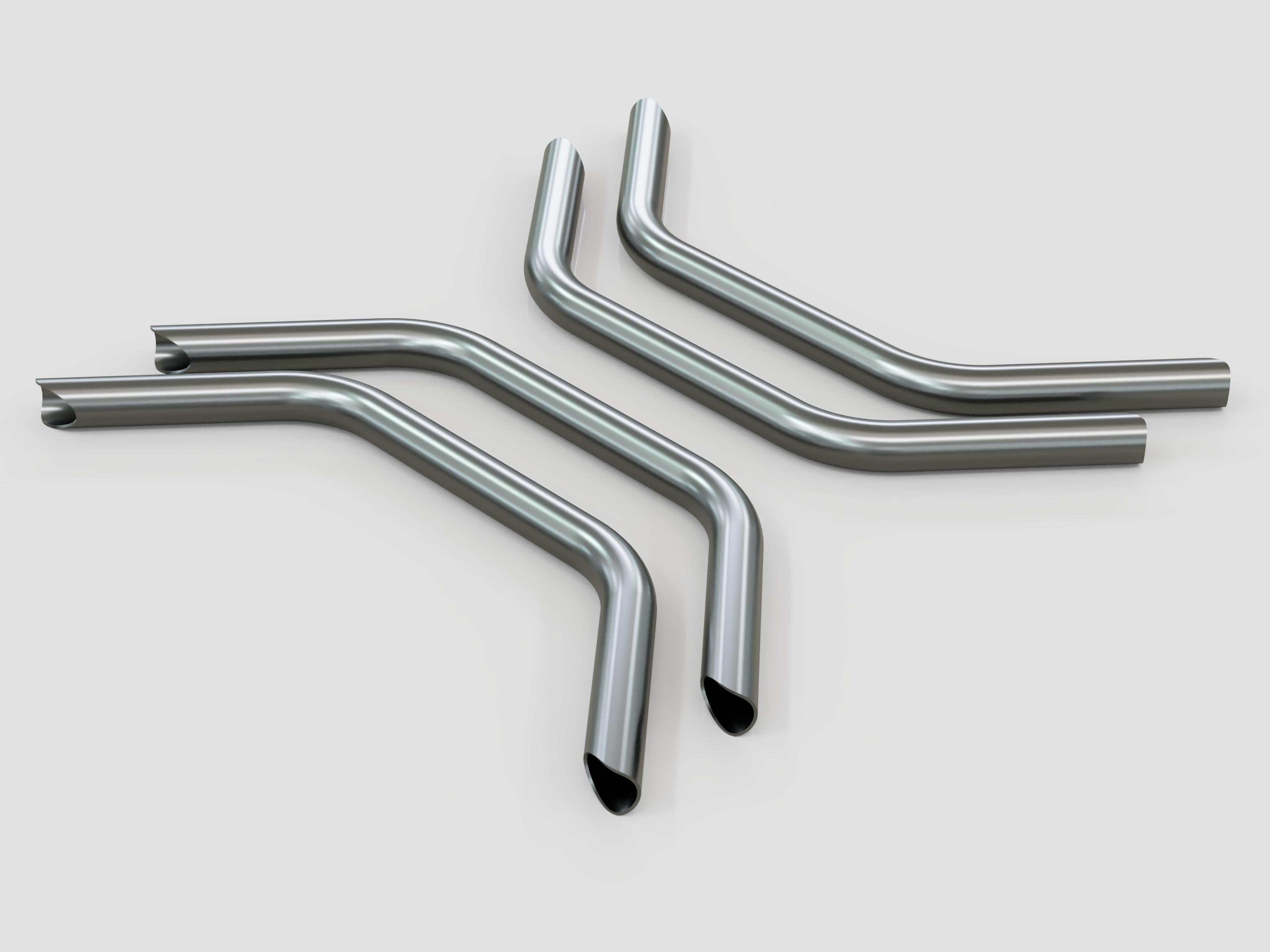

Precision Bends with Industry-Leading Accuracy
Tubing bends are done using an American-made JD Squared digital hydraulic bender known across the industry for producing the highest quality bends with unmatched repeatability, trusted by fabricators worldwide for its unbeatable performance and accuracy.
Dive into the features that make our sliders dependable from fabrication to final delivery
Built Without Compromise

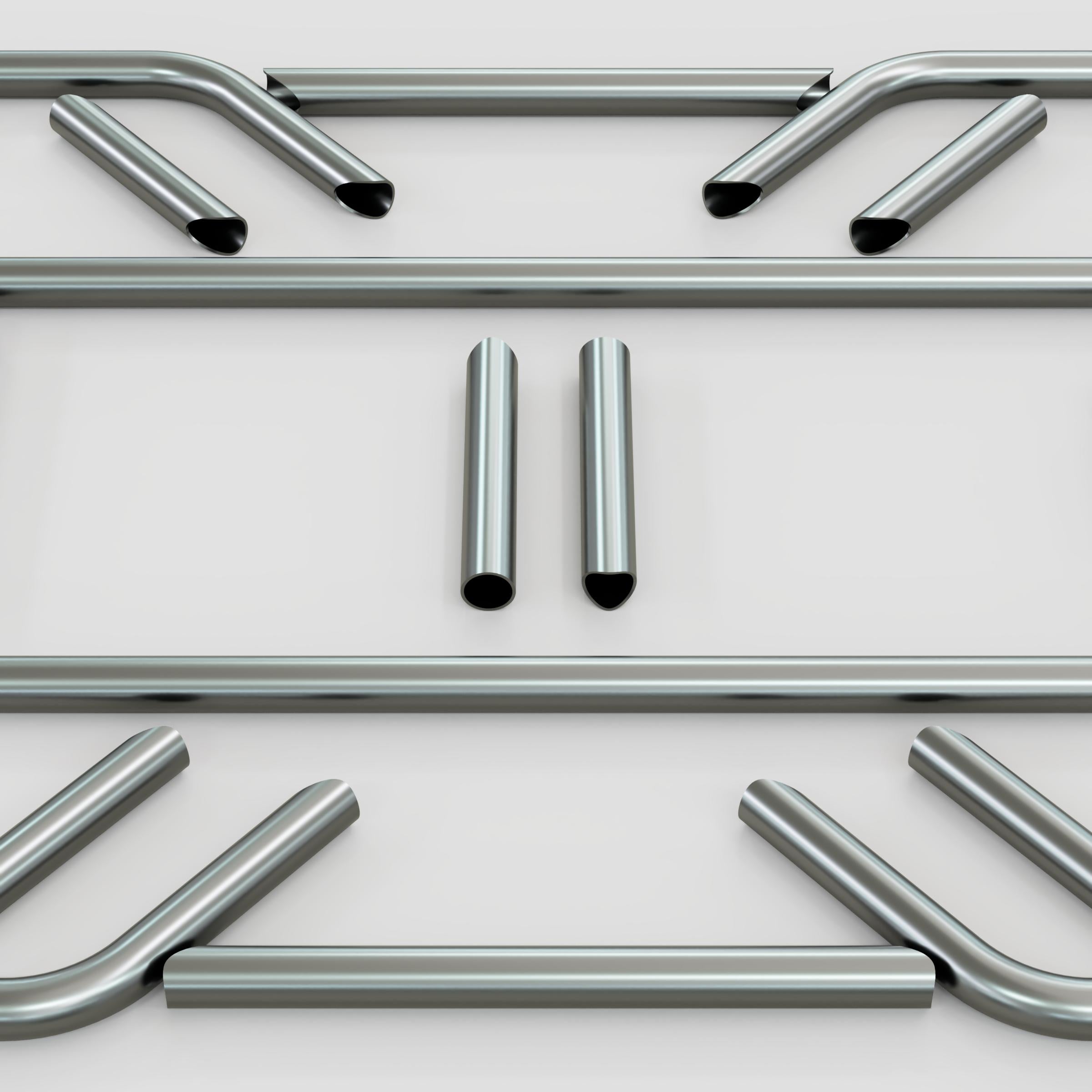

From Foundry to Fabrication
It’s your build, but our process. From raw steel to your rig, we’ve refined every step. We’ve been here—testing, improving, and backing every kit with experience.

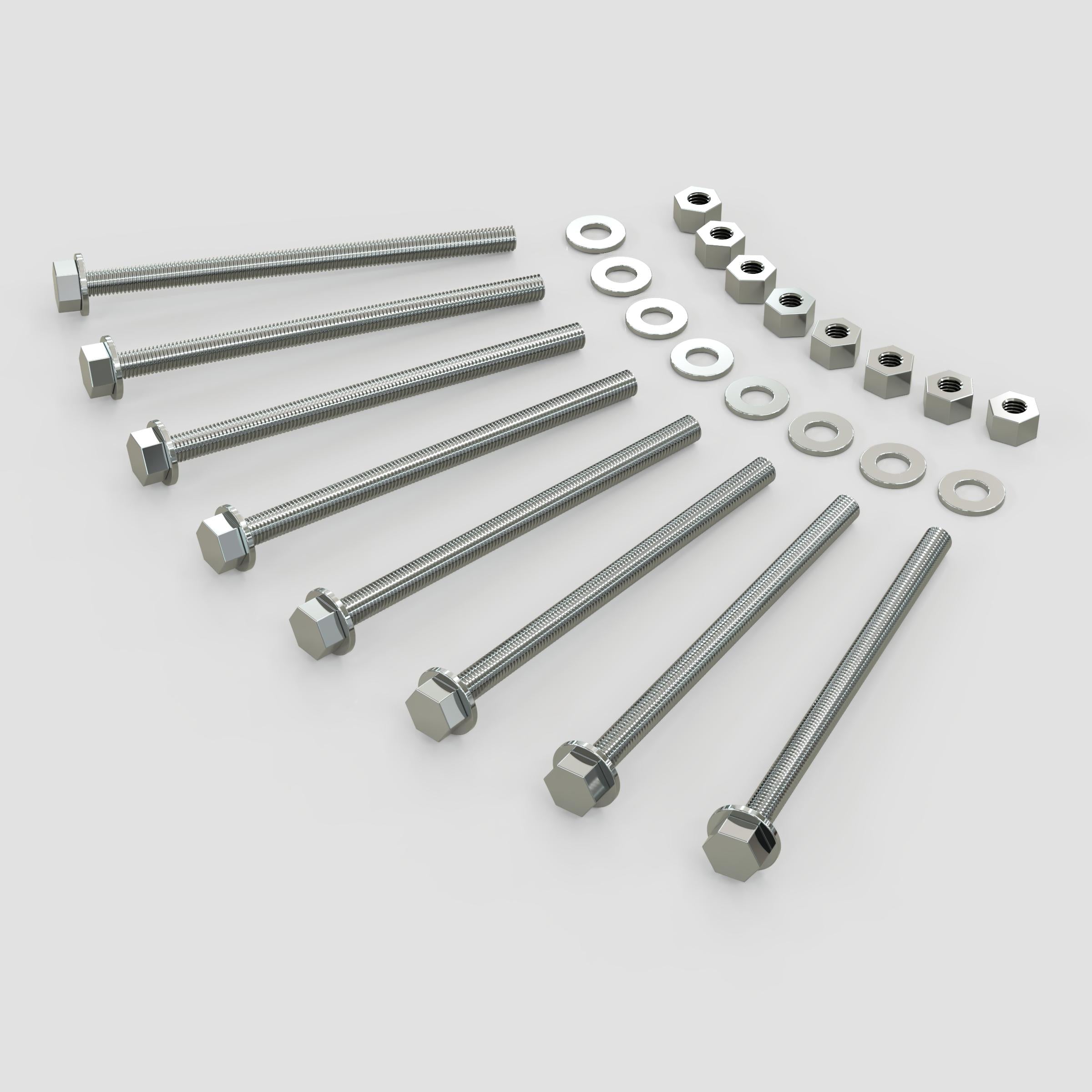

Hardware You Can Trust
Every bolt, nut, and washer is carefully chosen for strength and reliability. With Grade 8.8 tensile rating and corrosion-resistant coating, safety is never left to chance.
Built for Your Fitment
Our Rock Slider kits give you complete fitment freedom. Position and finish them exactly how you see fit, then take them on any trail with confidence.
Build-Ready Rock Sliders for Serious Off-Roaders
Protect your rig with heavy-duty DIY rock sliders. Designed for easy welding and precise fitment, they’re built to handle tough terrain and serious abuse.
Wherever You Go, Go With Confidence
DIY Customs rock sliders are built tough to handle harsh tracks and rugged terrain, no compromises.
