Standard DIY Kit - Design 4 (DIY WELD TOGETHER KIT)

*THIS IS A WELD TOGETHER KIT*

Made from 42.2 mm outside diameter mild steel tubing 3 mm thick

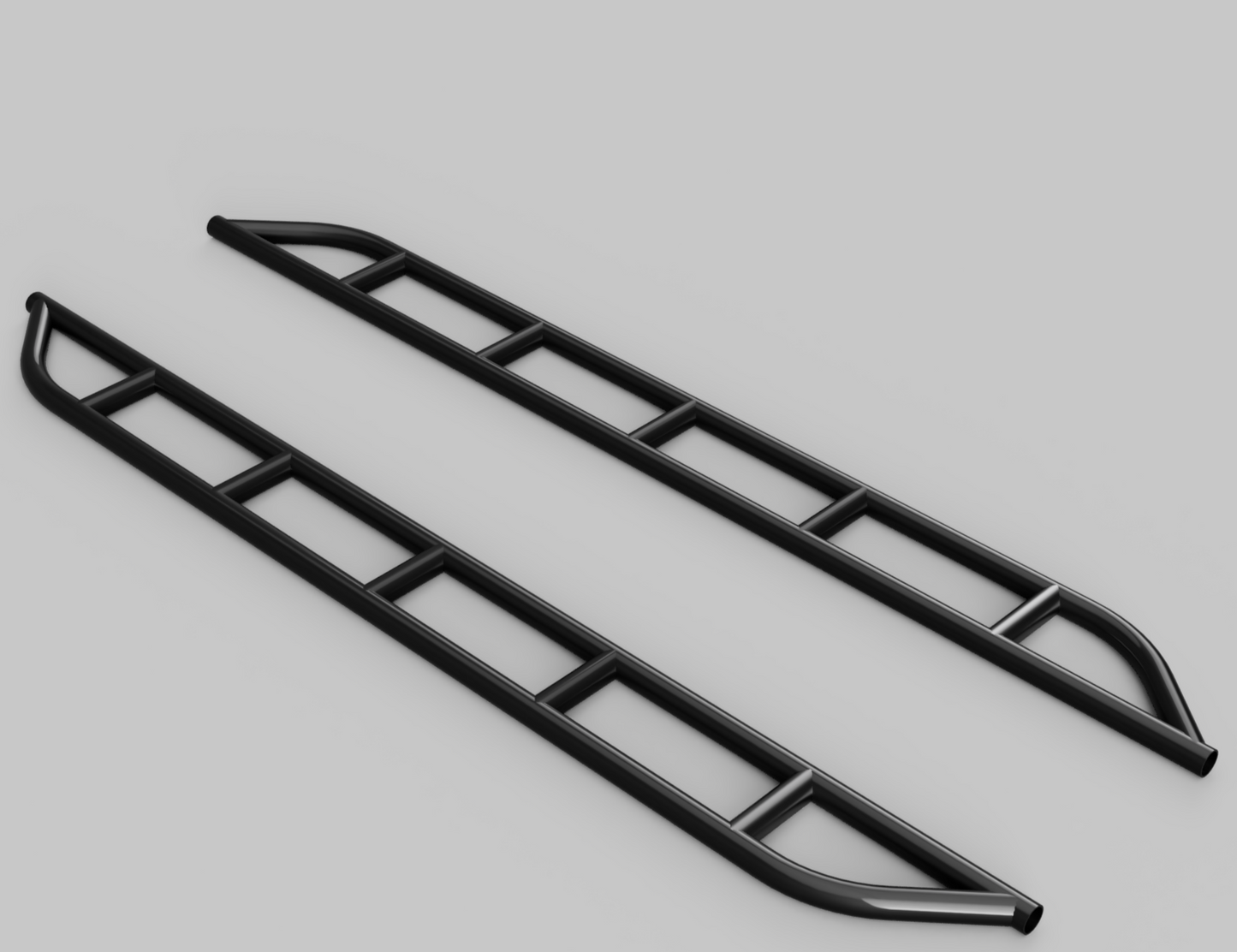

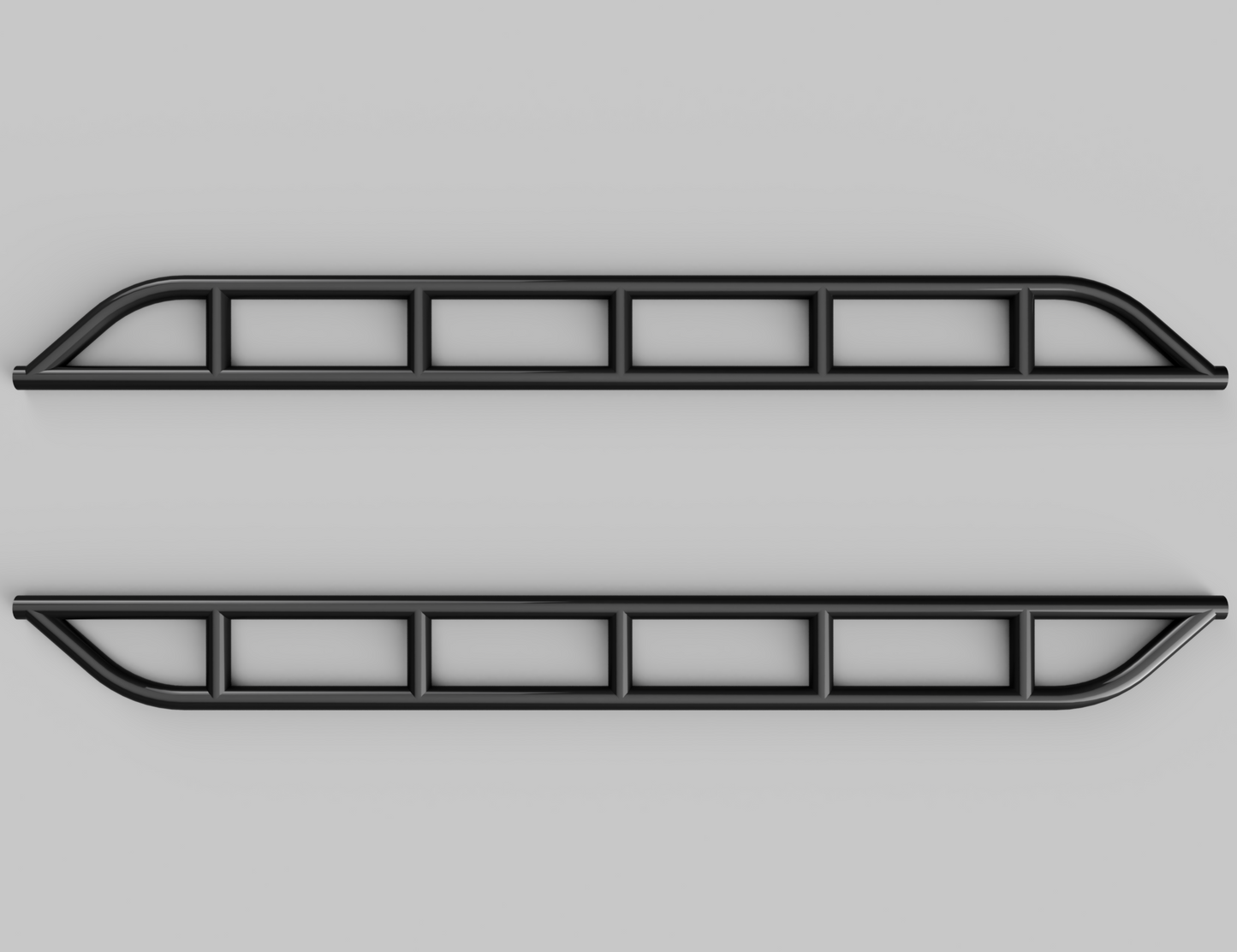

this is STANDARD KIT design 4 rock slider kit that includes

2 x straight pieces of tubing at desired length that you choose ( inner rail )

2 x bent pieces of tubing to suit the desired length that you choose ( outer rail )

10 x pieces of tubing, notched at 90 degrees on either end, that go inside the main slider section ( 5 on either side inside the main slider section )

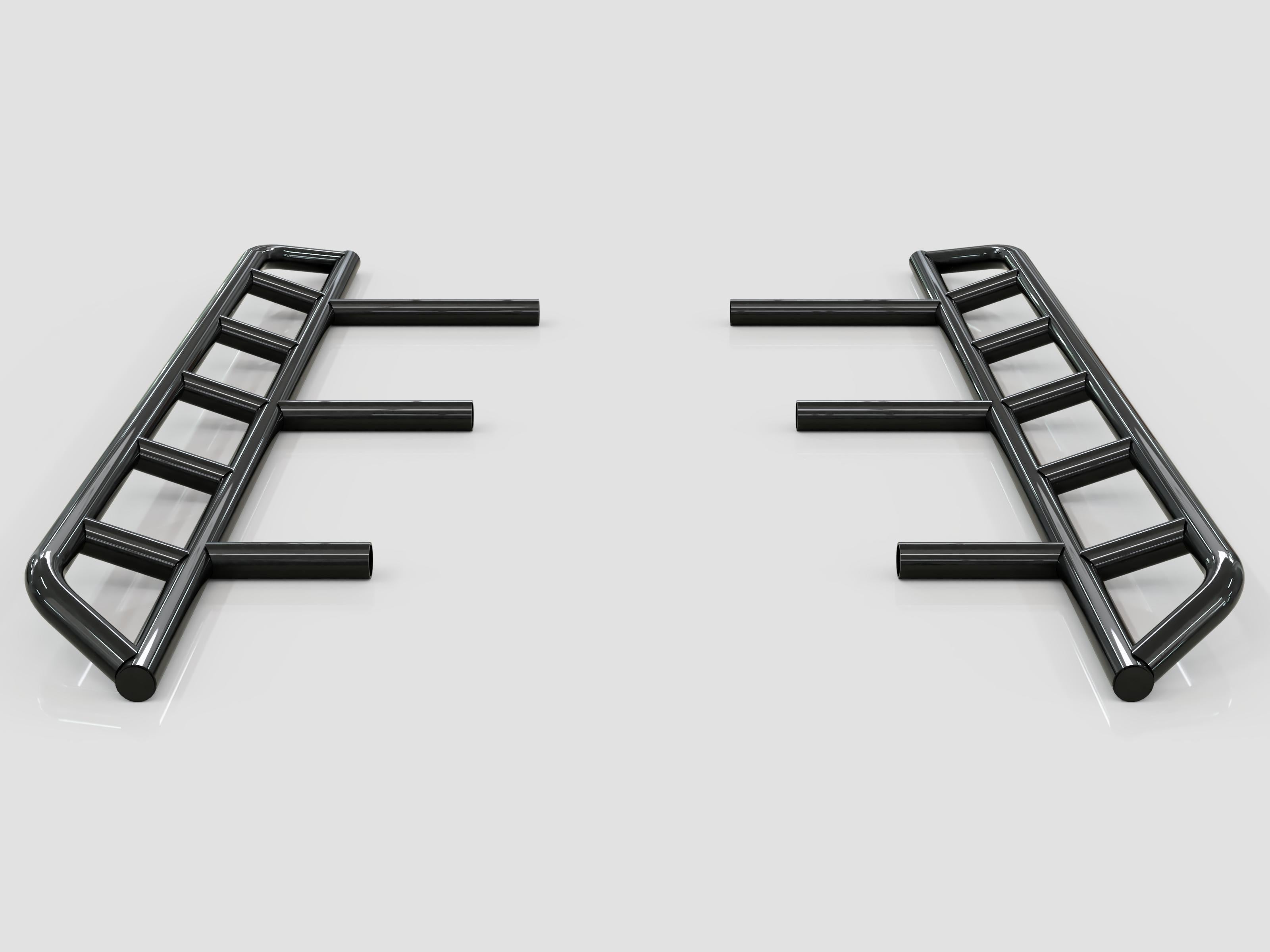

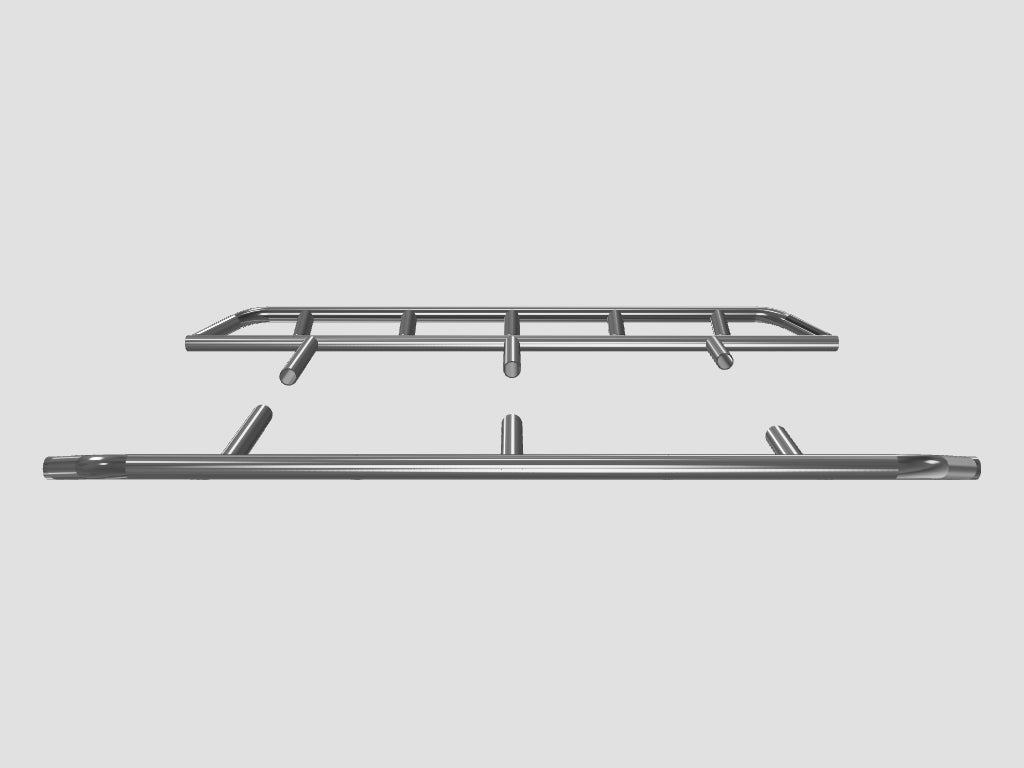

2 x 200 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket

2 x 280 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket

2 x 350 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket

2 x 50 mm x 5 mm thick flat bar at 1500 mm long ( to make chassis brackets )

4 x 2 mm thick end caps for the end of the straight tubes ( inner rail )

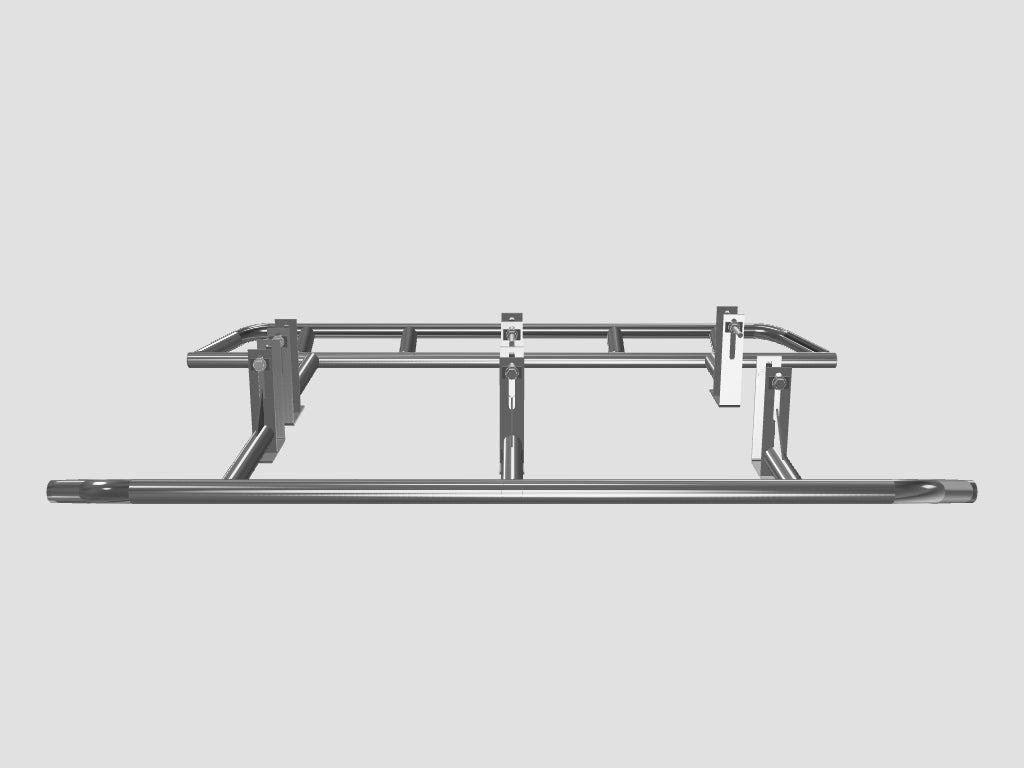

*IF YOU CHOOSE TO PURCHASE THE UNIVERSAL MOUNTING KIT*

Kit will include all of the above EXCEPT for the 2 x 50 mm x 5 mm flat bar lengths

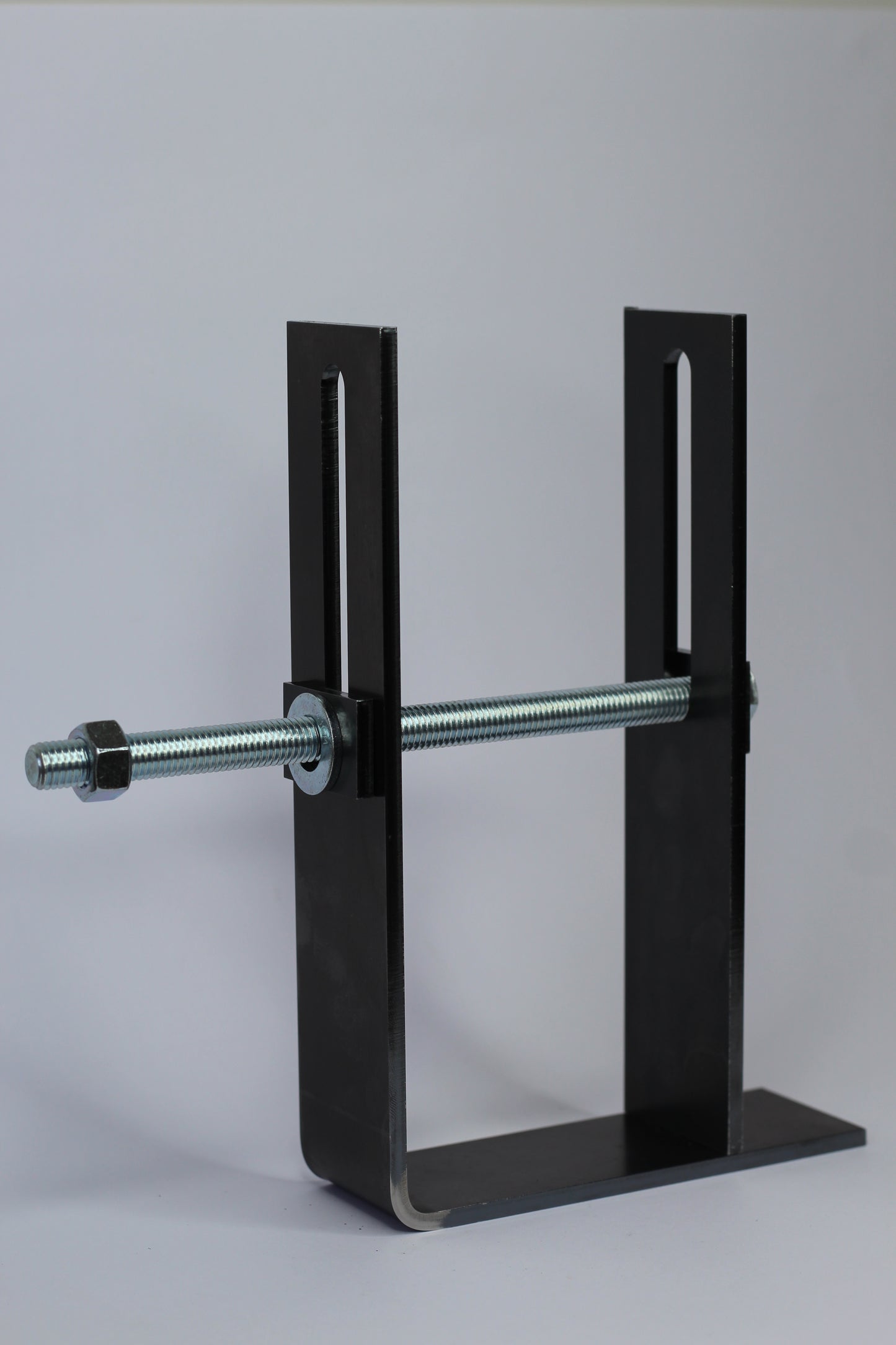

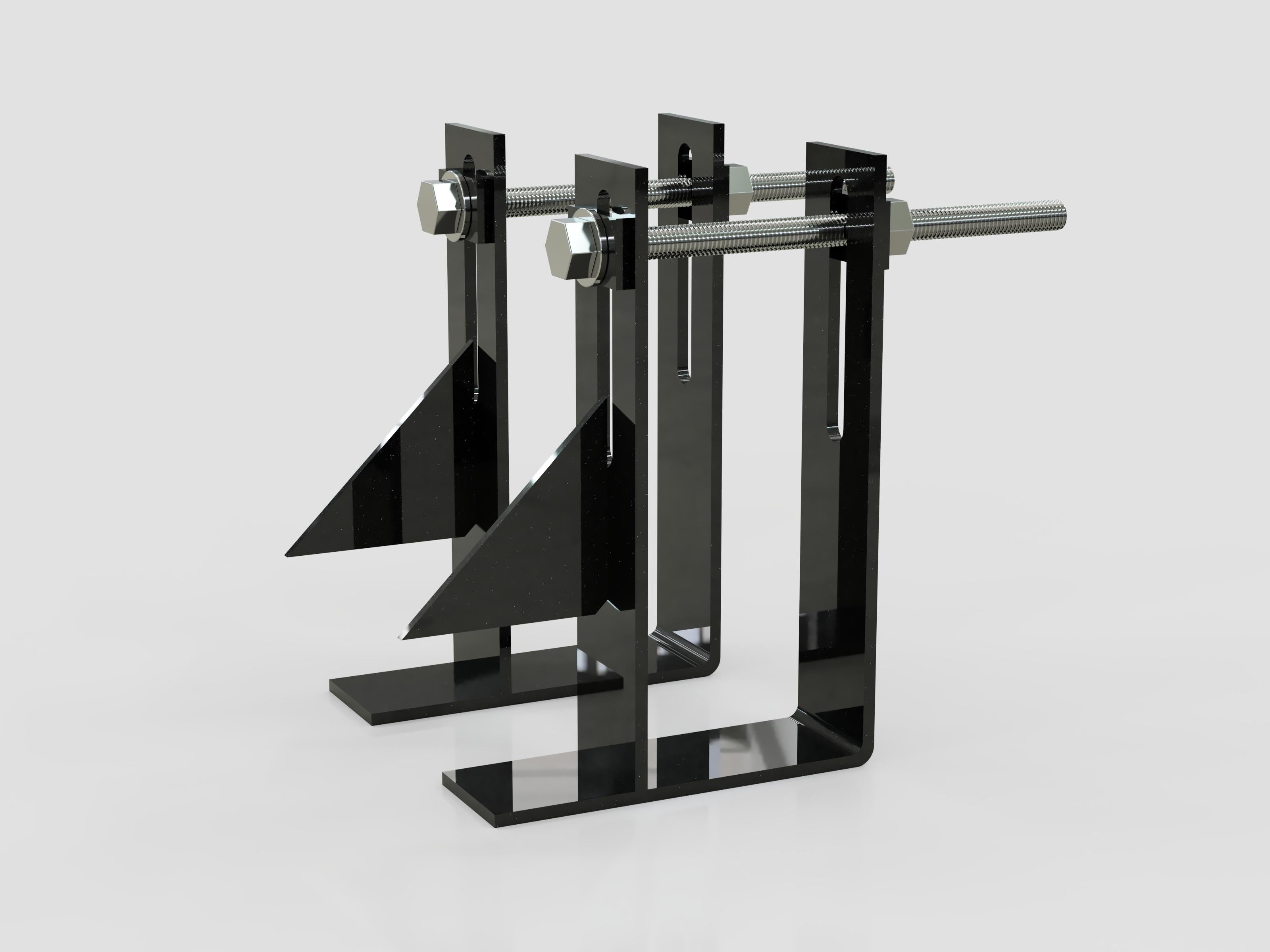

Universal chassis bracket that is made to suit square / rectangle box 4x4 vehicle chassis rails

these Universal Chassis Brackets will suit any box chassis with a range from 100 mm to 200 mm in height and up to 150 mm in width

these brackets are made from 50 mm wide x 5 mm thick mild steel plate, laser cut for precision

this Universal Chassis Bracket mounting kit is a set of 6 which includes

6 x L brackets with slots cut into them

6 x straight brackets ( to be welded to the L bracket ) with a slot cut into them

12 x rectangular plates with a hole cut into them ( to be welded to both the L bracket and straight bracket )

6 x 200 mm long x 12 mm high tensile zinc plated bolt ( to be cut down to the length required for your chassis )

12 x 12 mm zinc plated washers

6 x 12 mm lock nuts

6 x steel gusset stiffener plates with 90 degree bends at 80 mm x 80 mm x 4mm thick. Has a 5 mm x 5 mm corner cut out for easy fitment and Laser cut for precision
