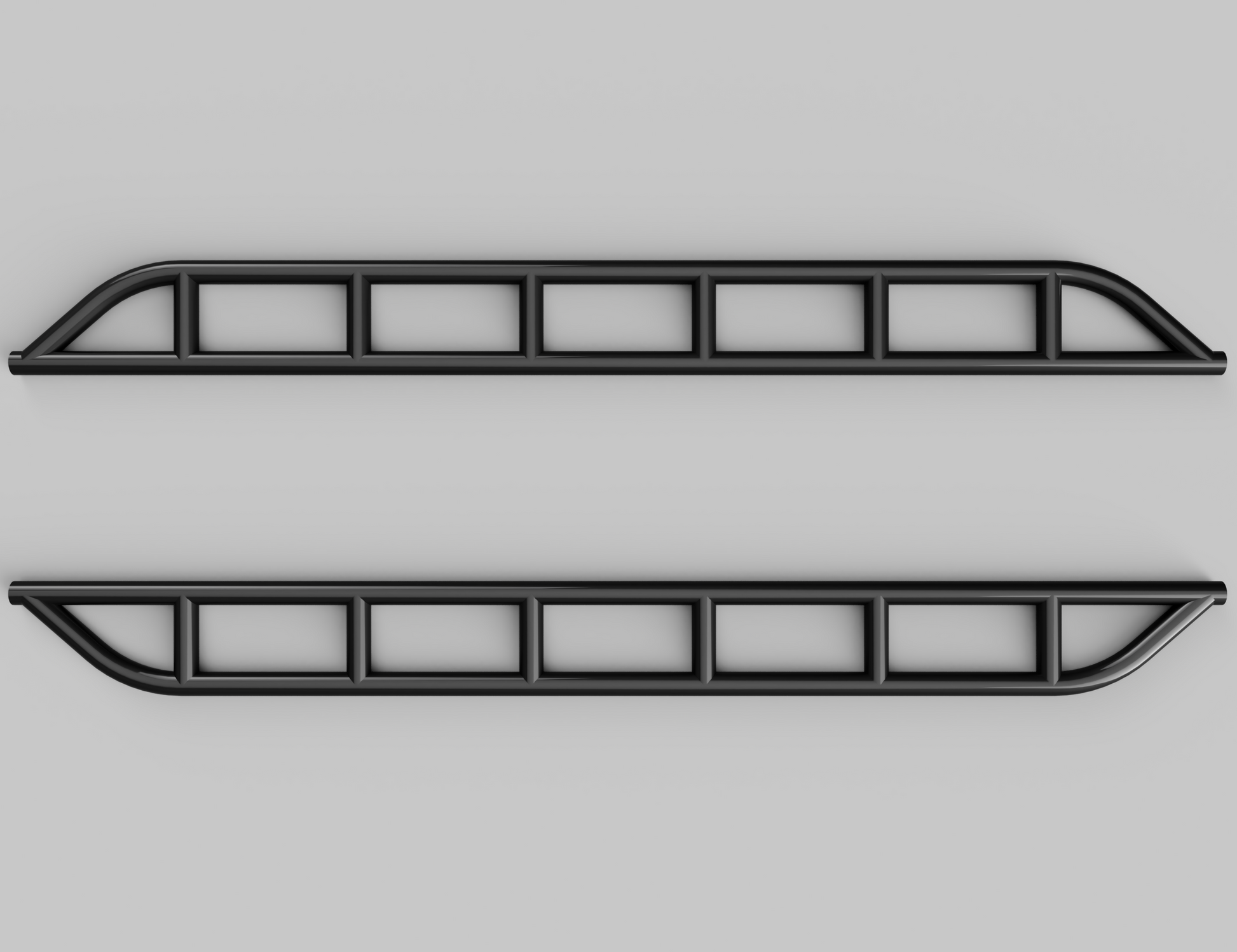

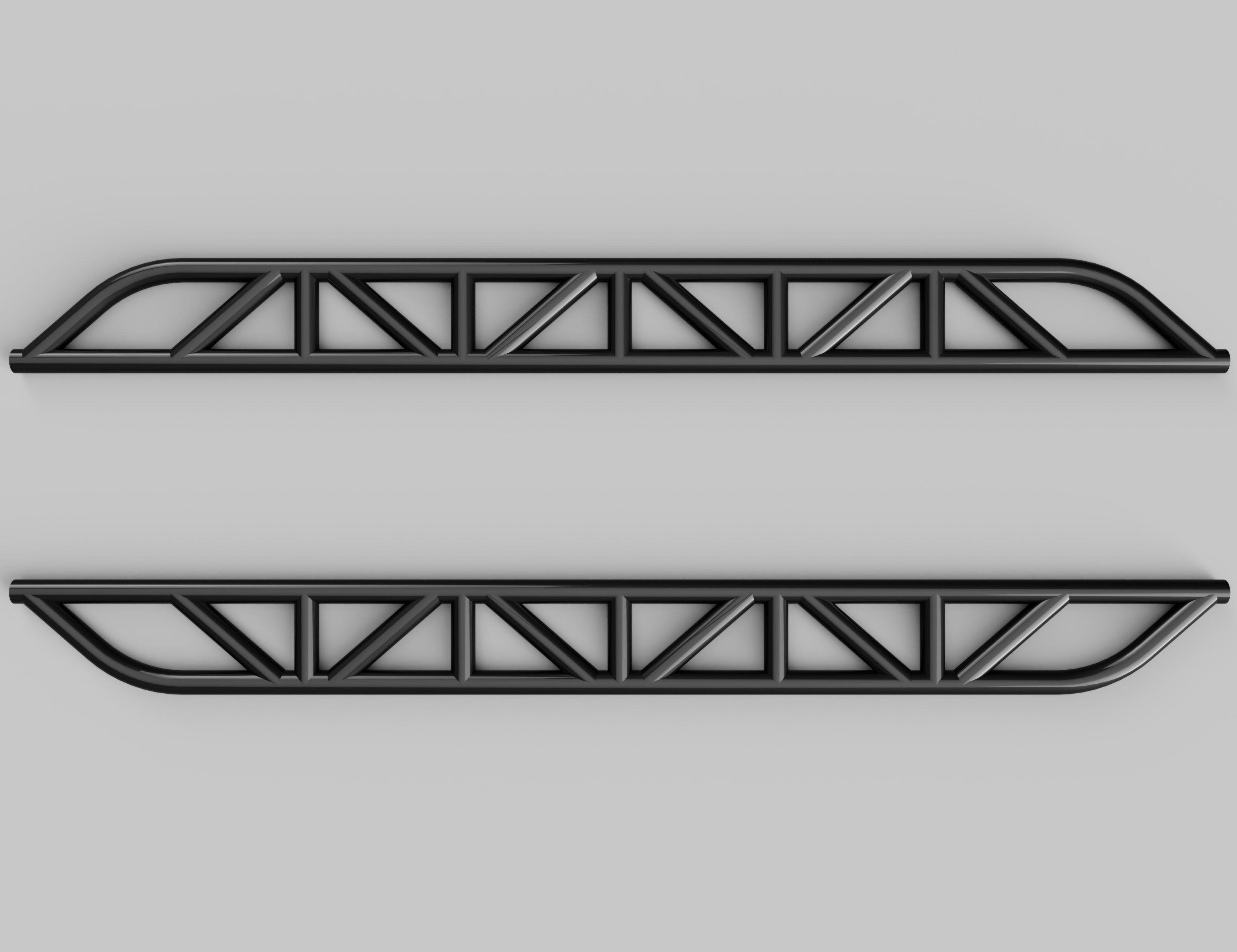

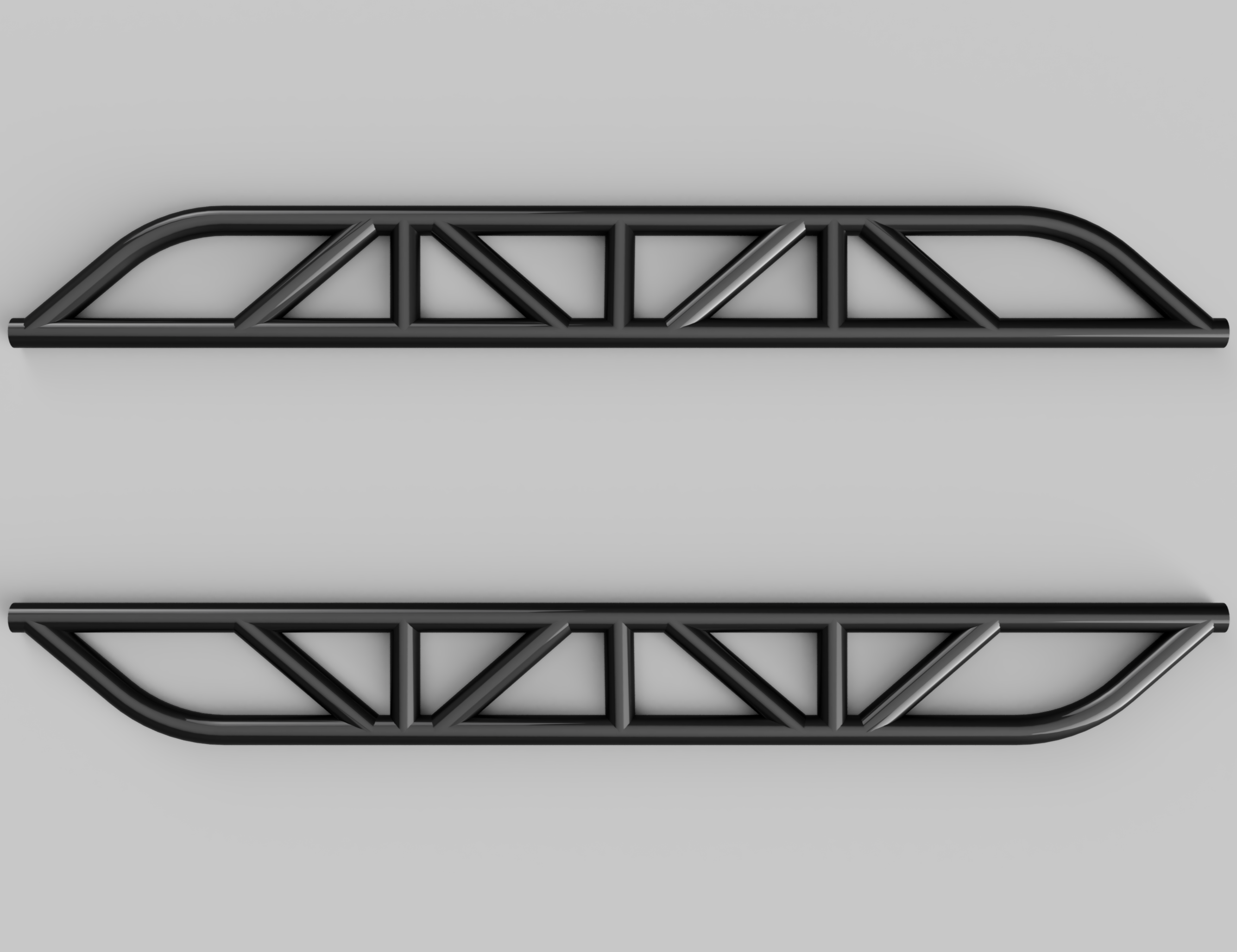

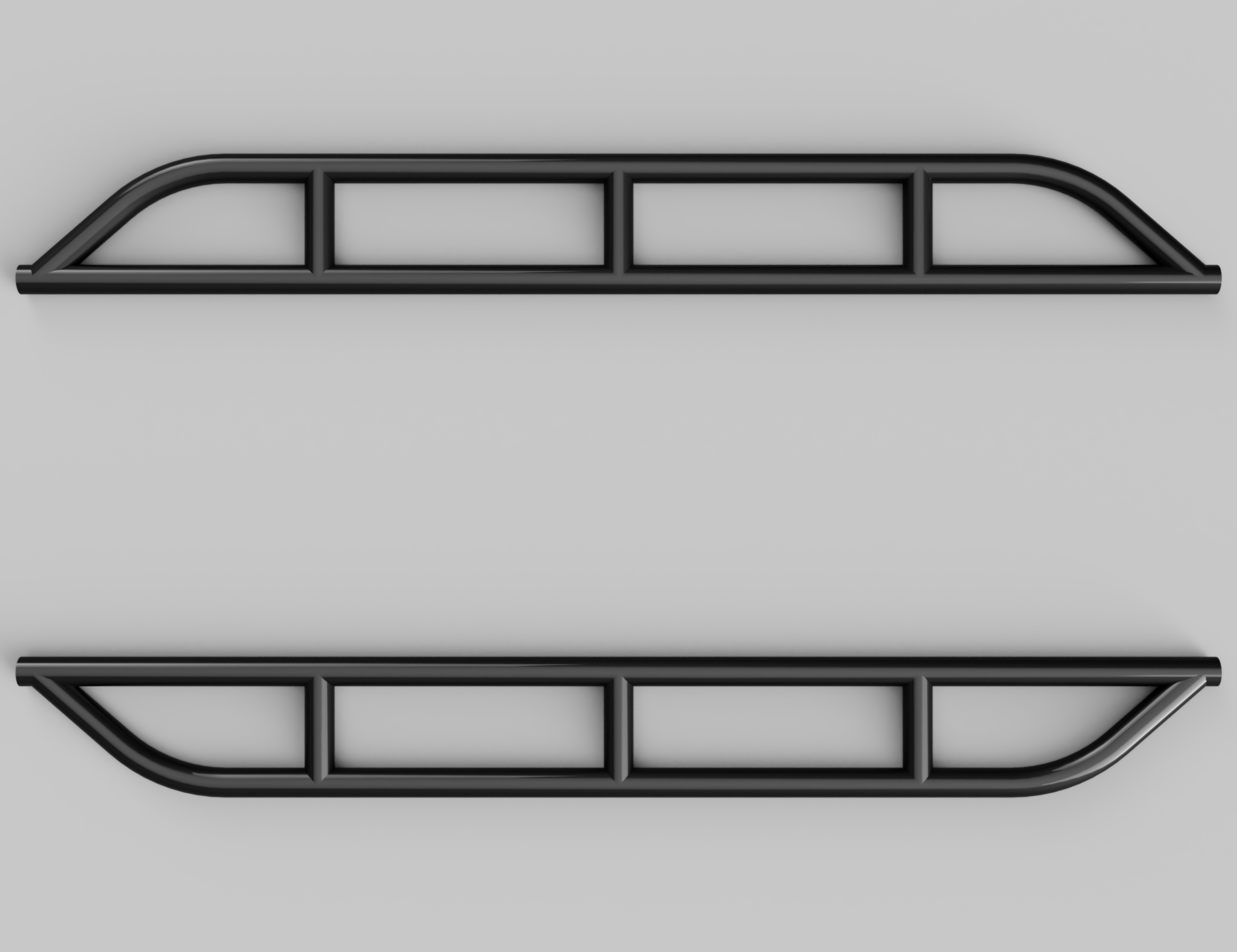

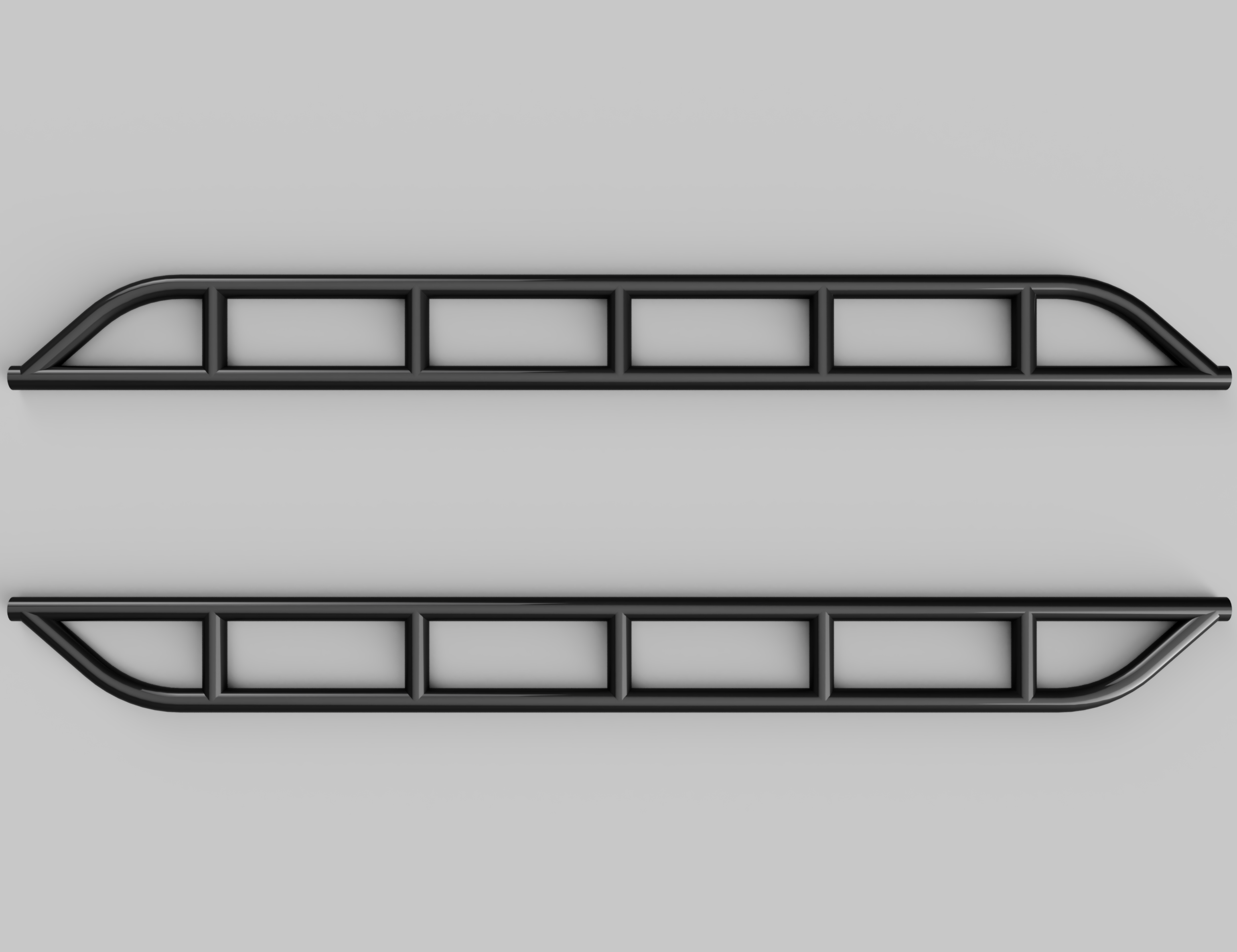

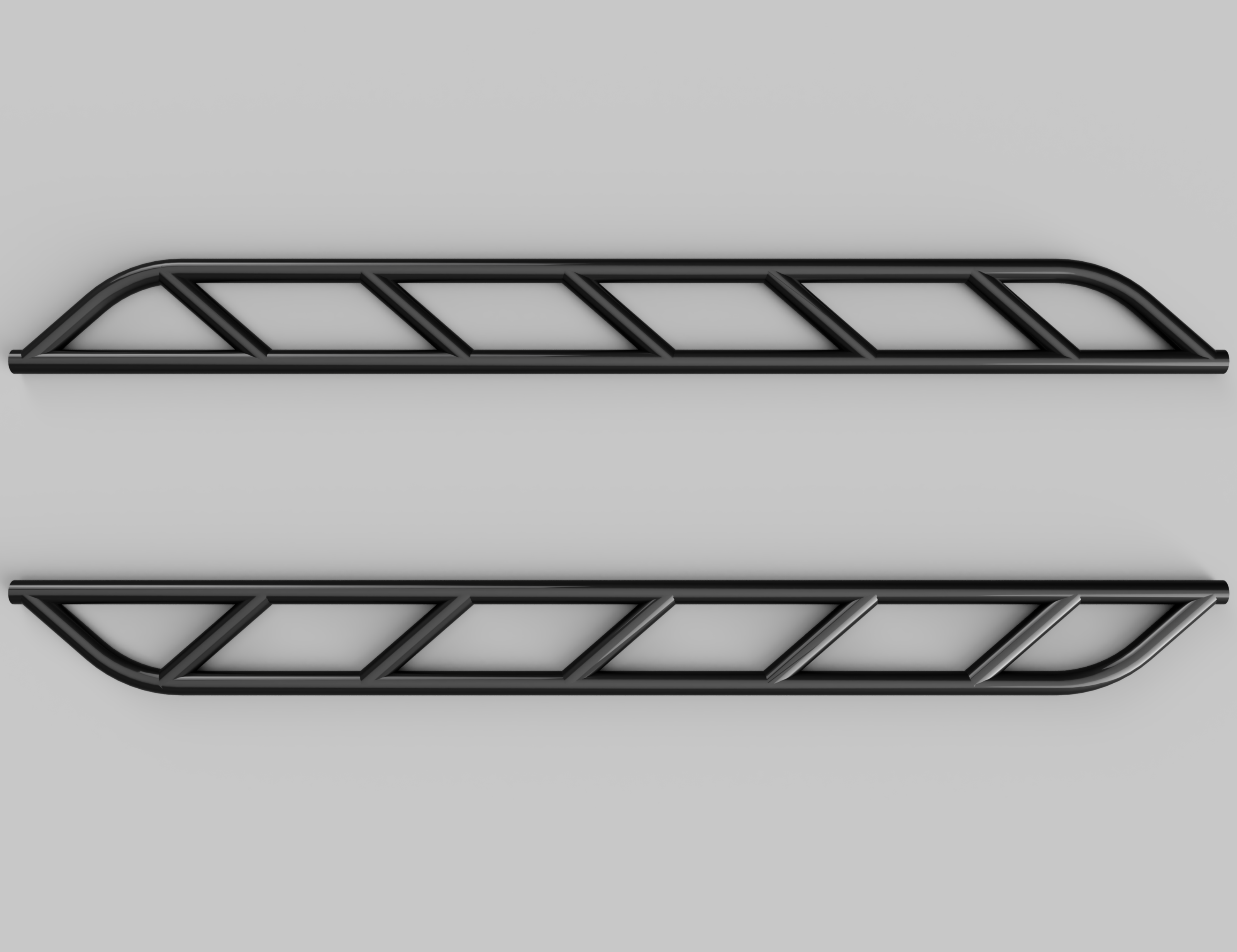

*THIS IS A WELD TOGETHER KIT*
Made from 42.2 mm outside diameter mild steel tubing 3 mm thick
*TO SUIT TOYOTA HILUX N60 DUAL CAB - 1800 MM LONG*
Included in this kit

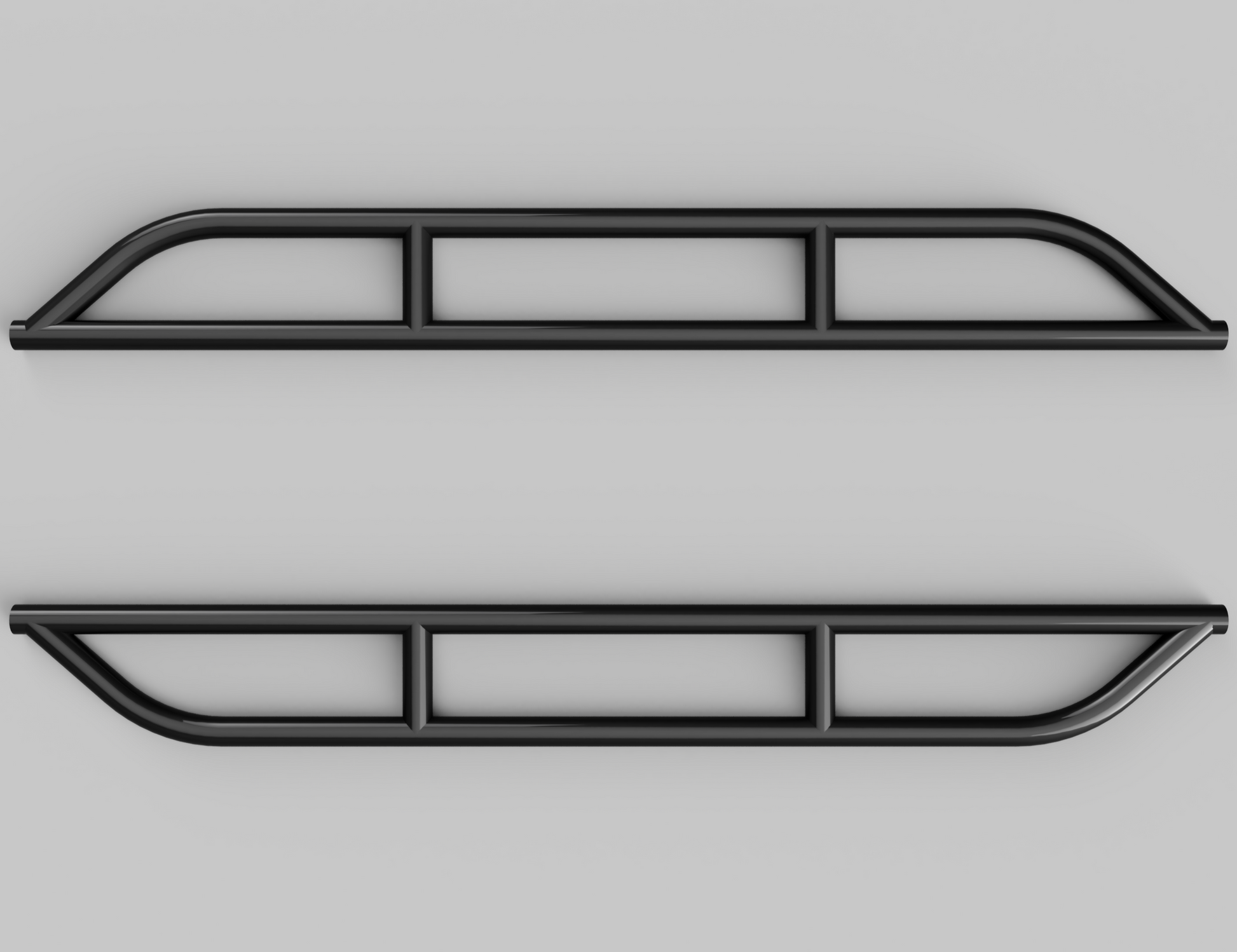

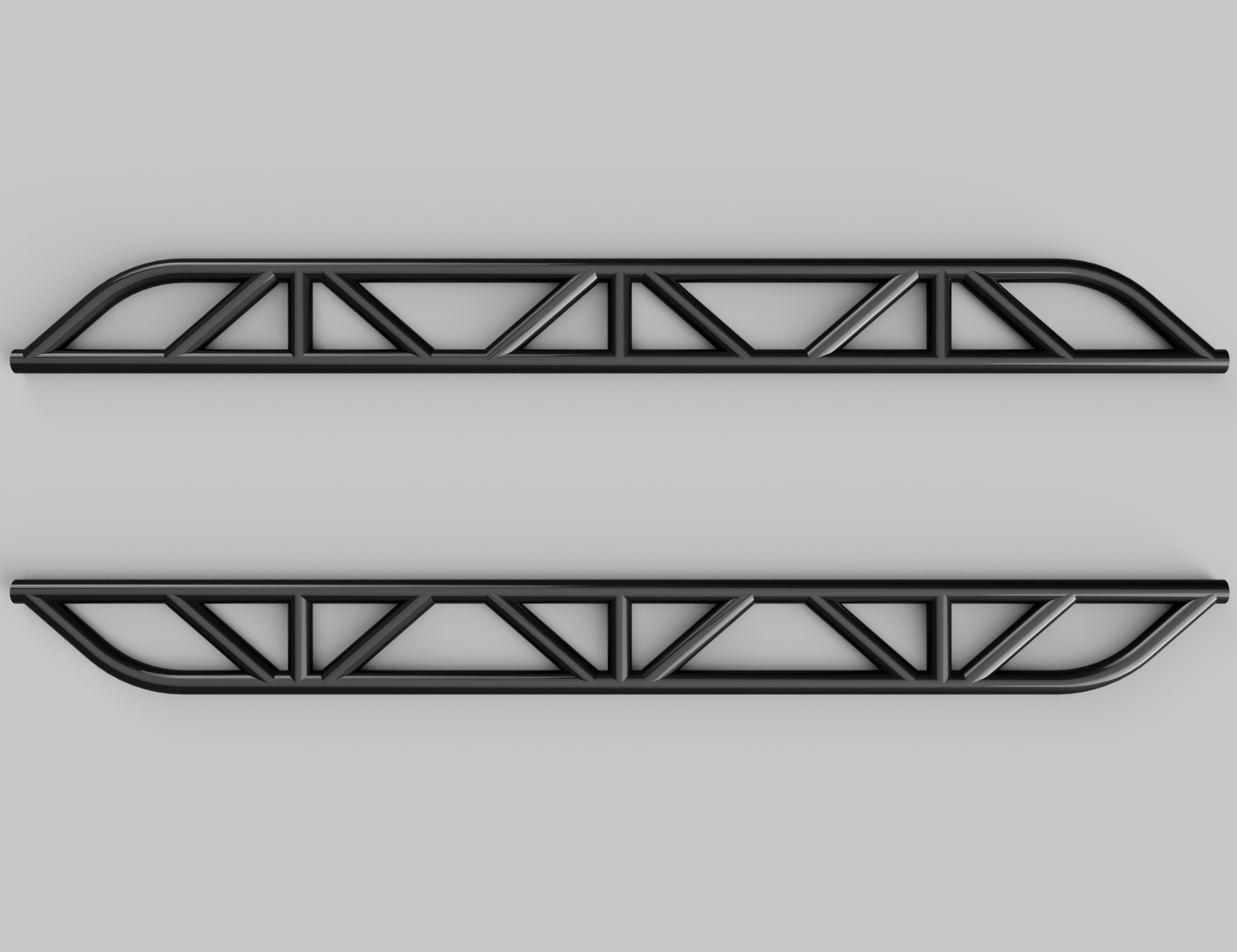

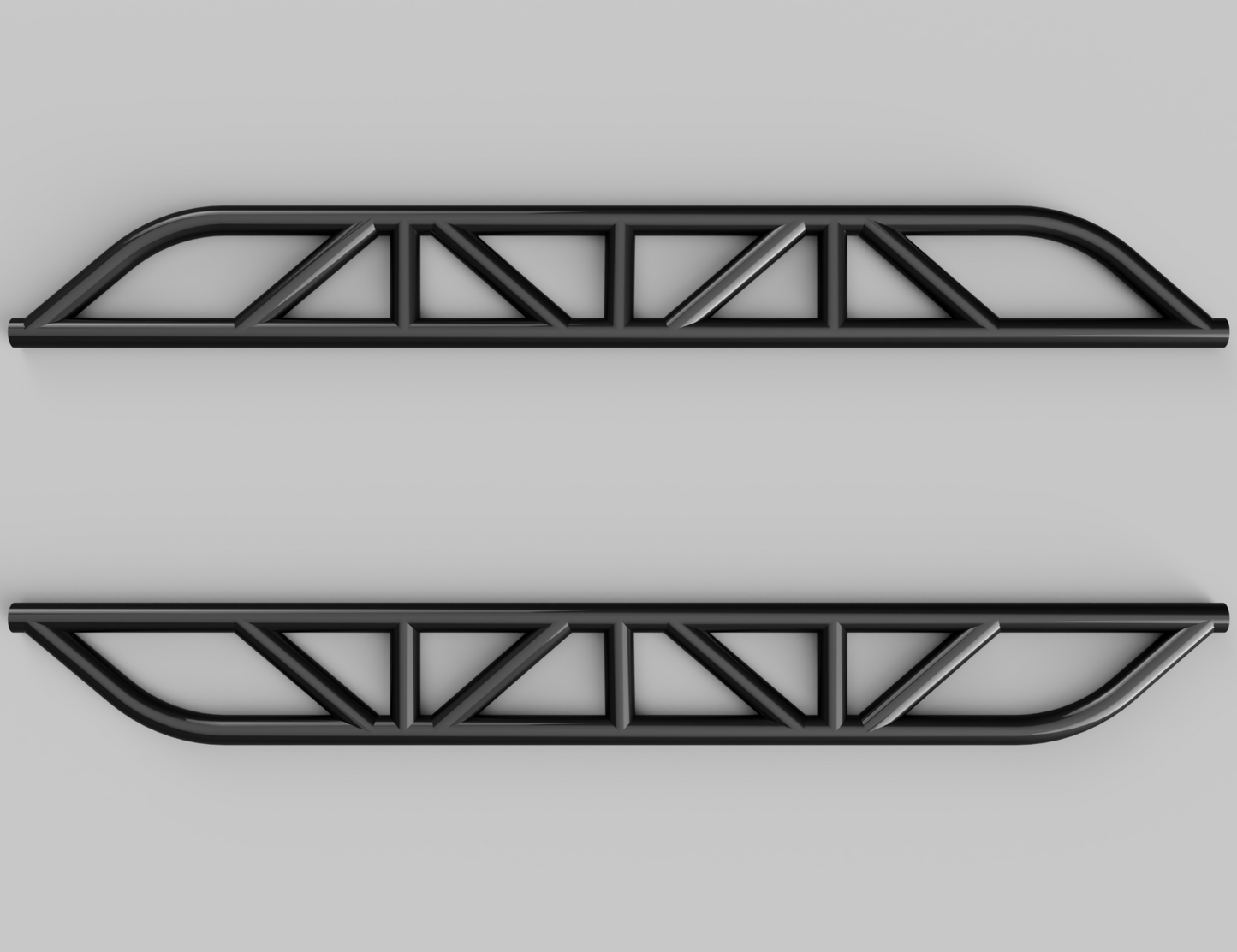

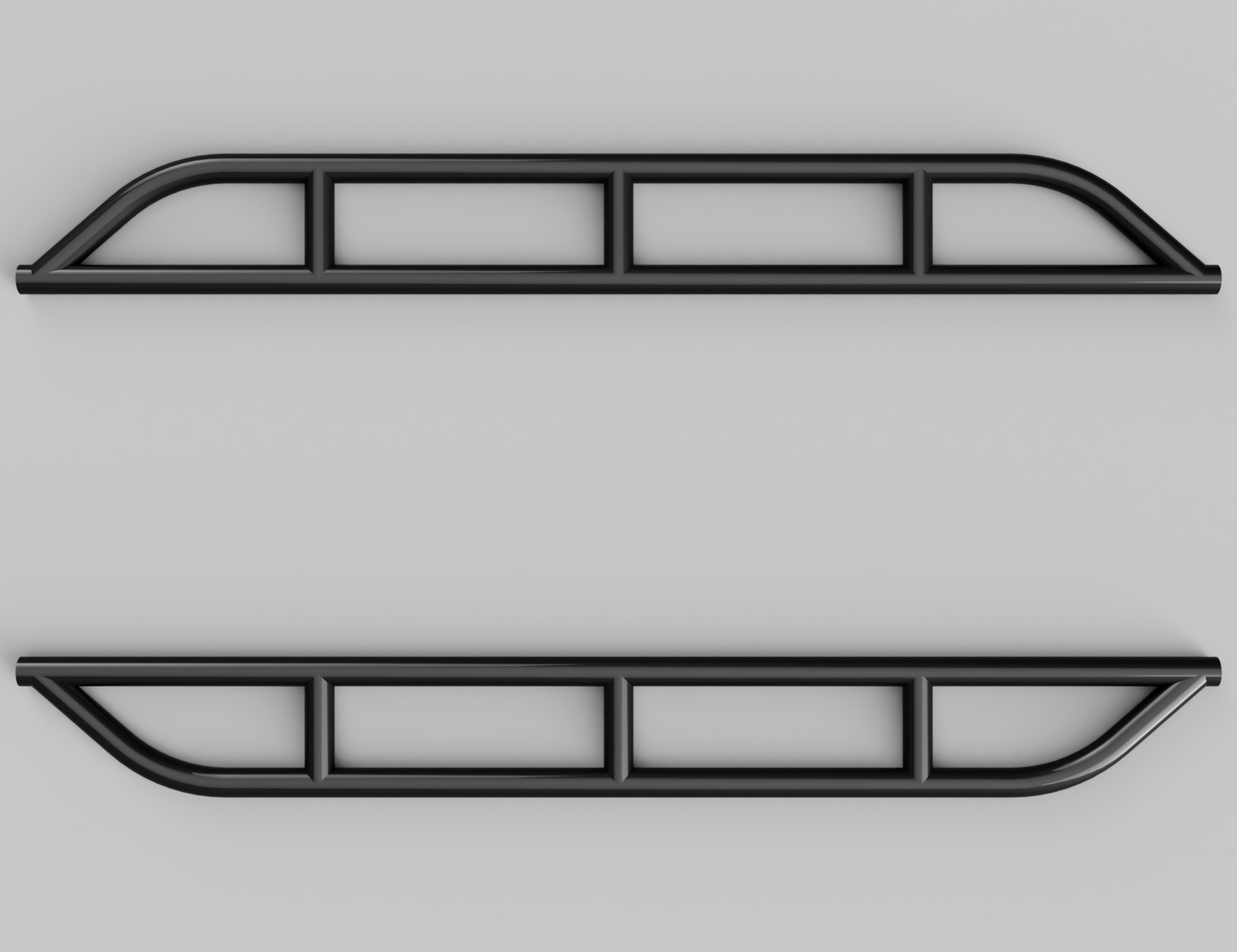

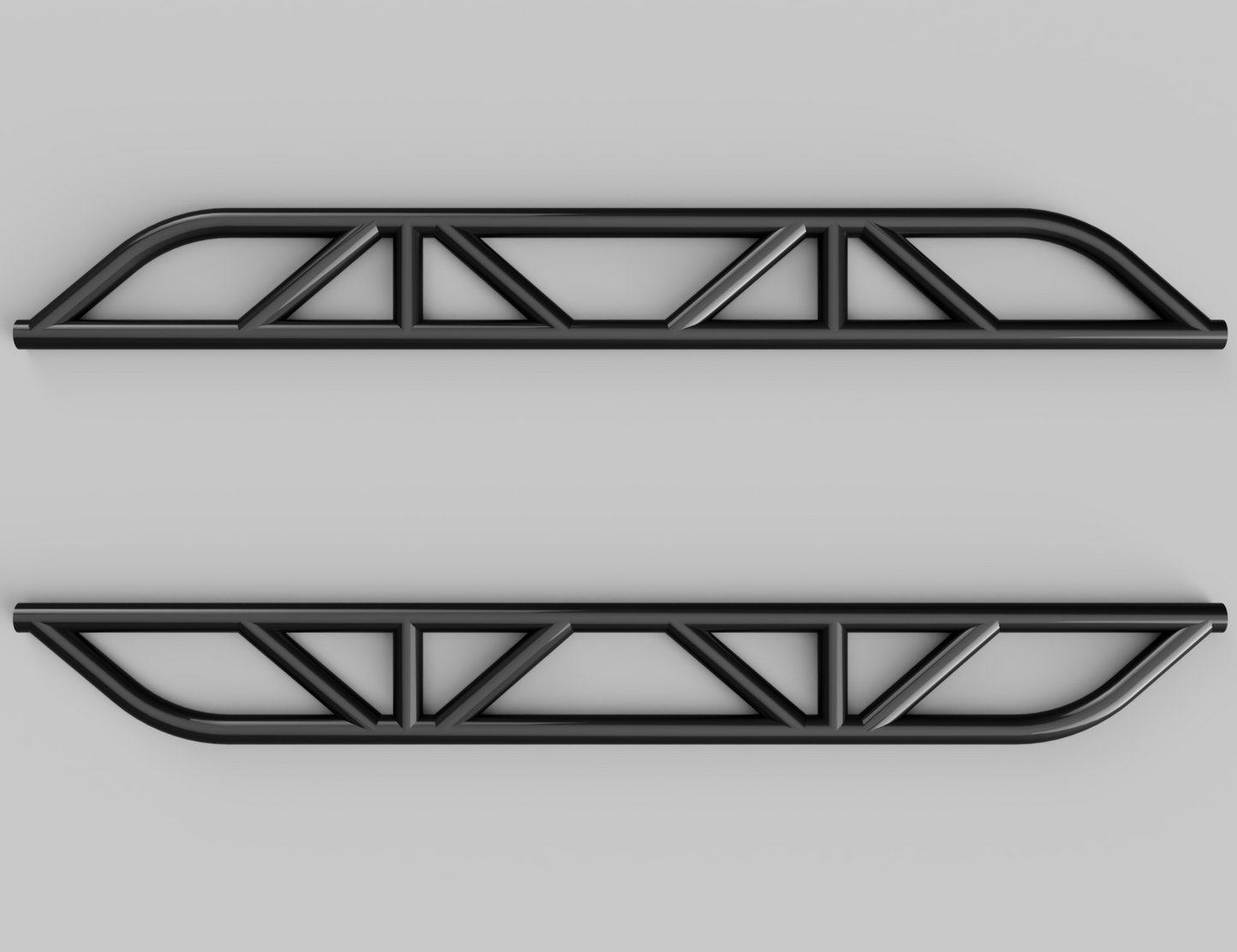

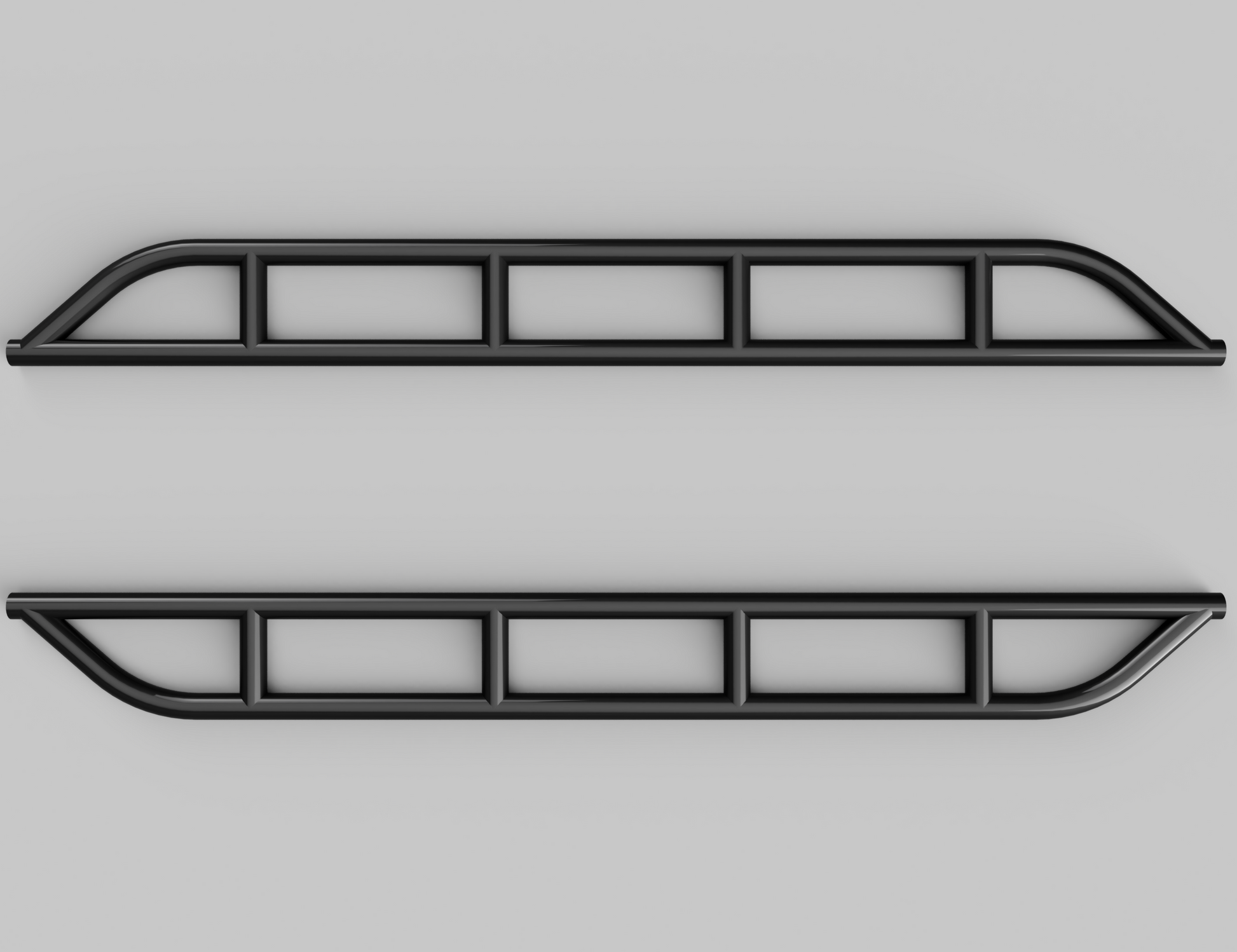

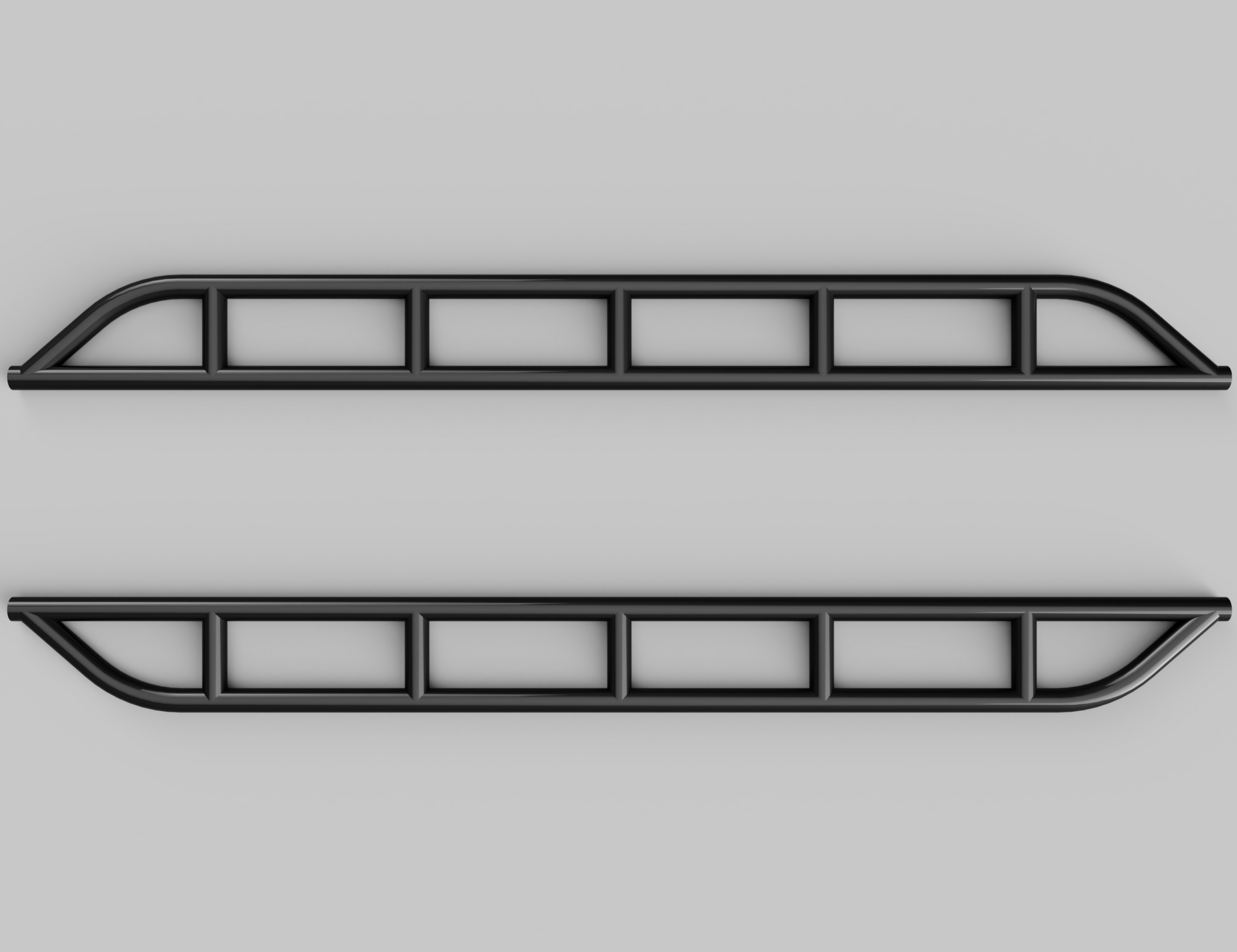

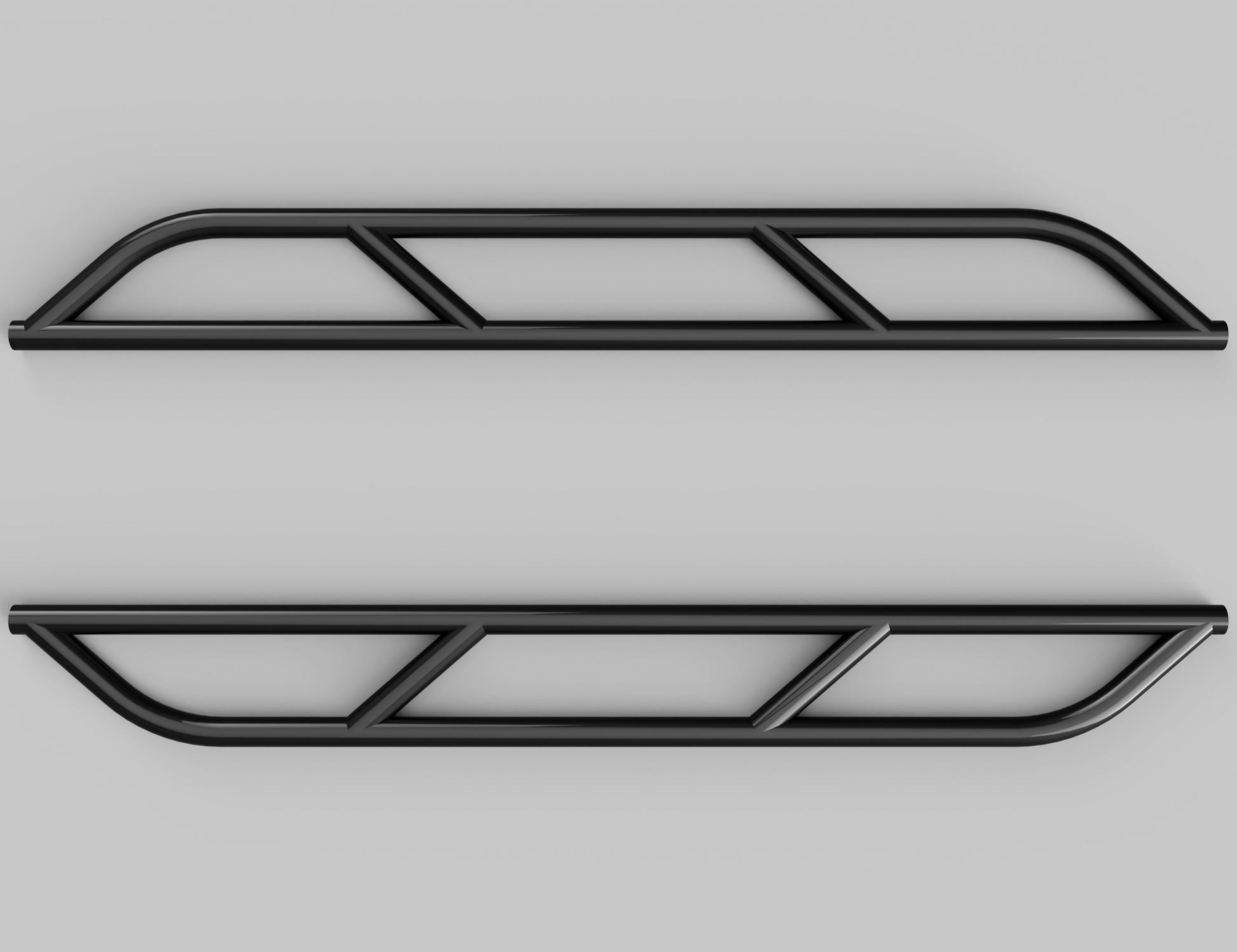

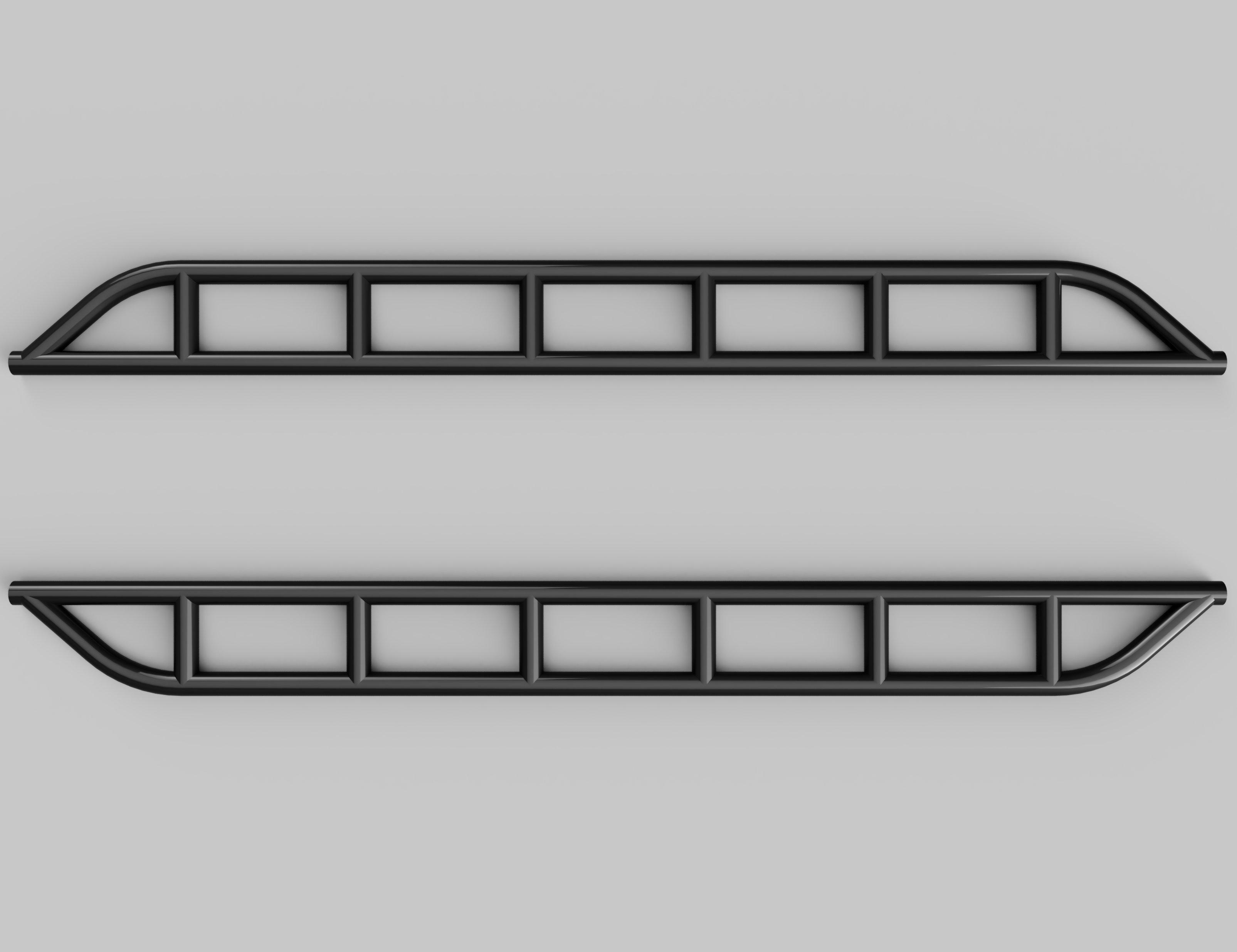

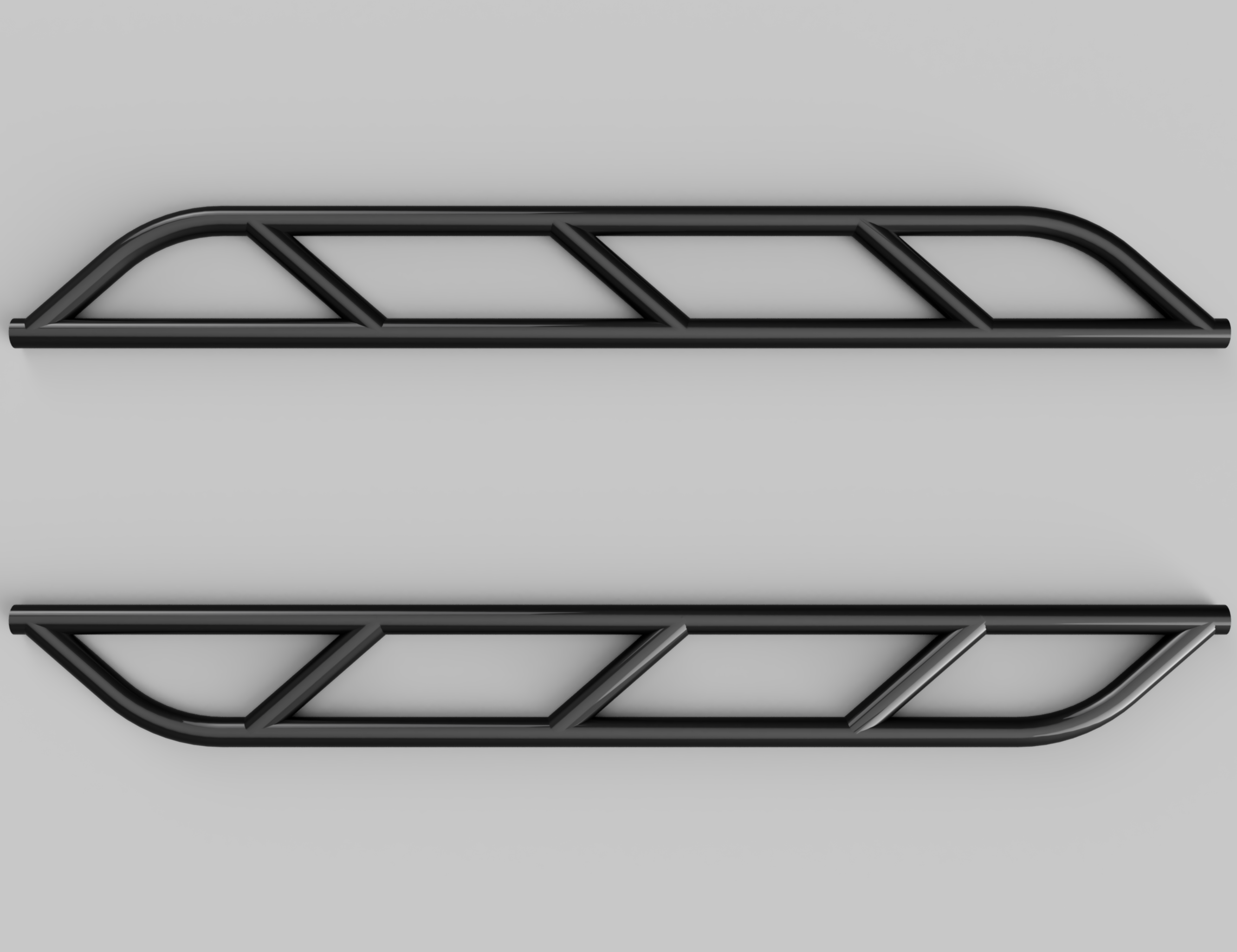

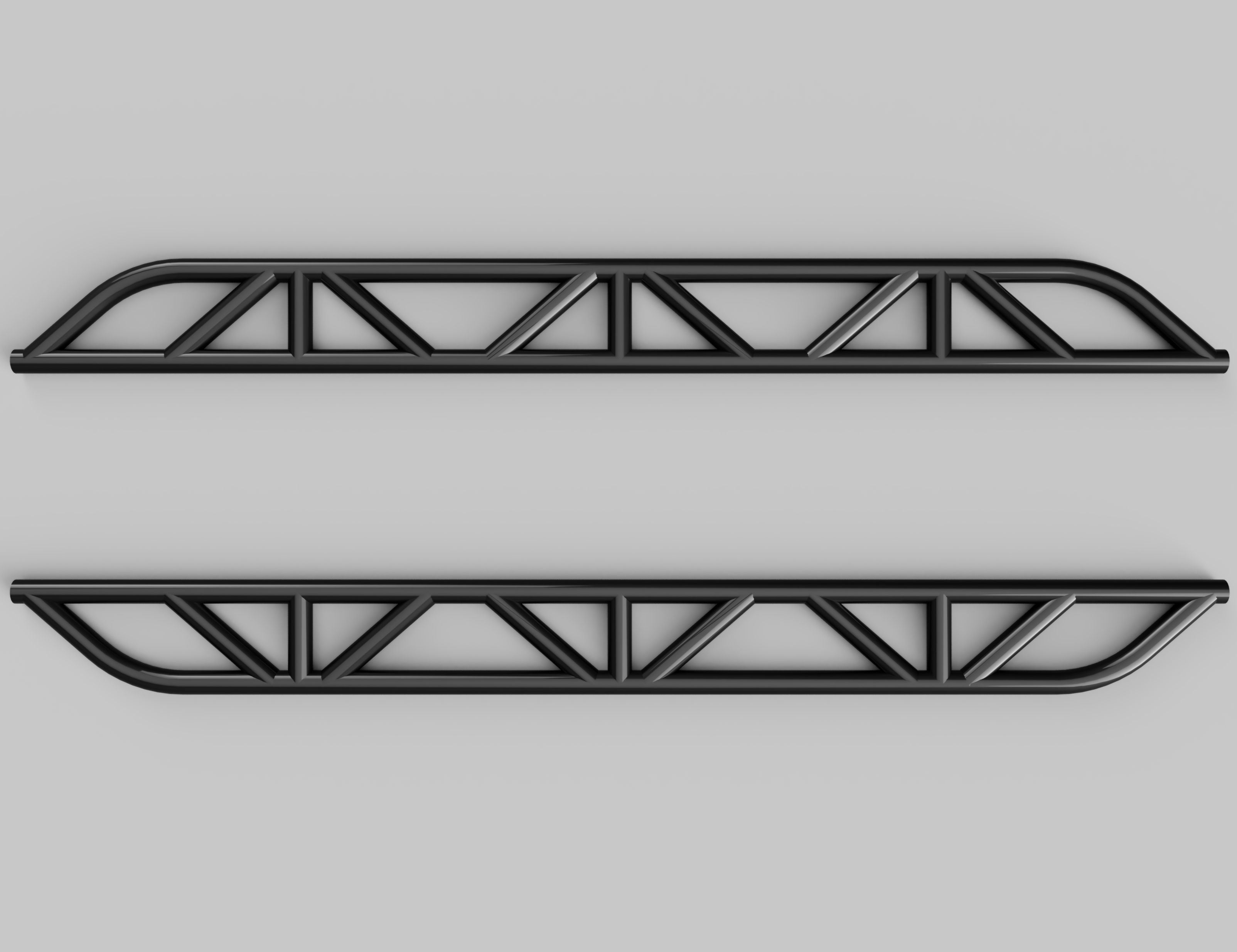

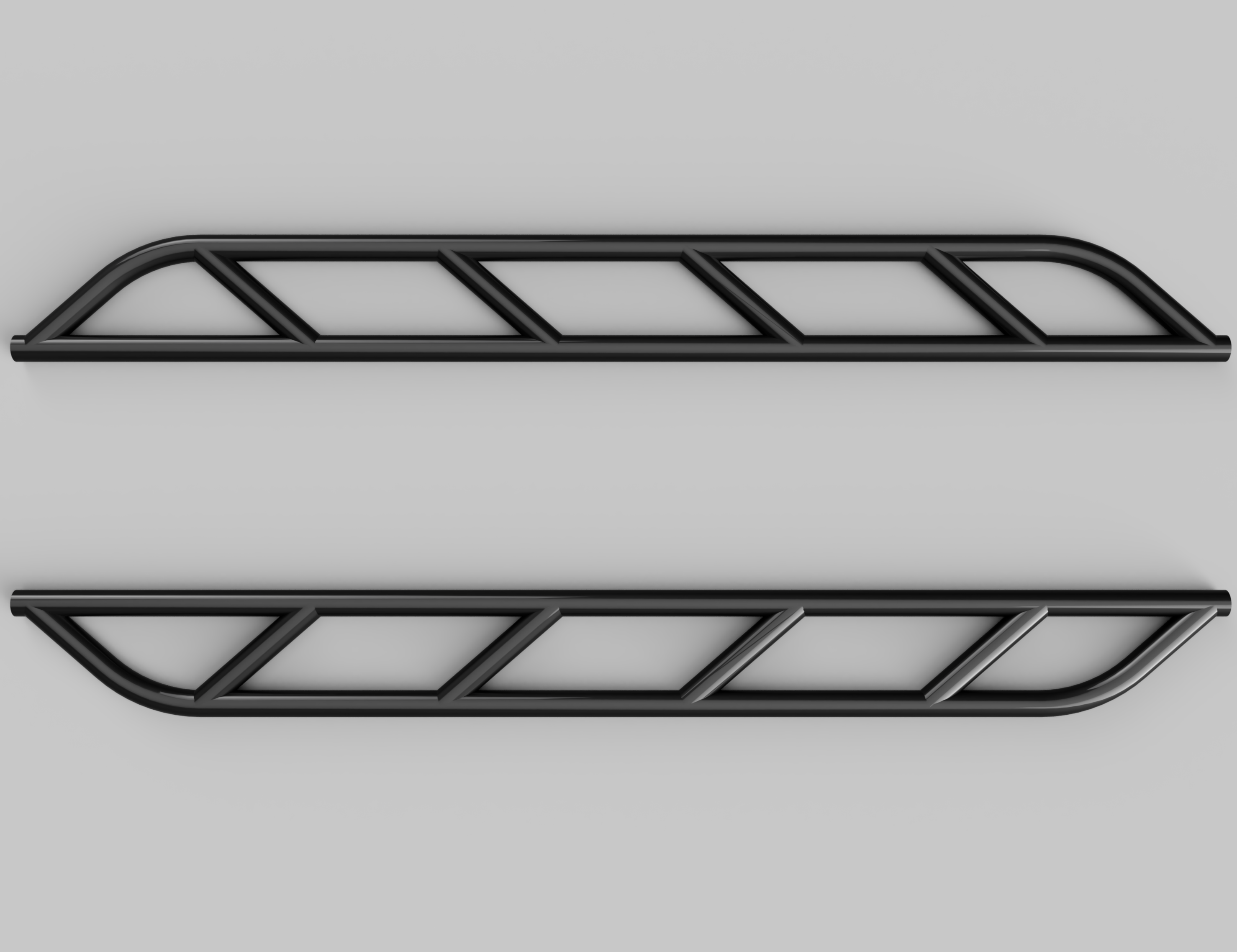

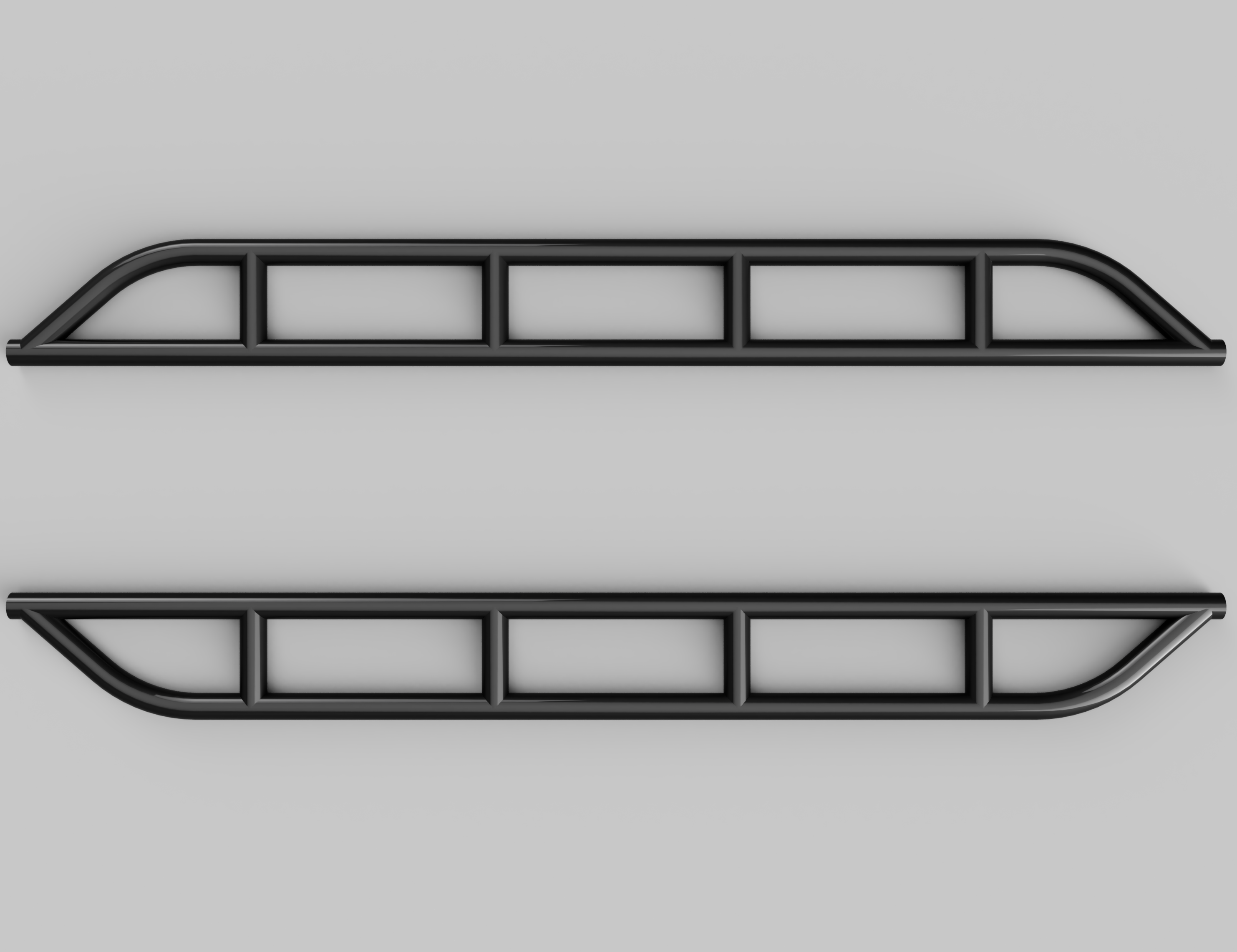

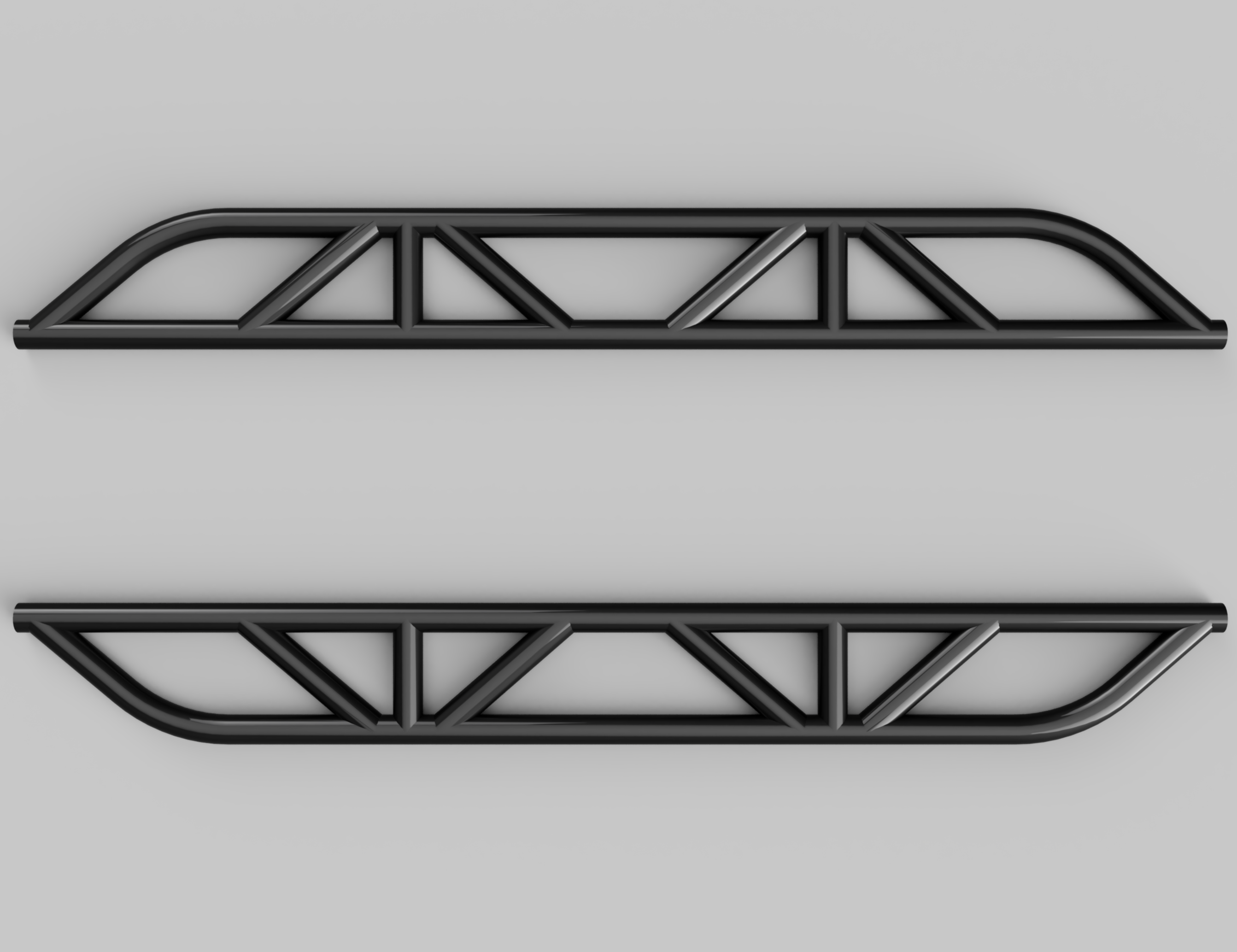

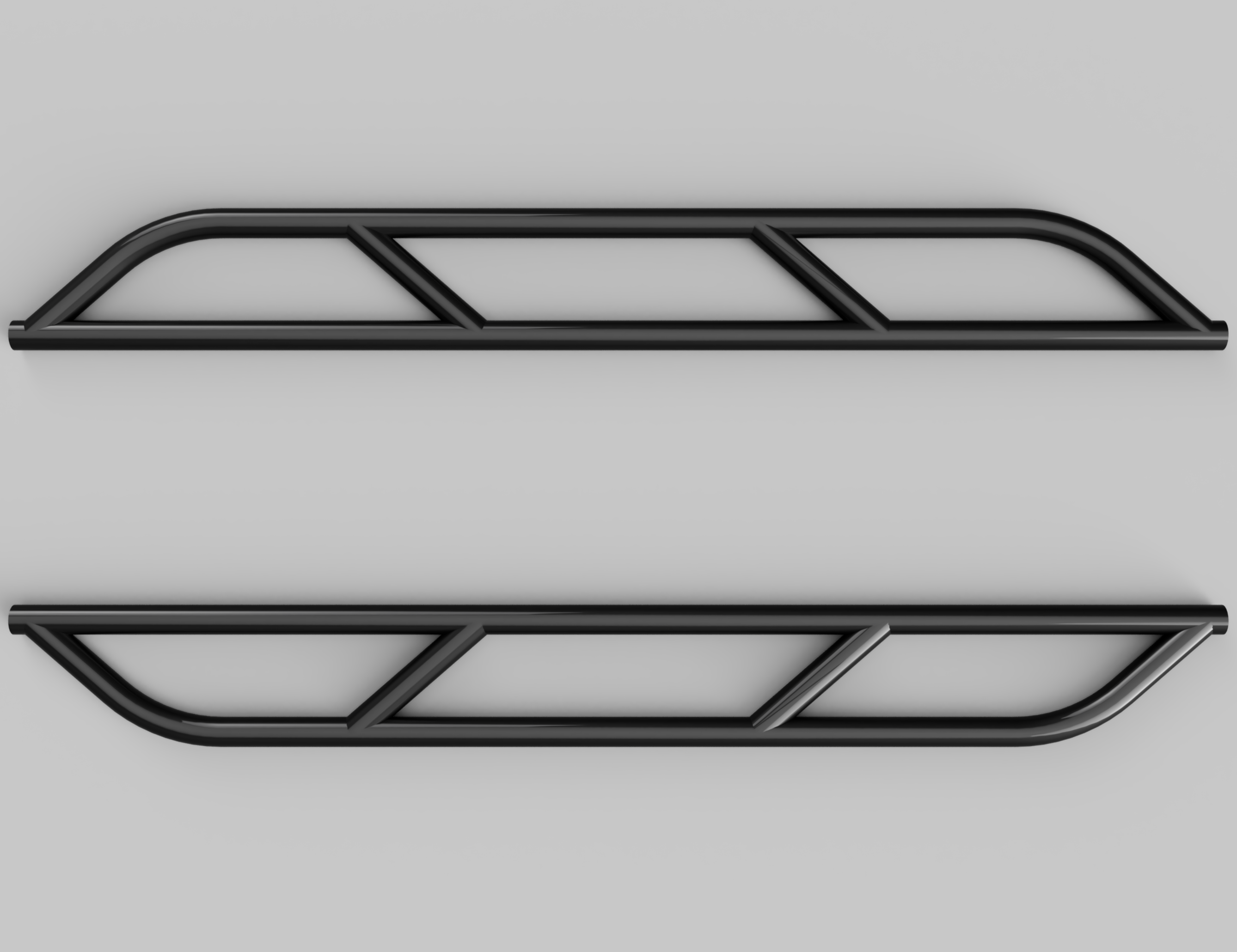

your desired STANDARD design at 1800 MM LONG
2 x 200 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket
2 x 280 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket
2 x 350 mm long tubing notched on one end at 90 degrees that goes from main slider to chassis bracket
4 x 2 mm thick end caps for the end of the straight tubes ( inner rail )
2 x 50 mm x 5 mm thick flat bar at 1500 mm long ( to make chassis brackets )
*IF YOU CHOOSE TO PURCHASE THE UNIVERSAL MOUNTING KIT*
Kit will include all of the above EXCEPT for the 2 x 50 mm x 5 mm flat bar lengths

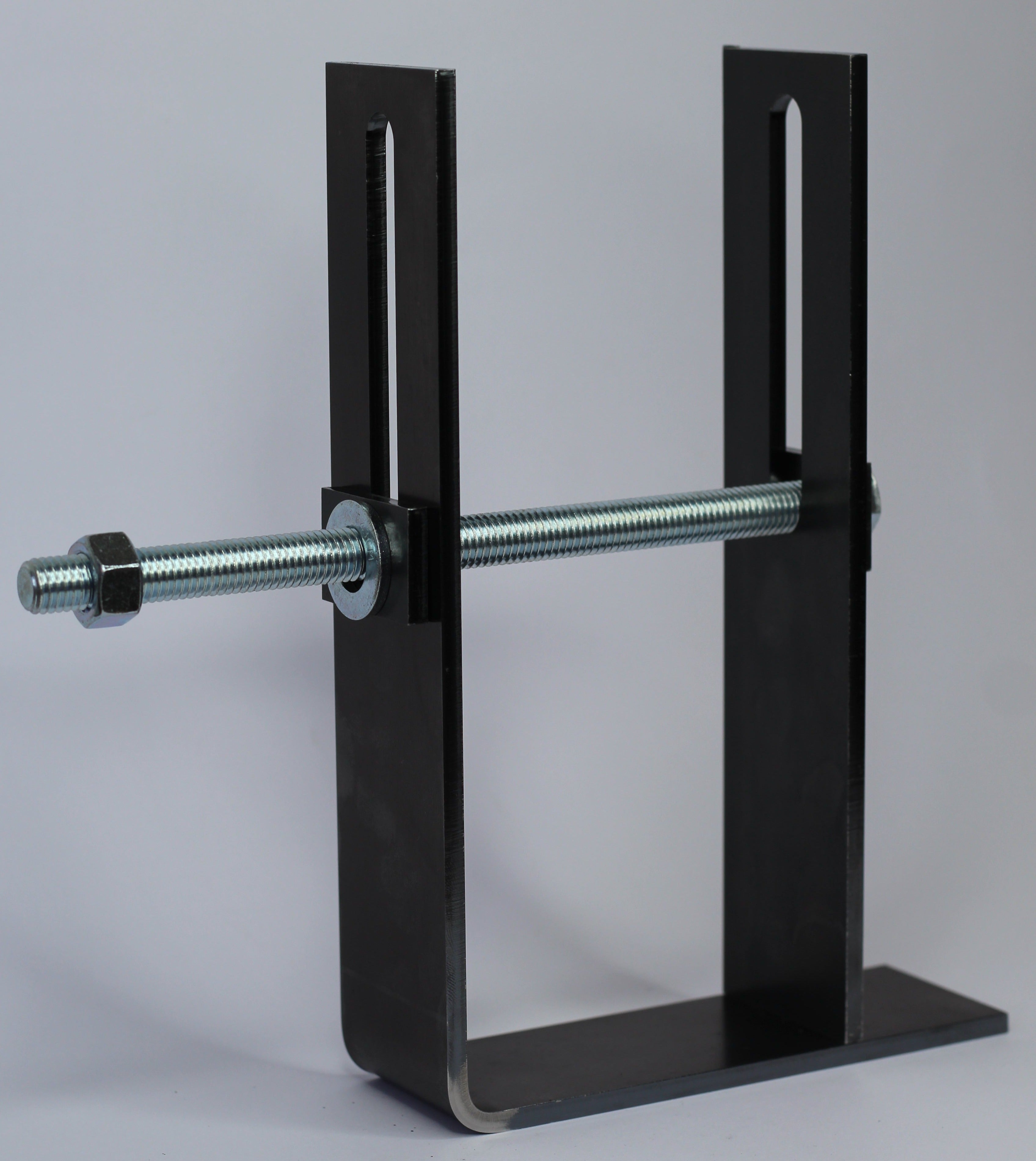

Universal chassis bracket that is made to suit square / rectangle box 4x4 vehicle chassis rails
these Universal Chassis Brackets will suit any box chassis with a range from 100 mm to 200 mm in height and up to 150 mm in width
these brackets are made from 50 mm wide x 5 mm thick mild steel plate, laser cut for precision
this Universal Chassis Bracket mounting kit is a set of 6 which includes
6 x L brackets with slots cut into them
6 x straight brackets ( to be welded to the L bracket ) with a slot cut into them
12 x rectangular plates with a hole cut into them ( to be welded to both the L bracket and straight bracket )
6 x 200 mm long x 12 mm high tensile zinc plated bolt ( to be cut down to the length required for your chassis )
12 x 12 mm zinc plated washers
6 x 12 mm lock nuts
6 x steel gusset stiffener plates with 90 degree bends at 80 mm x 80 mm x 4mm thick. Has a 5 mm x 5 mm corner cut out for easy fitment and Laser cut for precision
