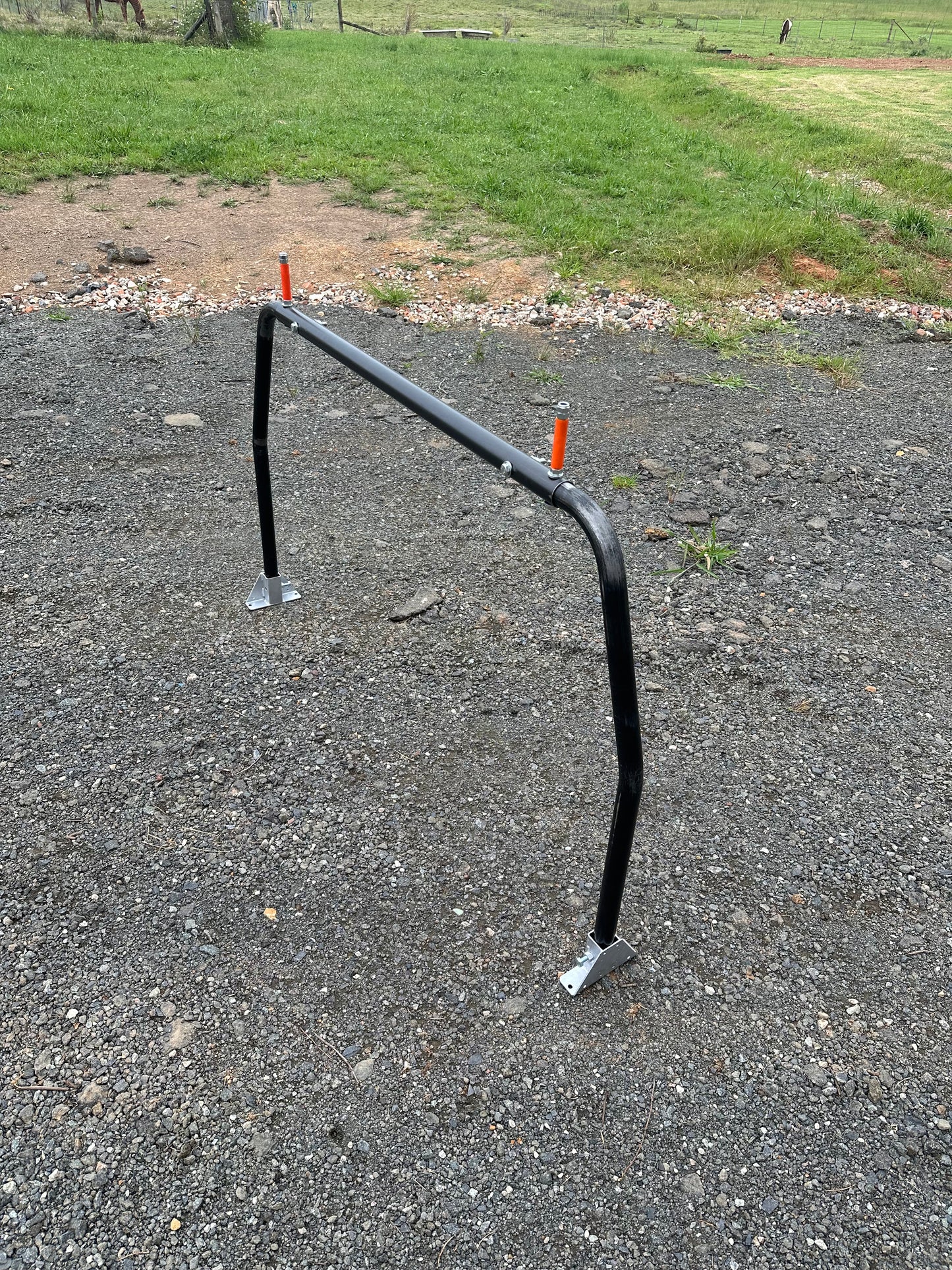

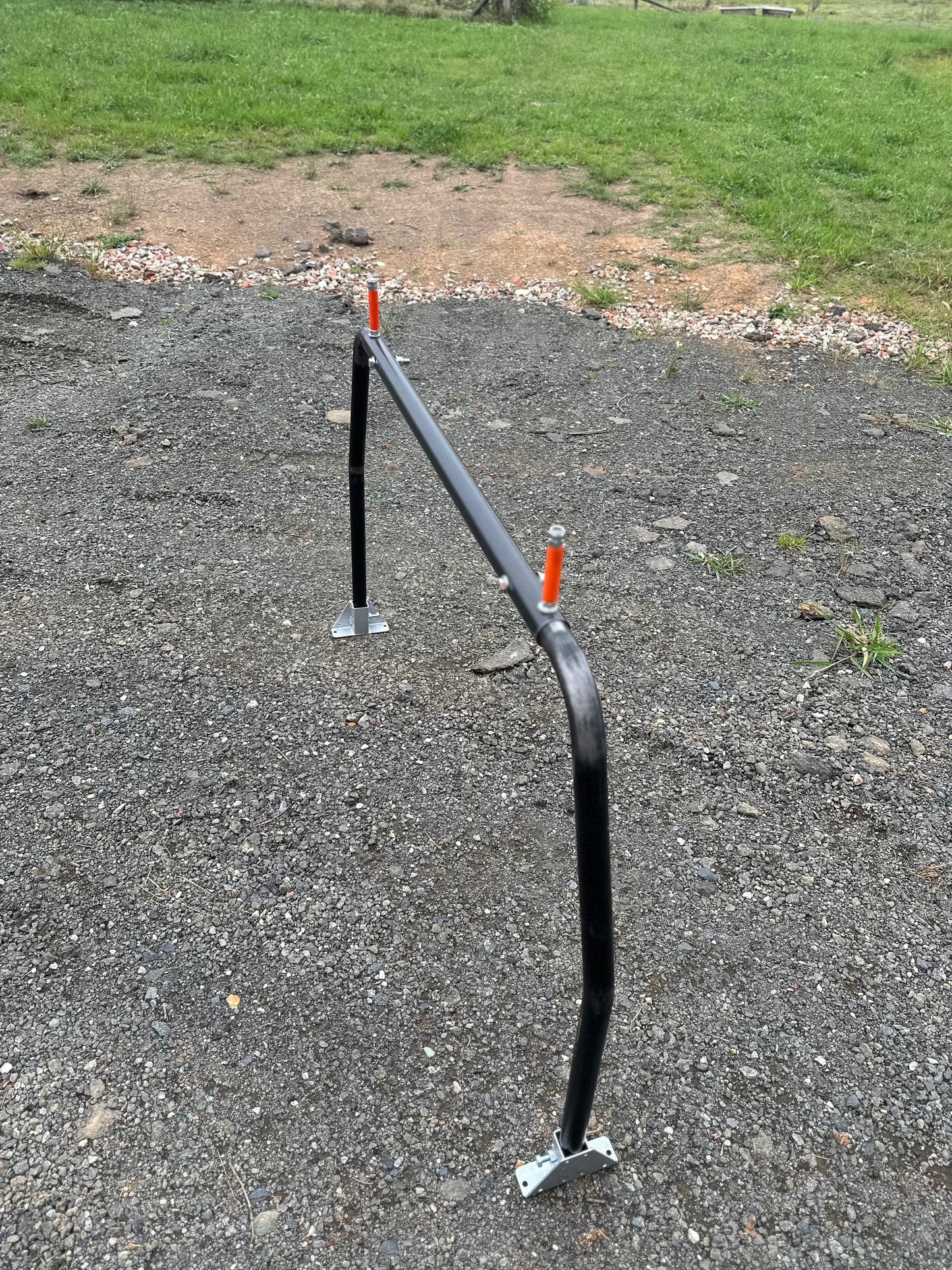

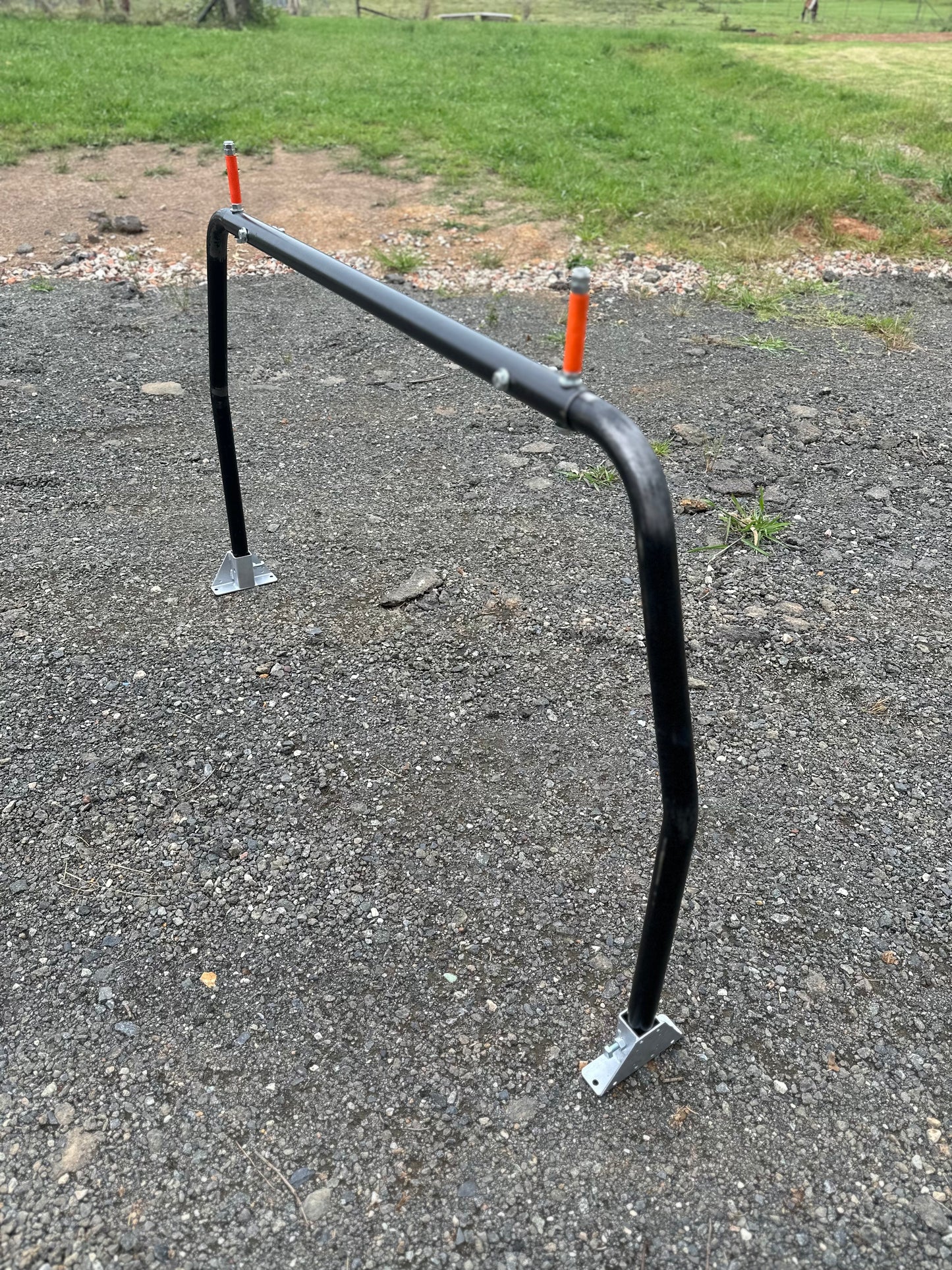

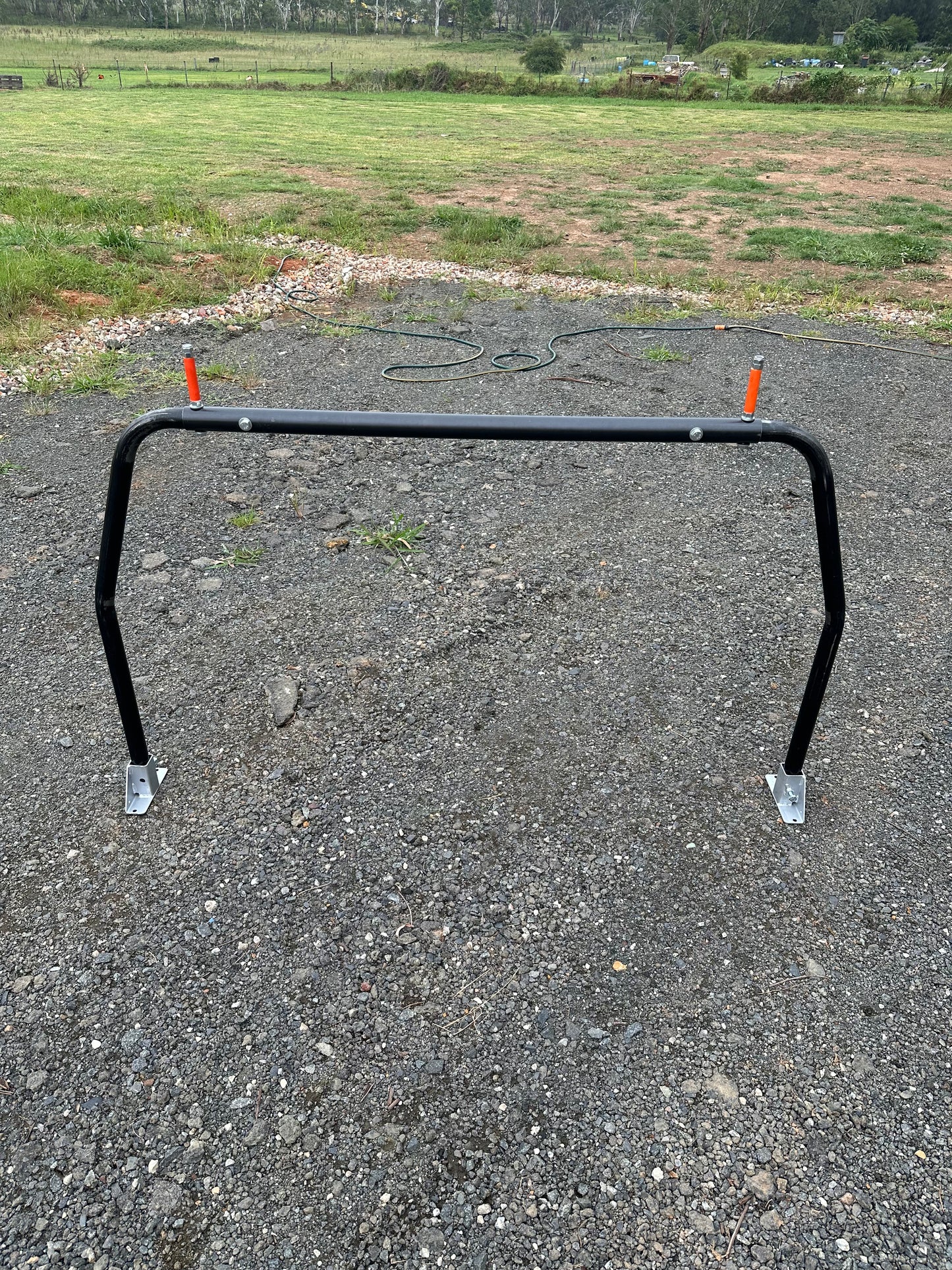

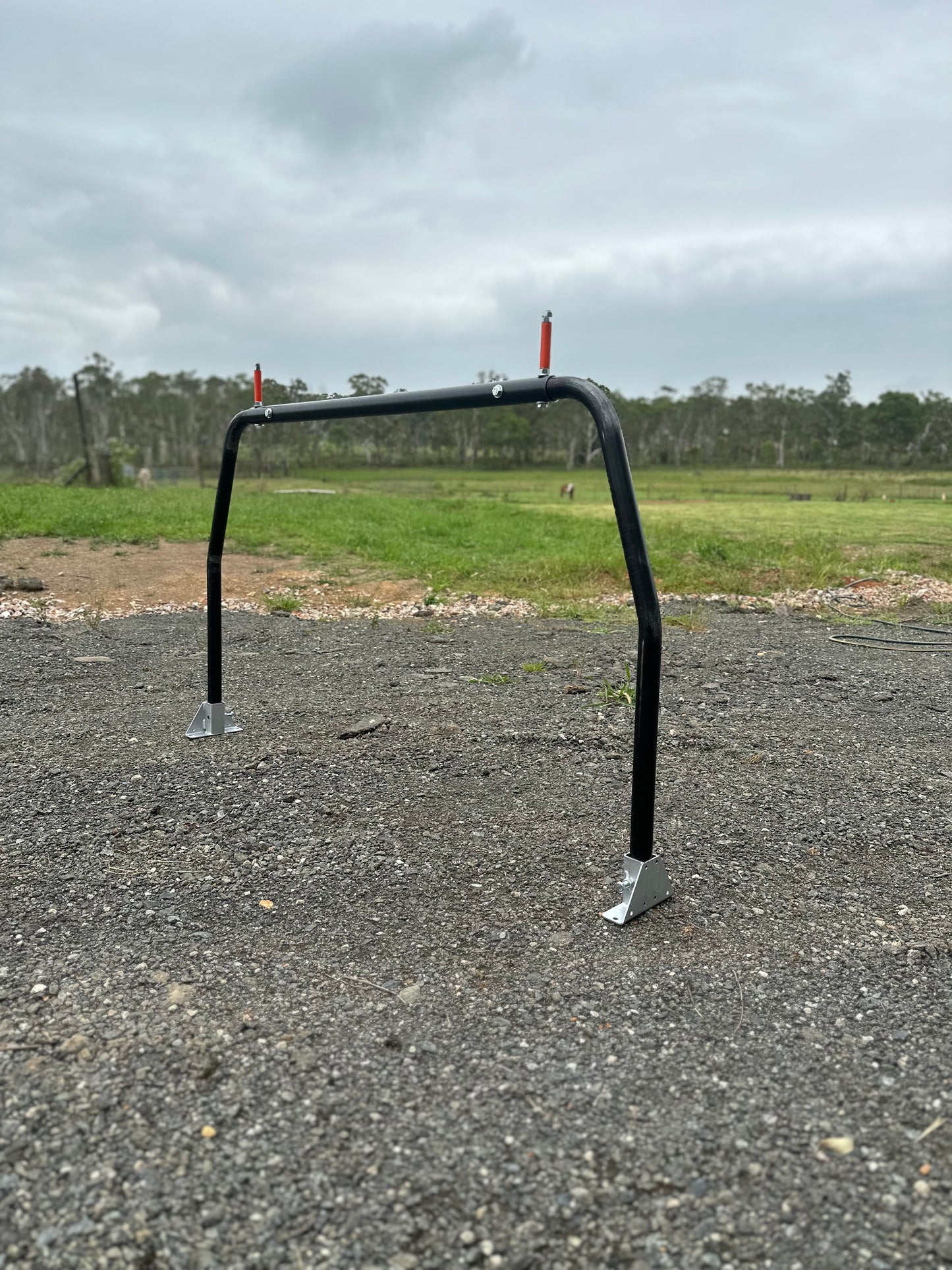

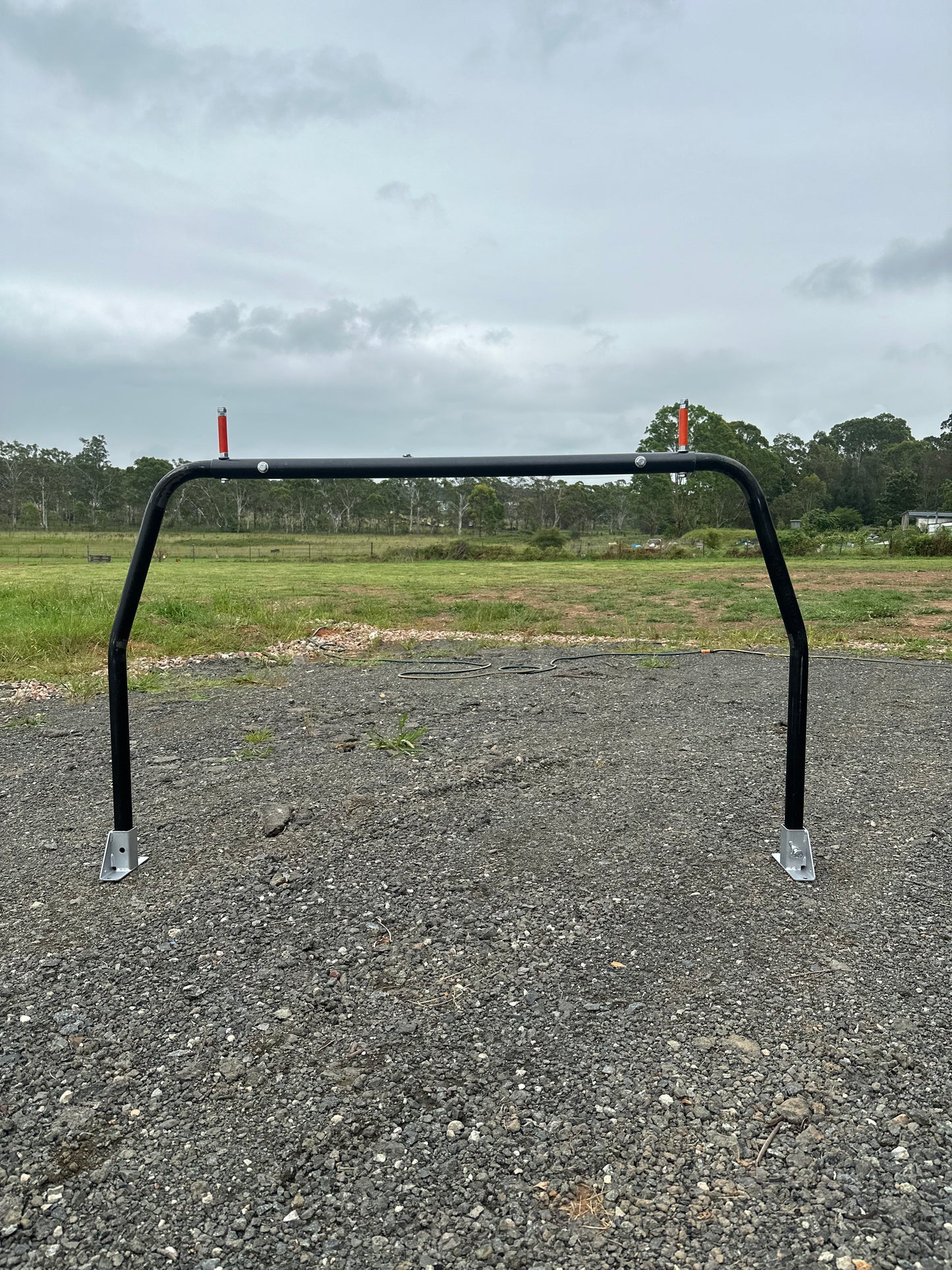

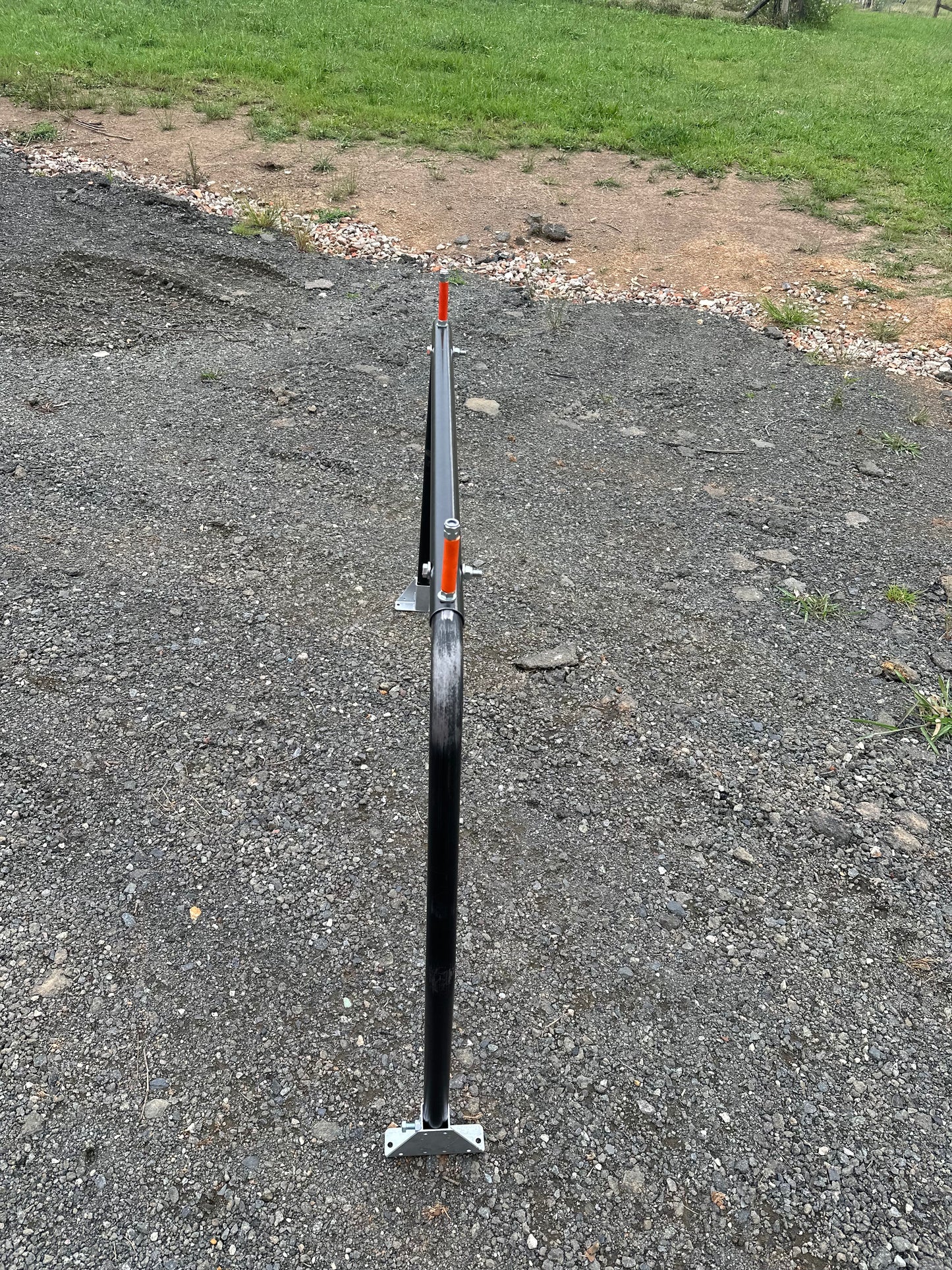

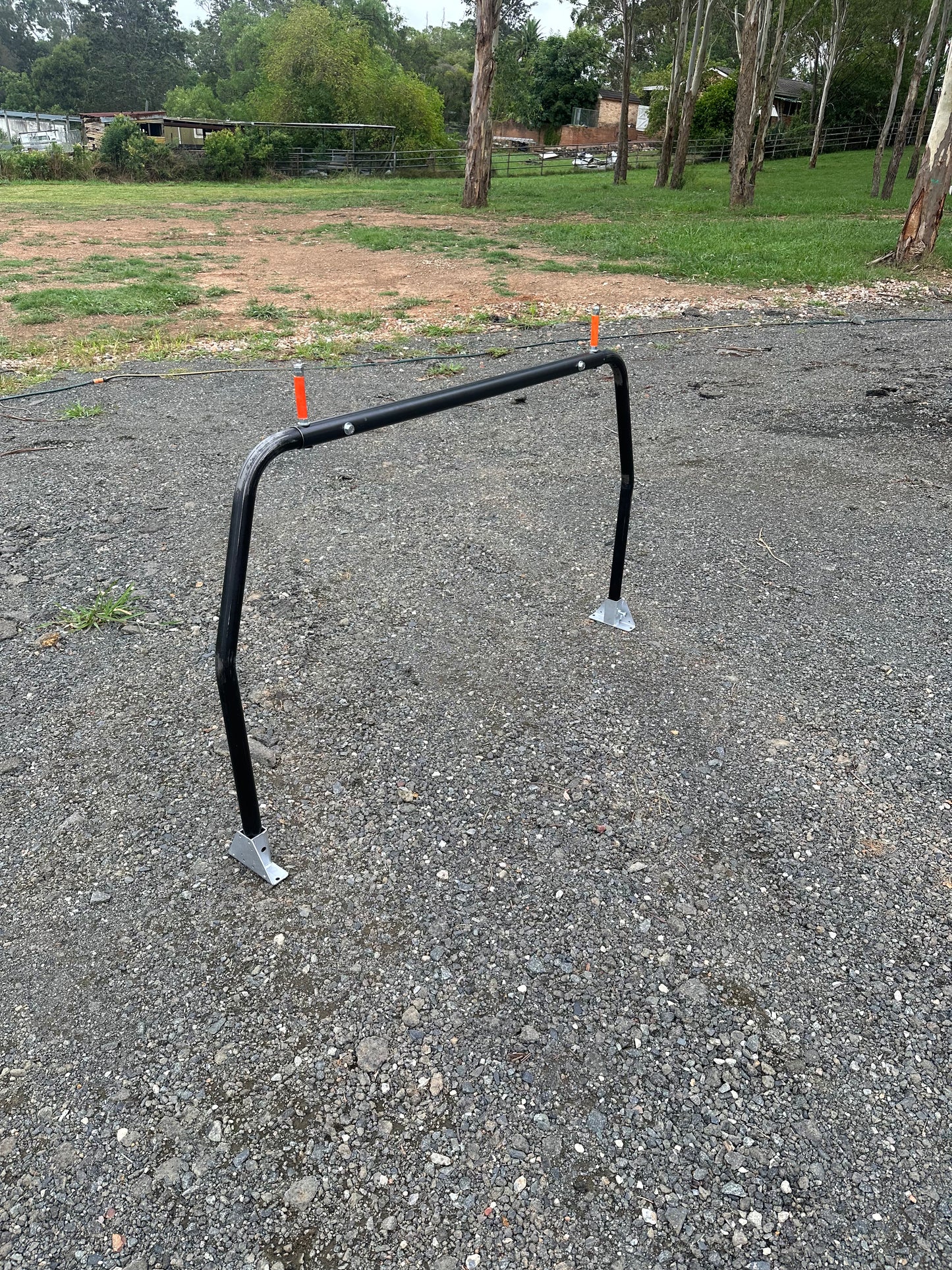

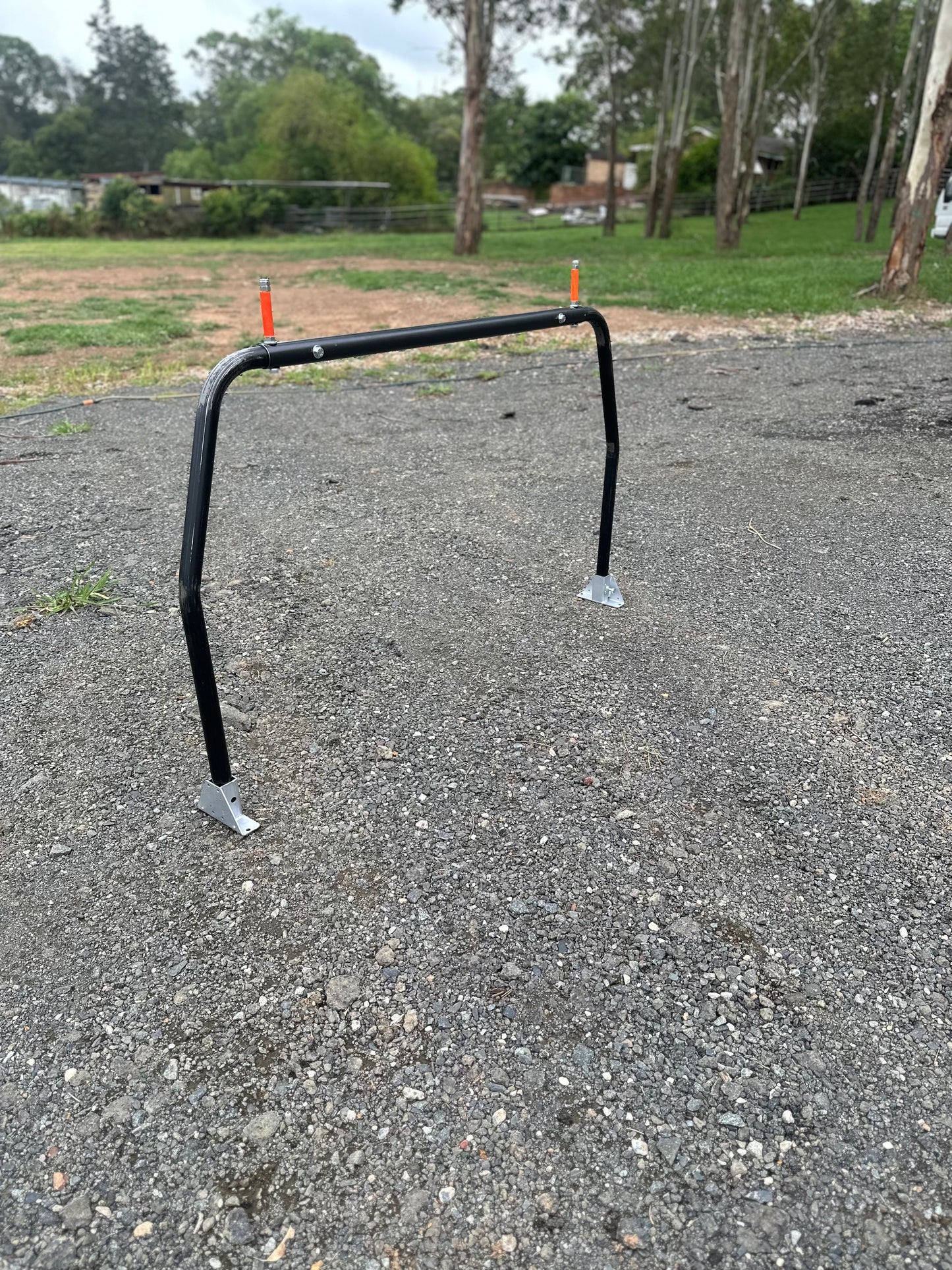

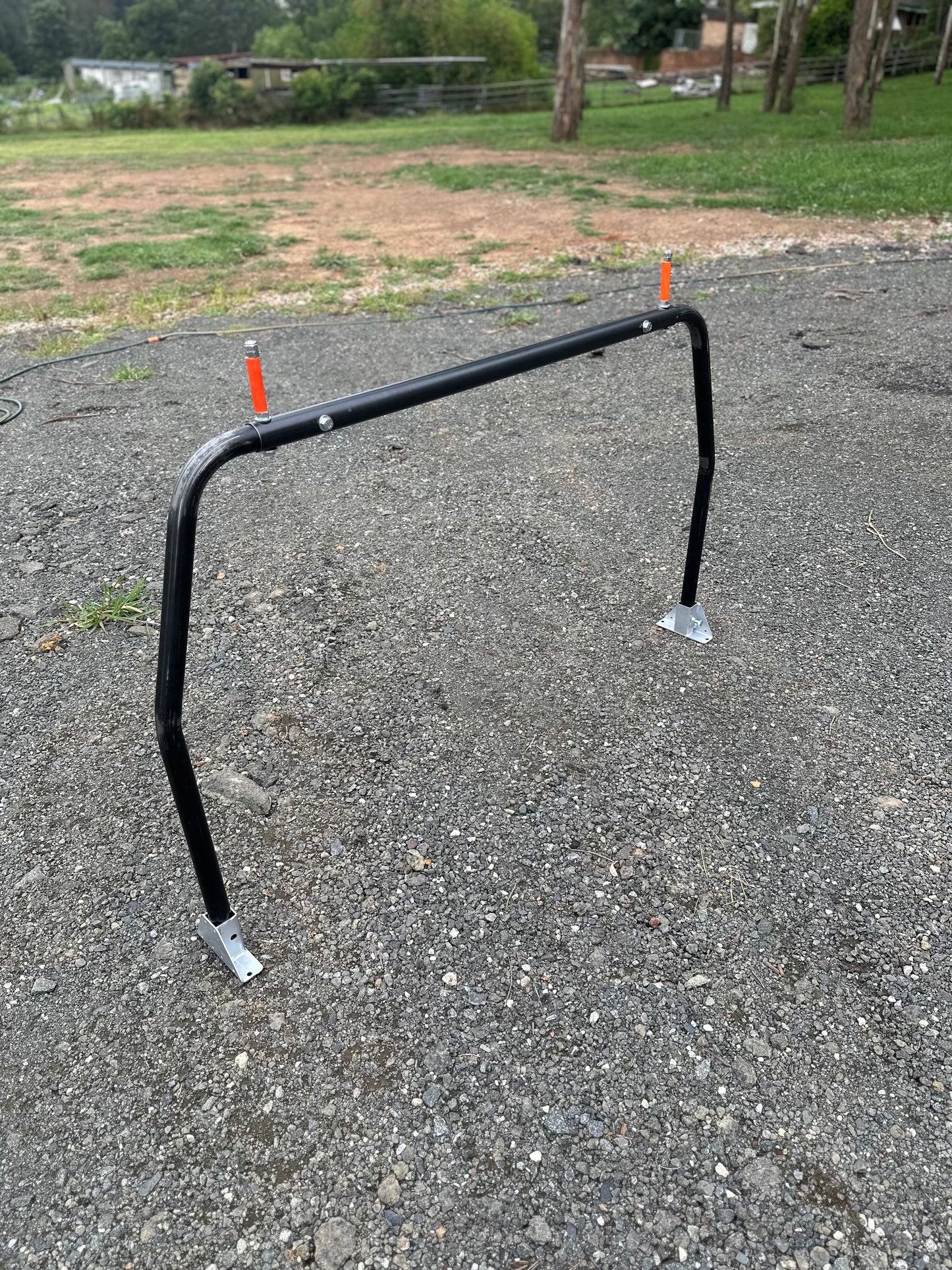

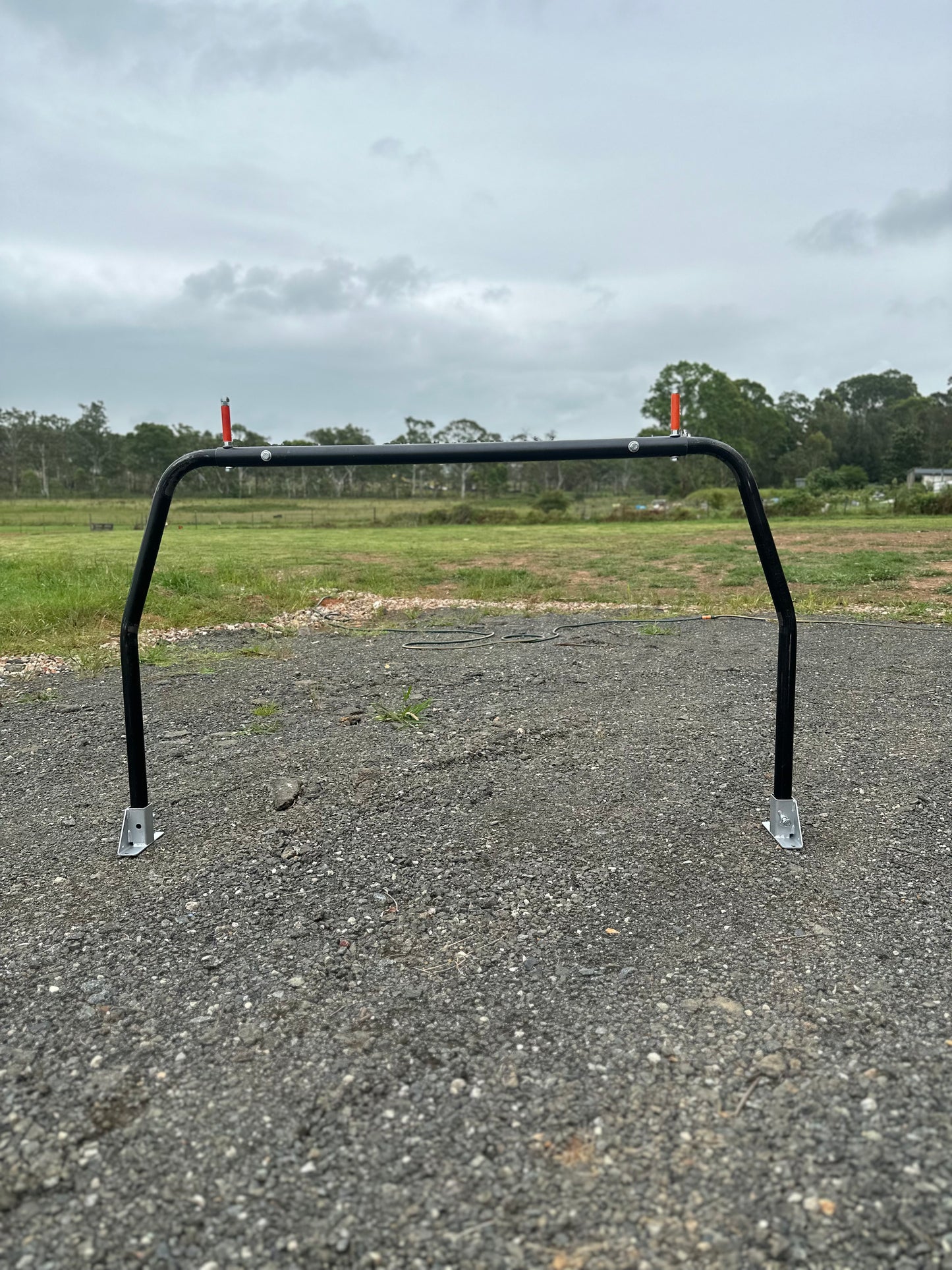

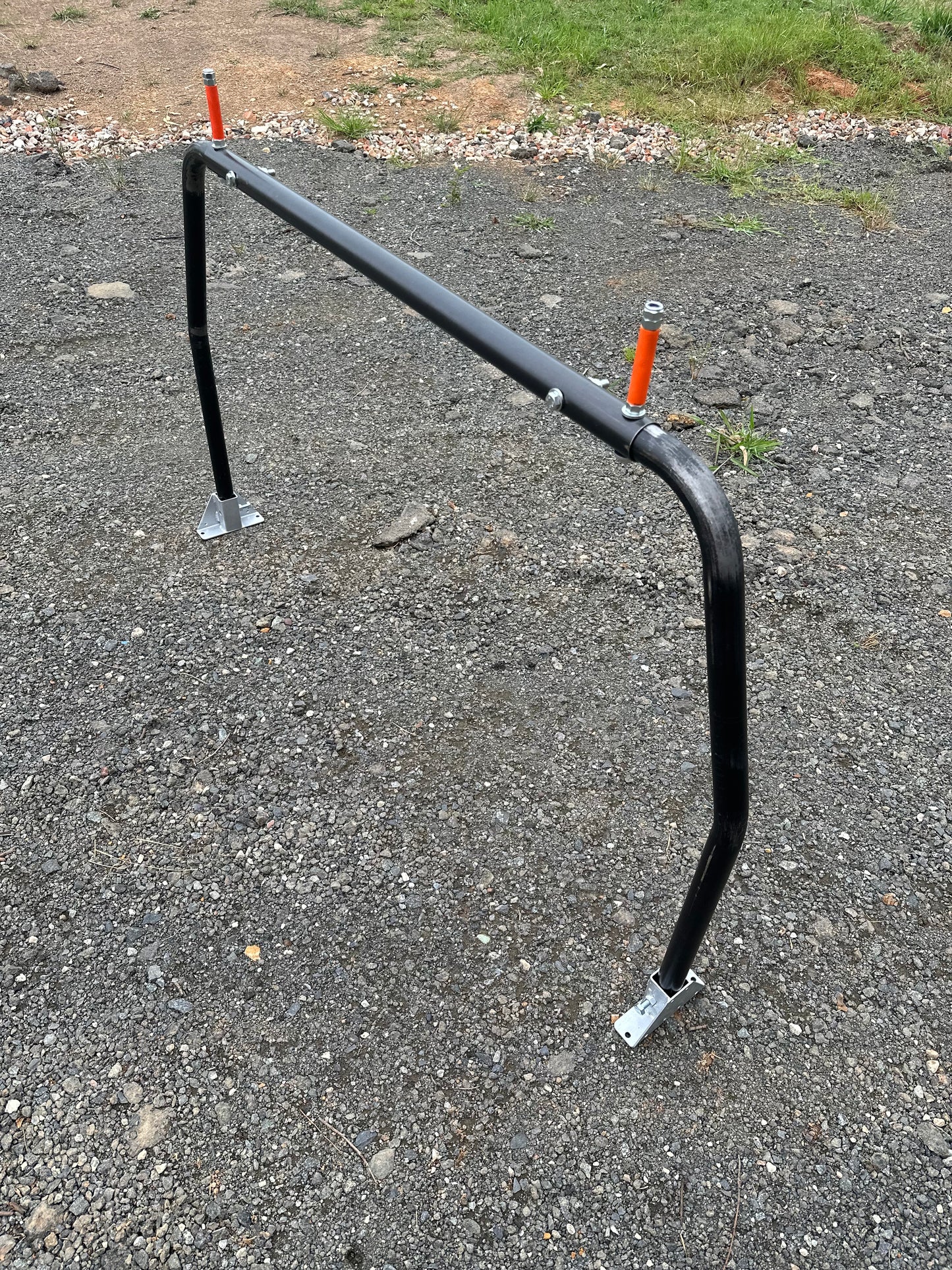

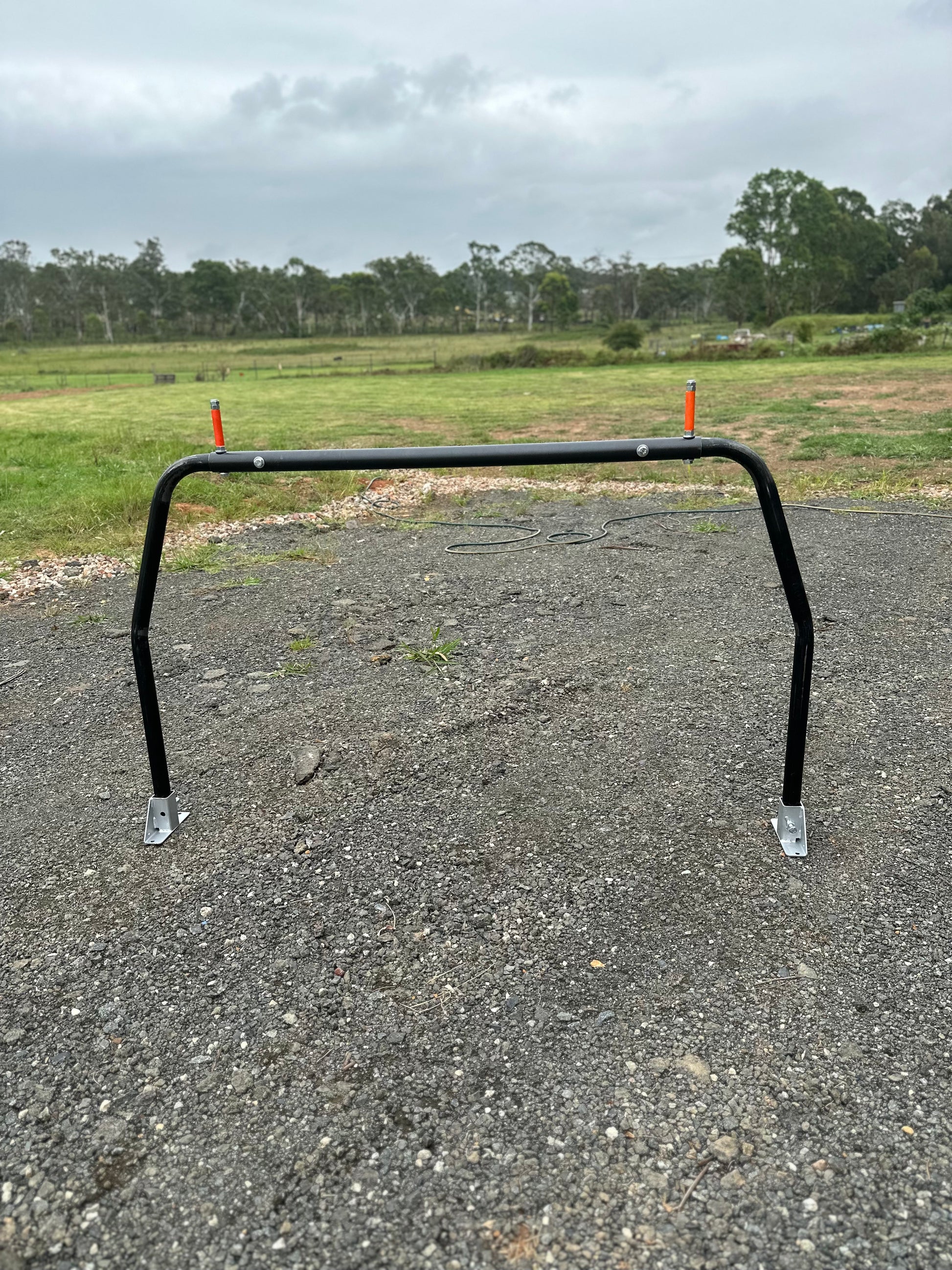

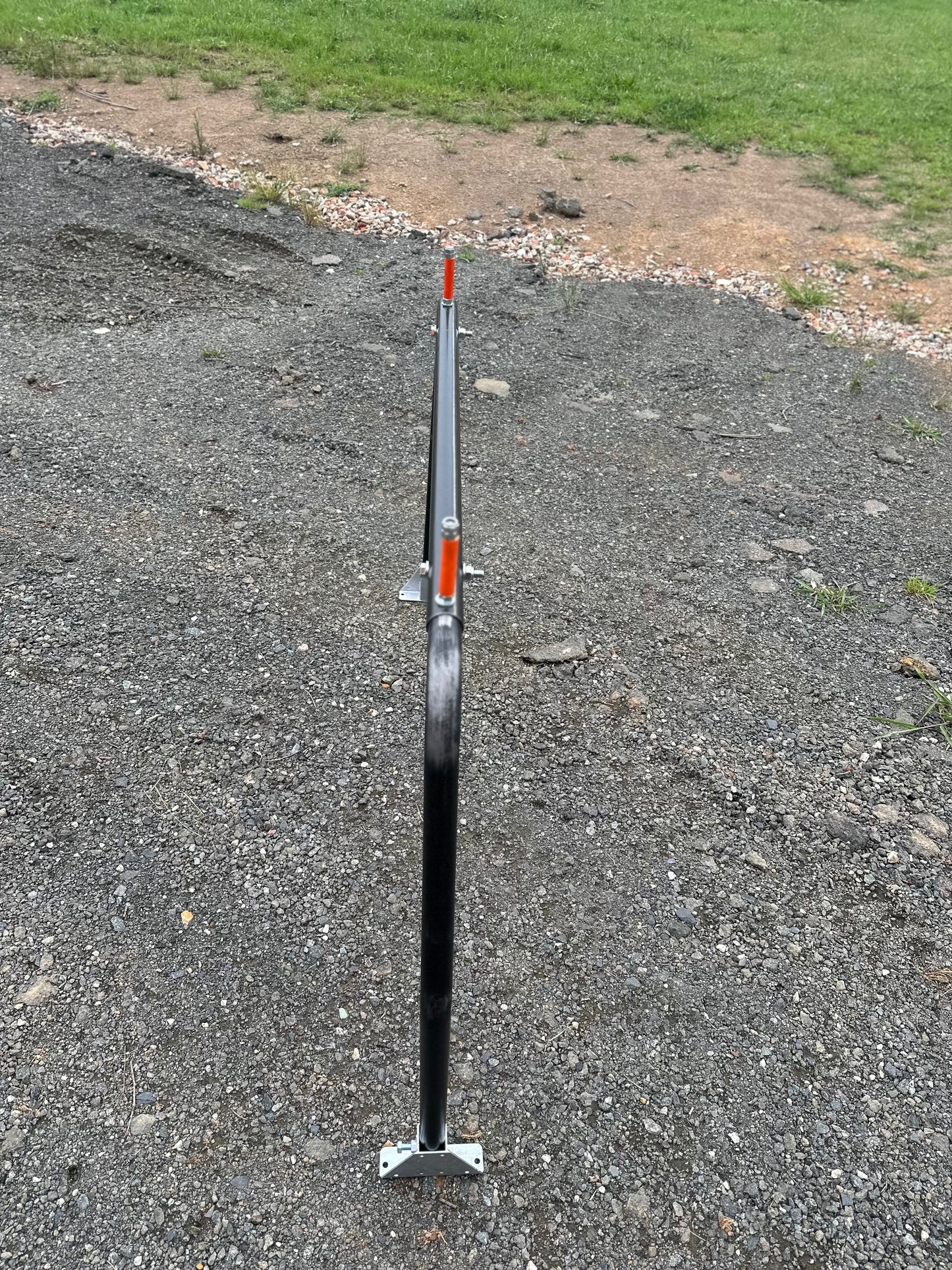

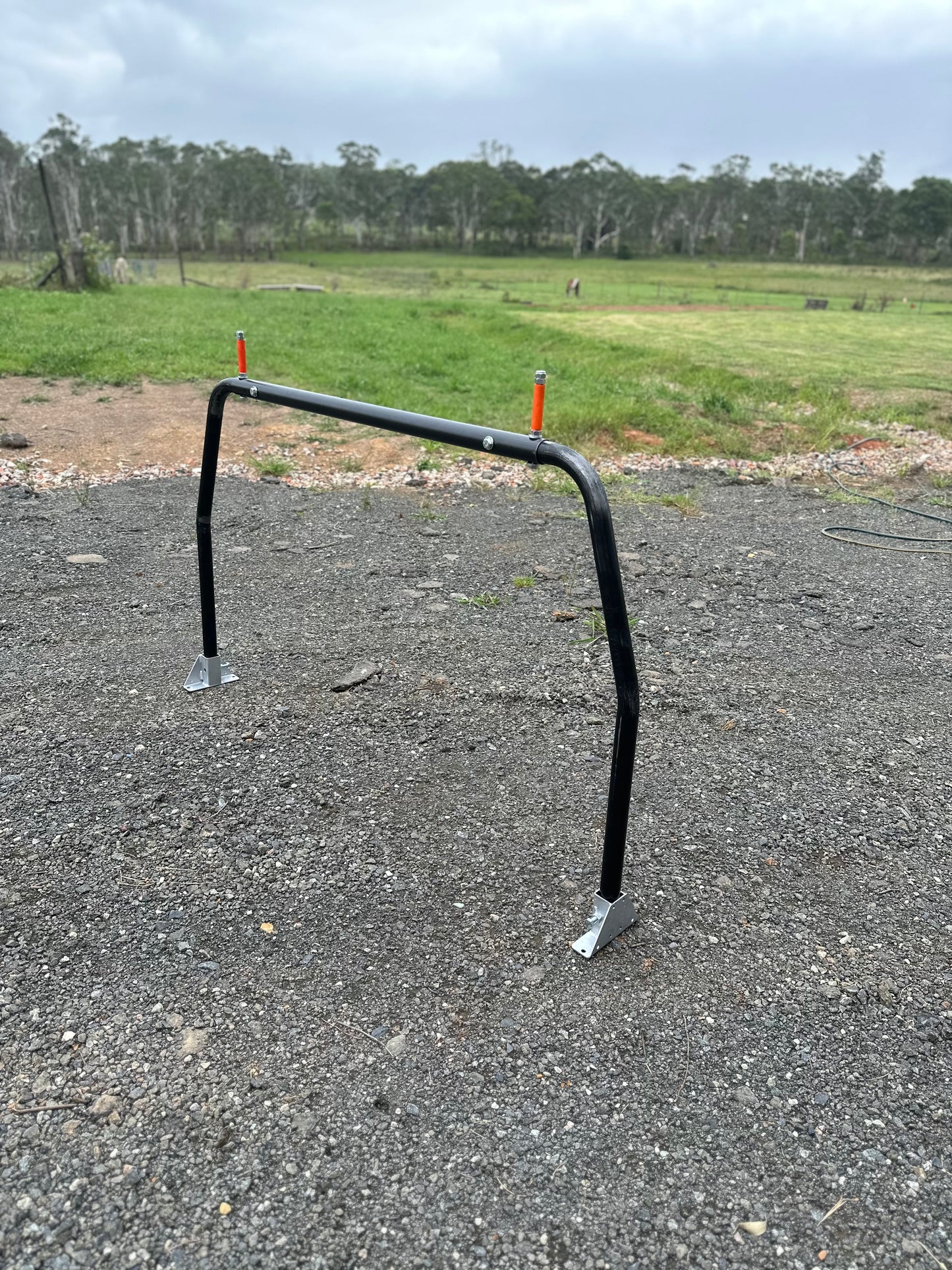

Universal Ladder rack - Bolt Together ROUND

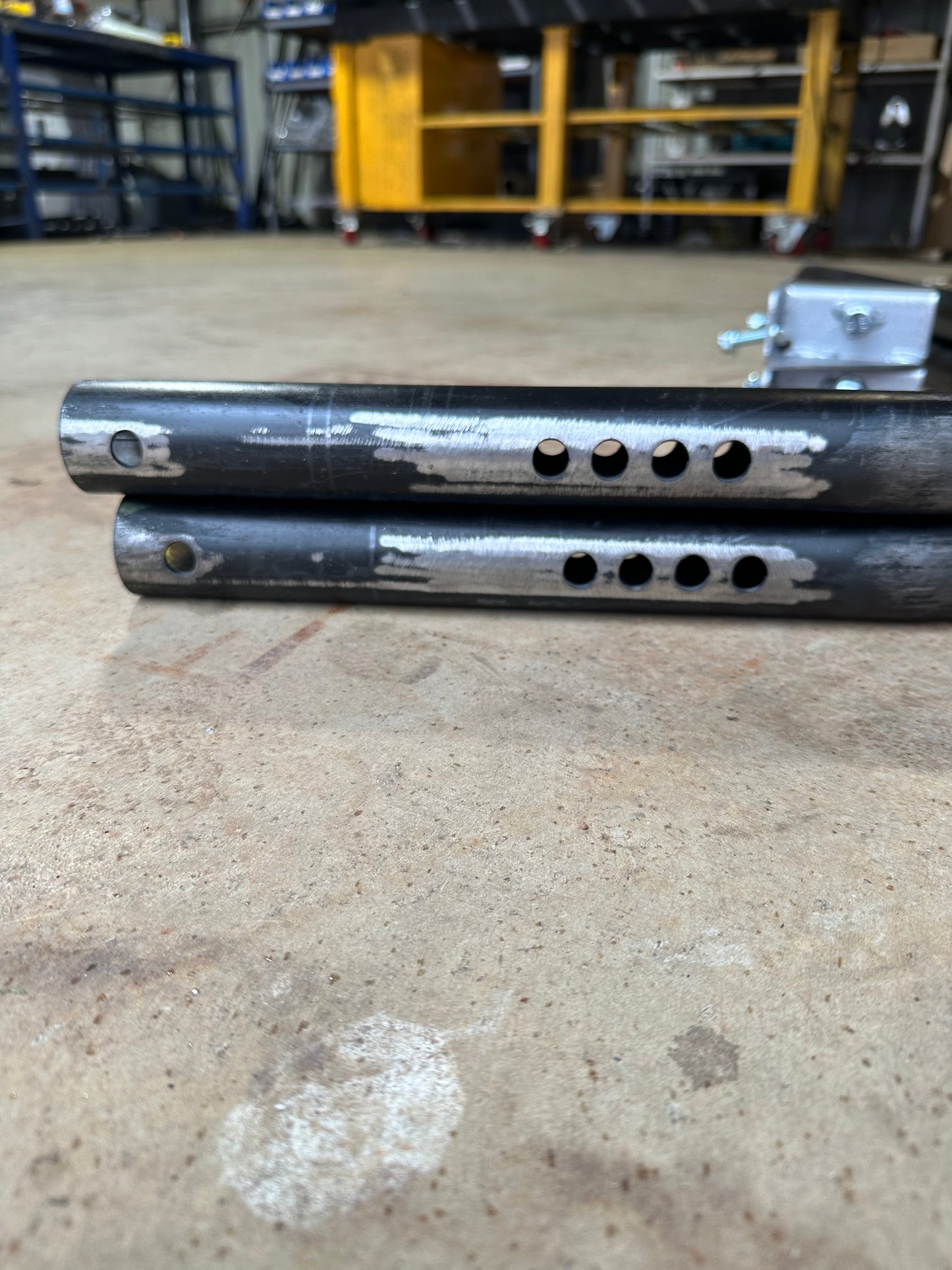

ADJUSTABLE BETWEEN 1680 MM to 1840 MM

Ladder Racks made from 42 x 42 x 2.6mm thick Steel Round section

1000 mm height ( you cut down to suit your required headboard height )

all fasteners included

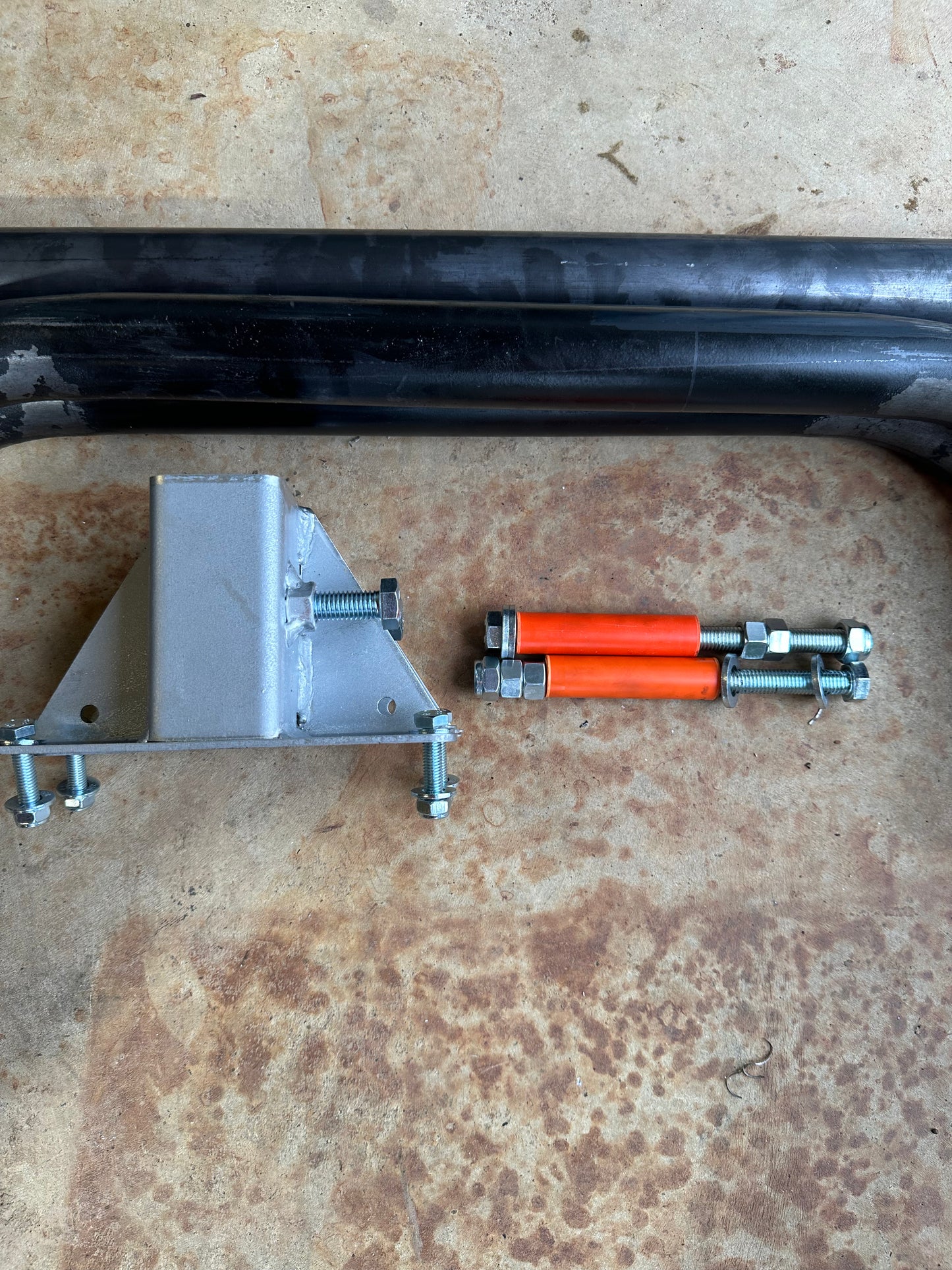

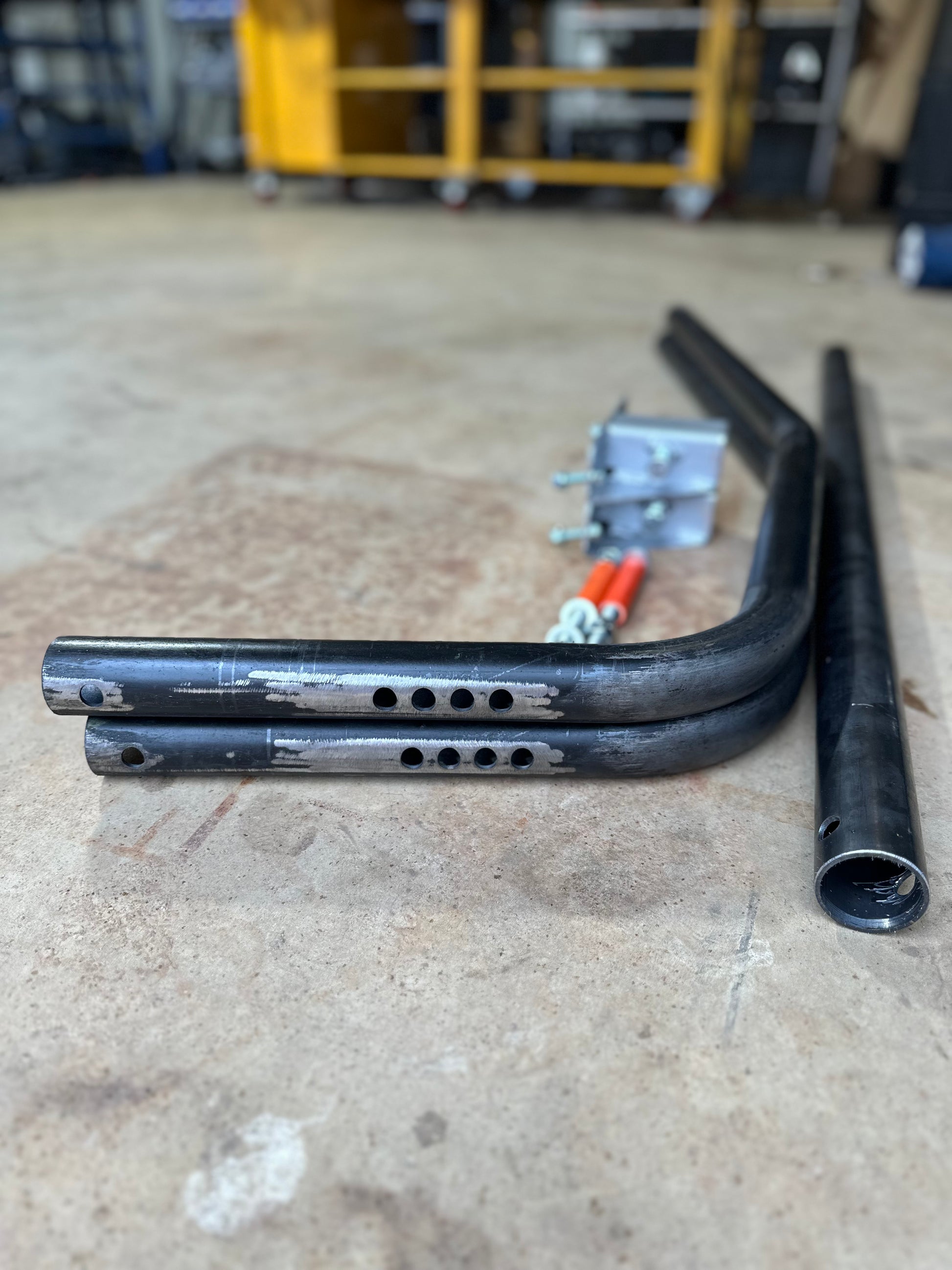

included in the kit is

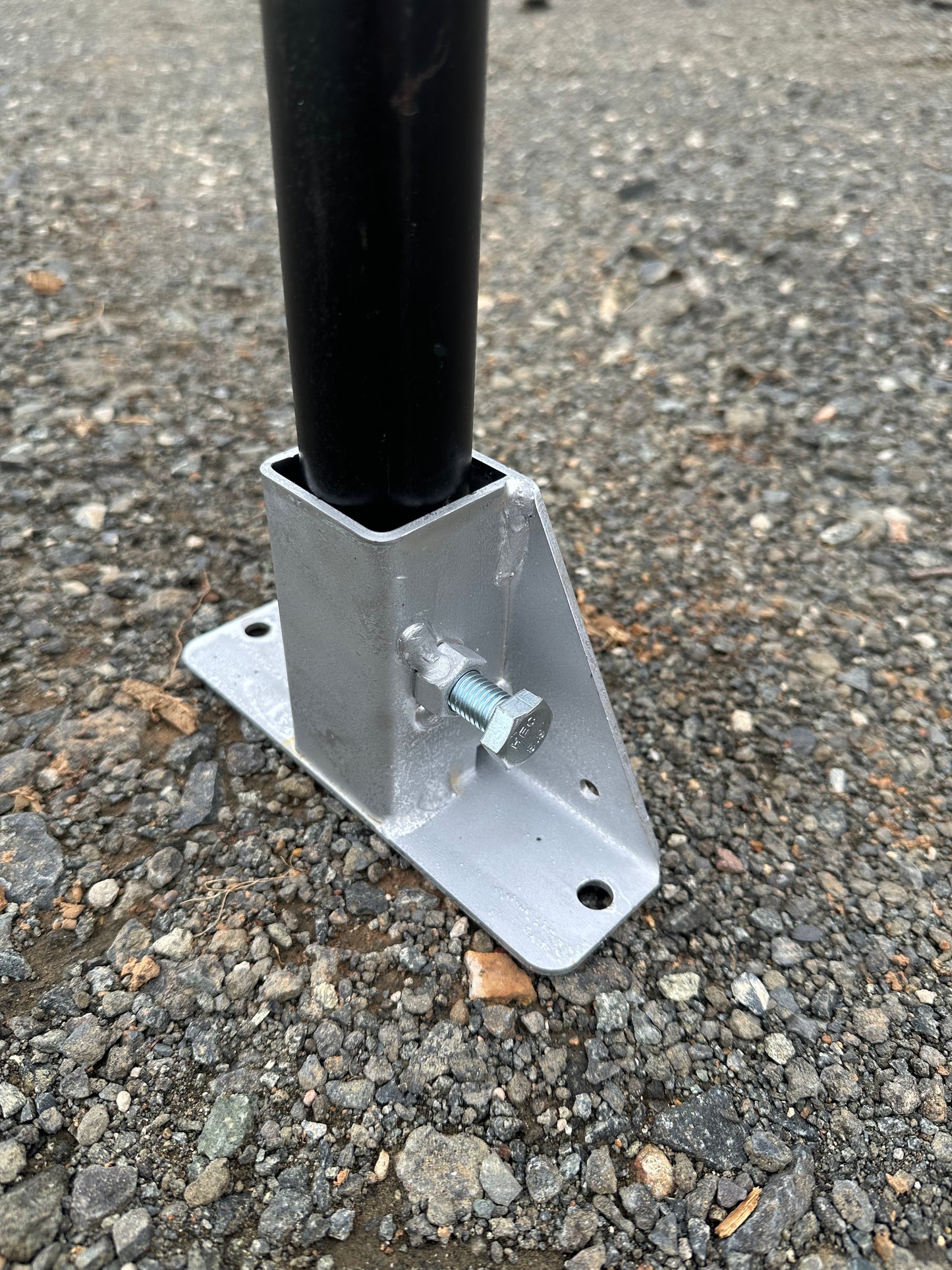

2 x galvanised steel feet with a welded 12 mm nut on either foot

4 x 35 mm x 8 mm bolts, lock nuts and washers ( to bolt feet to ute tray )

2 x 35 mm x 12 mm bolts ( used to clamp the ladder rack in place in the feet )

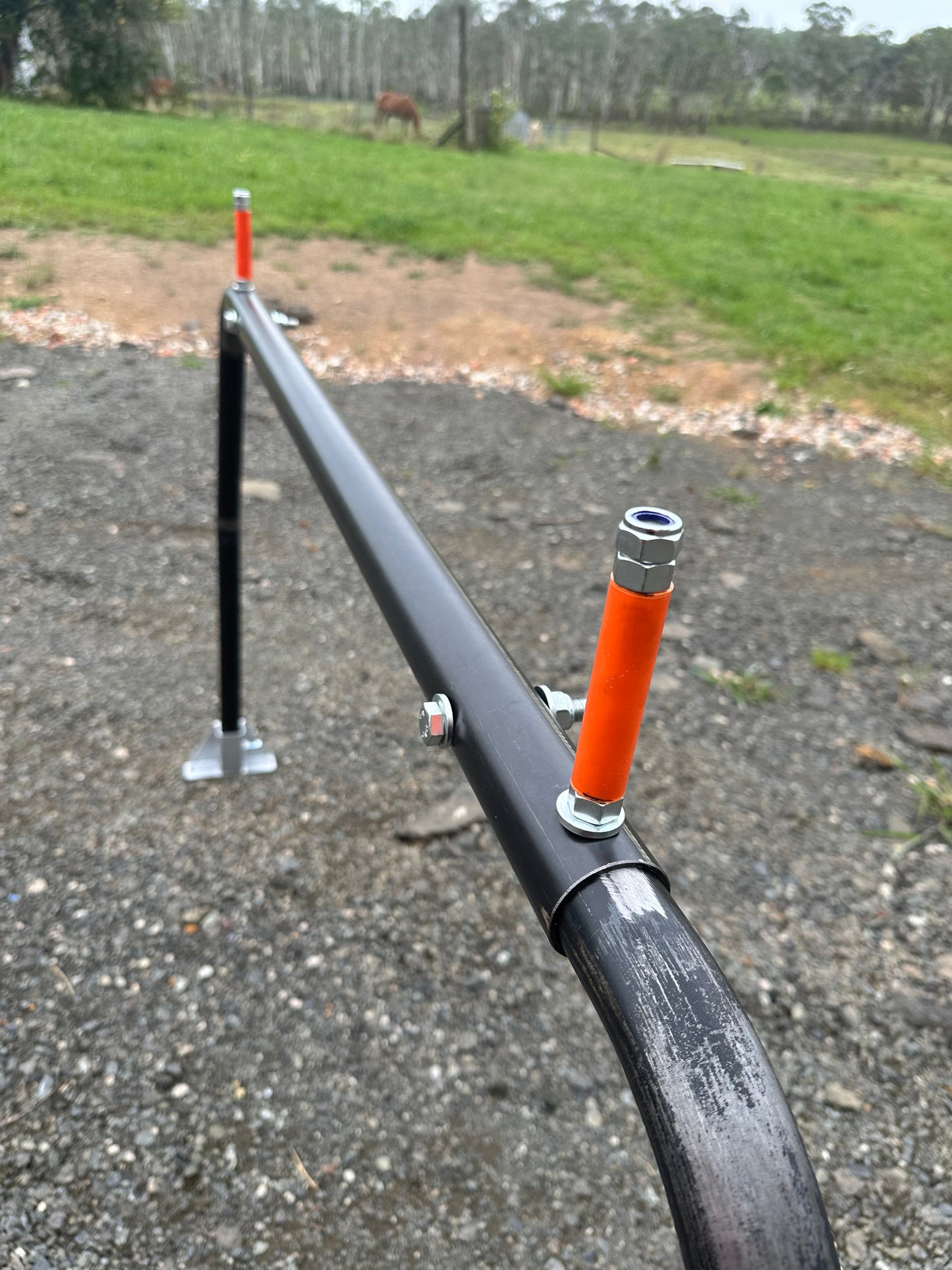

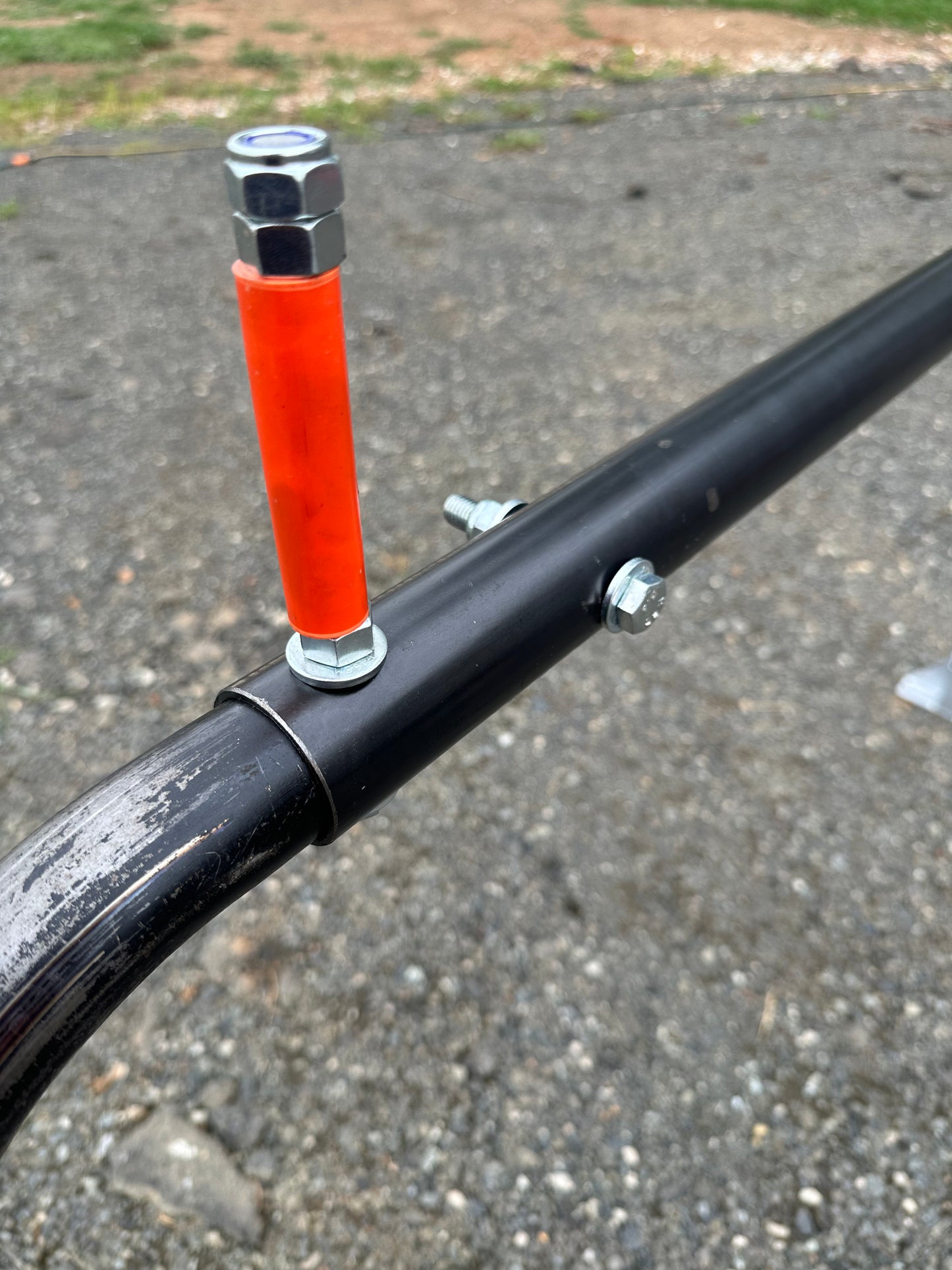

2 x 12 mm x 140 mm long bolts ( used for the pins for the top of the ladder rack, removable if needed )

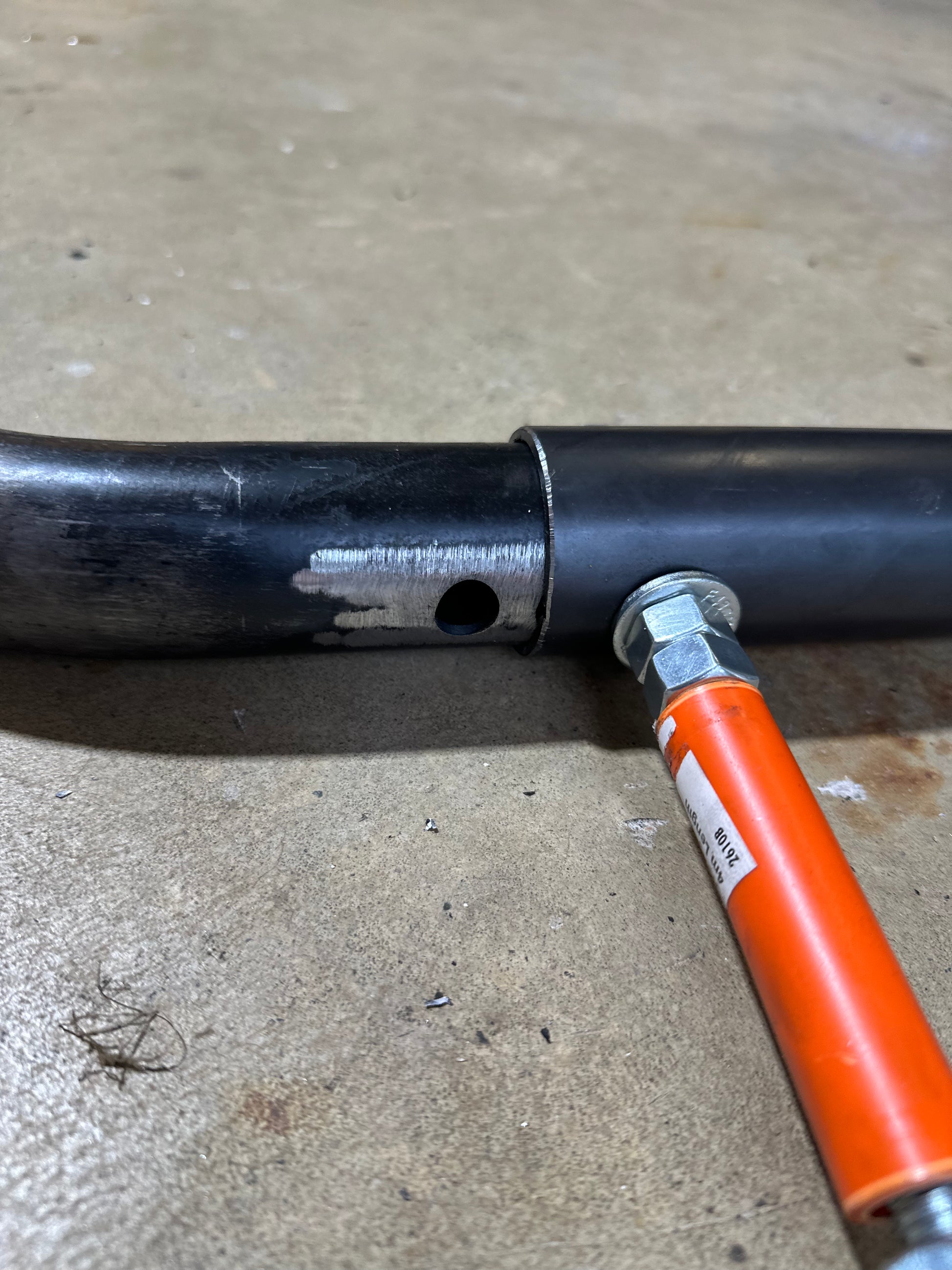

4 x 12 mm x 70 mm Long Bolts ( used for the secondary bolts to bolt the ladder rack together )

2 x orange PVC tubes to cover the 12 mm bolts as a scuff and scratch resistant buffer

4 x washers and lock nuts for 12 mm bolts / pins
